Knock Sensor: Testing and Inspection

INSPECT KNOCK SENSOR

a. Inspect the resistance.

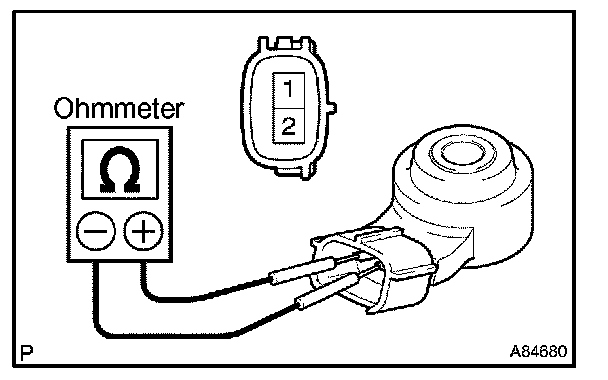

1. Using an ohmmeter, measure the resistance between the terminals.

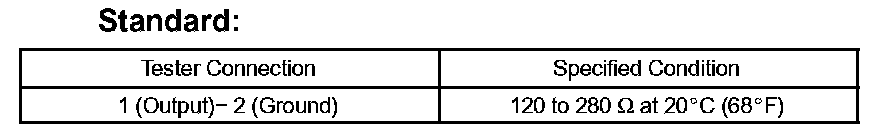

If the resistance is not specified, replace the knock sensor.
