OEM System Circuits: Charging: Notes

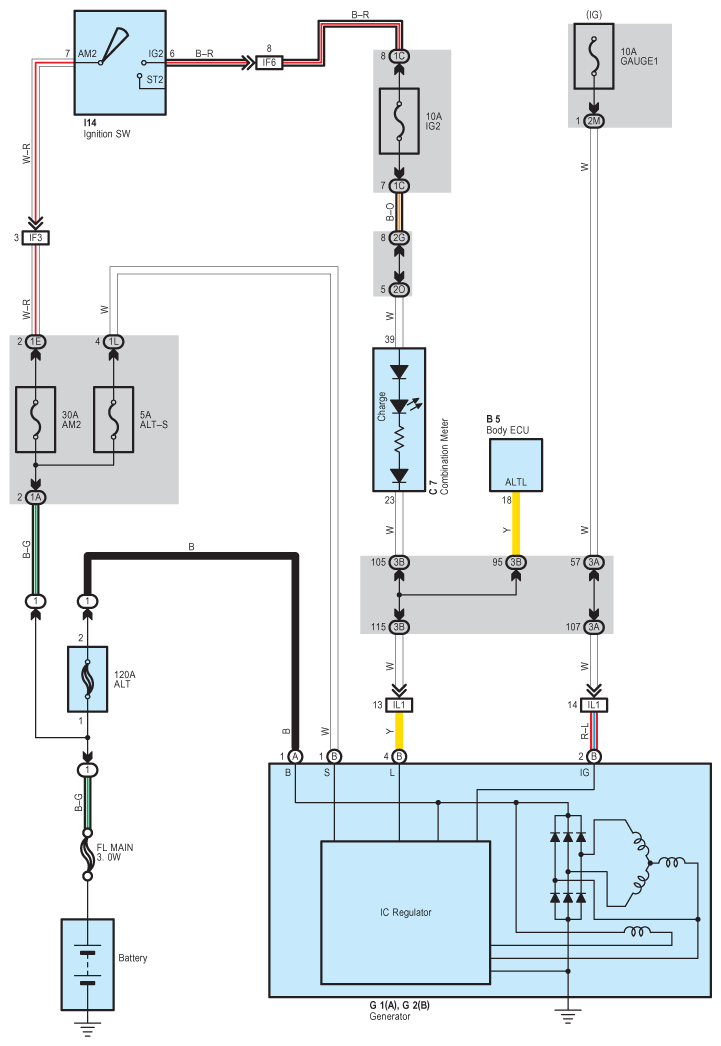

Fig 1: Charging - Wiring Diagram

G08929989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
