Remote Control Mirror without Driving Position Memory: Notes

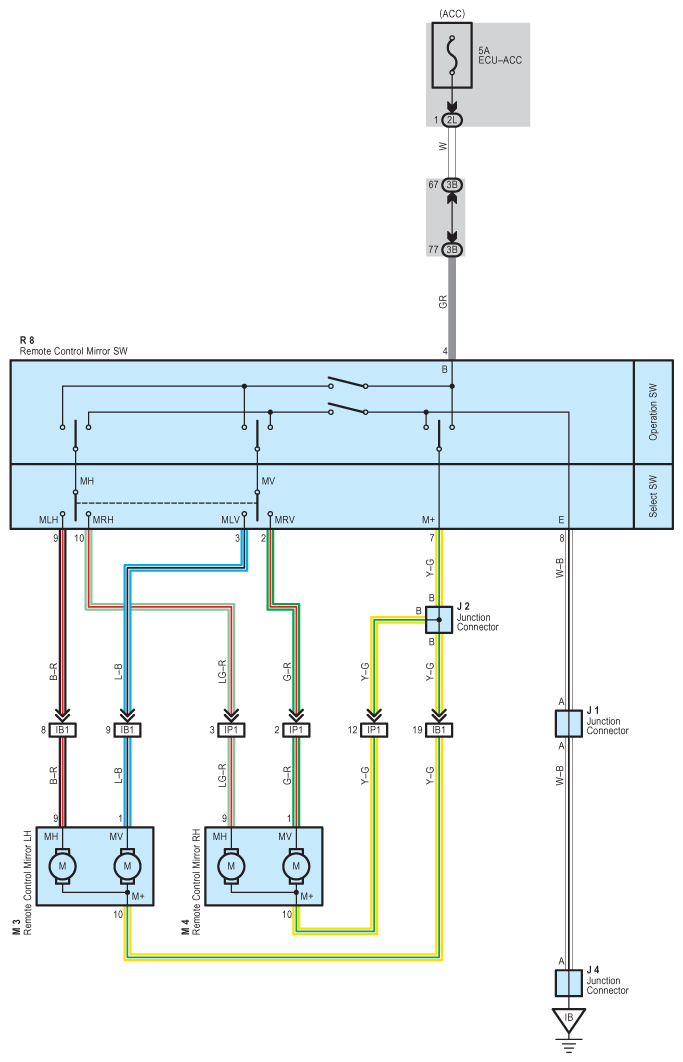

Fig 1: Remote Control Mirror Without Driving Position Memory - Wiring Diagram
G08930087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
