Mirror Switch Circuit: Wiring Diagram

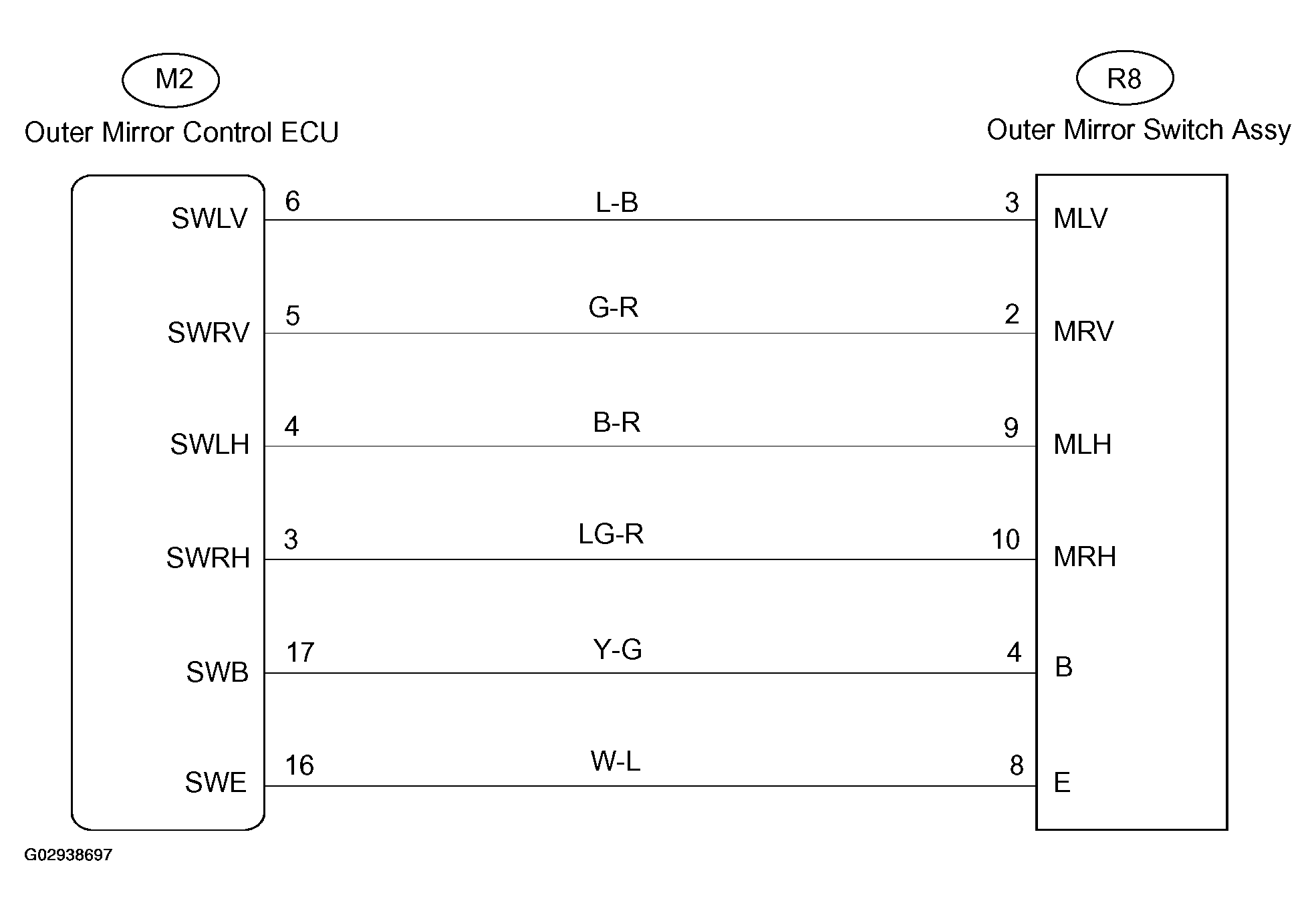

Fig 1: Mirror Switch Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
