ABS, TRAC and VSC: Notes

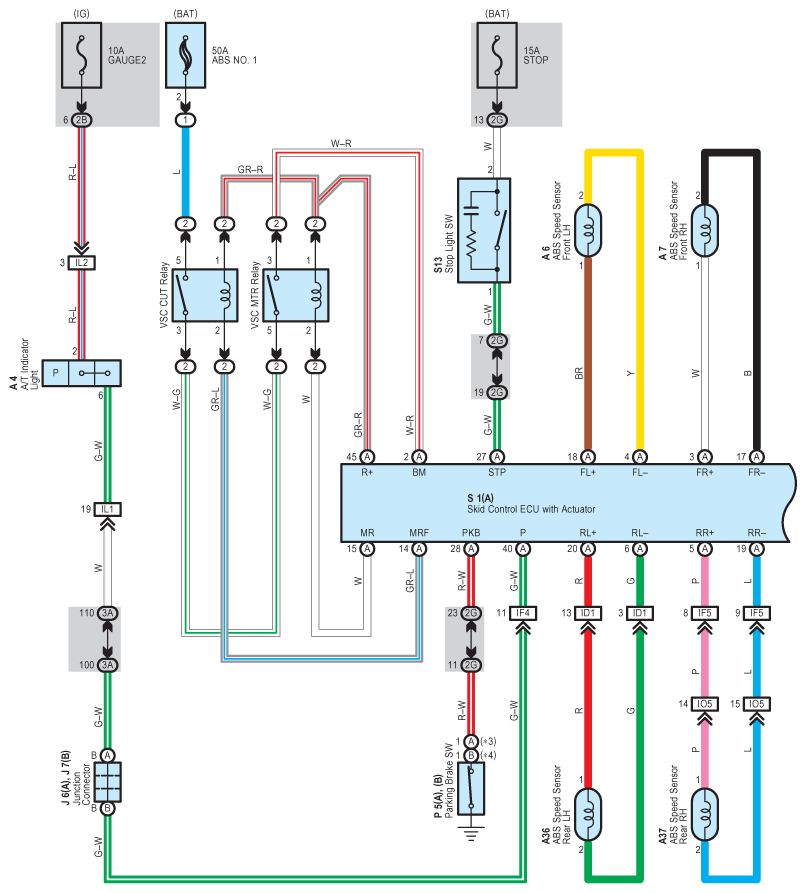

Fig 1: ABS, TRAC And VSC - Wiring Diagram (1 Of 4)
G08930055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

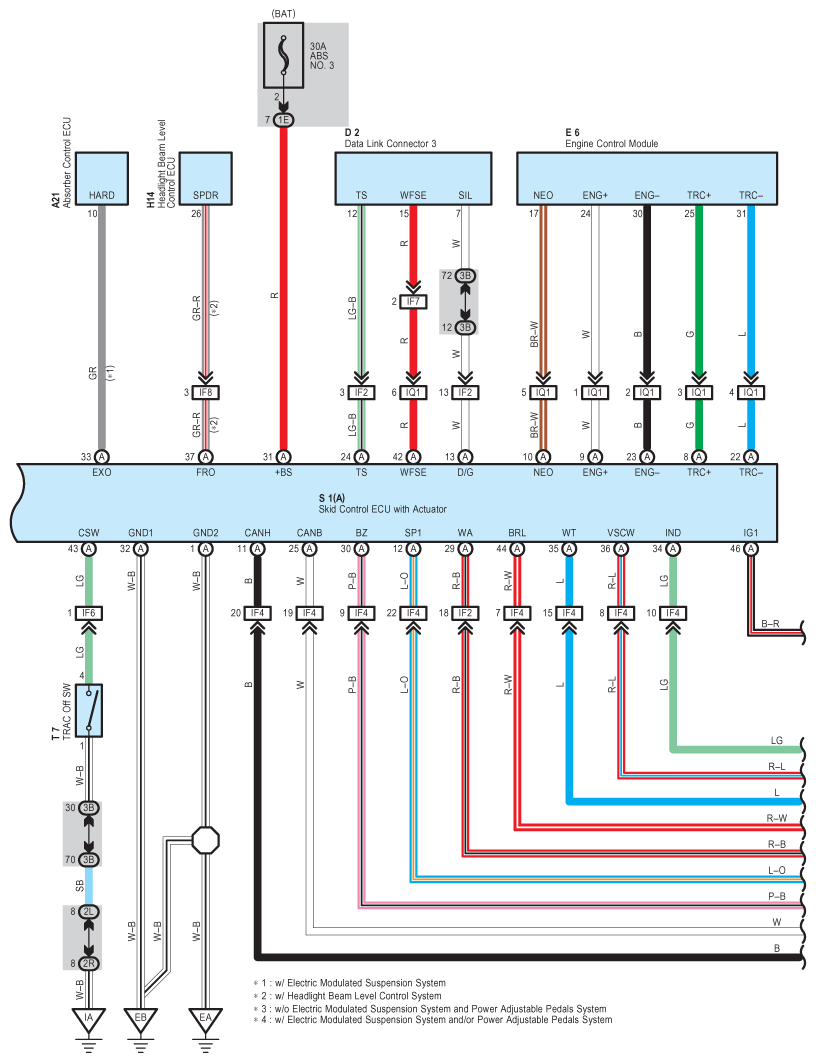

Fig 2: ABS, TRAC And VSC - Wiring Diagram (2 Of 4)
G08930056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

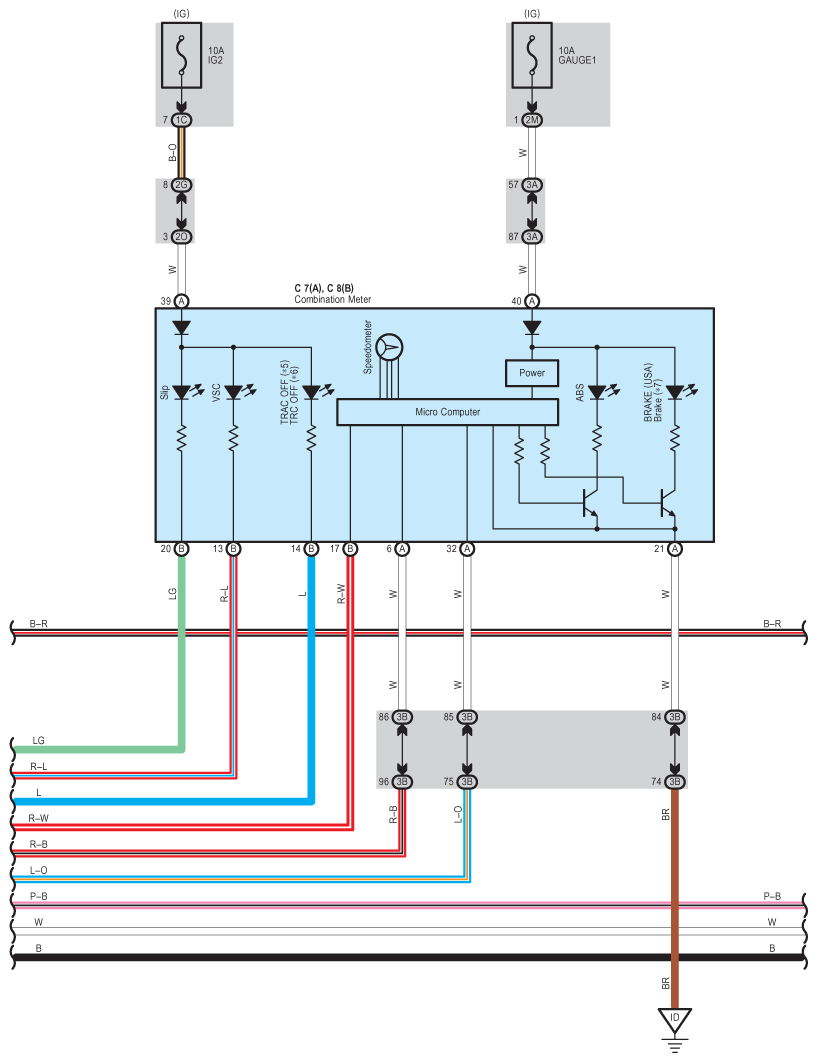

Fig 3: ABS, TRAC And VSC - Wiring Diagram (3 Of 4)
G08930057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

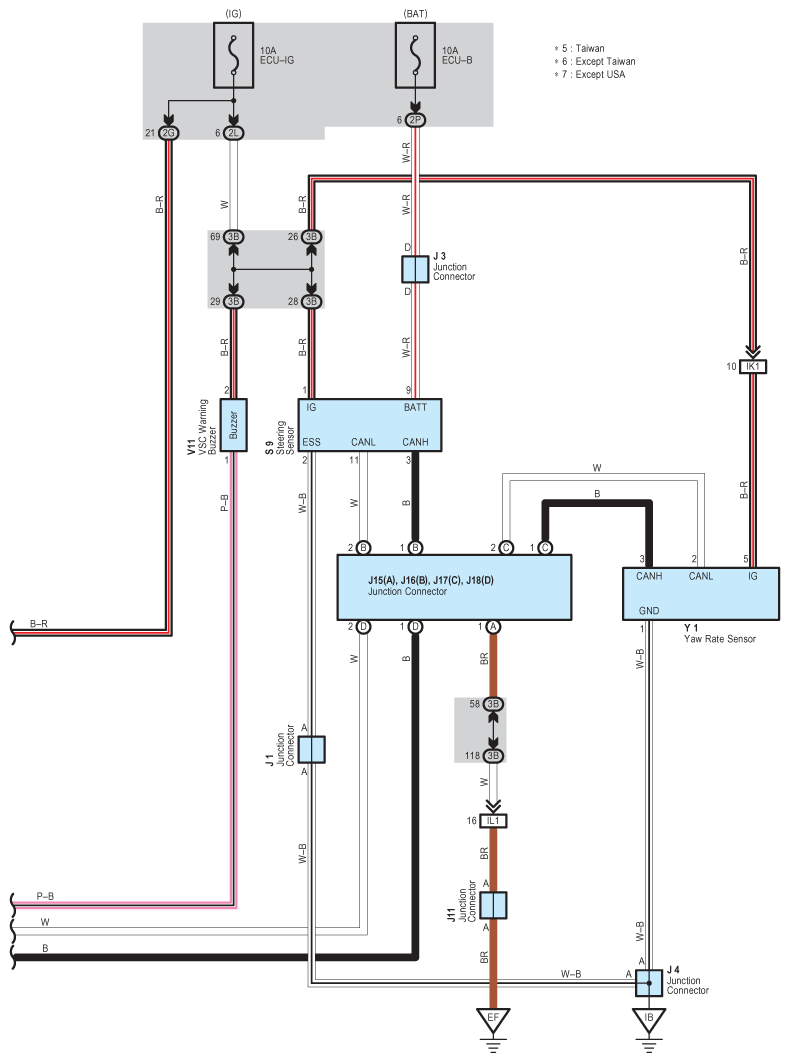

Fig 4: ABS, TRAC And VSC - Wiring Diagram (4 Of 4)
G08930058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
