LEXUS Navigation System and Audio System except MARK LEVINSON: Notes

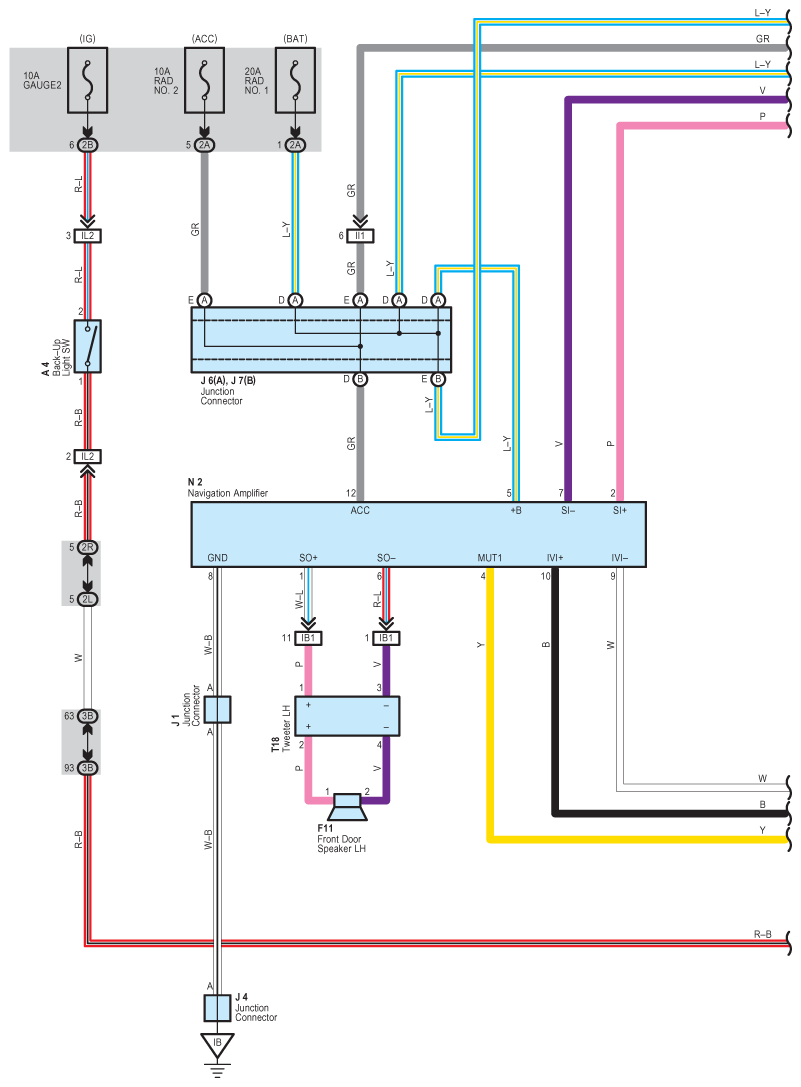

Fig 1: Lexus Navigation System And Audio System Except Mark Levinson - Wiring Diagram (1 Of 4)
G08930104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

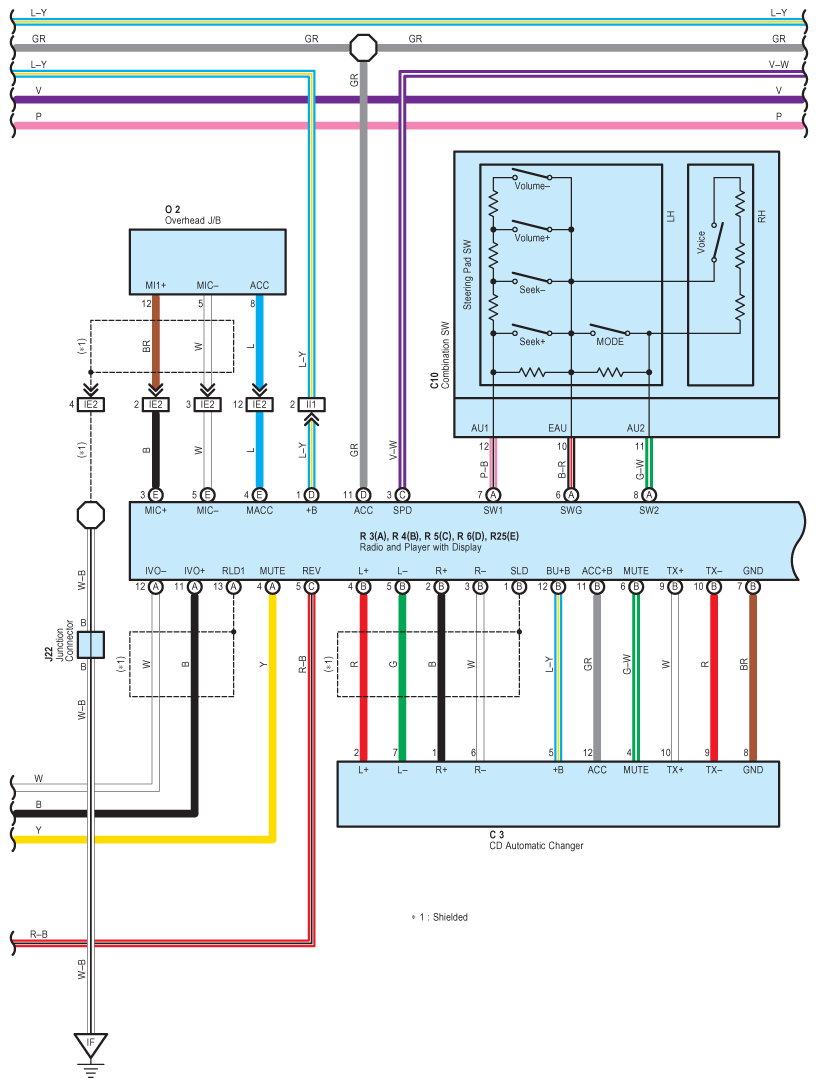

Fig 2: Lexus Navigation System And Audio System Except Mark Levinson - Wiring Diagram (2 Of 4)
G08930105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

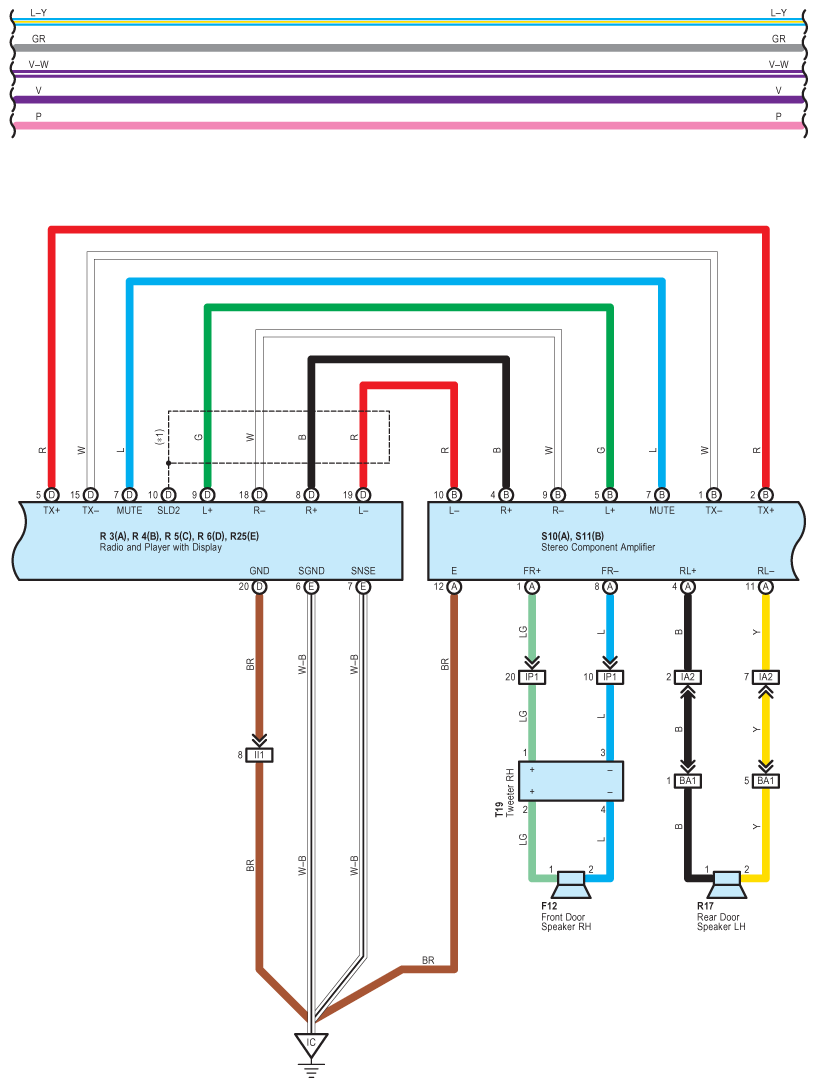

Fig 3: Lexus Navigation System And Audio System Except Mark Levinson - Wiring Diagram (3 Of 4)
G08930106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

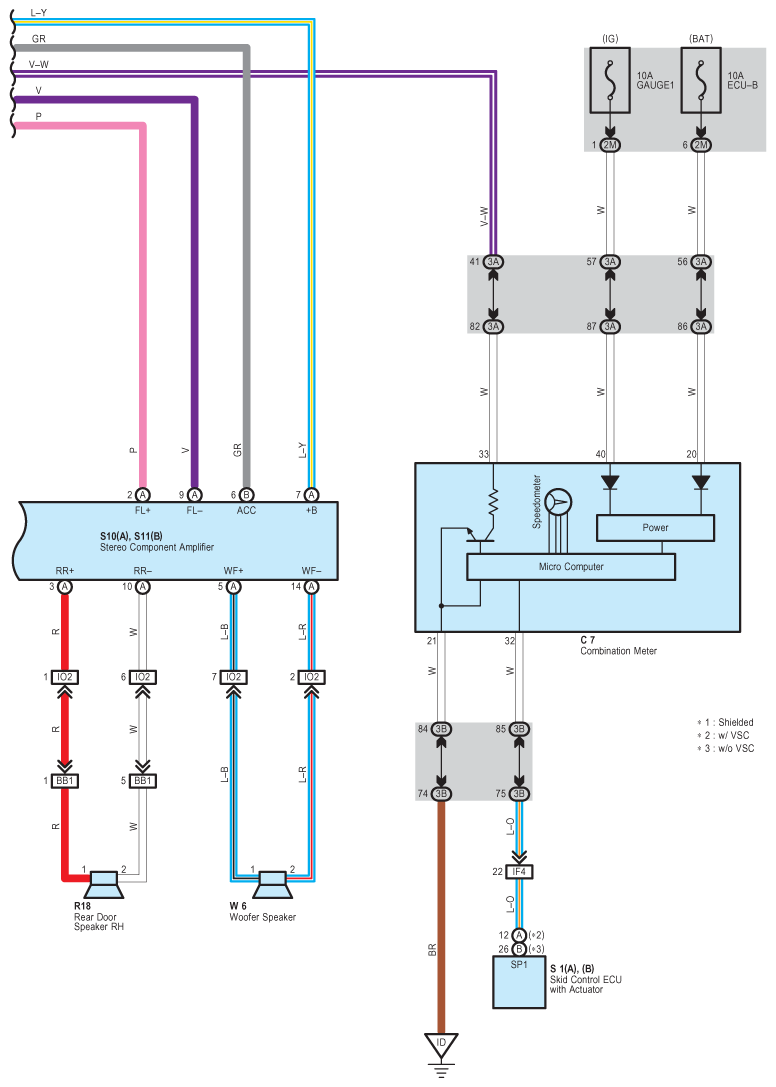

Fig 4: Lexus Navigation System And Audio System Except Mark Levinson - Wiring Diagram (4 Of 4)
G08930107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
