Radiator Fan and Condenser Fan: Notes

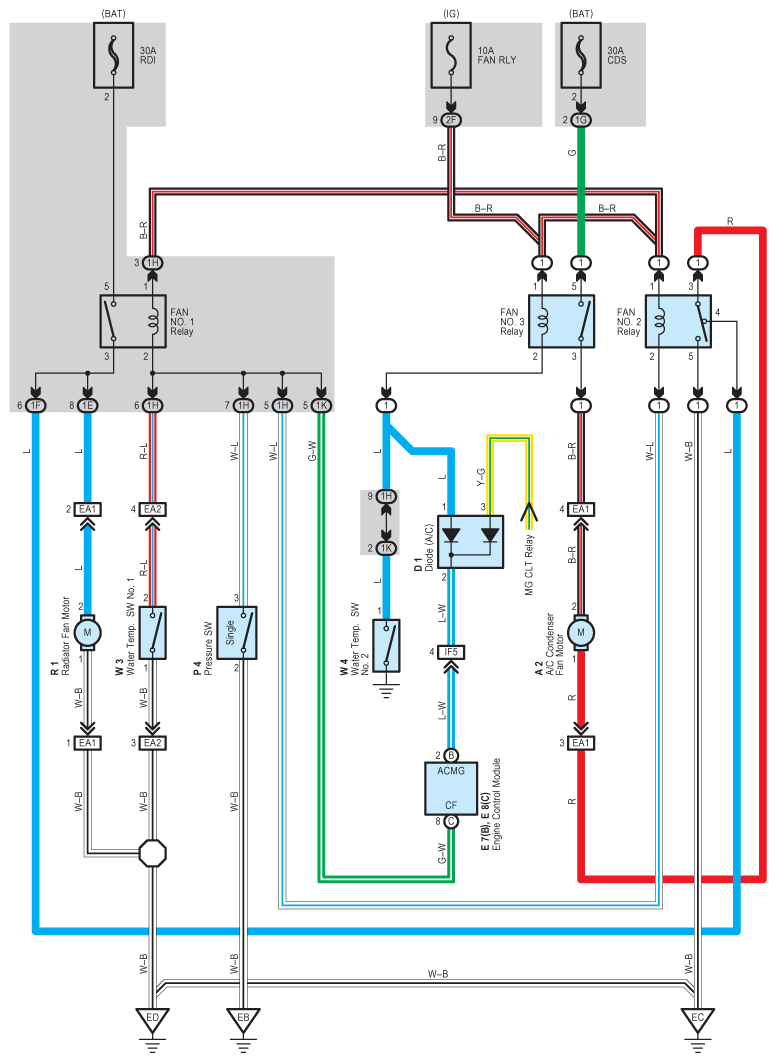

Fig 1: Radiator Fan And Condenser Fan - Wiring Diagram
G08930119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
