Horn System: Inspection

1. Check operation of the horn.

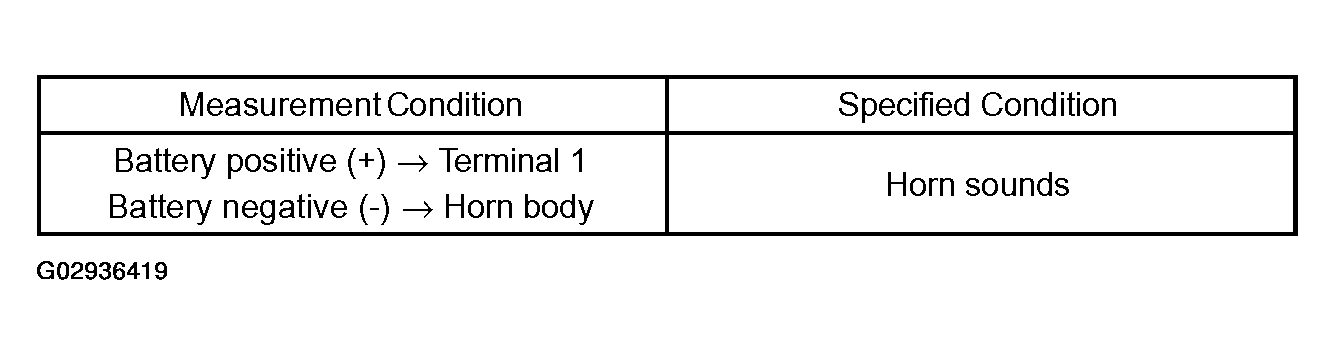

   Fig 1: Measurement Specified Condition Reference Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

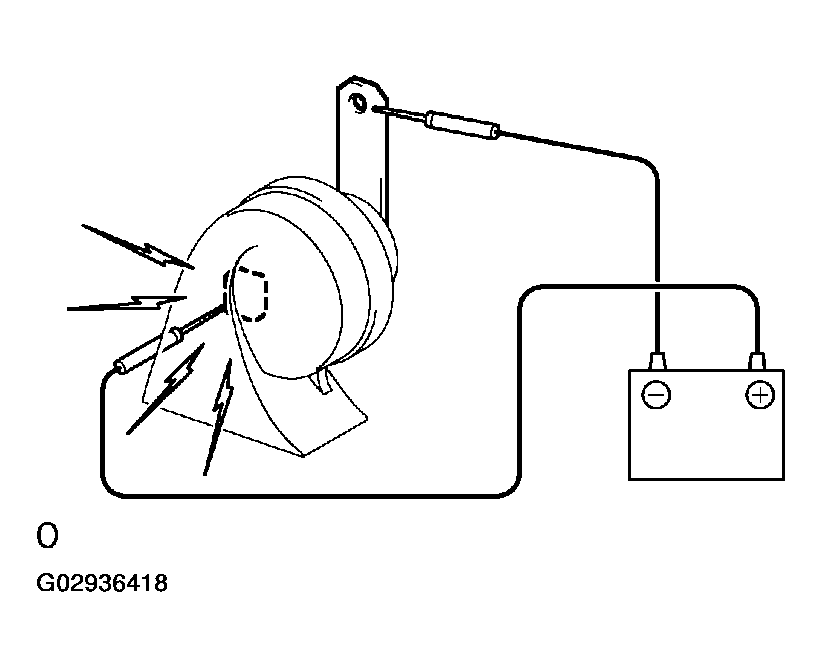

Fig 2: Inspecting High Pitched Horn Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the horn assy.

1. Check operation of the horn.
   Fig 3: Measurement Specified Condition Reference Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

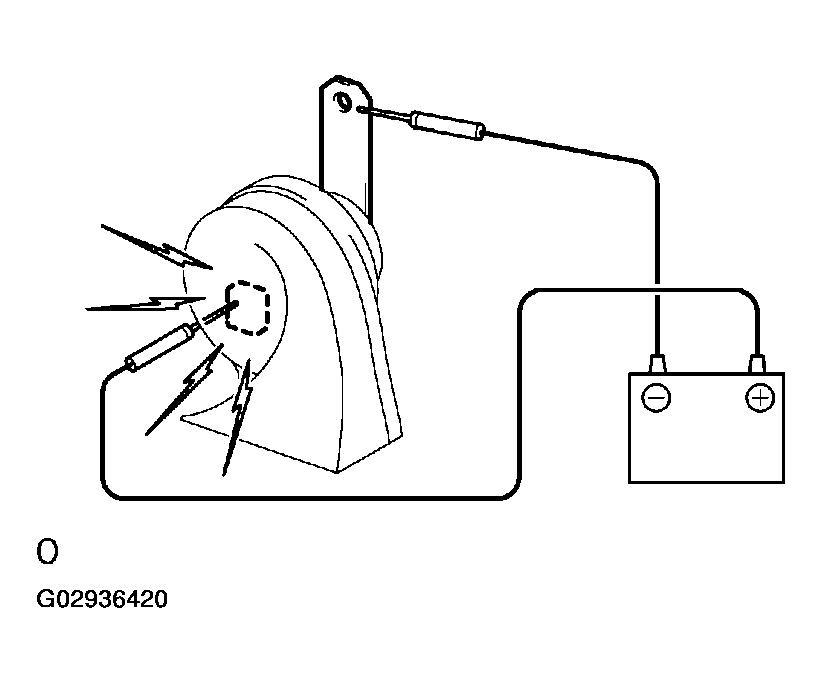

Fig 4: Inspecting Low Pitched Horn Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the horn assy.

1. Inspect the horn relay (Marking: HORN) resistance.
   RESISTANCE SPECIFICATIONS



   Tester connection	Condition	Specified condition
   3 - 5	Always	10 kΩ or higher
   3 - 5	Apply B+ between terminals 1 and 2	Below 1 Ω

If the resistance is not as specified, replace the relay.

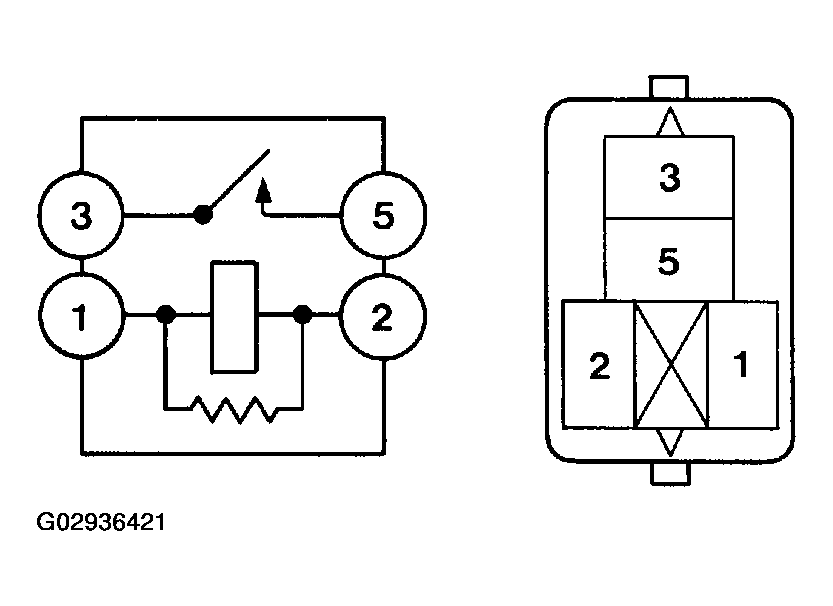

Fig 5: Inspecting Horn Relay Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
