Ignition Coil ASSY (3MZ-FE): Replacement

DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
DRAIN ENGINE COOLANT (RH BANK) (See REPLACEMENT )
REMOVE FRONT SUSPENSION UPPER BRACE CENTER (W/O TEMS, RH BANK) (See ENGINE COOLANT (3MZ-FE) )
REMOVE V-BANK COVER SUB-ASSY (See ENGINE COOLANT (3MZ-FE) )
REMOVE AIR CLEANER CAP SUB-ASSY (RH BANK) (See ENGINE COOLANT (3MZ-FE) )
REMOVE EMISSION CONTROL VALVE SET (RH BANK) (See REPLACEMENT )
REMOVE INTAKE AIR SURGE TANK (RH BANK) (See REPLACEMENT )

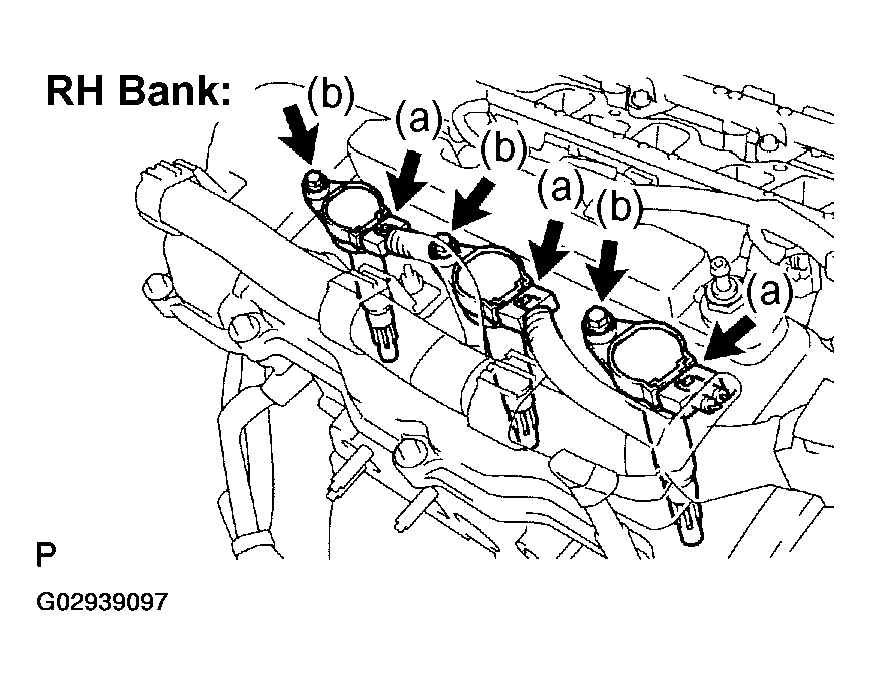

Fig 1: Removing Ignition Coil Assy RH Bank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE IGNITION COIL ASSY
1. Disconnect the 6 connectors.
2. Remove the 6 bolts, then remove the 6 ignition coils.
HINT:

The ignition coil is installed with the bolt.

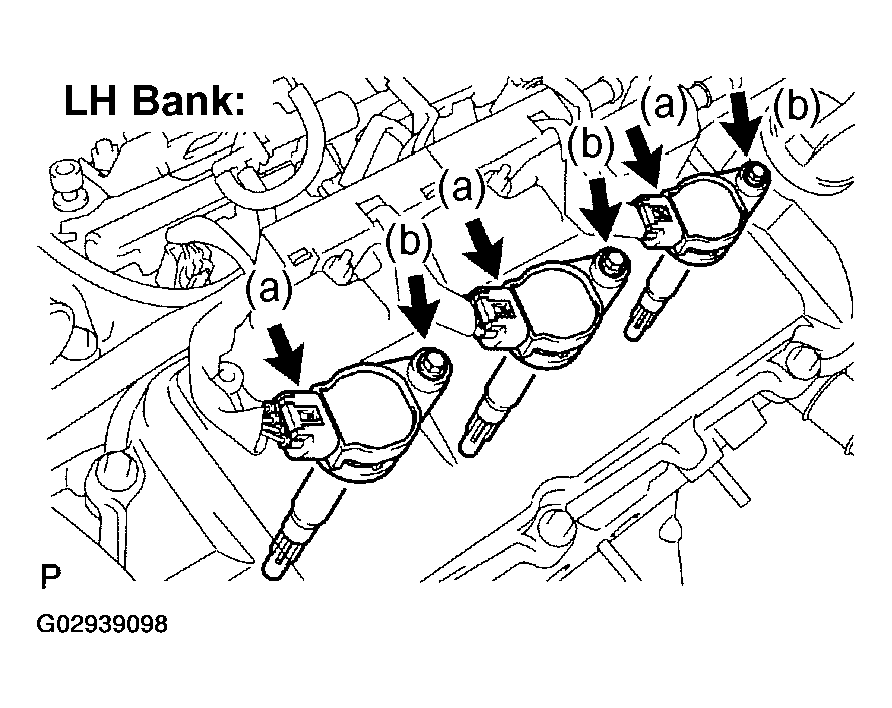

Fig 2: Removing Ignition Coil Assy LH Bank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL IGNITION COIL ASSY
1. Torque: 8.0 N.m (80 kgf.cm, 71 in..lbf)
INSTALL INTAKE AIR SURGE TANK (RH BANK) (See REPLACEMENT )
INSTALL EMISSION CONTROL VALVE SET (RH BANK) (See REPLACEMENT )
INSTALL AIR CLEANER CAP SUB-ASSY (RH BANK) (See ENGINE COOLANT (3MZ-FE) )
CHECK CONNECTION OF VACUUM HOSE (RH BANK) (See REPLACEMENT )
CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
ADD ENGINE COOLANT (RH BANK) (See REPLACEMENT )
CHECK FOR ENGINE COOLANT LEAKS (RH BANK) (See COOLING SYSTEM (3MZ-FE) )
INSTALL V-BANK COVER SUB-ASSY (See ENGINE COOLANT (3MZ-FE) )
INSTALL FRONT SUSPENSION UPPER BRACE CENTER (W/O TEMS, RH BANK) (See ENGINE COOLANT (3MZ-FE) )
SYSTEM INITIALIZATION (See CHARGING SYSTEM (3MZ-FE) )
