Accelerator Pedal ASSY (3MZ-FE (Normal Pedal)): Replacement

DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
REMOVE ACCELERATOR PEDAL ASSY
1. Disconnect the accelerator position sensor connector.
2. Remove the 2 bolts, then remove the accelerator pedal rod.

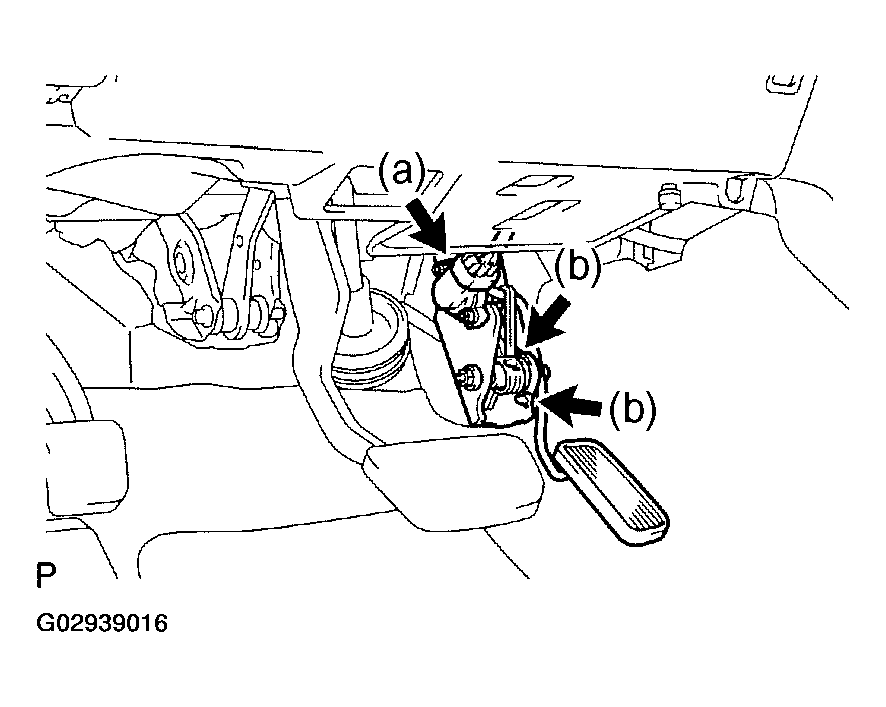

Fig 1: Removing Accelerator Pedal Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ACCELERATOR PEDAL ASSY
1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
SYSTEM INITIALIZATION (See CHARGING SYSTEM (3MZ-FE) )
