Recommended Tools

RECOMMENDED TOOLS DESCRIPTION

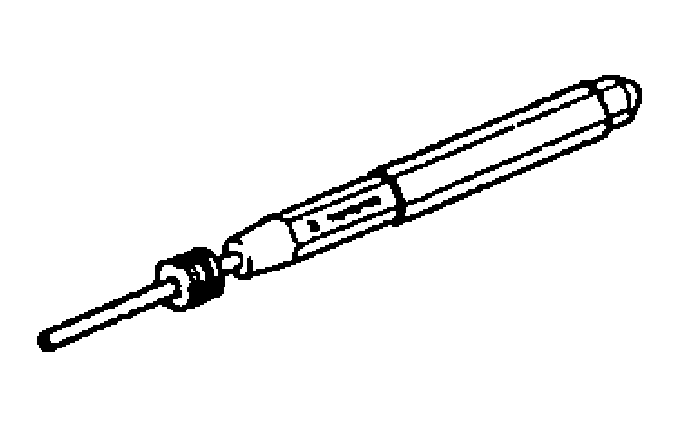

G04178077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09031-00030 Pin Punch AUTOMATIC TRANSAXLE ASSY(U151E/U151F)

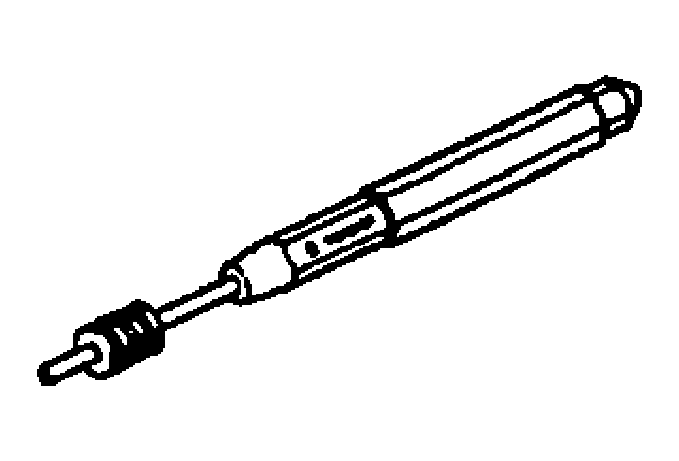

G04178078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09031-00040 Pin Punch FRONT DIFFERENTIAL ASSY(U151E)
FRONT DIFFERENTIAL ASSY(U151F)

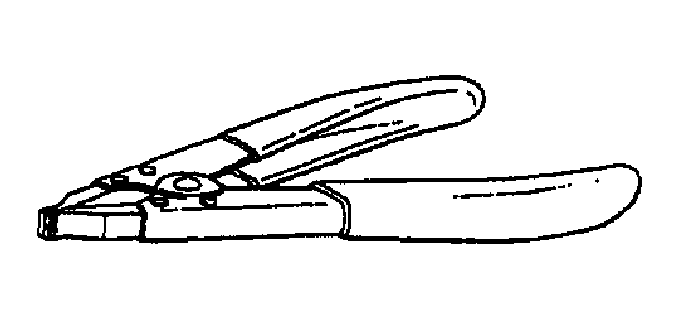

G04178079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09905-00012 Snap Ring No.1 Expander AUTOMATIC TRANSAXLE ASSY(U151E/U151F)
FORWARD CLUTCH ASSY(U151E/U151F)
DIRECT CLUTCH ASSY(U151E/U151F)
FRONT DIFFERENTIAL ASSY(U151F)

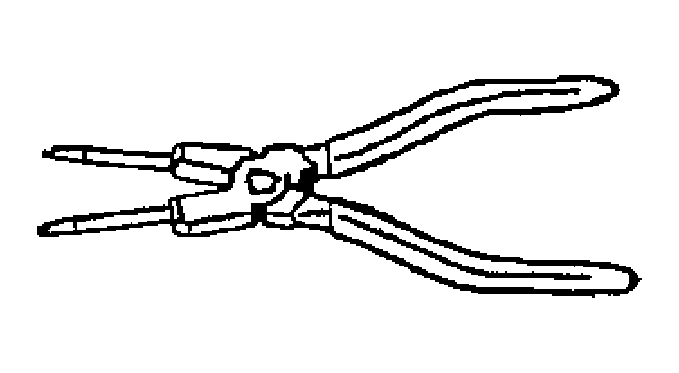

G04178080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09905-00013 Snap Ring Pliers UNDERDRIVE PLANETARY GEAR ASSY(U151E/U151F)
