How To Determine Bolt Strength

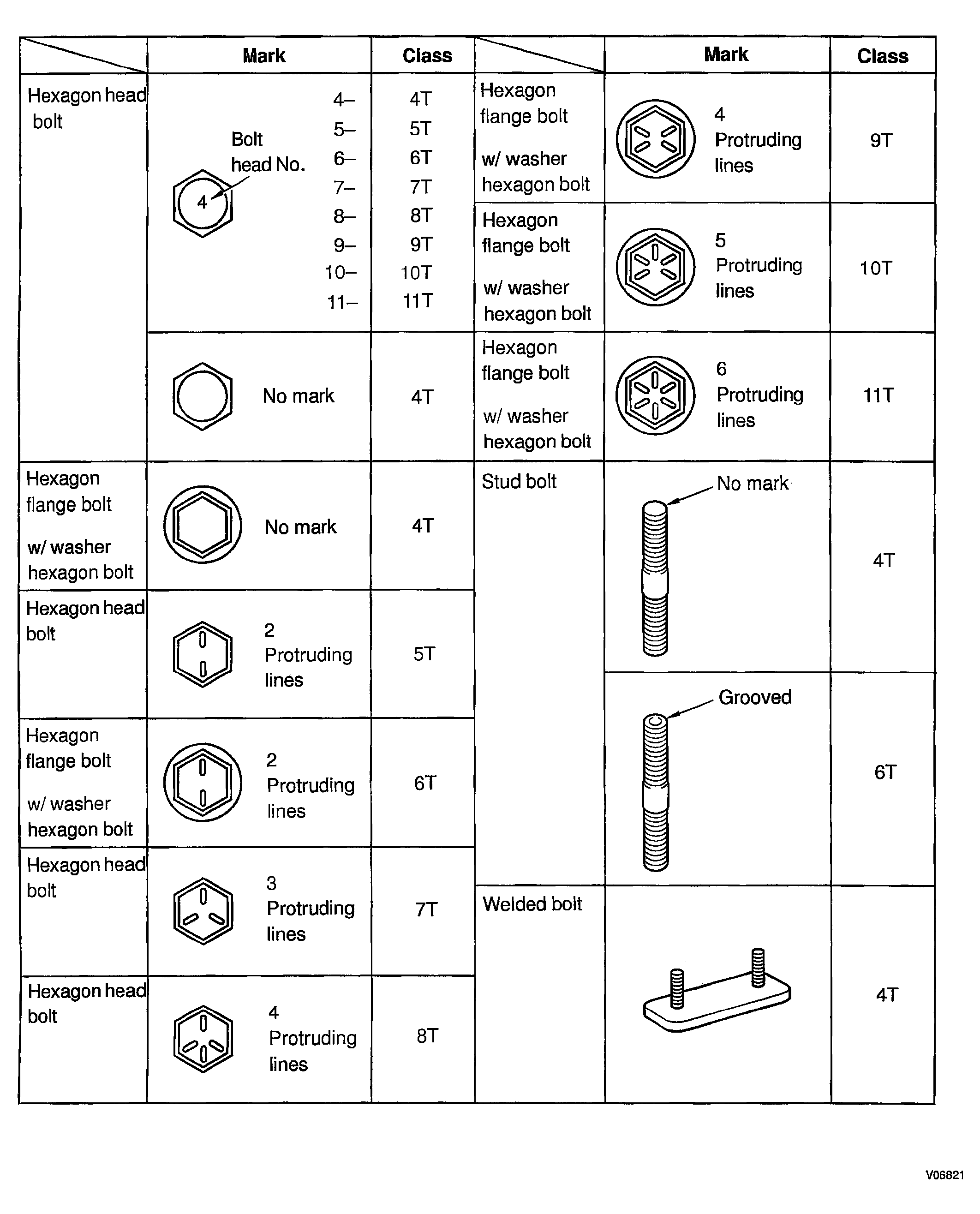

Fig 1: Bolt Mark & Class Description Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
