Transmission Control Cable ASSY: Replacement

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (SEE REPLACEMENT )
REMOVE AIR CONDITIONING RADIATOR ASSY (SEE OVERHAUL )
REMOVE AIR BAG SENSOR ASSY CENTER (SEE REPLACEMENT )
REMOVE BATTERY
REMOVE AIR CLEANER ASSY
REMOVE AIR CLEANER HOSE NO.1
REMOVE INTAKE AIR RESONATOR SUB-ASSY
REMOVE TRANSMISSION CONTROL CABLE ASSY
1. Remove the nut from the control shaft lever.
2. Disconnect the control cable from the control shaft lever.

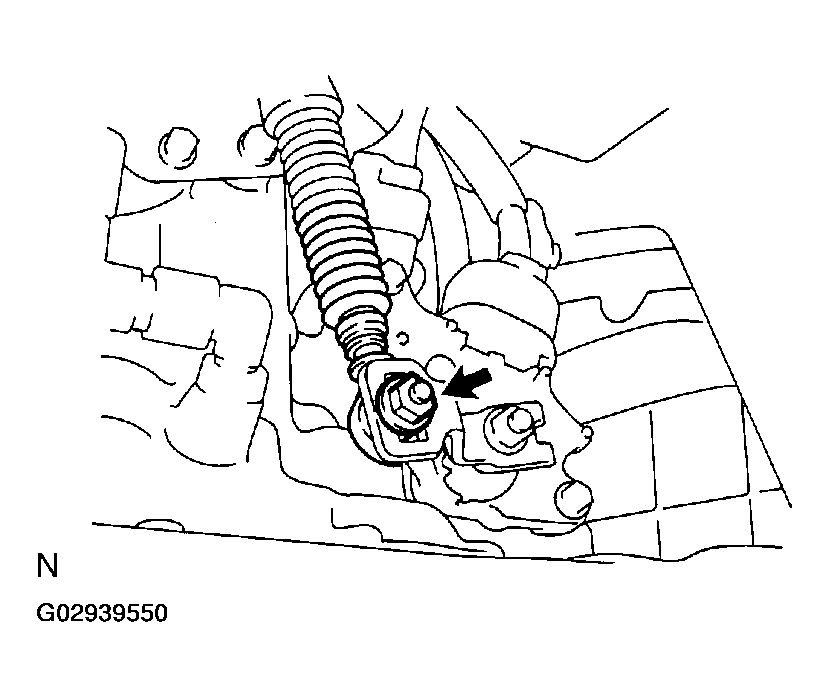

  Fig 1: Removing Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip and disconnect the control cable from the control cable bracket.

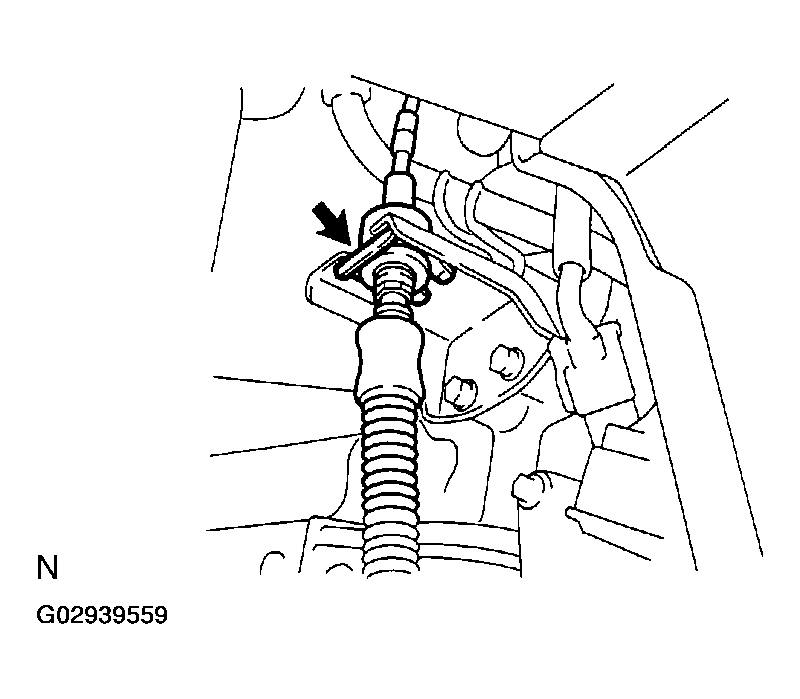

  Fig 2: Removing Contract Cable Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the control cable from the control cable clamp.

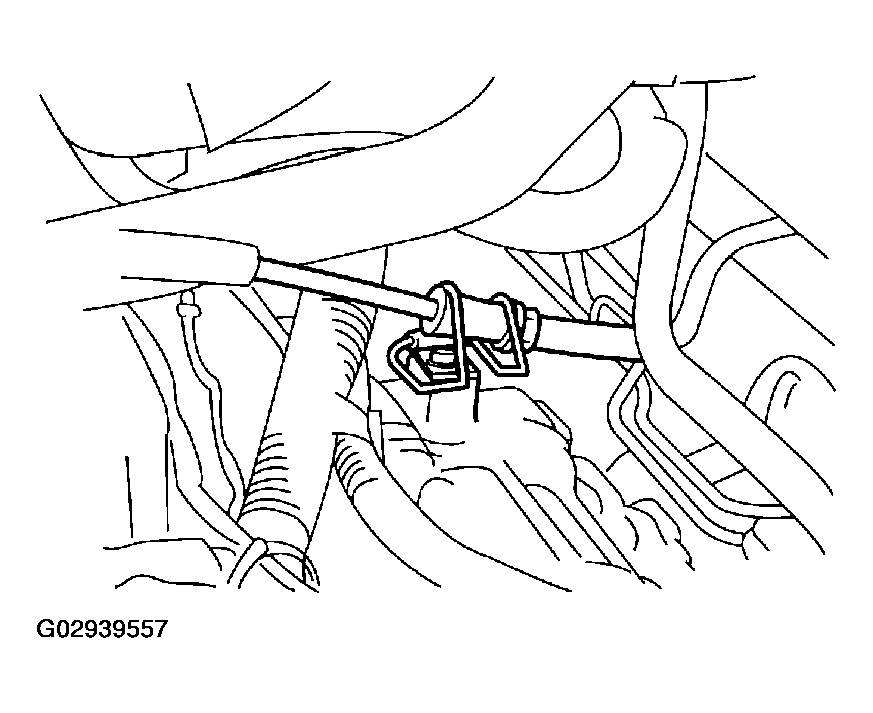

  Fig 3: Disconnecting Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the floor shift cable from the rod of the floor shift assy.

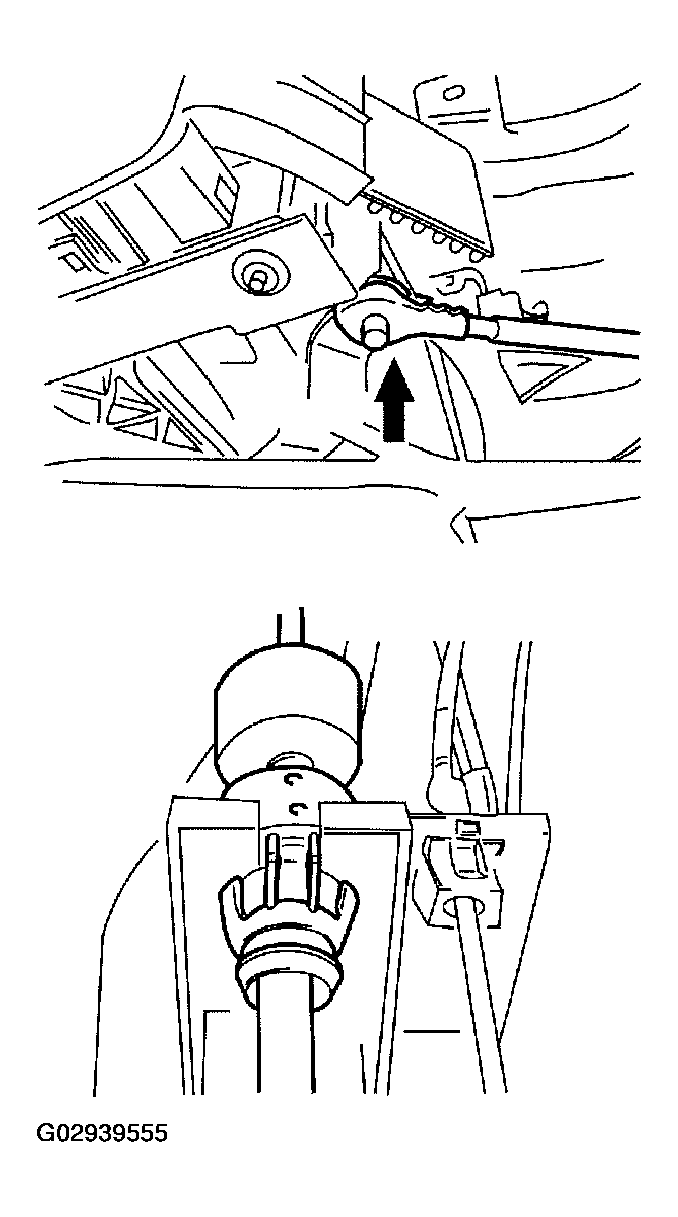

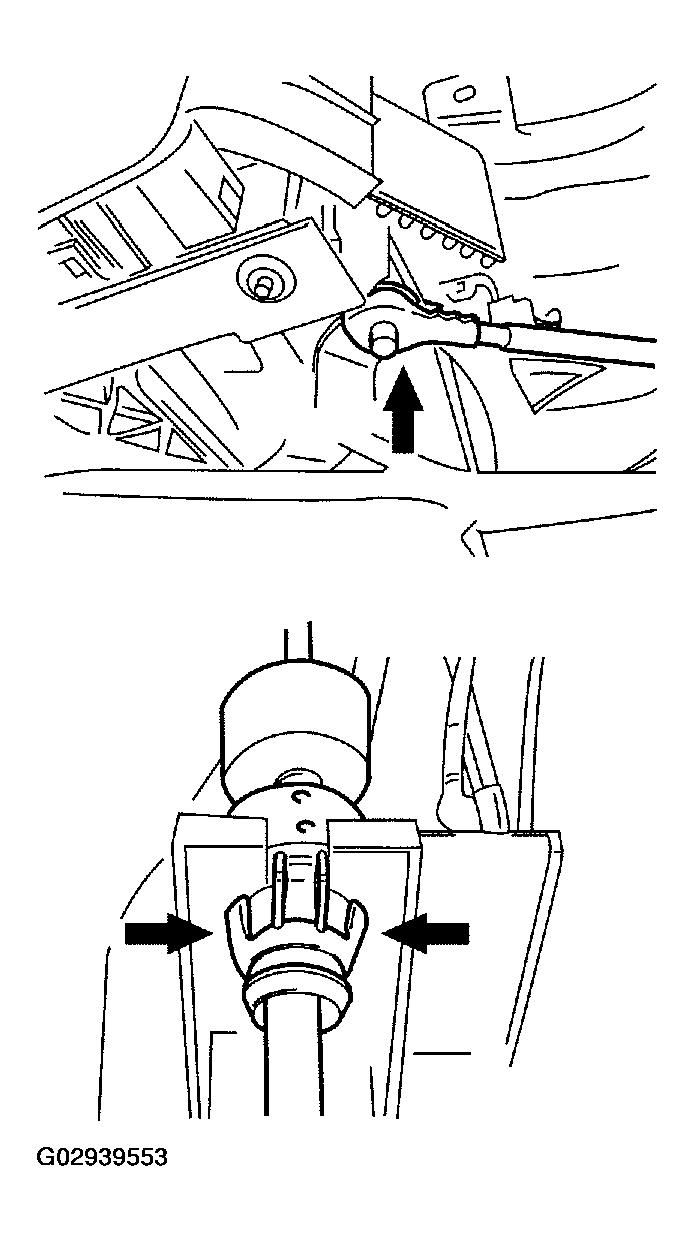

  Fig 4: Disconnecting Floor Shift Cable From Floor Shift Assembly Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 bolts and shift cable grommet retainer No.2.
7. Pull out the control cable from the body.

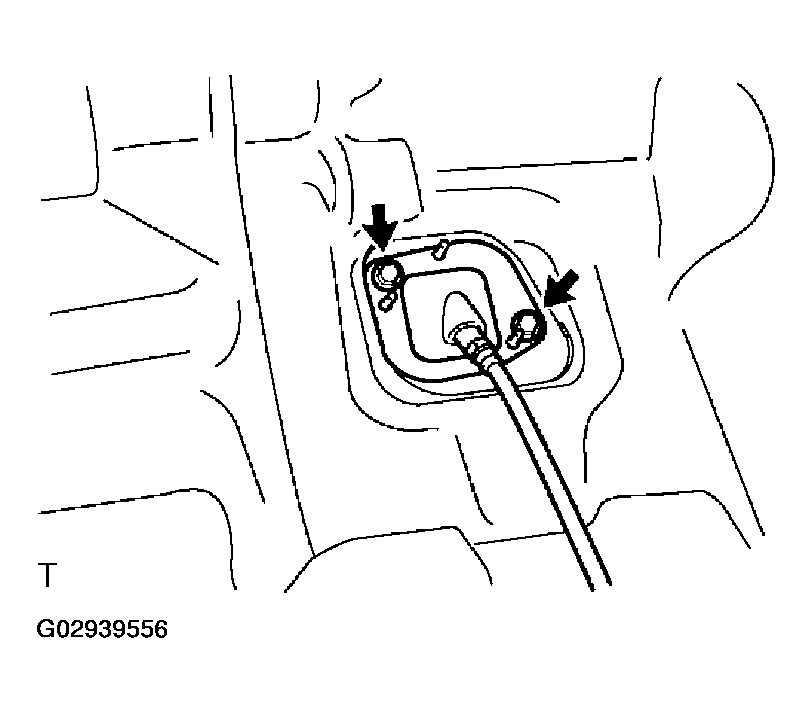

Fig 5: Removing Shift Cable Grommet Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. put in the control cable to the body.
2. Install the shift cable grommet retainer No.2 to the floor shift cable.
3. Install the floor shift cable, as shown in the illustration.
  HINT:

  Install it with the uneven surface facing up.

  Fig 6: Installing Shift Cable Grommet Retainer No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the shift cable grommet retainer No.2 with the 2 bolts.
  1. Torque: 4.9 N.m (50 kgf.cm, 43 in..lbf)
  Fig 7: Installing Shift Cable Grommet Retainer No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the control cable to the control cable clamp.

  Fig 8: Connecting Control Cable To Control Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Temporarily install the control cable to the control shaft lever with nuts.

  Fig 9: Installing Control Cable To Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the control cable and a new clip to the bracket.
Fig 10: Installing Control Cable Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR RESONATOR SUB-ASSY
INSTALL AIR CLEANER HOSE NO.1
INSTALL AIR CLEANER ASSY
INSTALL AIR BAG SENSOR ASSY CENTER (SEE REPLACEMENT )
INSTALL AIR CONDITIONING RADIATOR ASSY (SEE OVERHAUL )
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY (SEE REPLACEMENT )
INSTALL BATTERY
ADJUST SHIFT LEVER POSITION (SEE ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (SEE ADJUSTMENT )
