Ignition Coil: Installation

INSTALL IGNITION COIL
1. Install the 6 ignition coils with the 6 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the 6 ignition coil connectors.

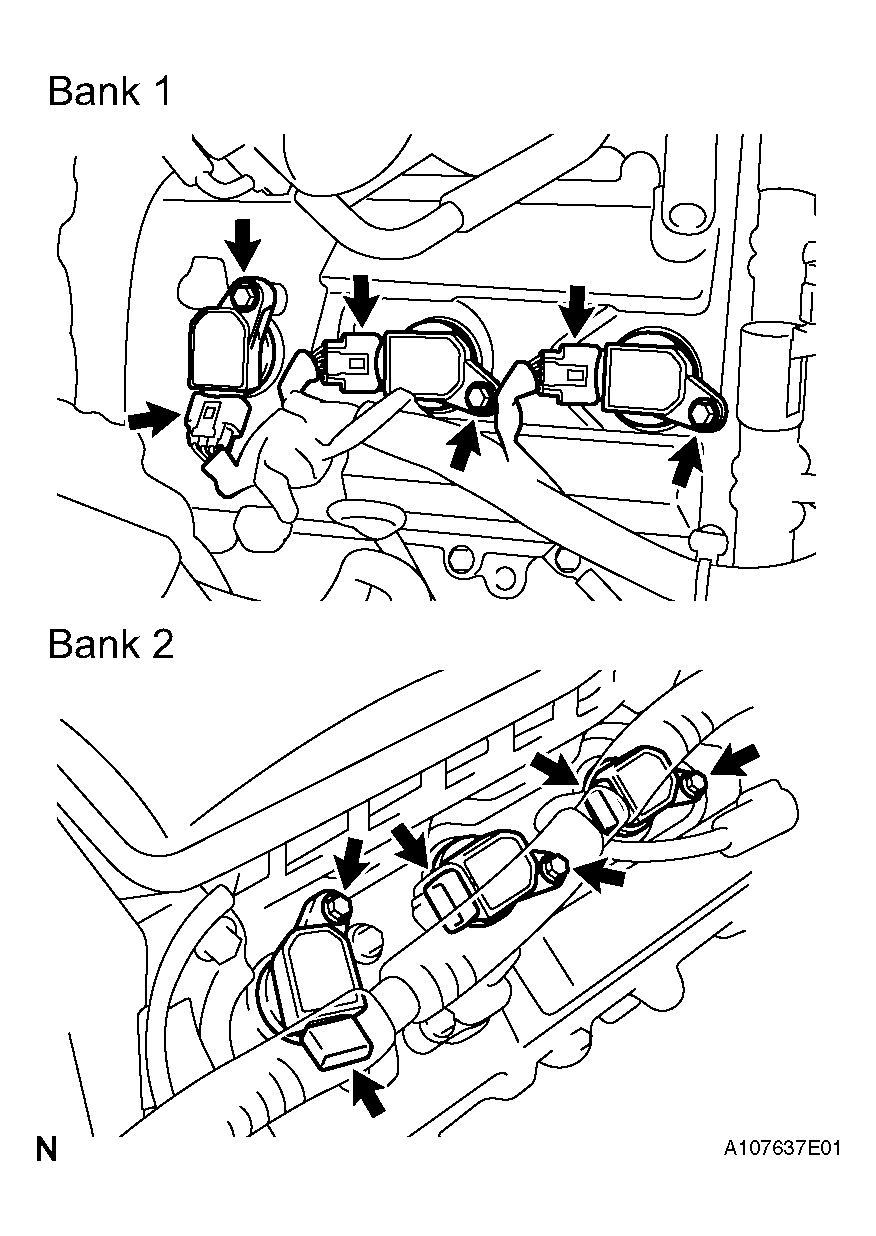

  Fig 1: Identifying Ignition Coils With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 2 wire harness clamps.

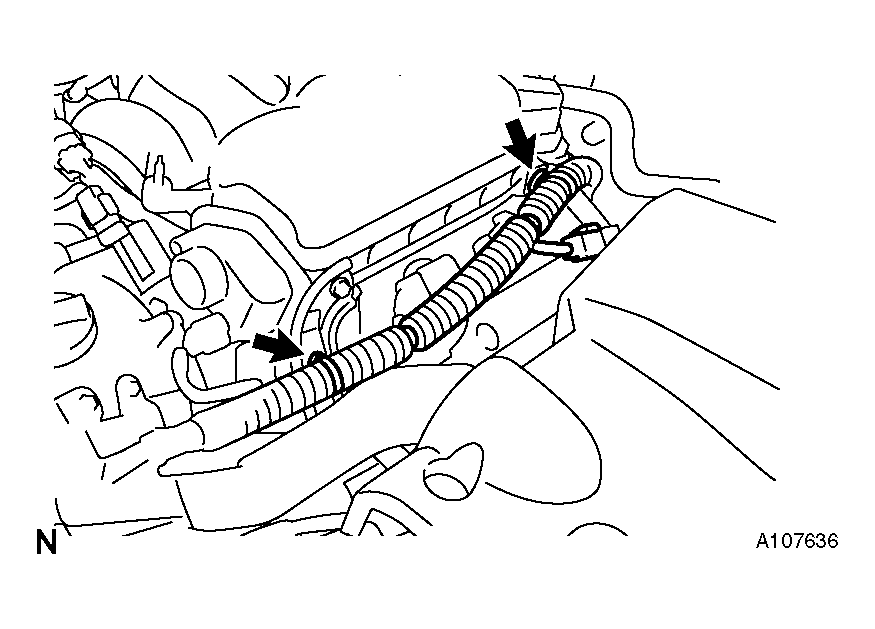

  Fig 2: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
1. Install the air cleaner cap with the air cleaner hose assembly with the 4 clamps and hose clamp.
  HINT:

  Be sure to install the air cleaner assembly so that the screw part of the hose clamp is as shown in the illustration.

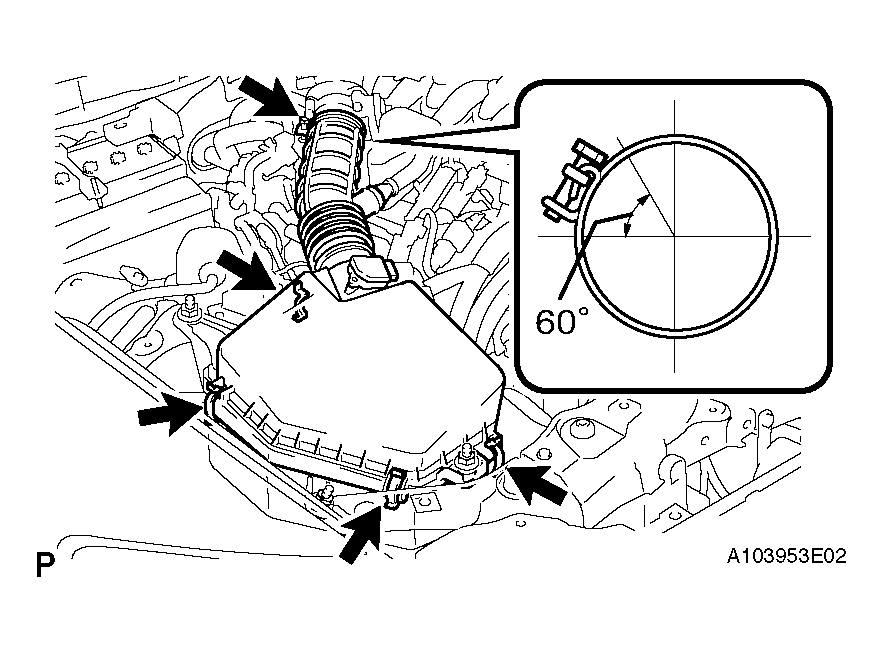

  Fig 3: Identifying Air Cleaner Cap With Air Cleaner Hose Assembly With Clamps And Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the VSV for EVAP to the air cleaner hose.

  Fig 4: Identifying VSV For EVAP To Air Cleaner Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the MAF meter connector and clamp to the air cleaner.

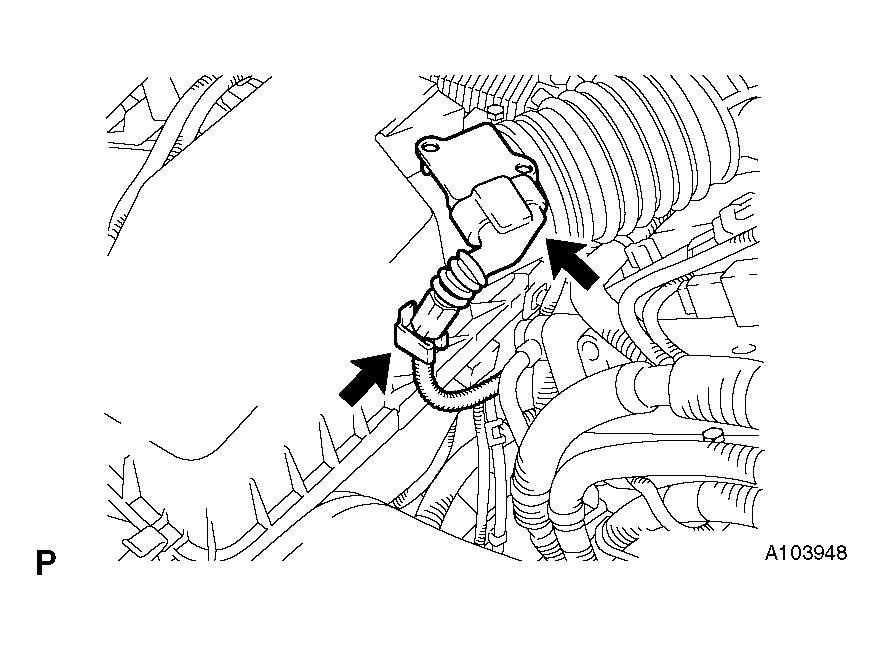

  Fig 5: Identifying MAF Meter Connector And Clamp To Air Cleaner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 VENTILATION HOSE
1. Connect the ventilation hose to the cylinder head cover with the clamp.

  Fig 6: Locating Ventilation Hose To Cylinder Head Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
