Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Airbag Squib (Driver's Side Knee Airbag) | Under left side of dash. See Figure. |
| Airbag Squib (Front Passenger's Airbag Assembly) | Behind right side of dash. See Figure. |
| Airbag Squib (Front Passenger's Side Knee Airbag) | Under right side of dash. See Figure. |
| Airbag Squib (Steering Wheel Pad) | Center of steering wheel. See Figure. |
| Antenna Amplifier | Under center of dash. See Figure. |
| Brake Control Power Supply Assembly | Right rear of luggage compartment. See Figure. |
| Brake Stroke Simulator Cylinder | Left rear of engine compartment. See Figure. |
| Combustion Heater Glow Plug | Top rear of engine. See Figure. |
| Curtain Shield Airbag Squib (Left) | At left "A" pillar. See Figure. |
| Curtain Shield Airbag Squib (Right) | At right "A" pillar. See Figure. |
| Data Link Connector 3 | Behind left side of dash. See Figure. |
| Electrical Key Antenna | Base of right "C" pillar. See Figure. |
| Electrical Key Oscillator (Console) | Rear of center floor console. See Figure. |
| Electrical Key Oscillator (Inside Luggage Room) | Left rear corner of luggage compartment. See Figure. |
| Electrical Key Oscillator (Left Front Door) | In left front door. See Figure. |
| Electrical Key Oscillator (Left Rear Door) | In left rear door. See Figure. |
| Electrical Key Oscillator (Outside Luggage Room) | Center rear of luggage compartment. See Figure. |
| Electrical Key Oscillator (Rear Seat) | At left "C" pillar. See Figure. |
| Electrical Key Oscillator (Right Front Door) | In right front door. See Figure. |
| Electrical Key Oscillator (Right Rear Door) | In right rear door. See Figure. |
| Fuel Pump Resistor (3.0L) | Right side of engine compartment. See Figure. |
| Fuel Pump Resistor (4.3L) | Right side of engine compartment. See Figure. |
| Generator (3.0L) | Left front of engine. See Figure. |
| Generator (4.3L) | Right front of engine. See Figure. |
| Horn (High) (3.0L) | In front of radiator. See Figure. |
| Horn (High) (4.3L) | In front of radiator. See Figure. |
| Horn (Low) (3.0L) | In front of radiator. See Figure. |
| Horn (Low) (4.3L) | In front of radiator. See Figure. |
| Ignition Coils No. 1, 3 & 5 (3.0L) | Top right side of engine. See Figure. |
| Ignition Coils No. 1, 3, 5 & 7 (4.3L) | Top left side of engine. See Figure. |
| Ignition Coils No. 2, 4 & 6 (3.0L) | Top left side of engine. See Figure. |
| Ignition Coils No. 2, 4, 6 & 8 (4.3L) | Top right side of engine. See Figure. |
| Inner Rear View Mirror | Center front of roof. See Figure. |
| Junction Connector (CAN Left) | At left kick panel. See Figure. |
| Junction Connector (CAN Right) | At right kick panel. See Figure. |
| Junction Connector No. A5 | Under right side of front passenger's seat. See Figure. |
| Junction Connector No. A9 | Under left side of front passenger's seat. See Figure. |
| Junction Connector No. A17 (3.0L) | Left rear corner of engine compartment. See Figure. |
| Junction Connector No. A17 (4.3L) | Left rear corner of engine compartment. See Figure. |
| Junction Connector No. B5 | Under left side of driver's seat. See Figure. |
| Junction Connector No. B9 | Under right side of driver's seat. See Figure. |
| Junction Connector No. V36 | Behind right kick panel. See Figure. |
| Junction Connector No. Y6 | Center rear of luggage compartment lid. See Figure. |
| Junction Connectors No. A8, A9, A10 & A11 (3.0L) | In engine control module. See Figure. |
| Junction Connectors No. A8, A9, A10 & A11 (4.3L) | In engine control module. See Figure. |
| Junction Connectors No. A32 & A33 | Behind left end of dash. See Figure. |
| Junction Connectors No. K1, K2, K3, K4, K5, K6, K7, K8 & K9 | Behind left kick panel. See Figure. |

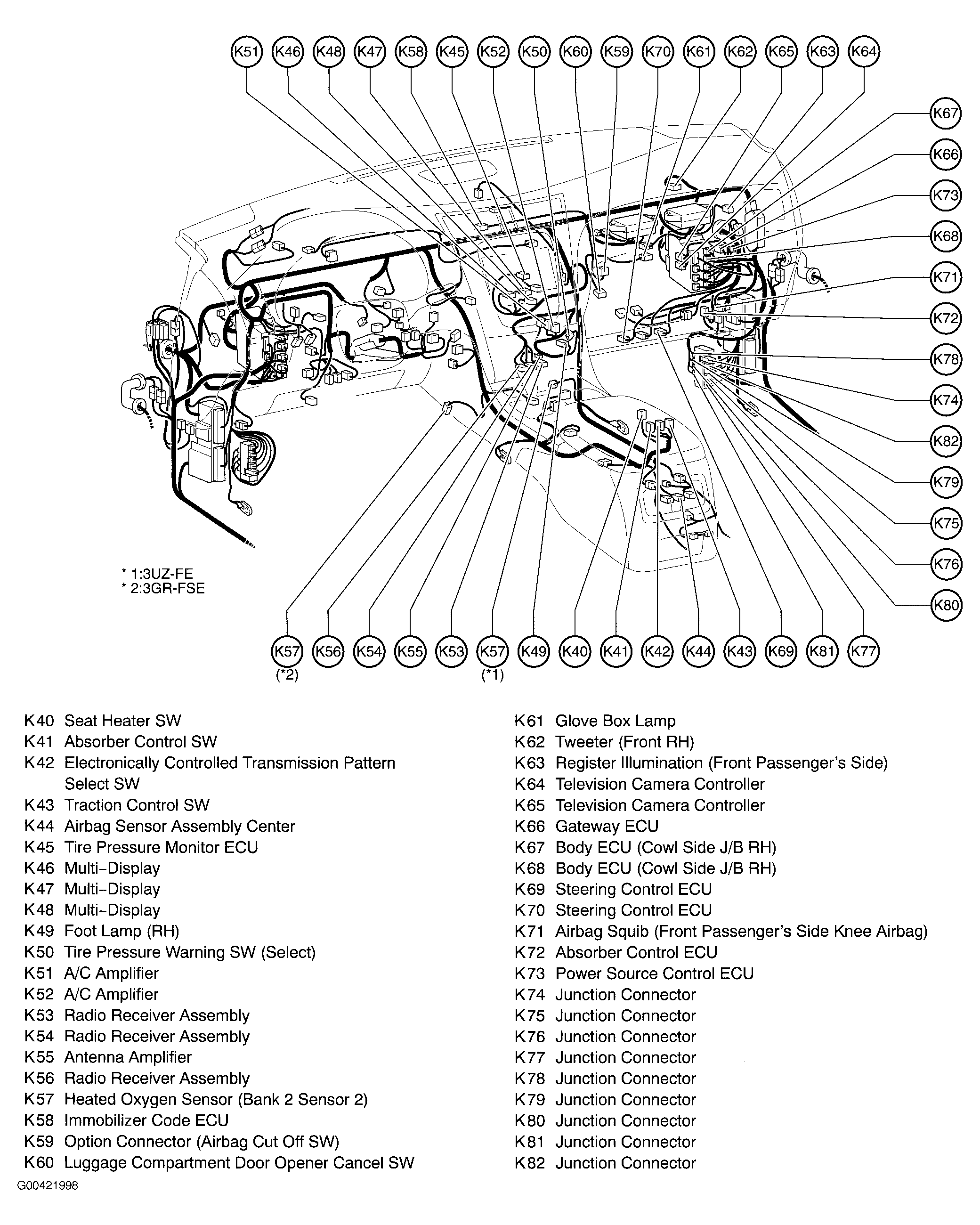

| Junction Connectors No. K74, K75, K76, K77, K78, K79, K80, K81 & K82 | At right kick panel. See Figure. |

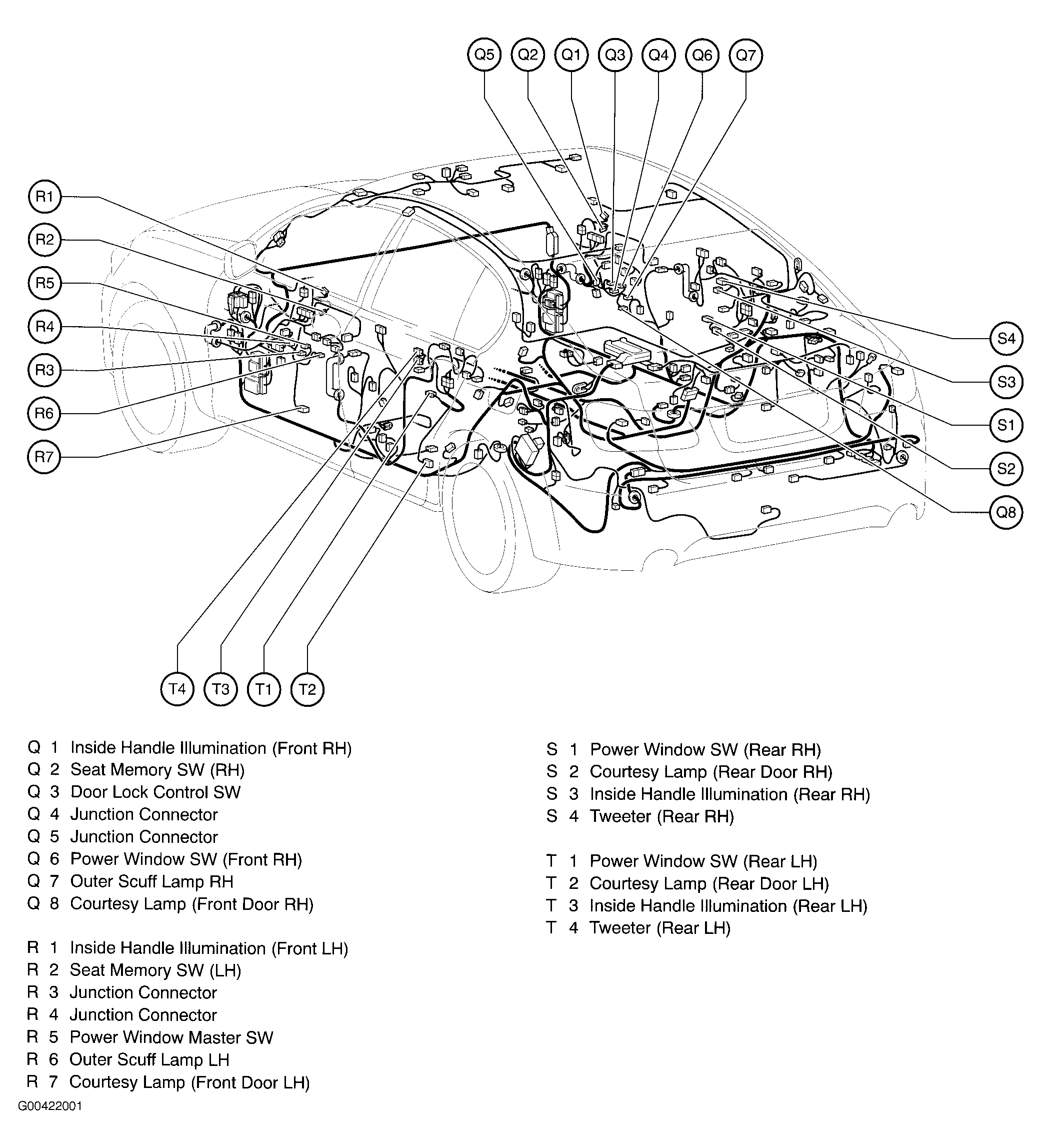

| Junction Connectors No. Q4 & Q5 | In right front door. See Figure. |
| Junction Connectors No. R3 & R4 | In left front door. See Figure. |
| Junction Connectors No. U22, U23 & U25 | Right front of luggage compartment. See Figure. |
| Junction Connectors No. V26 & V27 | Left front of luggage compartment. See Figure. |
| Noise Filter (Center Stop Light) | Near left "C" pillar. See Figure. |
| Noise Filter (Ignition Left) (3.0L) | At top left rear of engine. See Figure. |
| Noise Filter (Ignition Left) (4.3L) | At top left rear of engine. See Figure. |
| Noise Filter (Ignition Right) (3.0L) | Top right side of engine. See Figure. |
| Noise Filter (Ignition Right) (4.3L) | On top right side of engine. See Figure. |

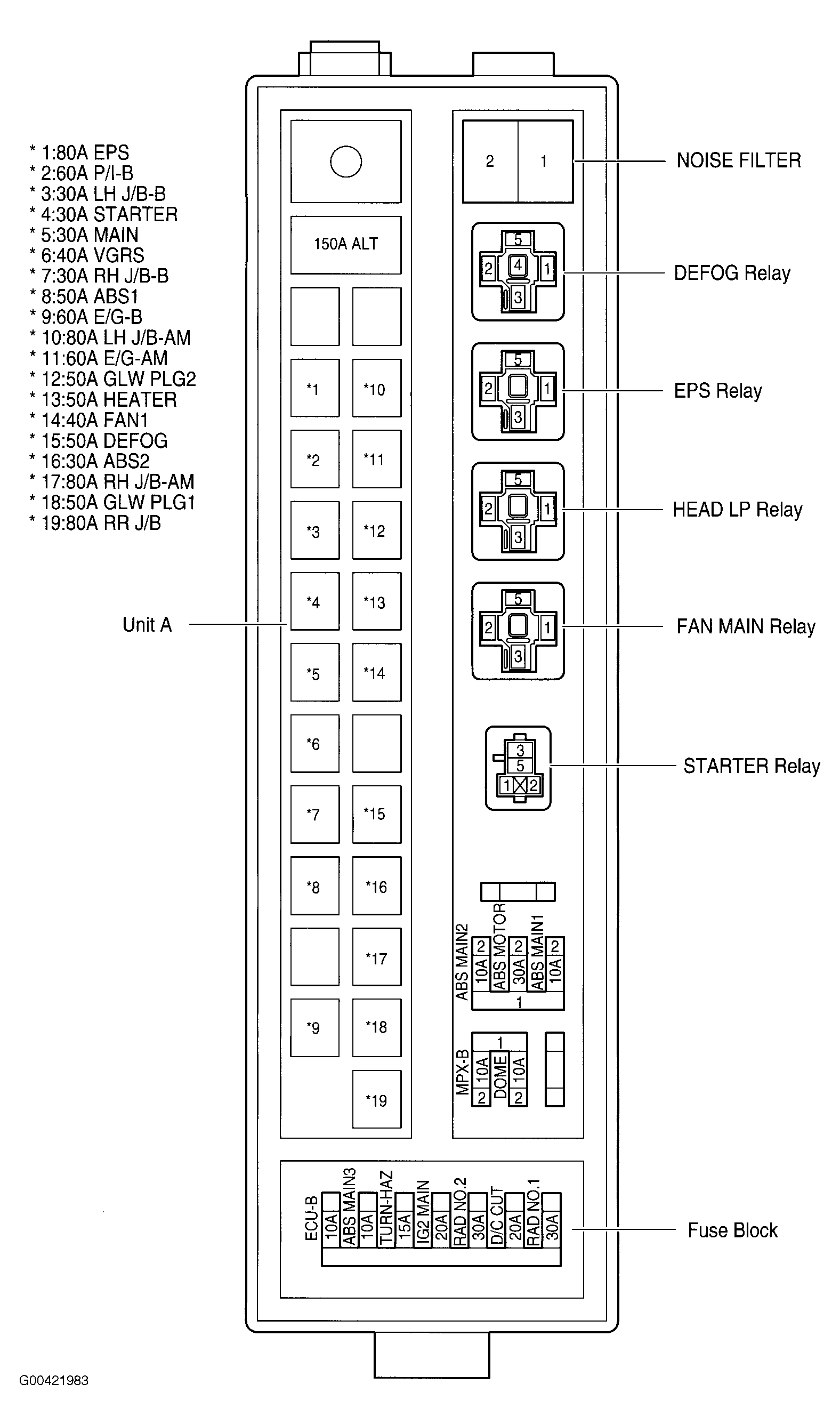

| Noise Filter (2) | In engine room R/B No. 1. See Figure. |
| Option Connector (Audio System) | Right rear corner of luggage compartment. See Figure. |
| Pretensioner (Left Front) | At base of left "B" pillar. See Figure. |
| Pretensioner (Left Rear) | At left "C" pillar. See Figure. |
| Pretensioner (Right Front) | At base of right "B" pillar. See Figure. |
| Pretensioner (Right Rear) | At right "C" pillar. See Figure. |
| Seat Heater (Left Front) | In driver's seat cushion. See Figure. |
| Seat Heater (Right Front) | In front passenger's seat cushion. See Figure. |
| Security Horn (3.0L) | Right side of engine compartment. See Figure. |
| Security Horn (4.3L) | Right side of engine compartment. See Figure. |
| Side Airbag Squib (Left Front) | Under left side of left front seat. See Figure. |
| Side Airbag Squib (Left Rear) | Under left rear seat. See Figure. |
| Side Airbag Squib (Right Front) | Under right side of right front seat. See Figure. |
| Side Airbag Squib (Right Rear) | Under right rear seat. See Figure. |
| Spiral Cable | In steering column. See Figure. |
| Stereo Component Amplifier | At right rear corner of luggage compartment. See Figure. |
| Television Camera | Right side of luggage compartment. See Figure. |
| Wiring Harness Spool | Under center of rear parcel shelf. See Figure. |
