Child Restraint Seat Tether Anchor: Installation

INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
1. Align the claw with the positioning hole and install the anchor bracket with the bolt.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

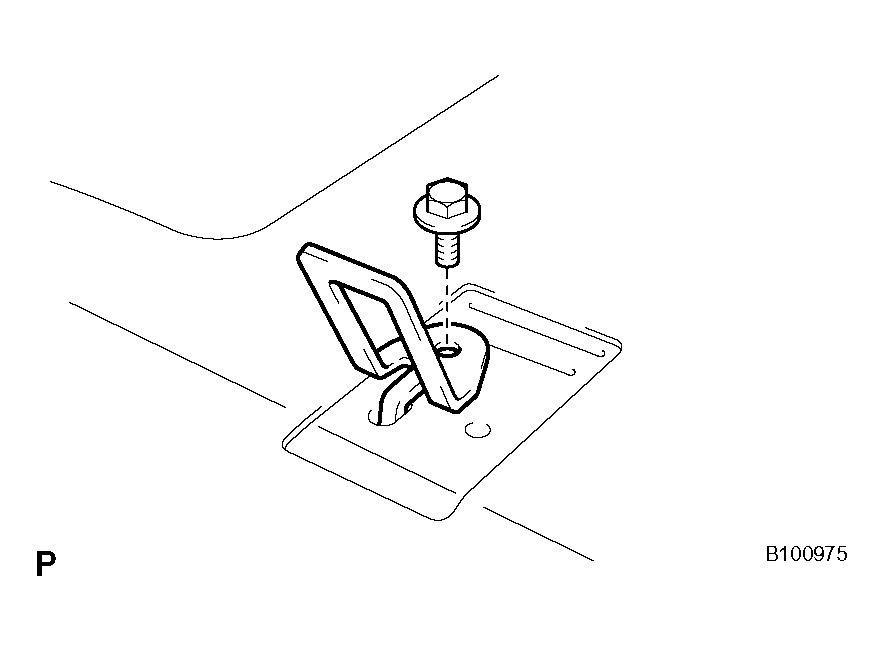

  Fig 1: Identifying Anchor Bracket With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) (See INSTALLATION )
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (See INSTALLATION )
4. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

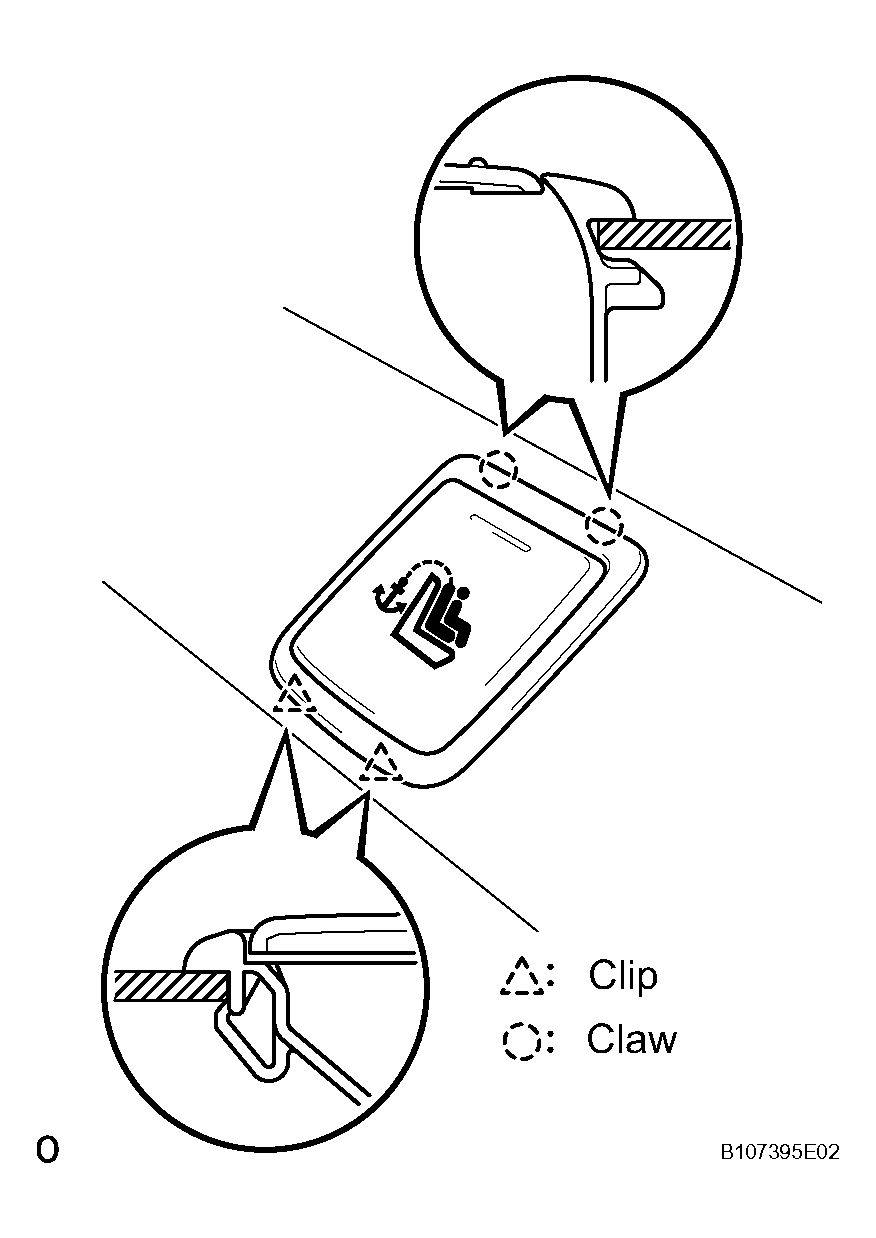

  Fig 2: Identifying Child Restraint Seat Tether Anchor Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Install the tether anchor cover to the package tray trim panel as shown in the illustration.

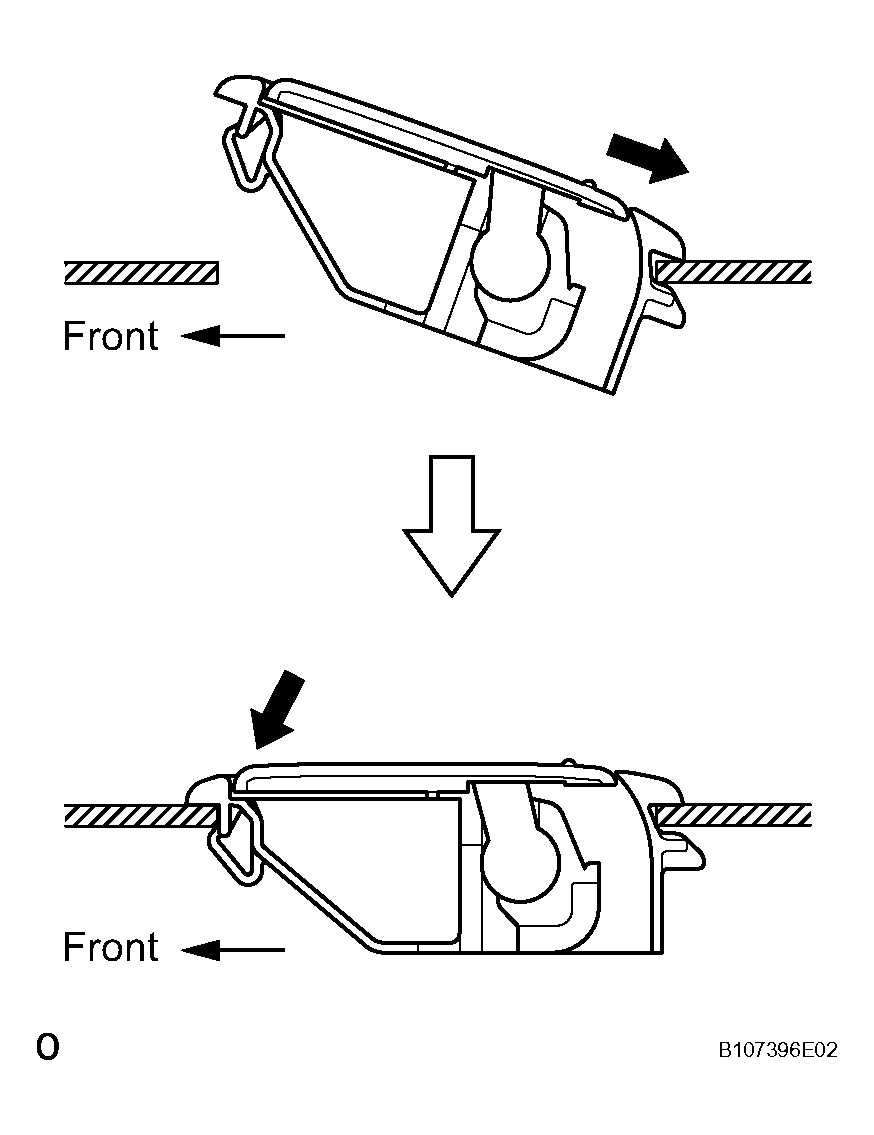

    Fig 3: Identifying Tether Anchor Cover To Package Tray Trim Panel
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL ROOF SIDE GARNISH INNER (See INSTALLATION )
6. INSTALL REAR SEAT SIDE GARNISH (See INSTALLATION )
7. INSTALL REAR DOOR SCUFF PLATE (See INSTALLATION )
8. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (See INSTALLATION )
9. INSTALL REAR SEAT BELT OUTER ANCHOR (See INSTALLATION )
10. INSTALL REAR SEATBACK ASSEMBLY (See INSTALLATION )
11. INSTALL REAR SEAT HEADREST ASSEMBLY RH & LH
12. INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
