Child Restraint Seat Tether Anchor: Removal
- REMOVE REAR SEAT CUSHION ASSEMBLY (See REMOVAL
)
- REMOVE REAR SEAT HEADREST ASSEMBLY RH & LH
- REMOVE REAR SEATBACK ASSEMBLY (See REMOVAL
)
- REMOVE REAR SEAT BELT OUTER ANCHOR (See REMOVAL
)
- REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (See REMOVAL
)
- REMOVE REAR DOOR SCUFF PLATE (See REMOVAL
)
- REMOVE REAR SEAT SIDE GARNISH (See REMOVAL
)
- REMOVE ROOF SIDE GARNISH INNER (See REMOVAL
)

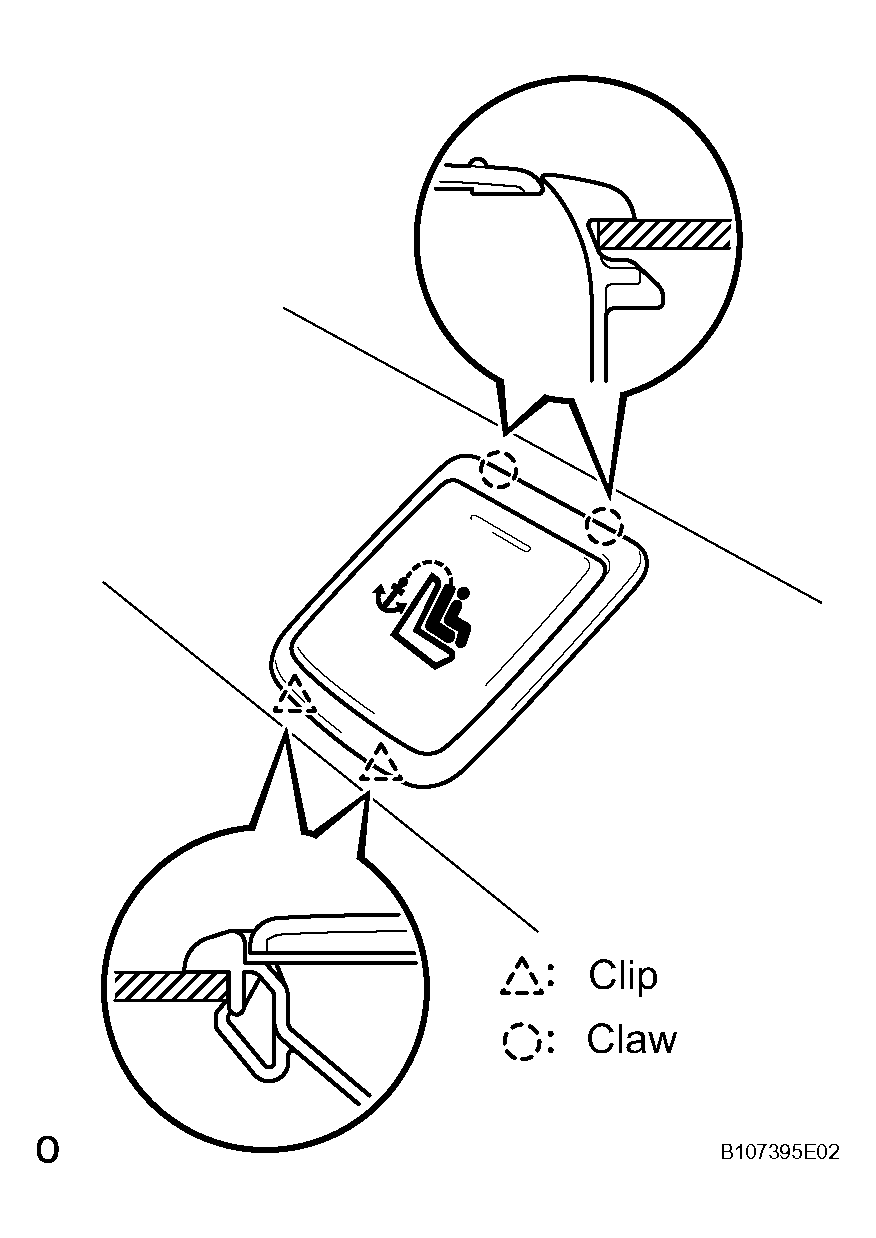

- REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER
- Detach the 2 clips and 2 claws, and remove the anchor cover.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) (See REMOVAL
)
- REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (See REMOVAL
)

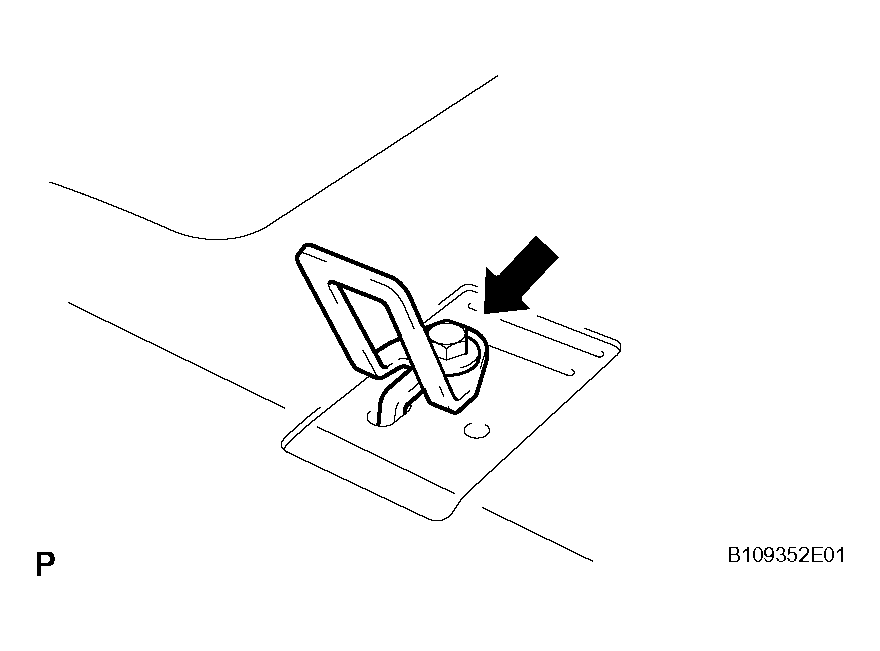

- REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
- Remove the bolt and anchor bracket.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
