Transfer Control Solenoid: Inspection

  1. INSPECT TRANSFER CONTROL SOLENOID
    1. Connect the battery's positive (+) terminal and a bulb of 12V - 21W to terminal 1 as shown in the illustration.
    2. Connect the battery's negative (-) terminal to terminal 2 and check if the solenoid operates.

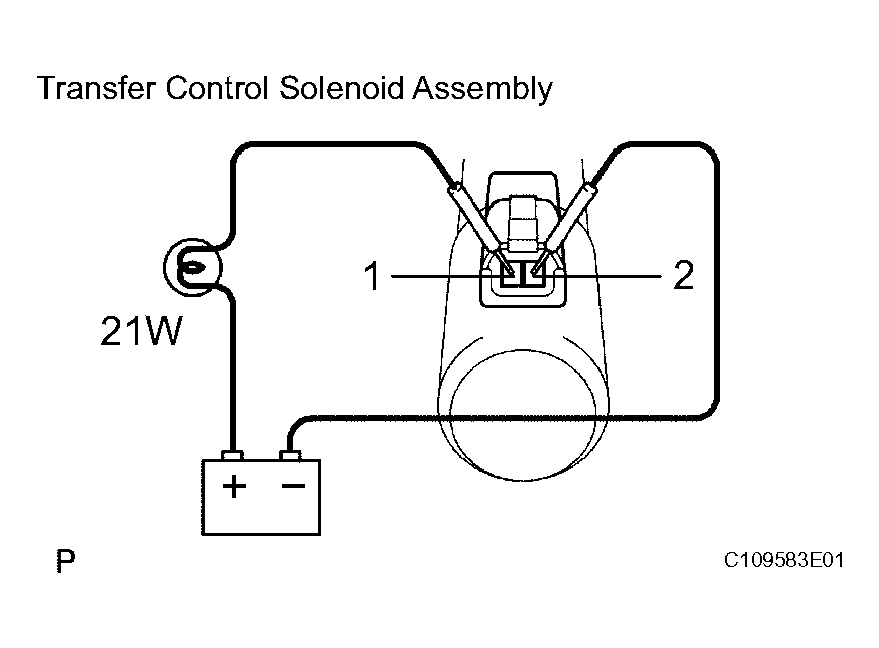

      Fig 1: Inspecting Transfer Control Solenoid
      G04020470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

      The solenoid operates and operating sound is heard.

    3. Measure the resistance according to the value(s) in the table below.

      Resistance

      TRANSFER CONTROL SOLENOID RESISTANCE

      Tester Connection Condition
      Terminal 1 - Terminal 2 5.0 to 5.5 Ω

      If the resistance is not within the specified range, replace the transfer control solenoid.
