Transfer Valve Body Assembly: Installation

INSTALL TRANSFER CONTROL SOLENOID (See INSTALLATION )
INSTALL TRANSFER VALVE BODY ASSEMBLY
1. Connect the transfer wire connector to the transfer control solenoid.
2. Install the transfer upper valve body with the 4 bolts.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

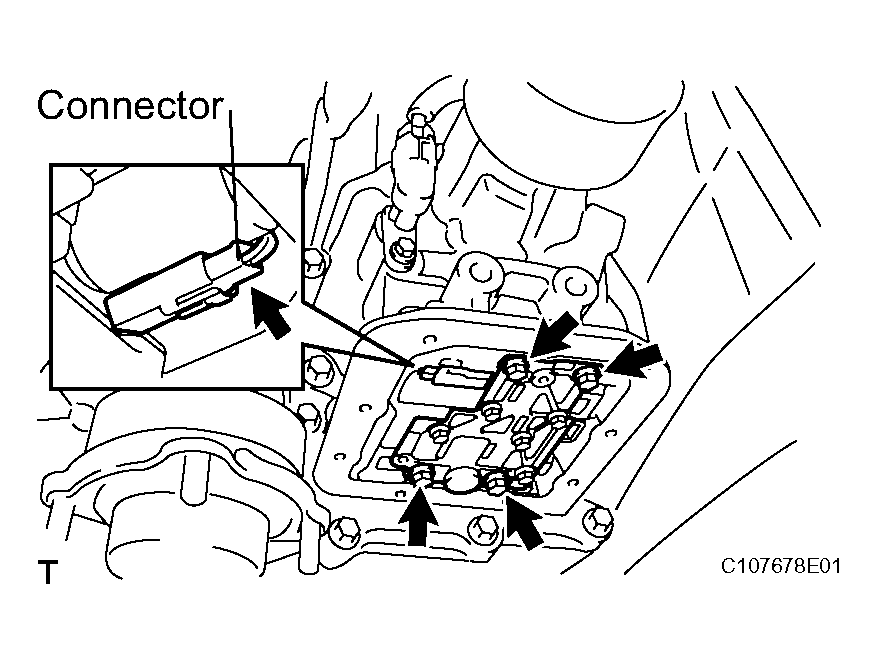

  Fig 1: Identifying Transfer Valve Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSFER OIL PAN (See INSTALLATION )
INSTALL TRANSFER DYNAMIC DAMPER (See INSTALLATION )
INSTALL ENGINE REAR MOUNTING MEMBER (See INSTALLATION )
INSTALL FRONT EXHAUST PIPE ASSEMBLY
(See INSTALLATION )
ADD AUTOMATIC TRANSMISSION FLUID (See AUTOMATIC TRANSMISSION FLUID )
CHECK FOR EXHAUST GAS LEAKS
