Transfer Valve Body Assembly: Removal

  1. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    (See REMOVAL )

  2. DRAIN AUTOMATIC TRANSMISSION FLUID (See  AUTOMATIC TRANSMISSION FLUID  )
  3. SUPPORT AUTOMATIC WITH TRANSFER TRANSMISSION ASSEMBLY (See  AUTOMATIC TRANSMISSION ASSEMBLY  )
  4. REMOVE ENGINE REAR MOUNTING MEMBER (See  REMOVAL   )
  5. REMOVE TRANSFER DYNAMIC DAMPER (See  REMOVAL   )
  6. REMOVE TRANSFER OIL PAN (See  REMOVAL   )
  7. REMOVE TRANSFER VALVE BODY ASSEMBLY
    1. Remove the 4 bolts and the transfer upper valve body.
    2. Disconnect the transfer wire connector from the transfer control solenoid.
  8. REMOVE TRANSFER CONTROL SOLENOID (See  REASSEMBLY   )

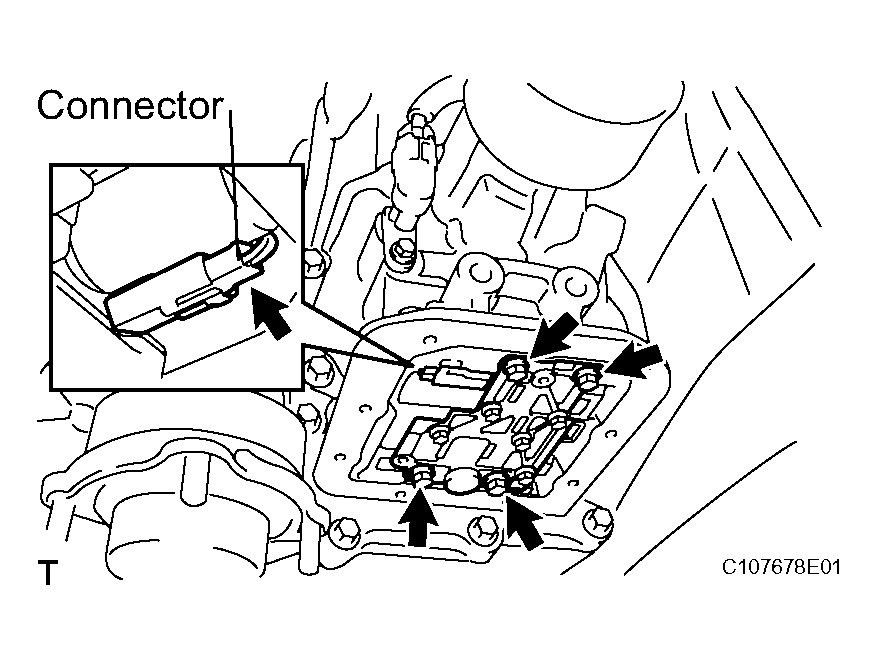

    Fig 1: Identifying Transfer Valve Body Assembly
    G04020468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
