Transfer Wire: Installation

1. Coat the transfer wire O-ring with ATF.

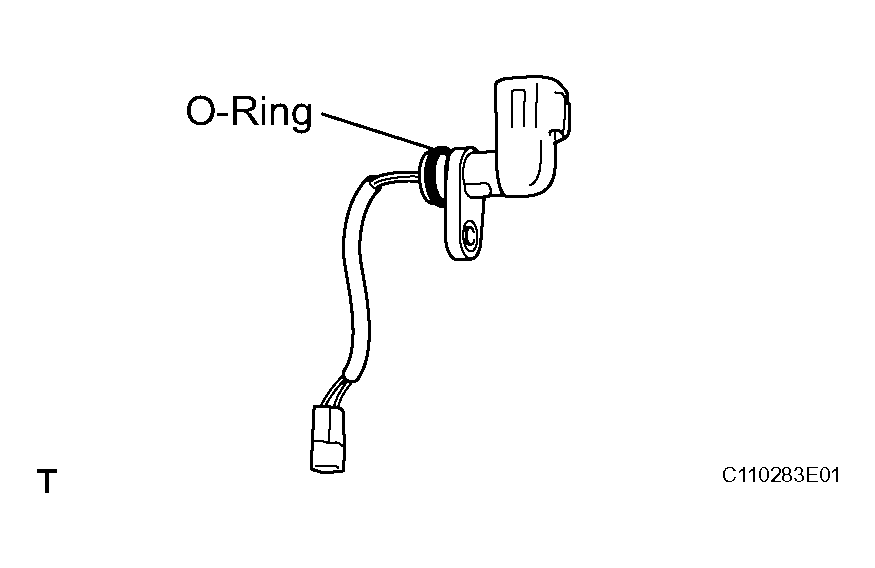

   Fig 1: Coating Transfer Wire O-Ring With ATF

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the transfer wire with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

3. Connect the 2 transfer wire connectors to the transfer control solenoid.
4. Install the transfer upper valve body with the 4 bolts.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

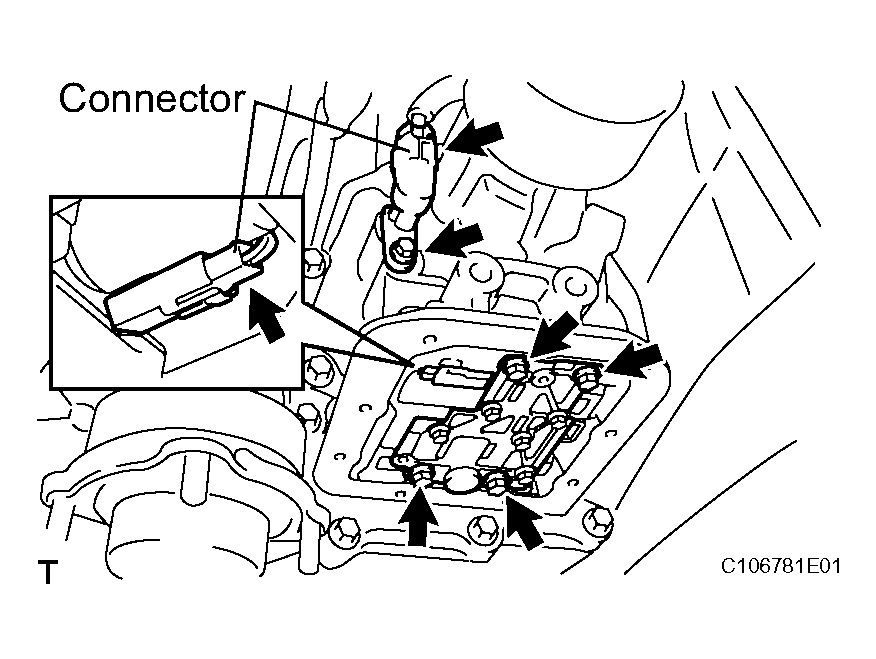

   Fig 2: Identifying Transfer Wire With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transfer oil cleaner magnet to the transfer oil pan.
   Fig 3: Identifying Transfer Oil Cleaner Magnet To Transfer Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove all residual FIPG material from the contacting surfaces using gasoline or alcohol.
3. Apply seal packing to the transfer chain case front as shown in the illustration.

   Seal packing:

   Part No. 08826-00090, THREE BOND or equivalent

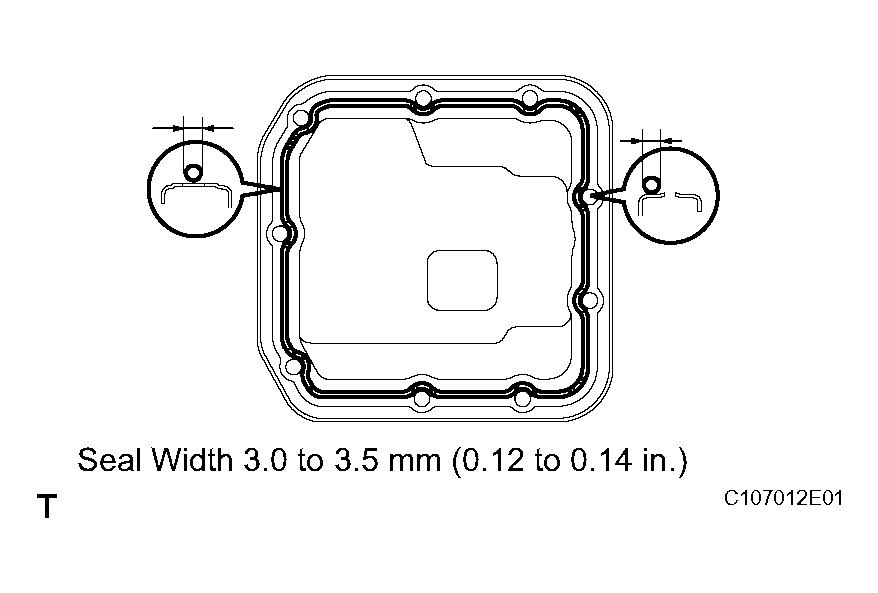

   Fig 4: Applying Seal Packing To Transfer Chain Case Front

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Temporarily tighten the 9 bolts in several steps, and then tighten to the specified torque.

   Torque: 7.4 N*m (75 kgf*cm, 65 in.*lbf)

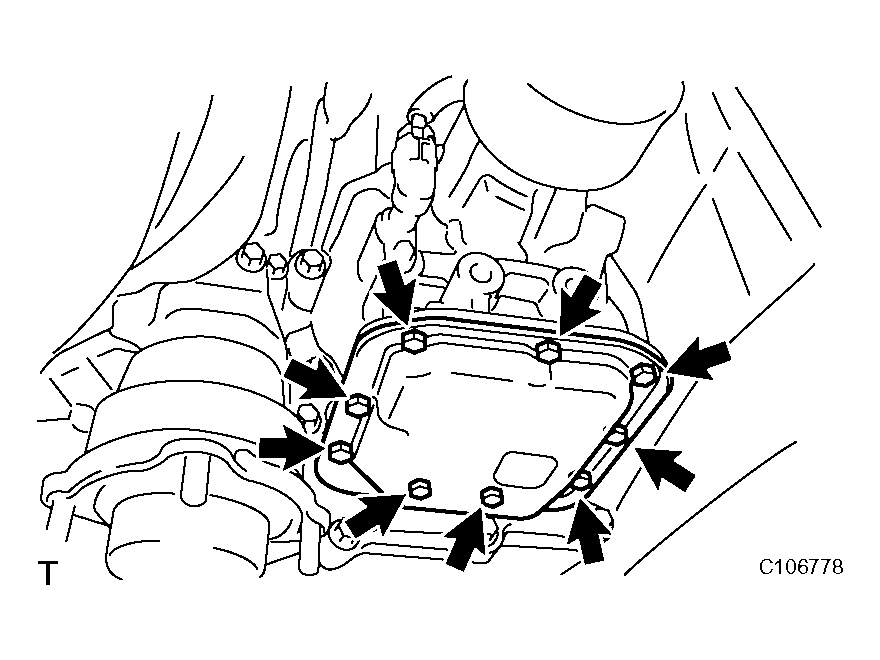

   Fig 5: Identifying Transfer Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the transfer dynamic damper with the 2 bolts.

   Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

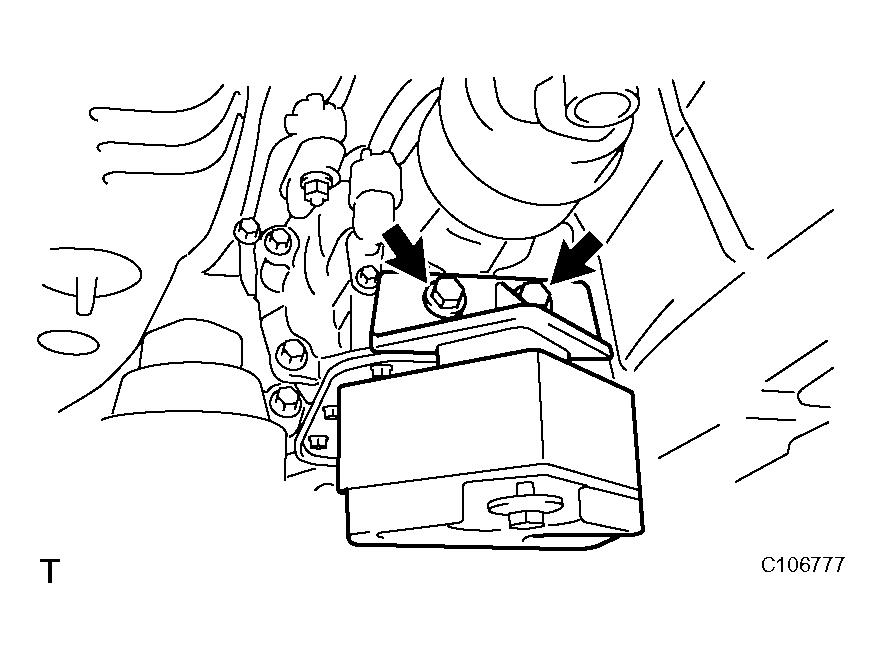

   Fig 6: Identifying Transfer Dynamic Damper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the engine rear mounting member with the 4 bolts and 3 nuts.

   Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf) (Bolt) 38 N*m (387 kgf*cm, 28 ft.*lbf) (Nut)

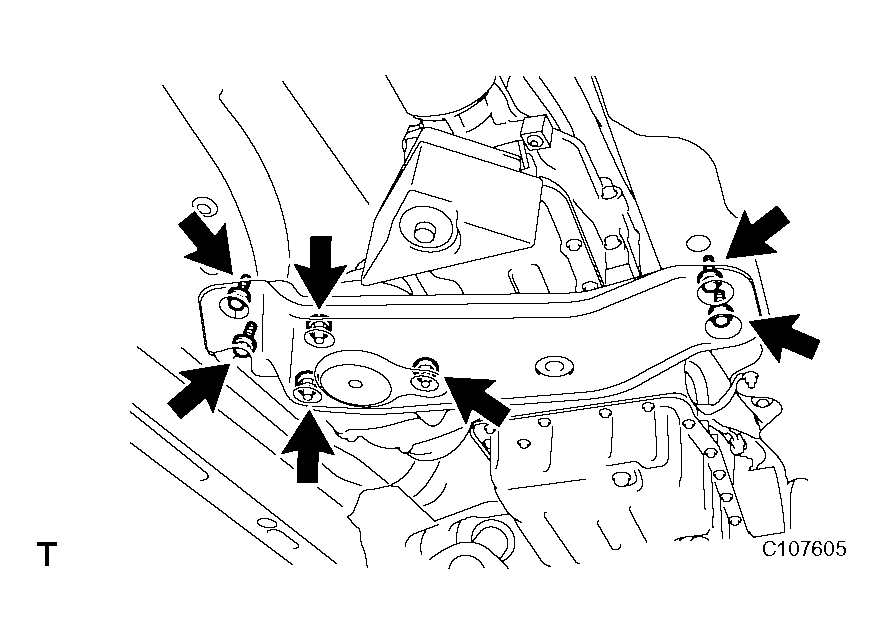

   Fig 7: Identifying Engine Rear Mounting Member

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See INSTALLATION )
