Recommended Tools

SOCKET WRENCH SPECIFICATIONS

G04017316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

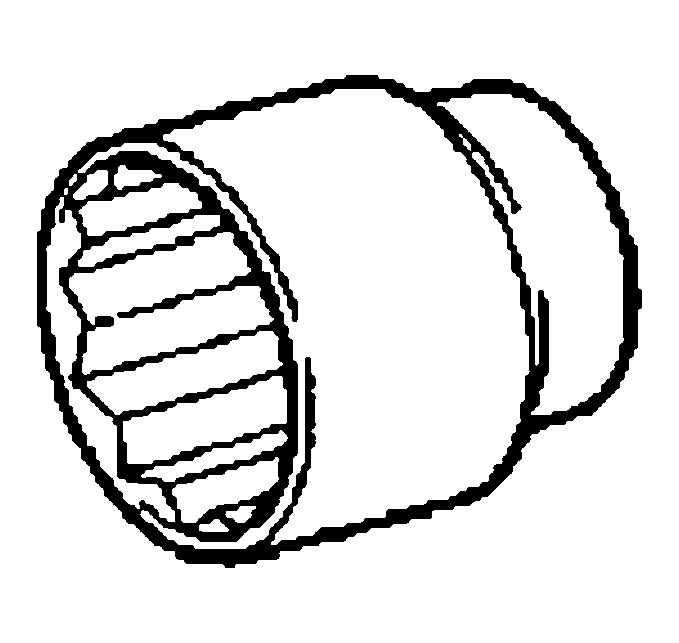

 09011-12301 Socket Wrench 30 mm -
G04017317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

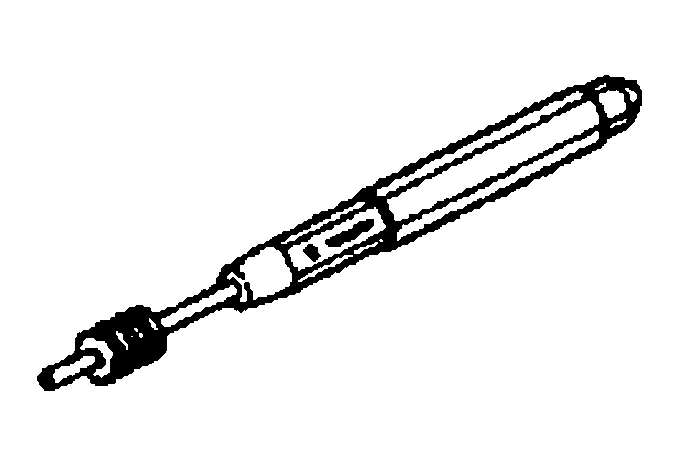

 09031-00040 Pin Punch. -
G04017318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

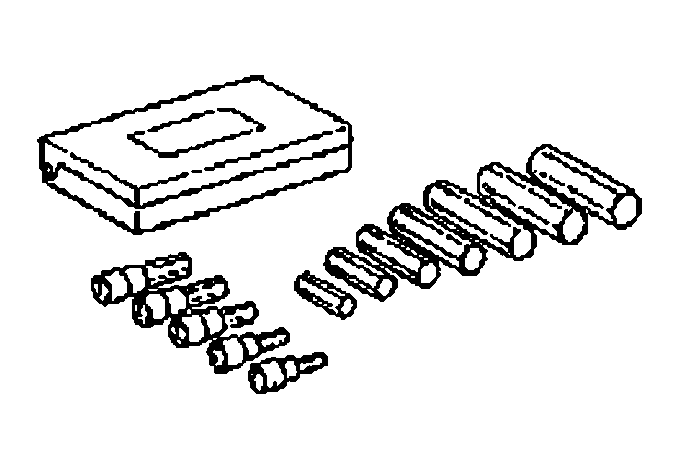

 09040-00011 Hexagon Wrench Set -
G04017319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

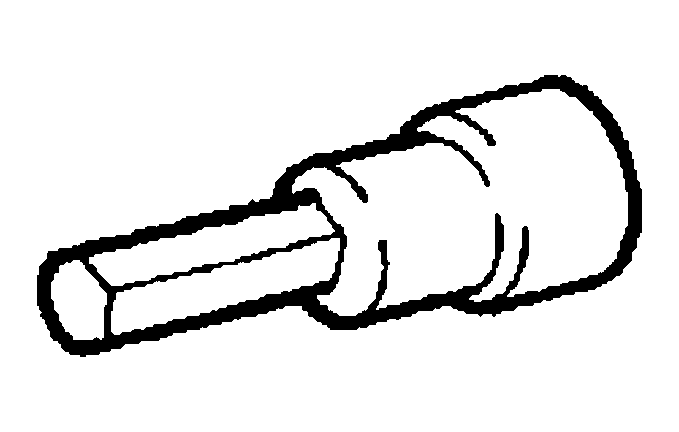

 (09043-20080) Socket Hexagon Wrench 8 -
G04017320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (09043-20100) Socket Hexagon Wrench 10 -
G04017321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

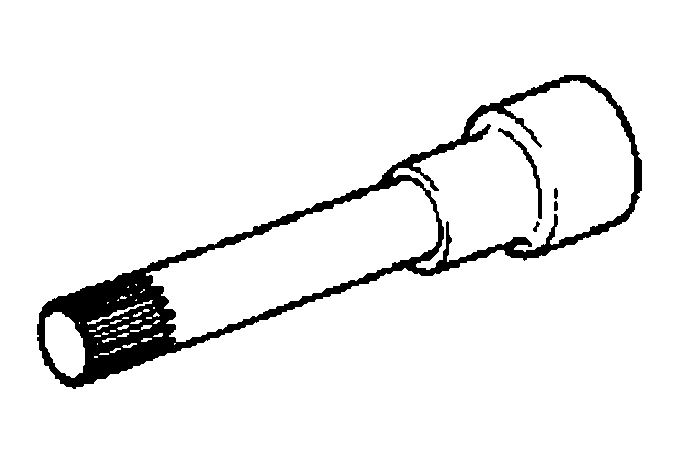

 09043-50100 Bi-hexagon Wrench 10 mm -
G04017322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09090-04020 Engine Sling Device -
G04017323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

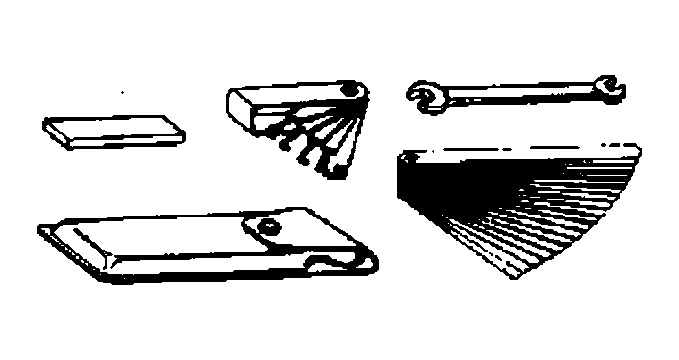

 09200-00010 Engine Adjust Kit -
G04017324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

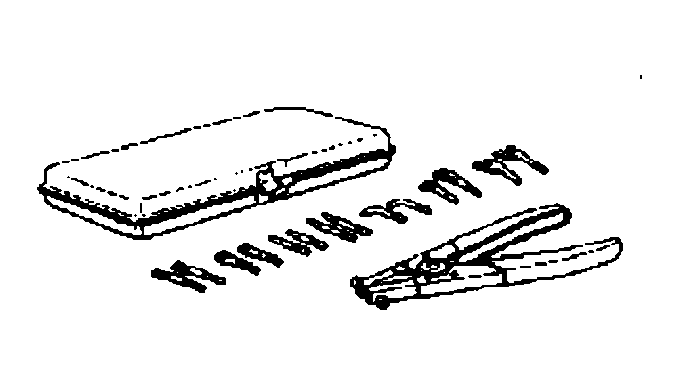

 09904-00010 Expander Set -
