VVT Sensor: Installation

INSTALL VVT SENSOR (for Exhaust Side of Bank 2)
1. Install the sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the sensor connector.

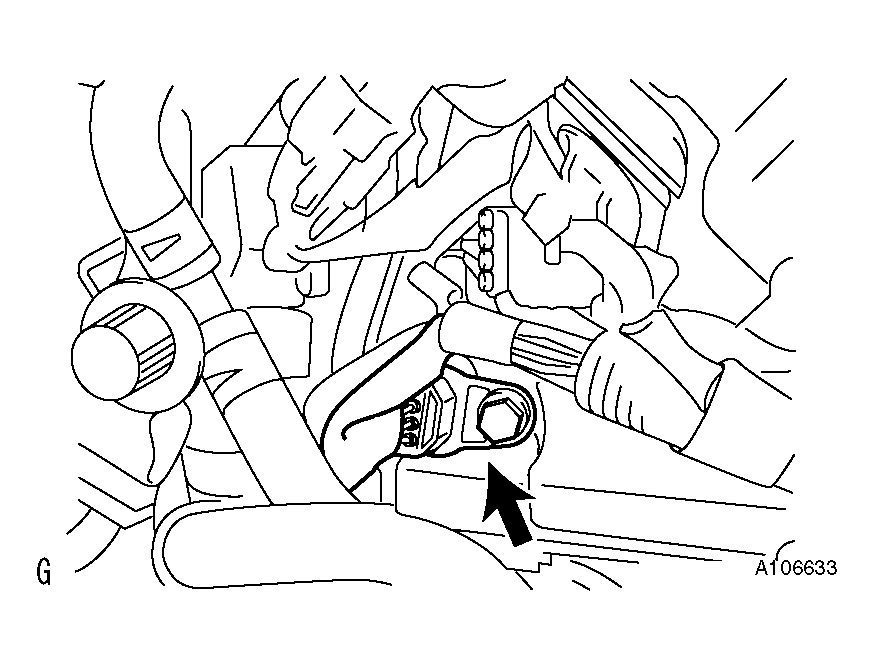

  Fig 1: Identifying VVT Sensor (For Exhaust Side Of Bank 2) With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR (for Intake Side of Bank 2)
1. Install the sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the sensor connector.

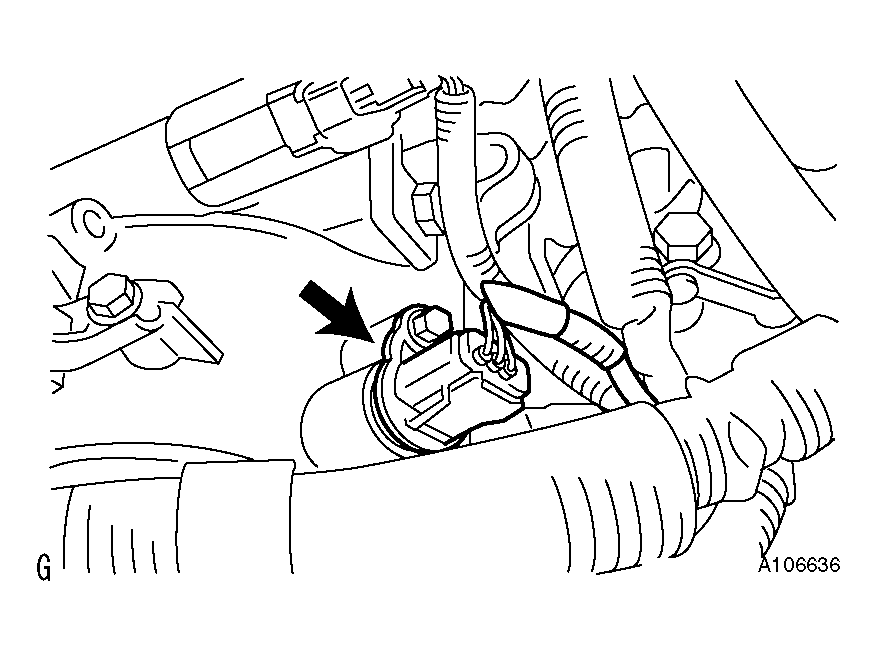

  Fig 2: Identifying VVT Sensor (For Intake Side Of Bank 2) With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR (for Exhaust Side of Bank 1)
1. Install the sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the sensor connector.

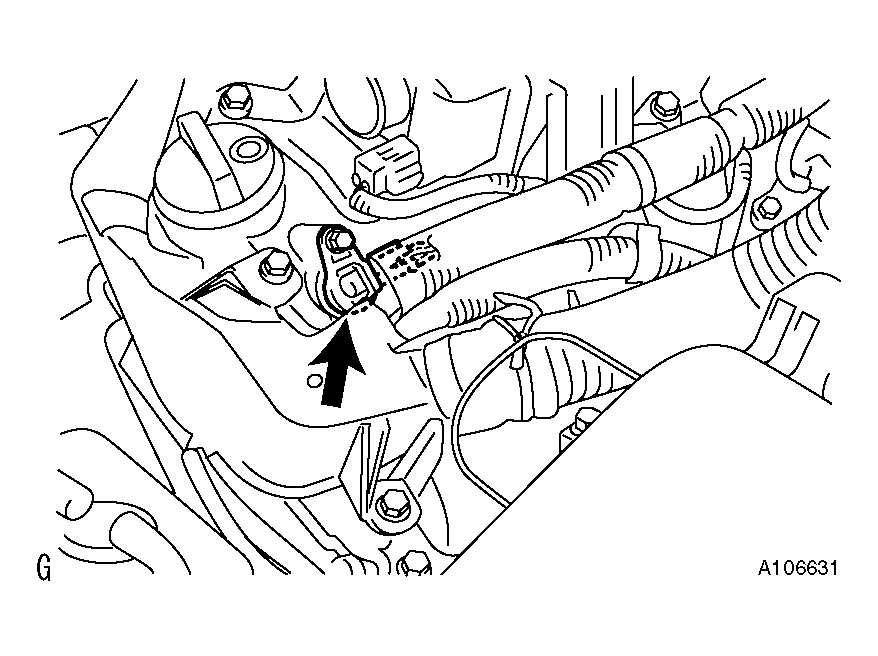

  Fig 3: Identifying VVT Sensor (For Exhaust Side Of Bank 1) With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR (for Intake Side of Bank 1)
1. Install the sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the sensor connector.

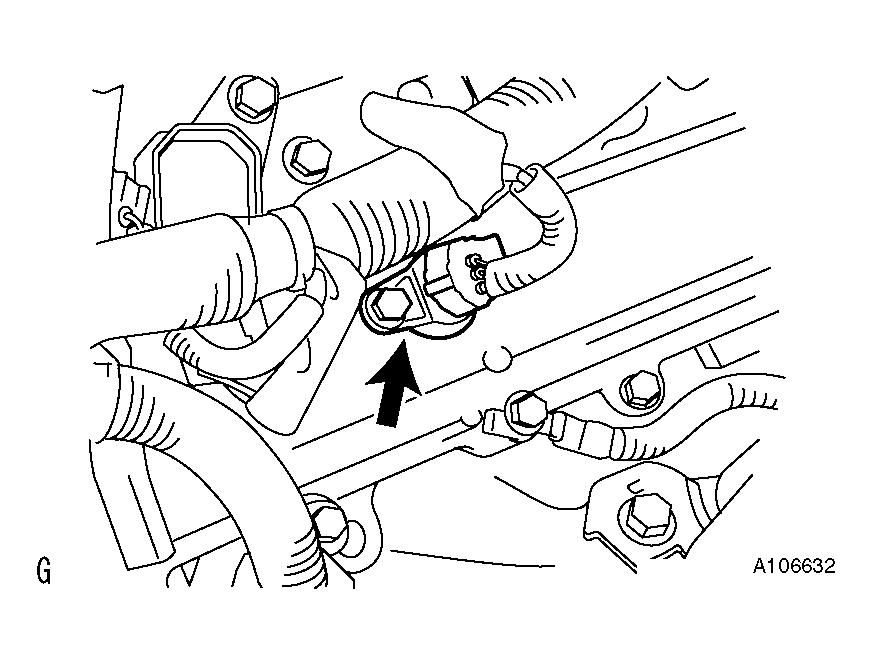

  Fig 4: Identifying VVT Sensor (For Intake Side Of Bank 1) With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
