VVT Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE V-BANK COVER (See  REMOVAL  )
  3. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

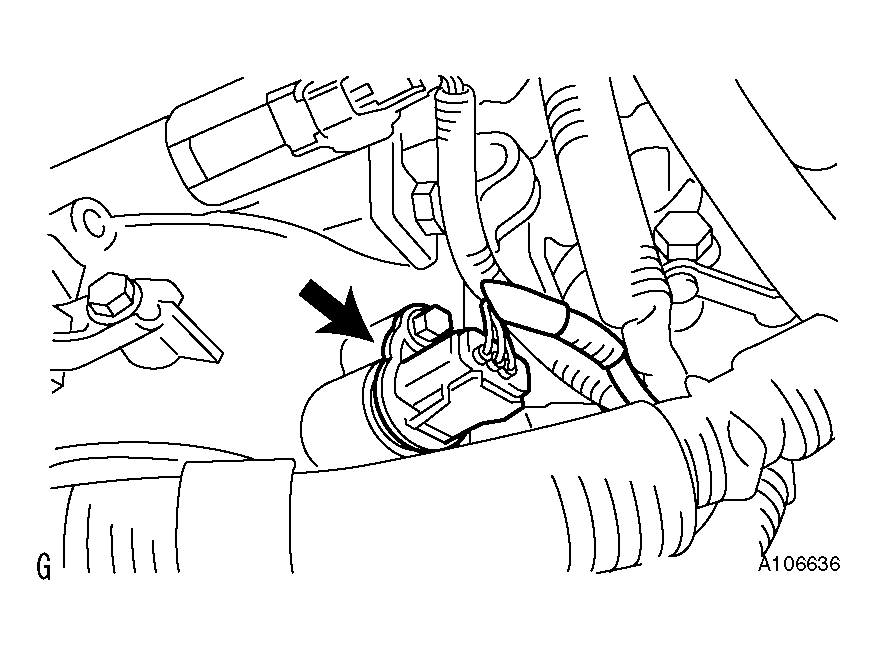

      Fig 1: Identifying Bolt And VVT Sensor (For Intake Side Of Bank 1)
      G04019014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

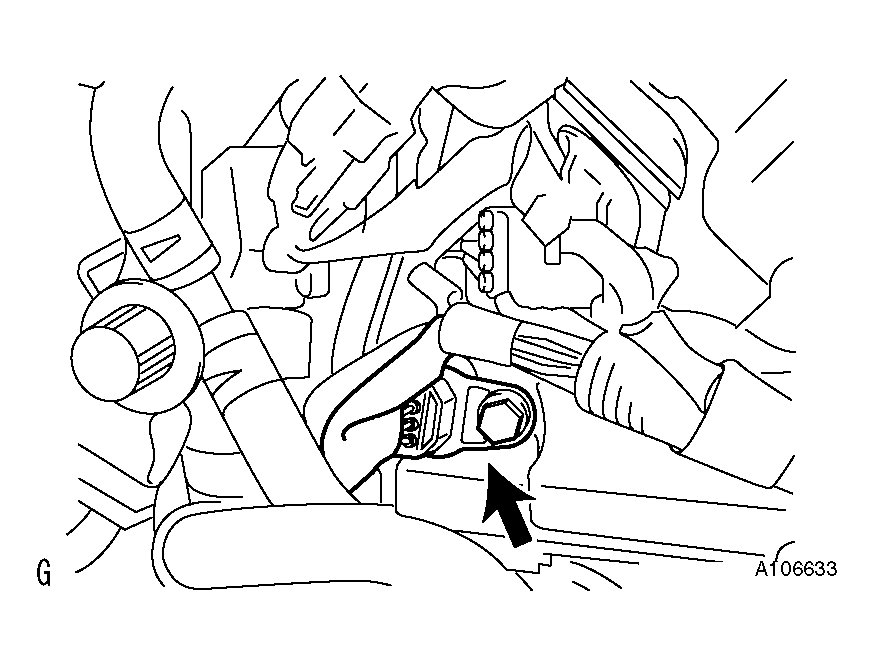

      Fig 2: Identifying Bolt And VVT Sensor (For Exhaust Side Of Bank 1)
      G04019015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

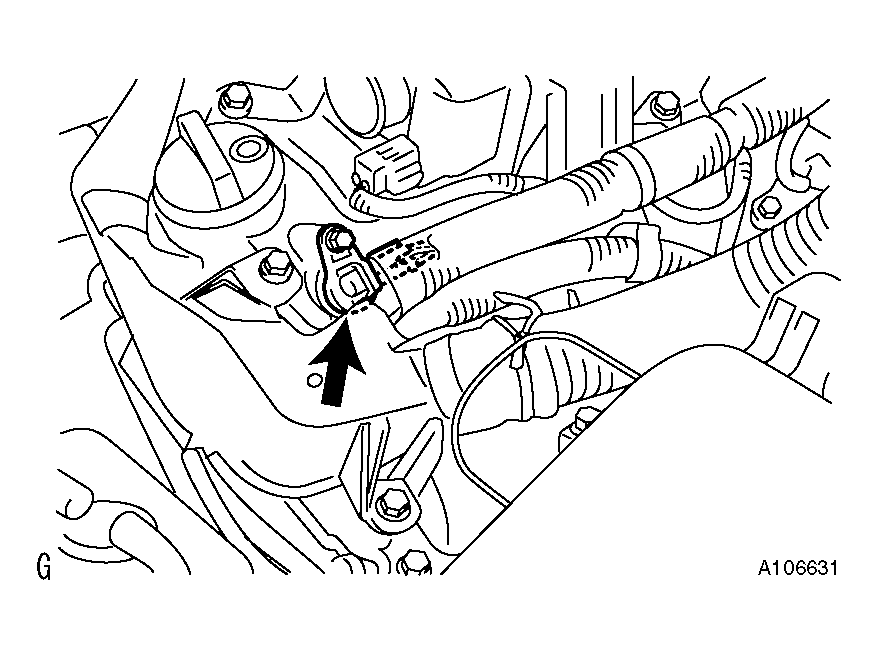

      Fig 3: Identifying Bolt And VVT Sensor (For Intake Side Of Bank 2)
      G04019016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.

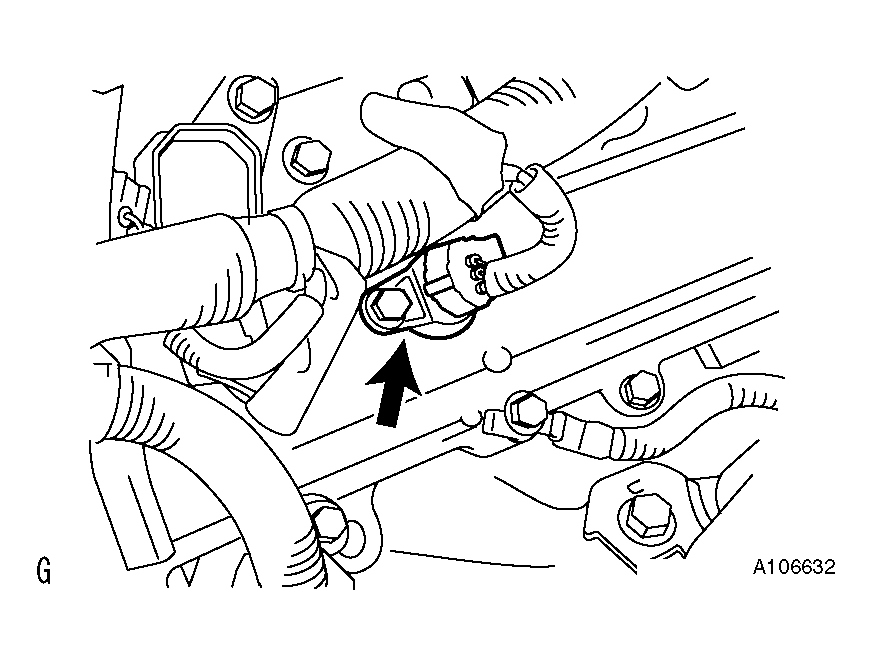

      Fig 4: Identifying Bolt And VVT Sensor (For Exhaust Side Of Bank 2)
      G04019017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
