Customize Parameters

CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER (REFERENCE)

HINT:

The items in the table below can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current setting before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

Smart access system with push-button start

SMART ACCESS SYSTEM WITH PUSH-BUTTON START

Display (Item)	Default	Contents	Setting
PARK WAIT TIME (Waiting time to permit opening door after locking)	3.0s	Function that sets waiting time to permit opening door after door is locked with entry lock function	1.0s / 2.0s / 3.0s / 5.5s
TRUNK OPEN MODE (Luggage compartment door open mode when vehicle is locked)	ON	Function to permit opening luggage compartment door	ON / OFF
KEY LO-BATT WRN (Warn when key battery becomes weak)	ON	Function that warns driver that key's battery power is low	ON / OFF
DOOR UNLOCK MODE (Entry door unlock mode)	All	Function that makes entry unlock operation available	All / EACH / D-DOOR / SIDE

Entry Unlock Mode Switching Function
1. To change the vehicle to entry unlock mode switching mode, make sure the vehicle power is off and simultaneously press and hold the key's LOCK switch and another key switch for 5 seconds. Driver door unlock default setting When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door mode, one door mode, doors on one side mode, all door mode.
  NOTE: After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
  - Driver door unlock mode:
    When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
  - All door unlock mode:
    When a touch sensor is touched, all doors unlock.
  - One door mode:
    When a touch sensor is touched, the touch sensor's door unlocks. For example, if the driver door's touch sensor is touched, the driver door unlocks.
  - Doors on one side mode:
    When a touch sensor is touched, the doors on the side of the touch sensor unlock. For example, when the driver door's touch sensor is touched, the driver door and driver side rear door unlock.
2. The certification ECU receives this signal from the entry door control receiver and changes the smart access system with push-button start to the entry unlock mode.
3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.

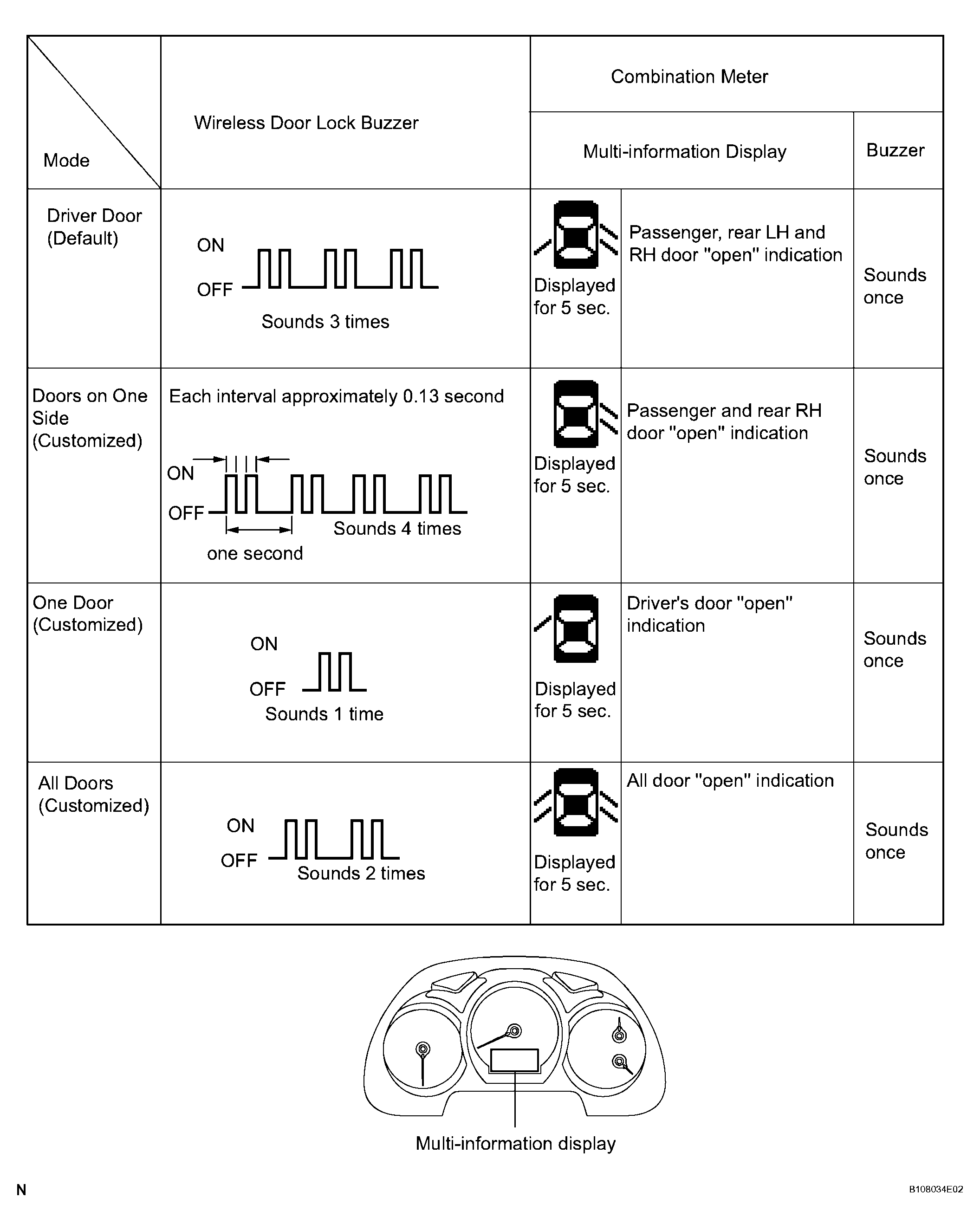

  Fig 1: Wireless Door Lock Buzzer And Combination Meter Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control.
Key Cancel
The key cancel operation disables the following functions:
- Entry Ignition
- Entry Unlock / Lock
- Entry Luggage Compartment Open
- Key Lock-in Prevention
- Warning
- Memory Call
1. The operation procedures are as follows:
  Precondition:

  Engine switch off, driver side door closed and unlocked.
  1. Unlock the driver side door once with the UNLOCK switch of the key.
  2. Open the driver door within 5 seconds.
  3. Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.
  4. Repeat open --> close twice for the driver door within 30 seconds, and open again.
    (Driver door: Open --> Close --> Open --> Close --> Open)
  5. Unlock the driver side door twice with the UNLOCK switch of the key within 5 seconds.
  6. Repeat open --> close once for the driver door within 30 seconds, and open again.
    (Driver door: Open --> Close --> Open)
  7. Close the driver door within 5 seconds.
    When key cancel is activated, the wireless door lock buzzer sounds once.

    To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds twice.
