Front Acceleration Sensor: Components

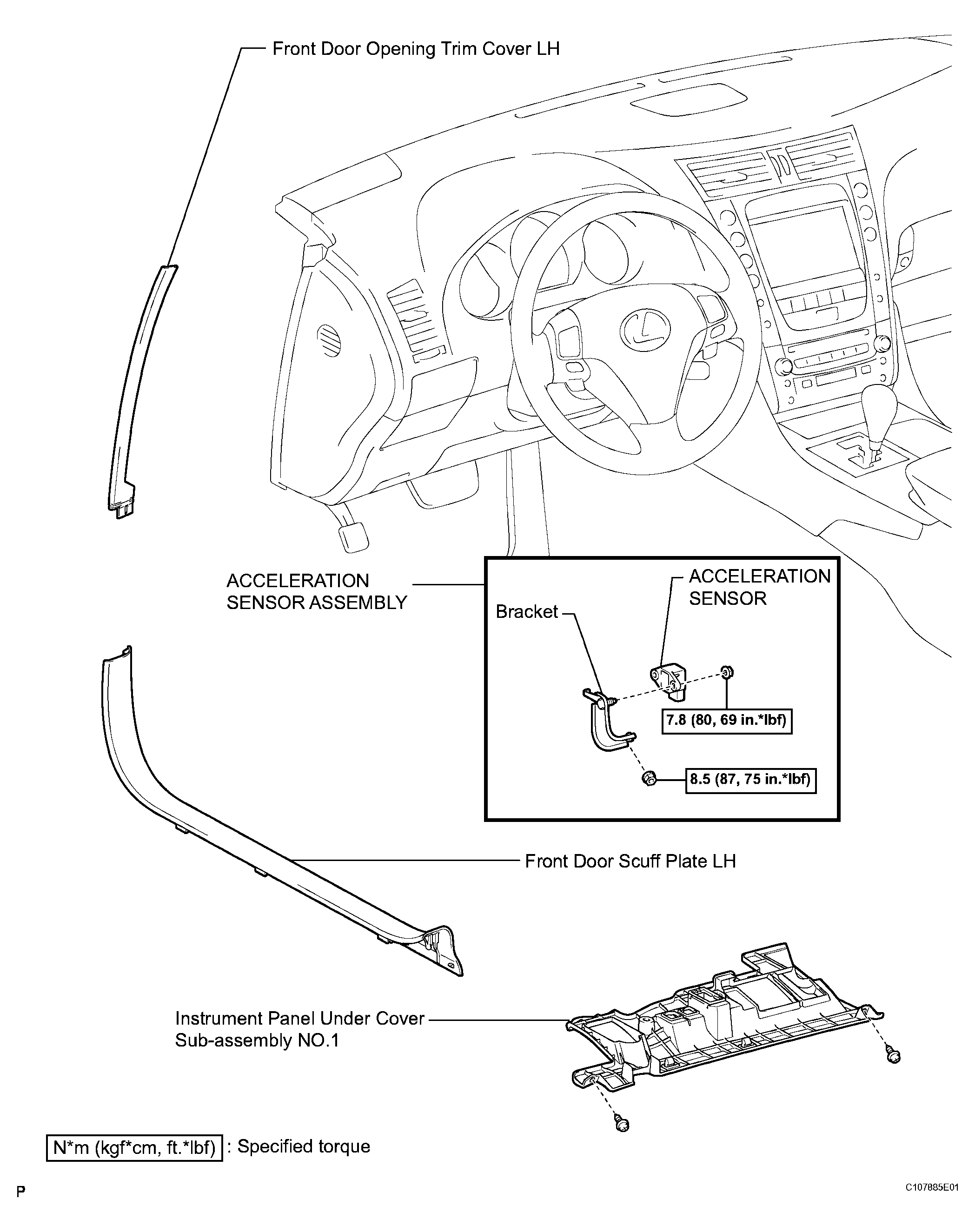

Fig 1: Front Acceleration Sensor Replacement Components With Torque Specifications
G04024600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
