Parts Location

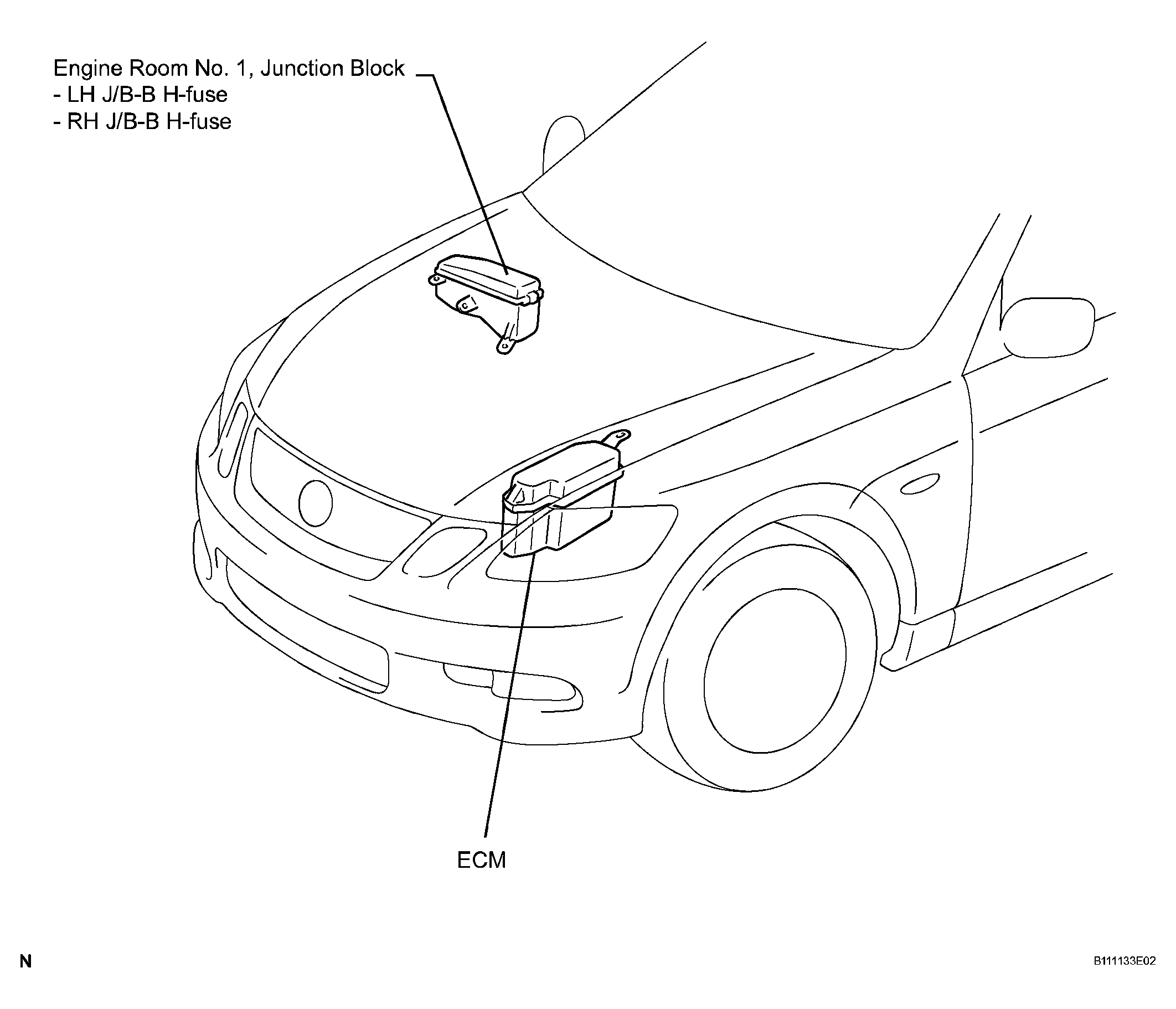

Fig 1: Identifying Power Mirror Control System Components (1 Of 3)
G04023113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

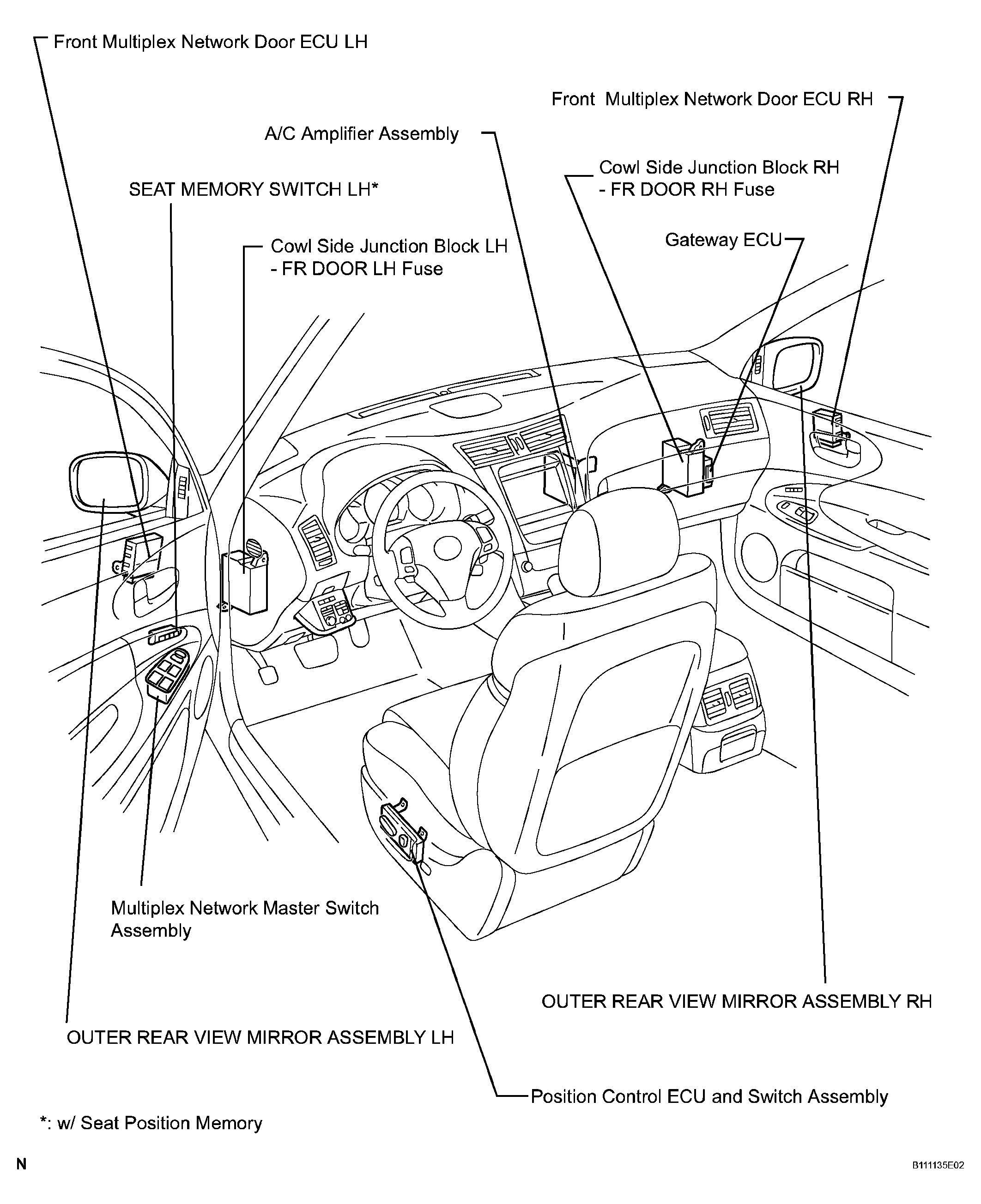

Fig 2: Identifying Power Mirror Control System Components (2 Of 3)
G04023114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

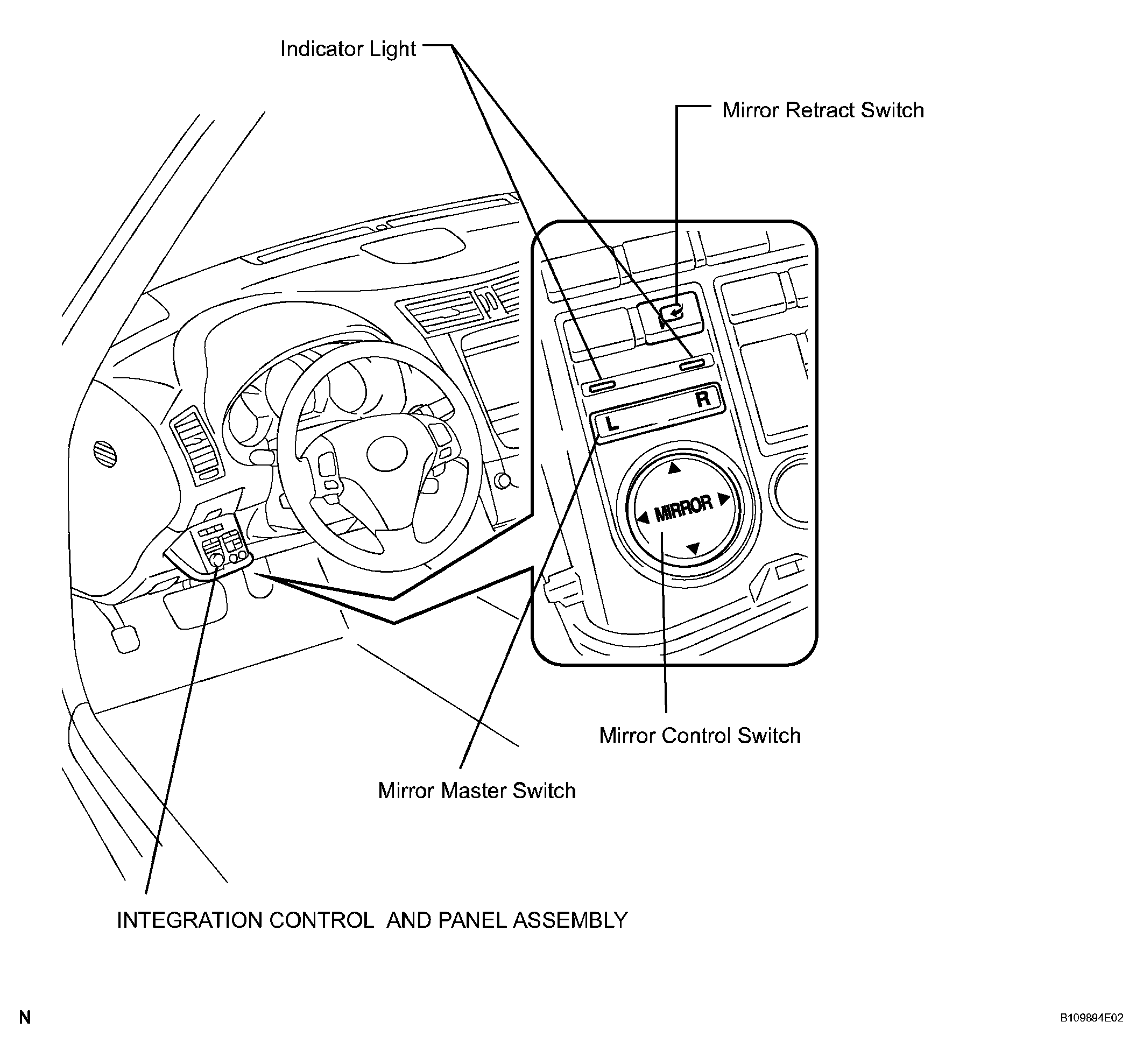

Fig 3: Identifying Power Mirror Control System Components (3 Of 3)
G04023115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
