System Diagram

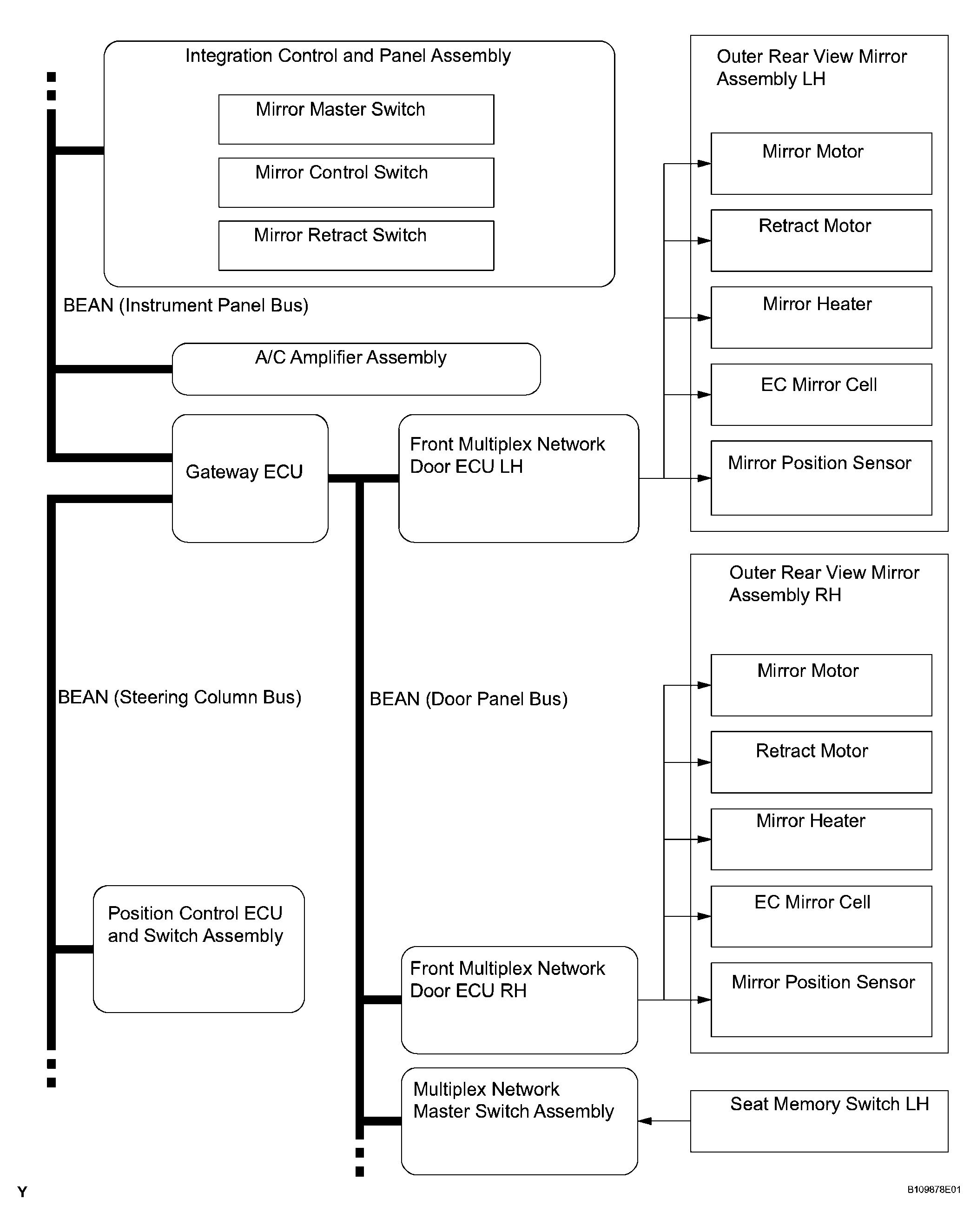

Fig 1: Identifying System Diagram

G04023116

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Integration Control and Panel Assembly	Front Multiplex Network Door ECU RH	RH mirror master switch signal	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU RH	LH mirror master switch signal	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU RH	Mirror control switch signal (RIGHT)	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU RH	Mirror control switch signal (LEFT)	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU RH	Mirror control switch signal (UP)	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU RH	Mirror control switch signal (DOWN)	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU RH	Mirror retract switch signal	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU LH	RH mirror master switch signal	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU LH	LH mirror master switch signal	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU LH	Mirror control switch signal (RIGHT)	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU LH	Mirror control switch signal (LEFT)	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU LH	Mirror control switch signal (UP)	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU LH	Mirror control switch signal (DOWN)	BEAN
Integration Control and Panel Assembly	Front Multiplex Network Door ECU LH	Mirror retract switch signal	BEAN
A/C Amplifier Assembly	Front Multiplex Network Door ECU RH	Mirror heater operation request signal	BEAN
A/C Amplifier Assembly	Front Multiplex Network Door ECU LH	Mirror heater operation request signal	BEAN
