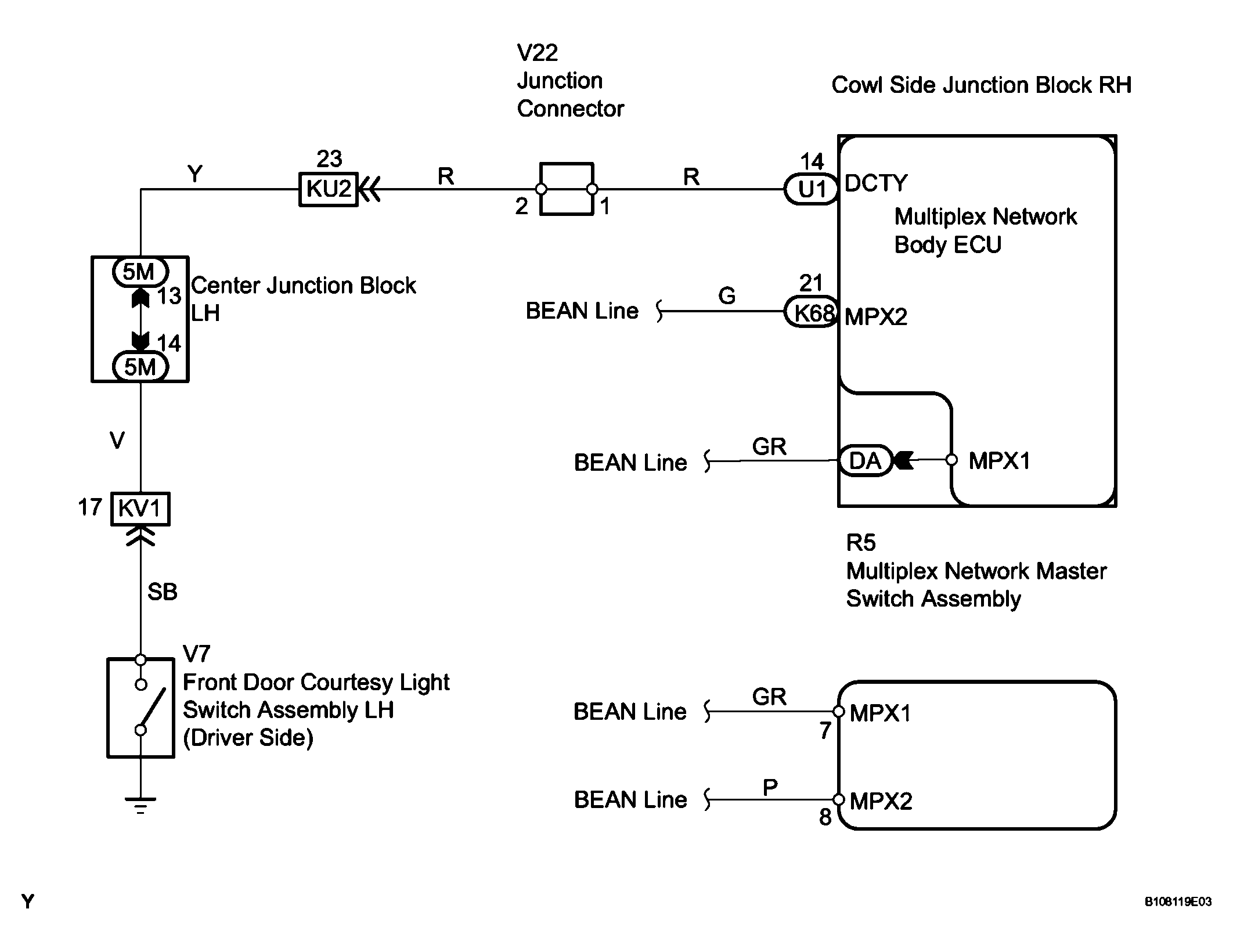

Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

1. Check the power window operation function after the engine switch is turned OFF.

   Result:

   RESULT PROCEDURE CHART



   	Proceed to
   Driver side door is opened within 43 seconds but power window can still operate	A
   43 seconds pass and the power windows can still operate	B

B : REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

A : GO TO NEXT STEP

1. Open the driver side door and check that the map light illuminates.

   OK: Map light illuminates.

NG : GO TO LIGHTING SYSTEM

OK : REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
