Brake Control Power Supply: Removal

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
    1. Remove the luggage compartment floor mat.
  3. REMOVE LUGGAGE COMPARTMENT TRIM NO.1 COVER
    1. Remove the luggage compartment trim cover No.1
  4. REMOVE ROPE HOOK ASSEMBLY
    1. Remove the bolt and rope hook assembly
  5. REMOVE REAR FLOOR FINISH PLATE
    1. Remove the 3 clips and rear floor finish plate.
  6. REMOVE ROPE HOOK
    1. Remove the 2 rope hooks.
  7. REMOVE LUGGAGE COMPARTMENT TRIM NO.2 HOOK
    1. Remove the 2 luggage compartment trim No.2 hooks.
  8. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
    1. Remove the clip and luggage compartment trim cover front.
  9. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
    1. Remove the rope hook assembly.
    2. Remove the clip and luggage compartment trim cover side RH.
  10. REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY
    1. Disconnect the connector.
    2. Remove the 3 nuts and the brake control power supply assembly.
    3. Remove the 4 bolts and 2 brackets.

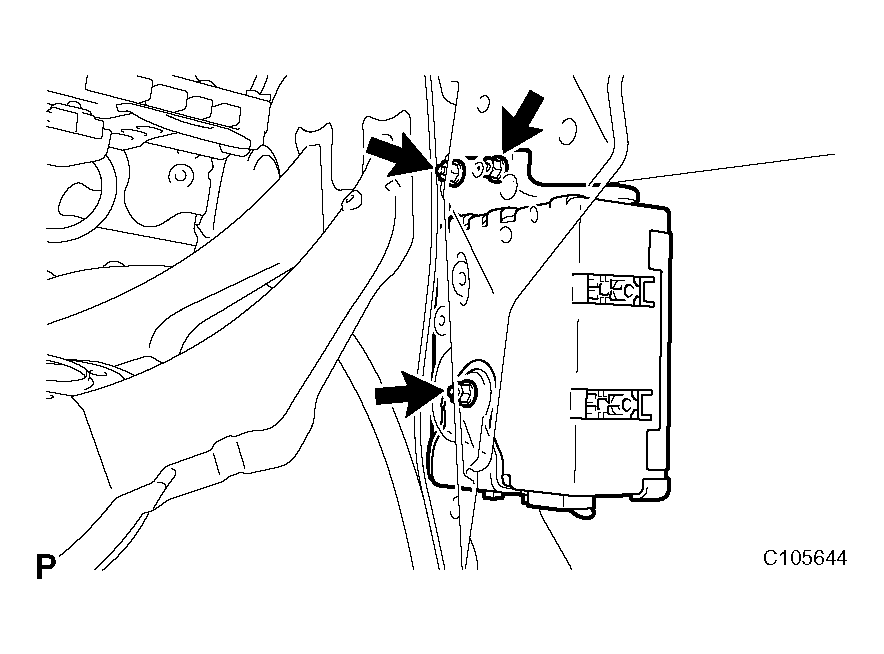

      Fig 1: Identifying Nuts Of Brake Control Power Supply Assembly
      G04025262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
