Center Power Outlet Socket: Installation

  1. INSTALL POWER OUTLET SOCKET ASSEMBLY
    1. Align the protrusion on the backside of the socket with the groove of the cover. Then push the socket into the cover.
    2. Connect the connector.

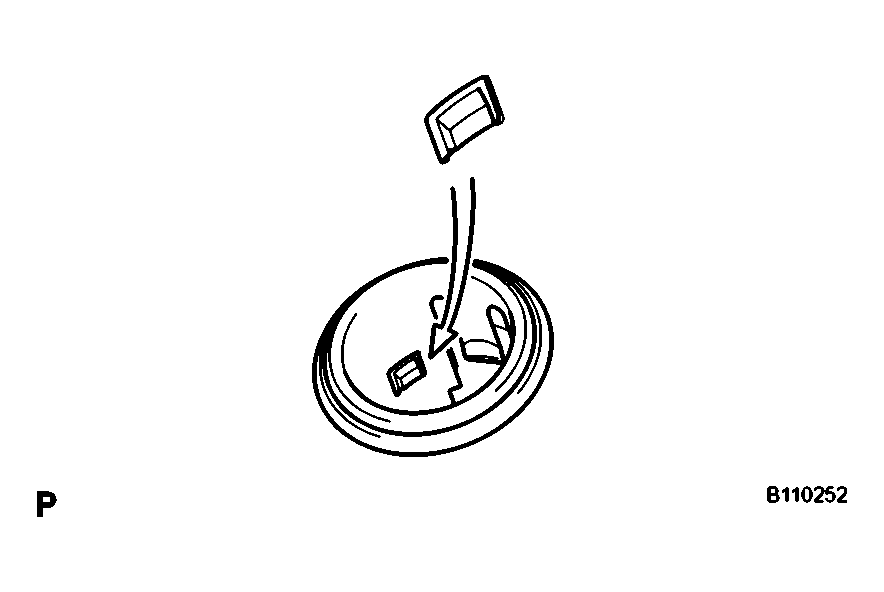

      Fig 1: Identifying Socket Into Cover
      G04022987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CONSOLE BOX SUB-ASSEMBLY (See  INSTALLATION  )
  3. INSTALL REAR CONSOLE ARMREST ASSEMBLY (See  INSTALLATION  )
  4. INSTALL CONSOLE BOX (See  INSTALLATION  )
  5. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  6. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  7. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See  INSTALLATION  )
  8. INSTALL CONSOLE BOX PLATE (See  INSTALLATION  )
  9. INSTALL CONSOLE UPPER PANEL ASSEMBLY (See  INSTALLATION  )
  10. INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
