Cigarette Lighter Assembly: Components

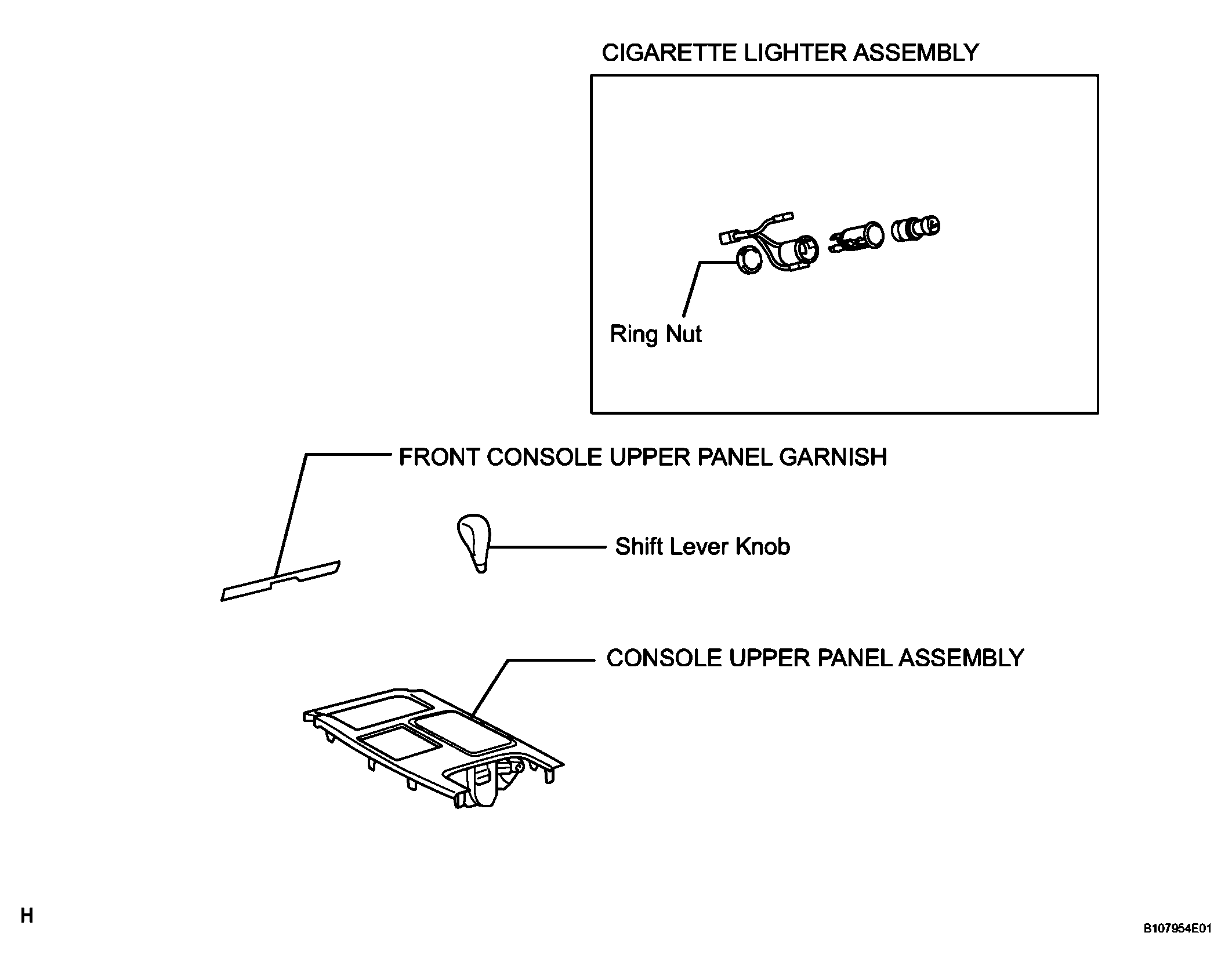

Fig 1: Identifying Cigarette Lighter Assembly Components
G04022978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
