Cigarette Lighter Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT CONSOLE UPPER PANEL GARNISH (See REMOVAL )
REMOVE CONSOLE UPPER PANEL ASSEMBLY (See REMOVAL )
REMOVE CIGARETTE LIGHTER ASSEMBLY
1. Rotate the socket body in the direction indicated by the arrow mark, and remove the socket body from the cigarette lighter.

  Fig 1: Removing Socket Body From Cigarette Lighter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Rotate the ring nut in the direction indicated by the arrow mark, and remove the cigarette lighter from the console panel.

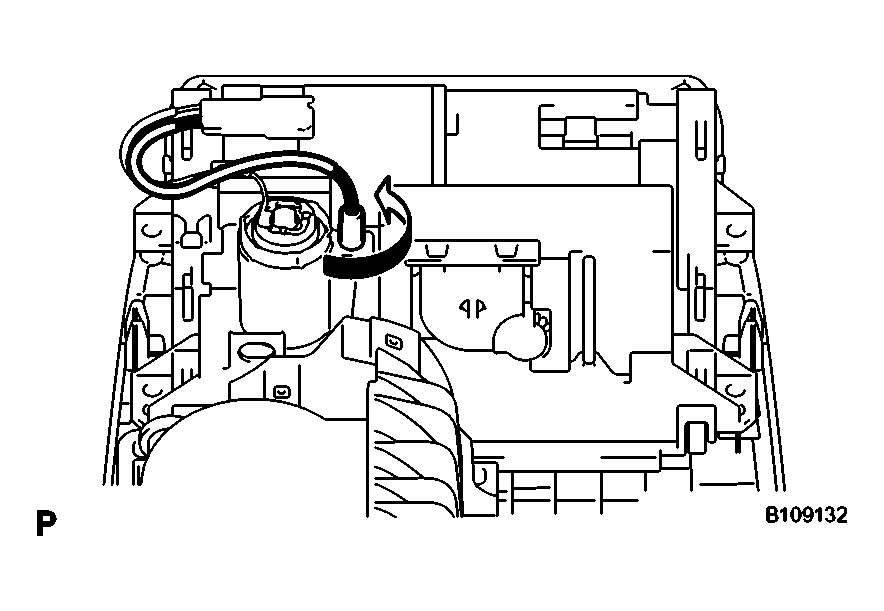

  Fig 2: Removing Cigarette Lighter From Console Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
