Adaptive Front-Lighting System: Notes

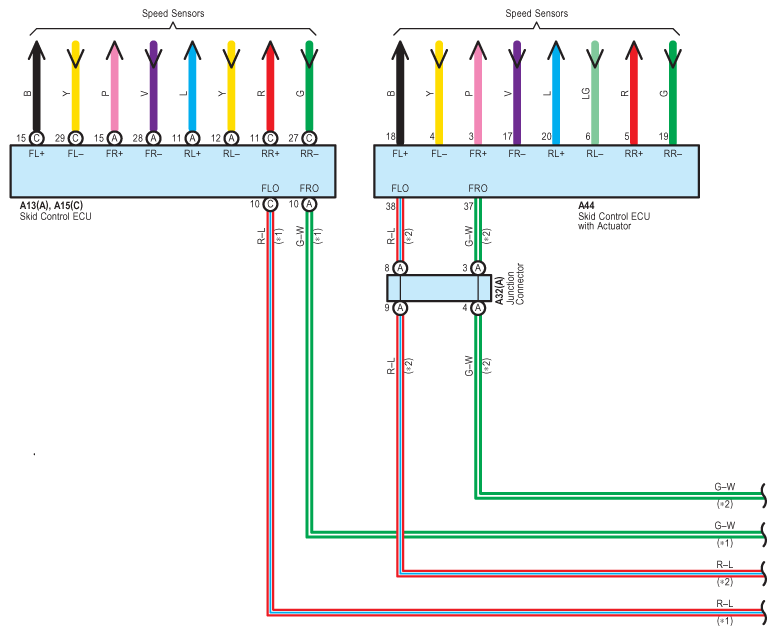

Fig 1: Adaptive Front-Lighting System Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

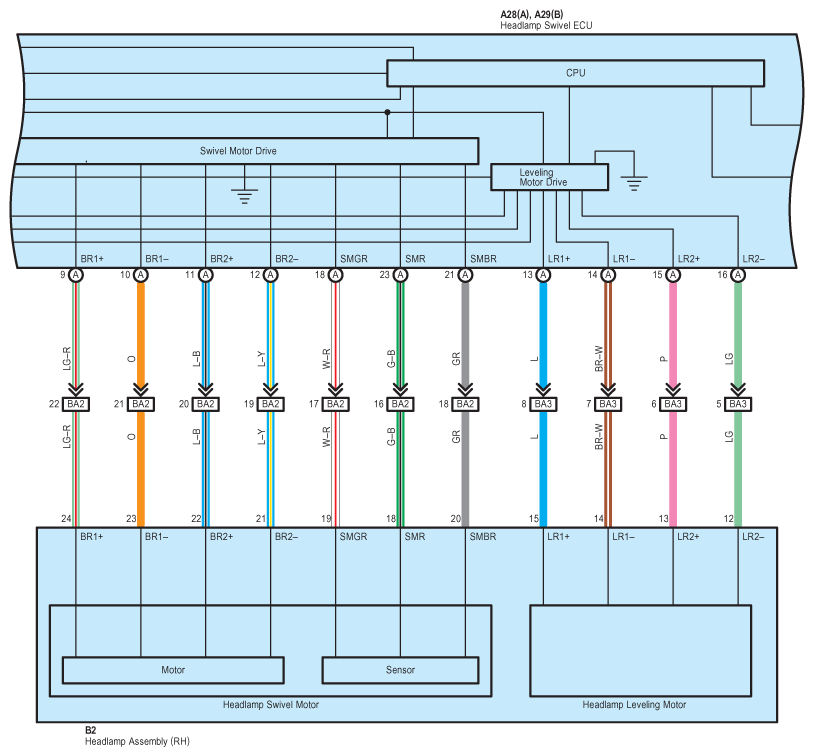

Fig 2: Adaptive Front-Lighting System Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

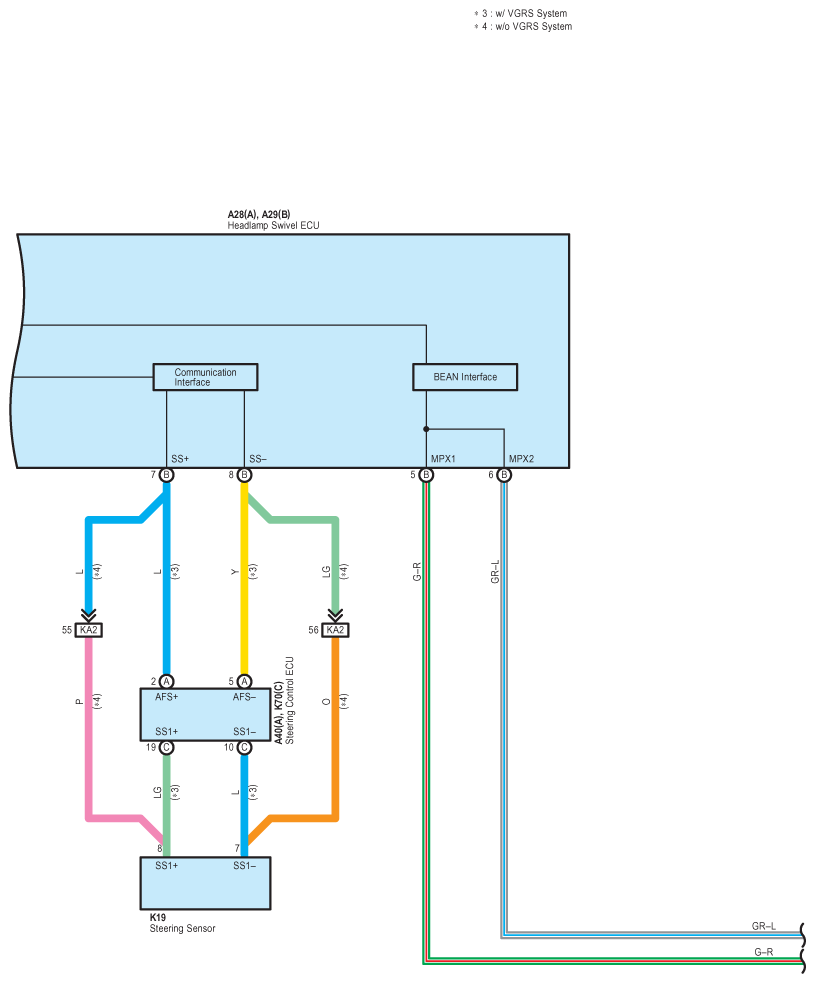

Fig 3: Adaptive Front-Lighting System Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

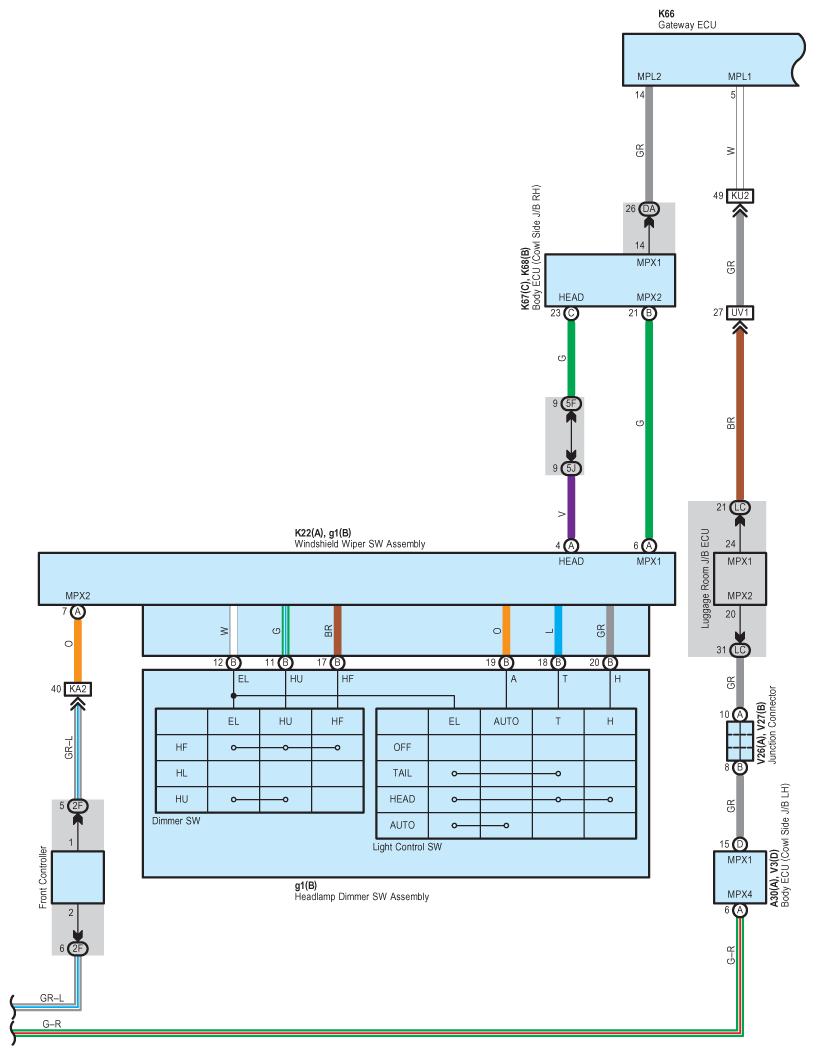

Fig 4: Adaptive Front-Lighting System Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

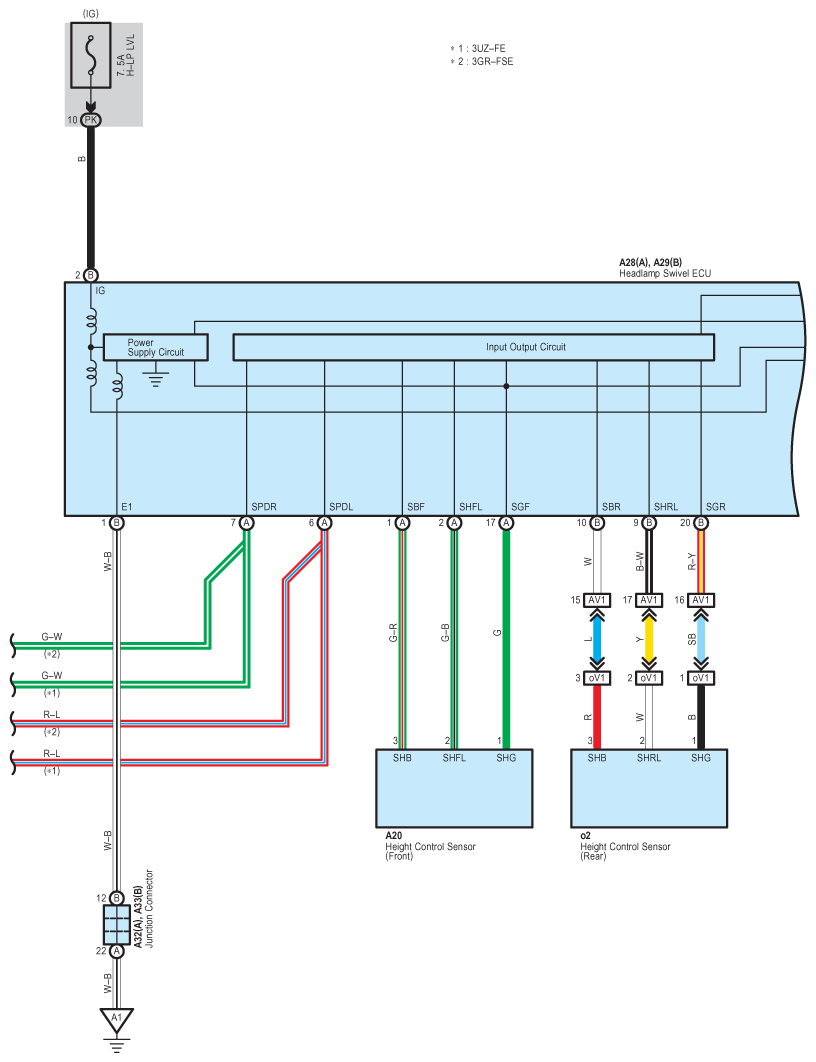

Fig 5: Adaptive Front-Lighting System Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

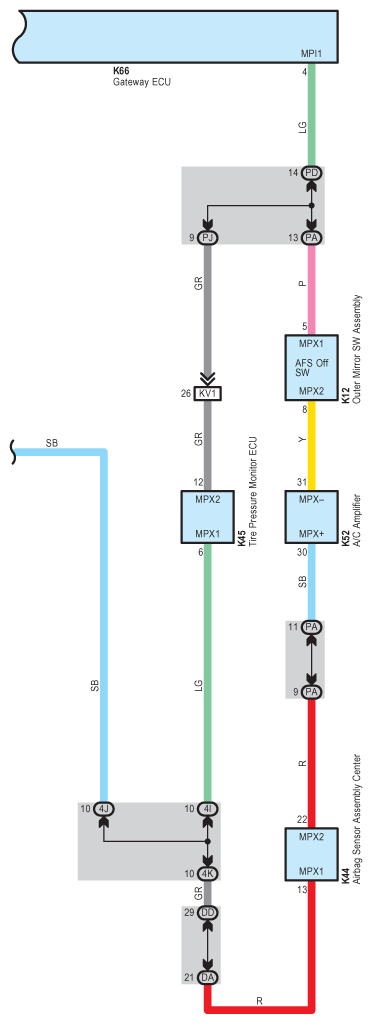

Fig 6: Adaptive Front-Lighting System Wiring Diagram (6 Of 8)

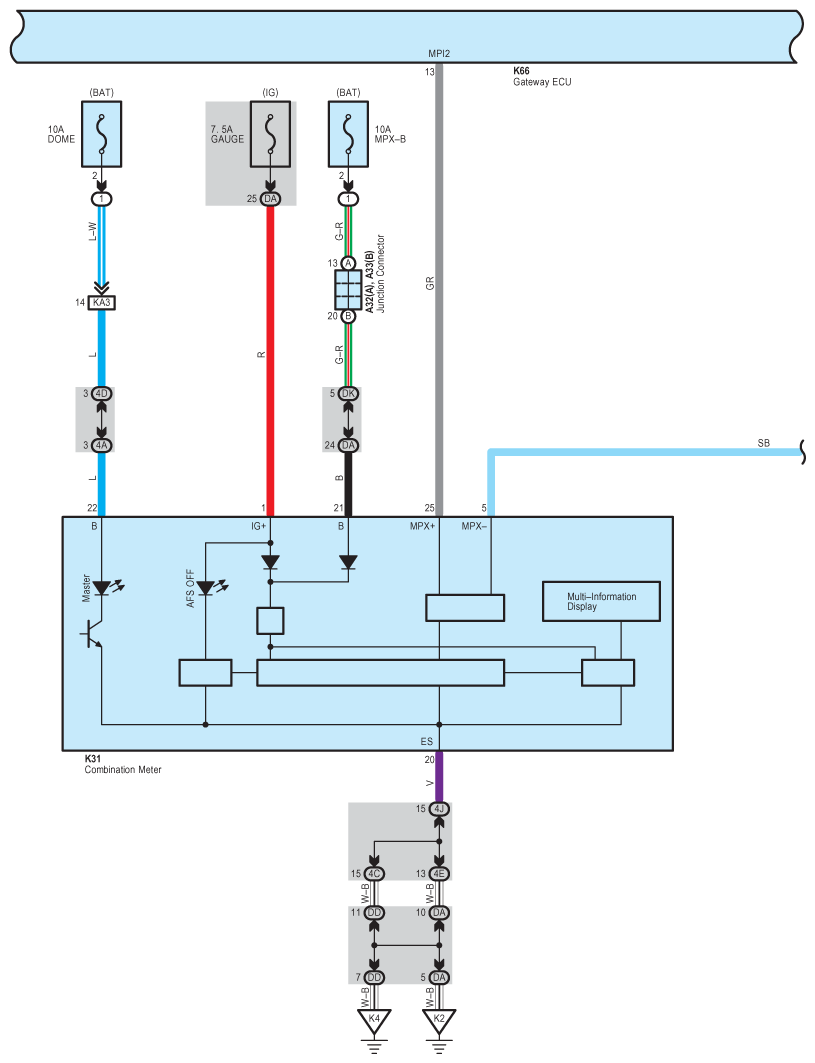

Fig 7: Adaptive Front-Lighting System Wiring Diagram (7 Of 8)

Fig 8: Adaptive Front-Lighting System Wiring Diagram (8 Of 8)
