OEM System Circuits: Charging: Notes

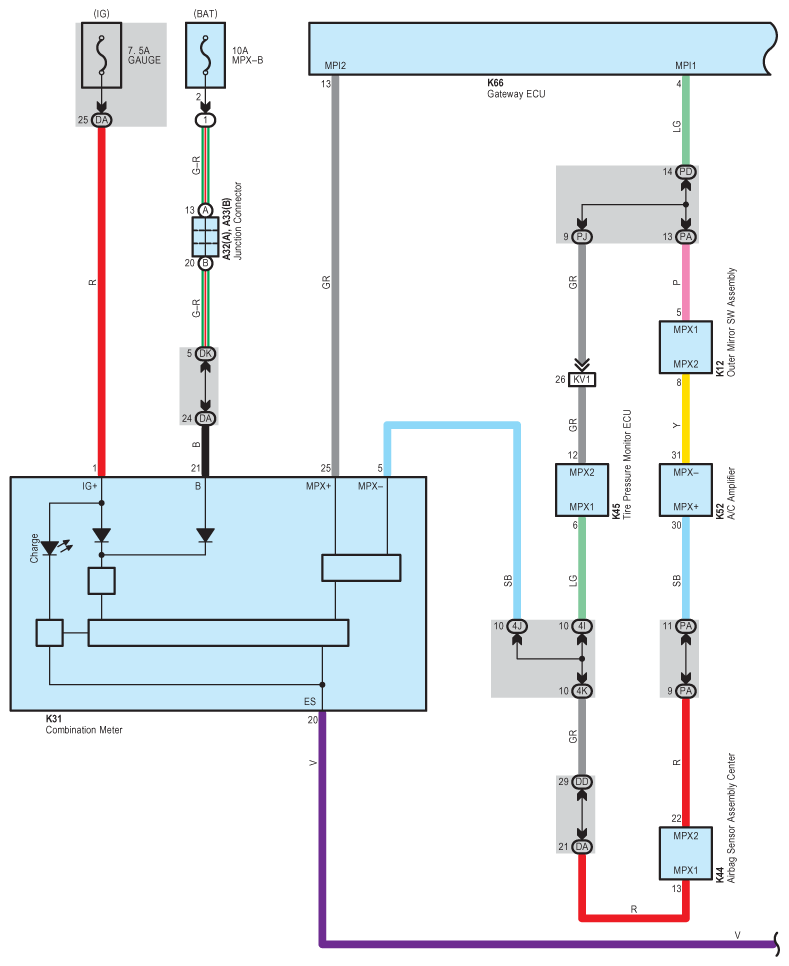

Fig 1: Charging System Wiring Diagram (1 Of 3)
G08910248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

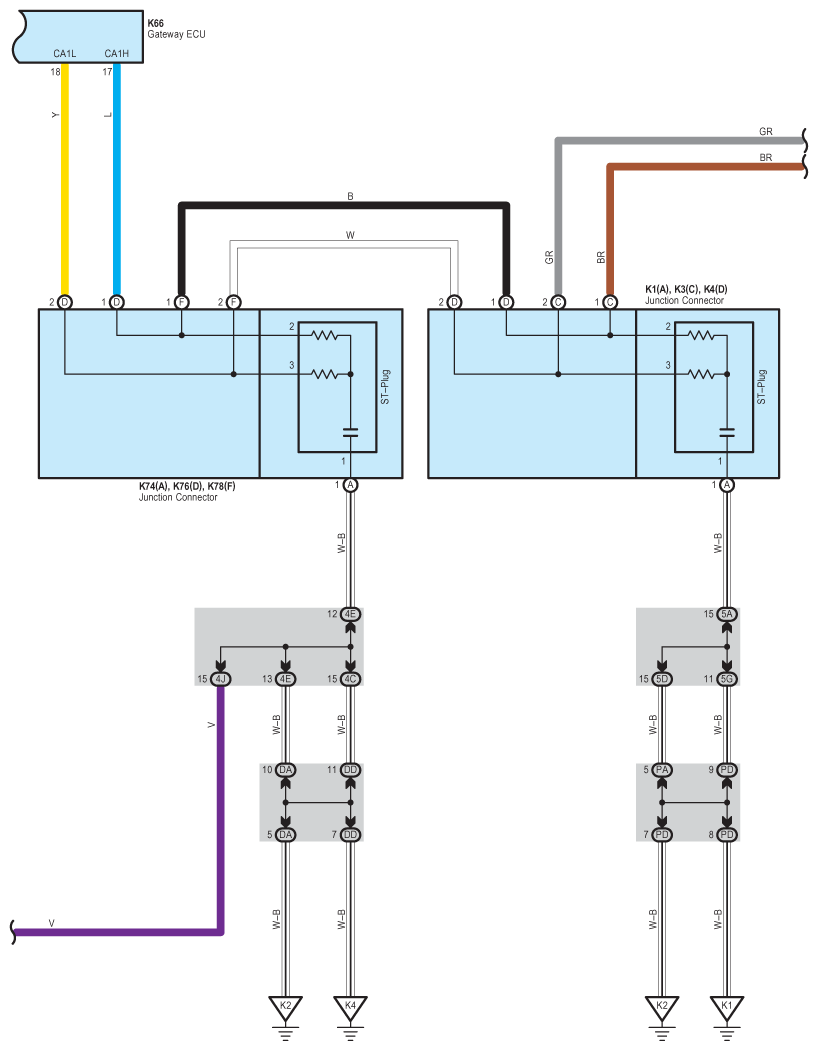

Fig 2: Charging System Wiring Diagram (2 Of 3)
G08910249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

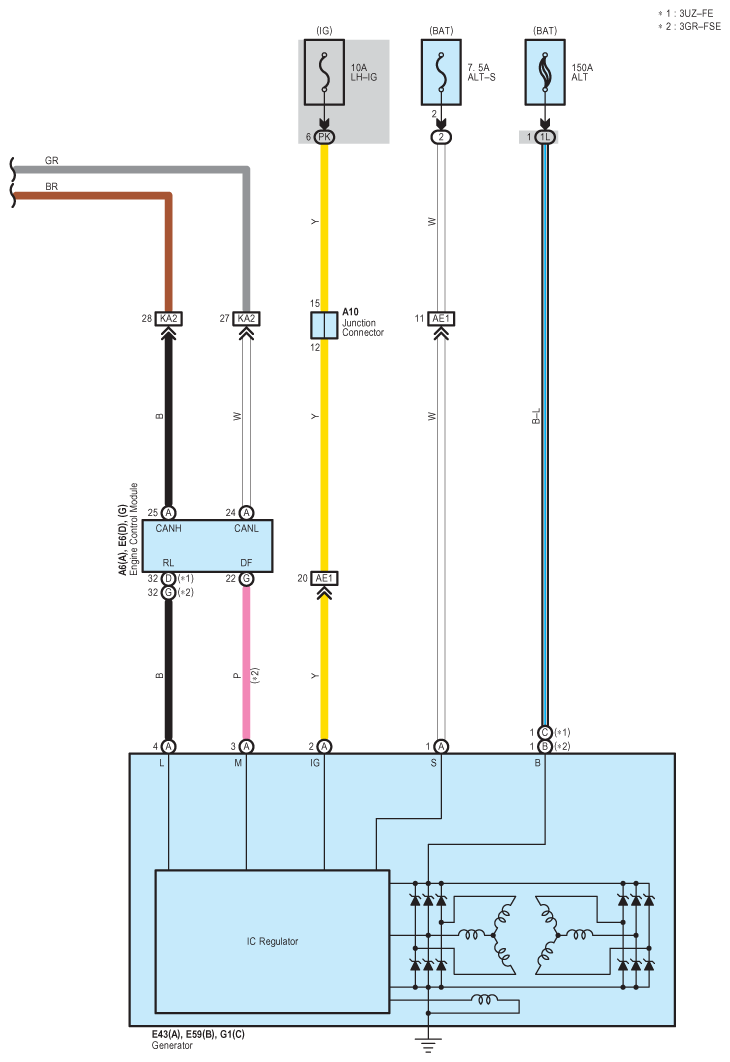

Fig 3: Charging System Wiring Diagram (3 Of 3)
G08910250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
