Combination Meter: Notes

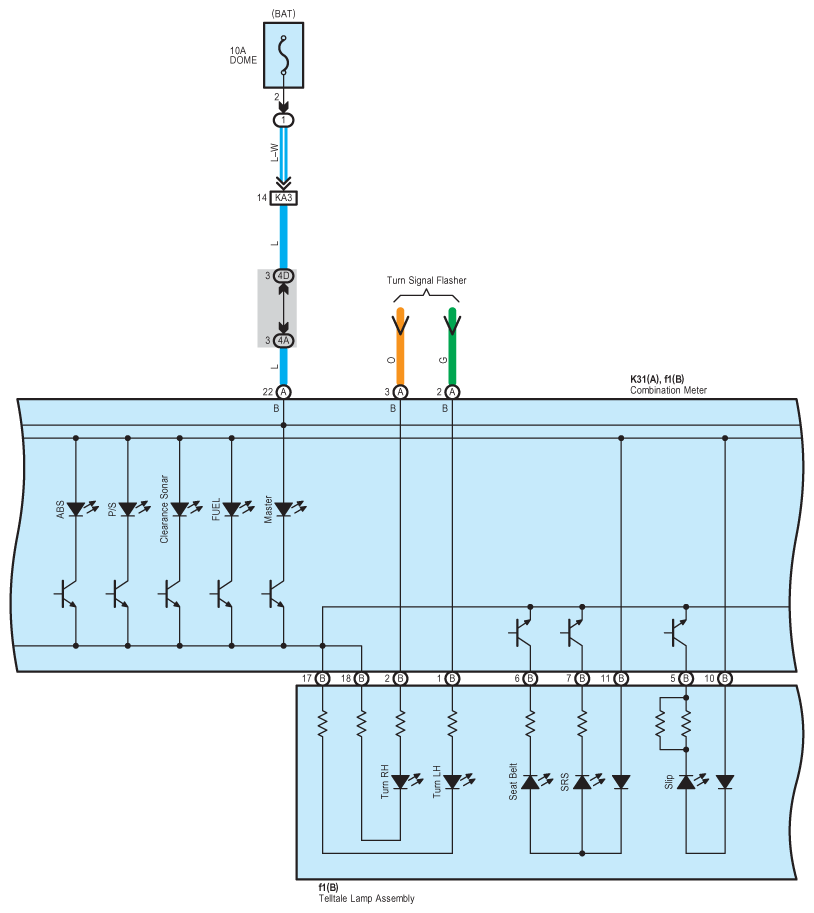

Fig 1: Combination Meter System Wiring Diagram (1 Of 10)
G08910620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

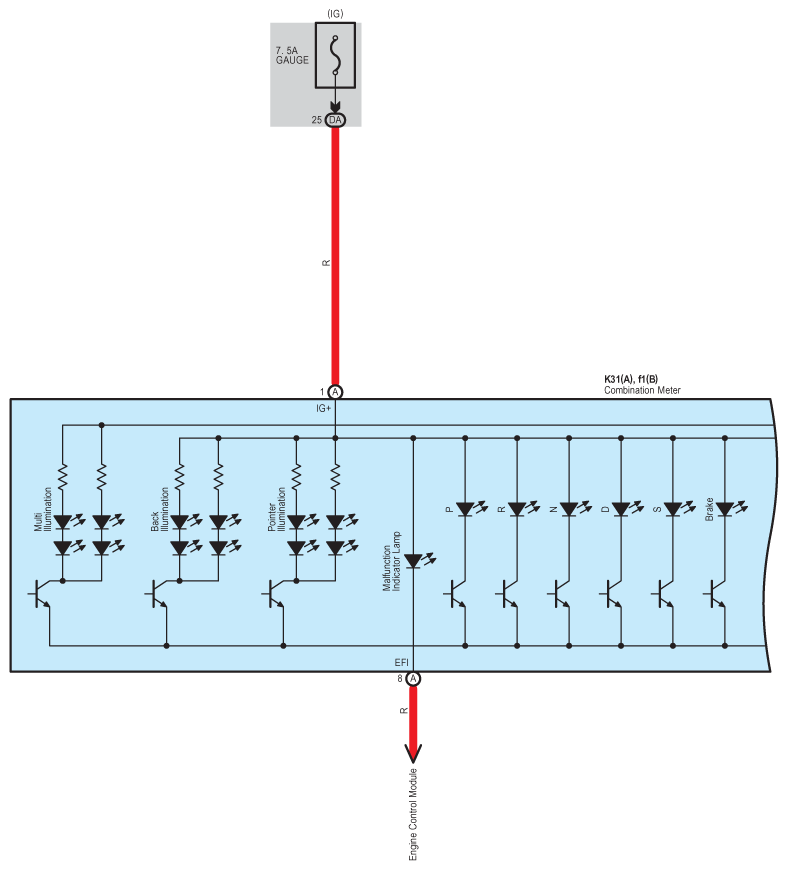

Fig 2: Combination Meter System Wiring Diagram (2 Of 10)
G08910621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Combination Meter System Wiring Diagram (3 Of 10)
G08910622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

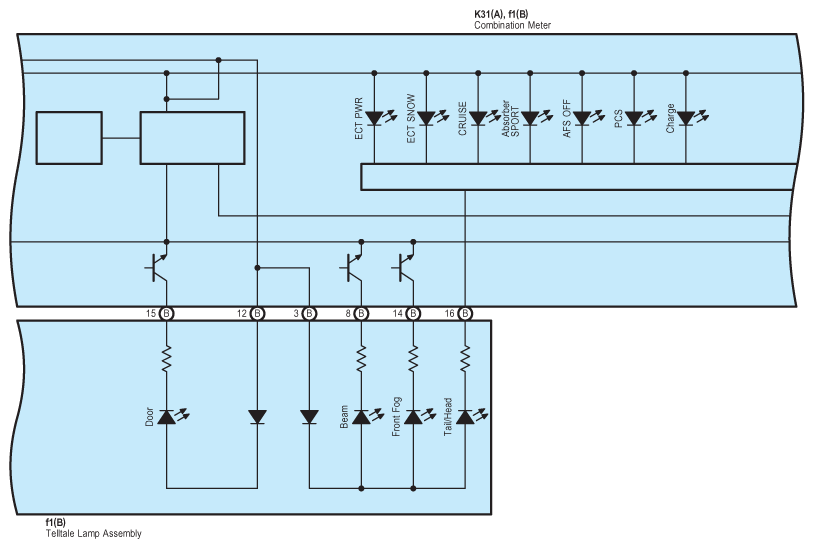

Fig 4: Combination Meter System Wiring Diagram (4 Of 10)
G08910623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

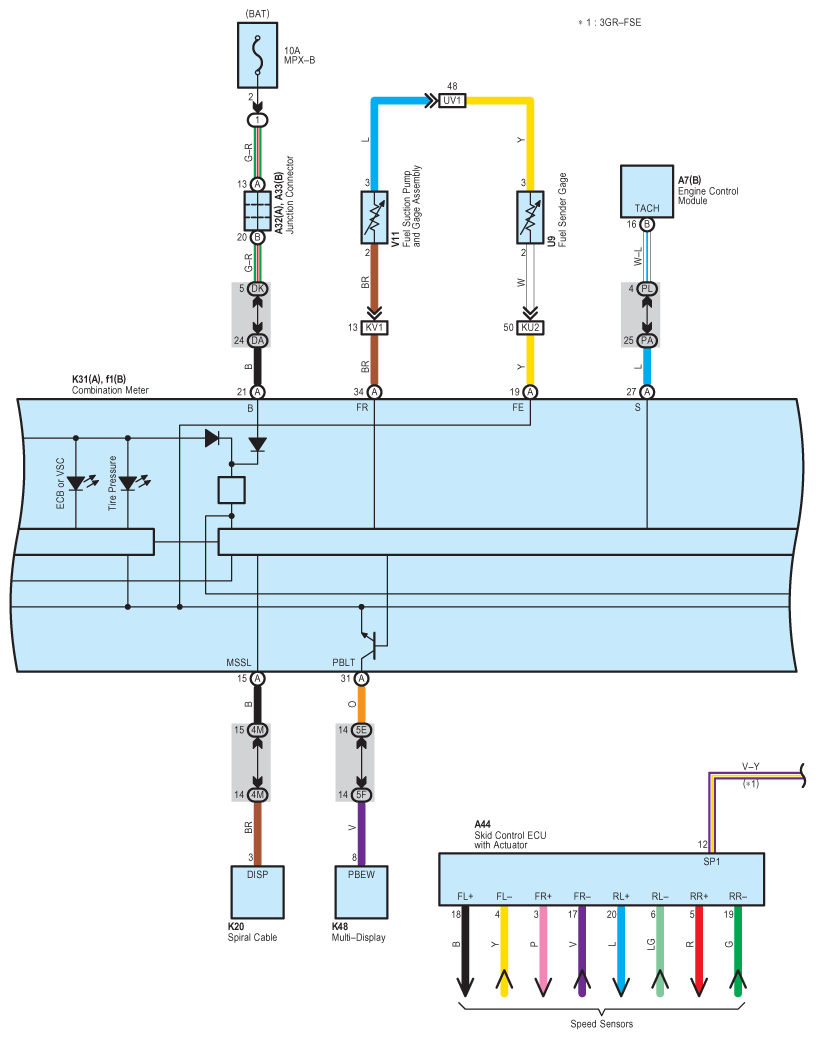

Fig 5: Combination Meter System Wiring Diagram (5 Of 10)
G08910624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

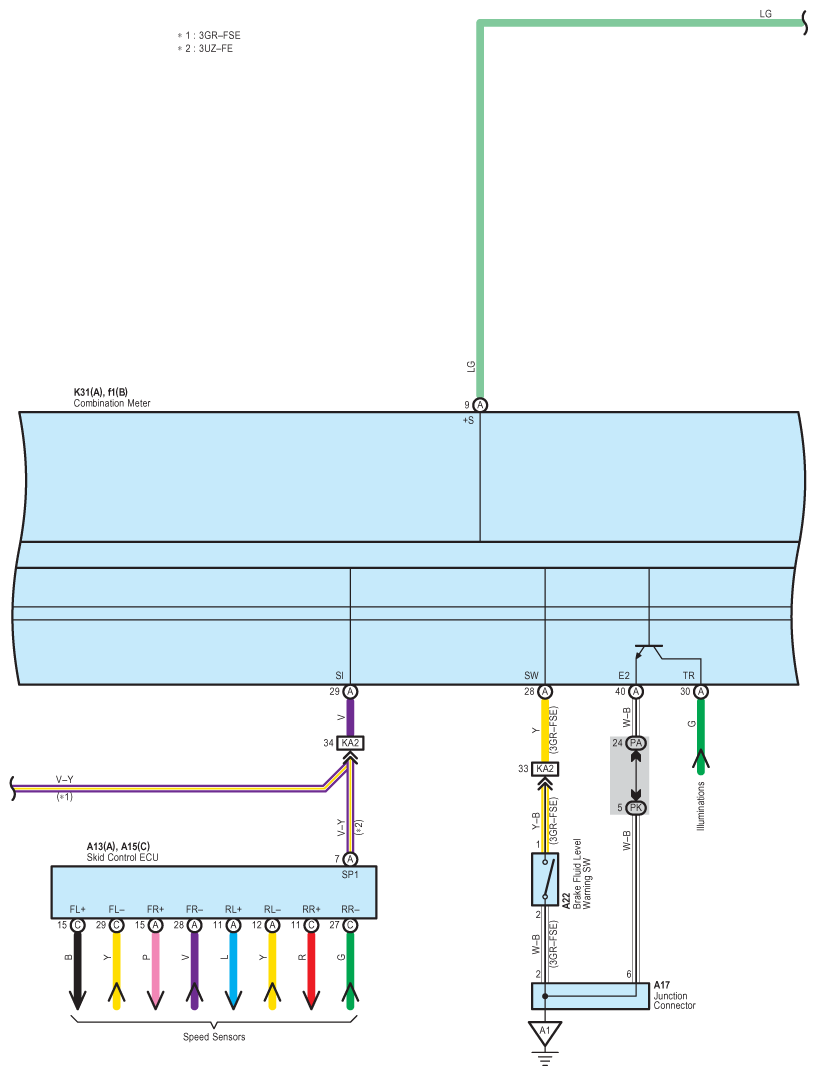

Fig 6: Combination Meter System Wiring Diagram (6 Of 10)
G08910625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

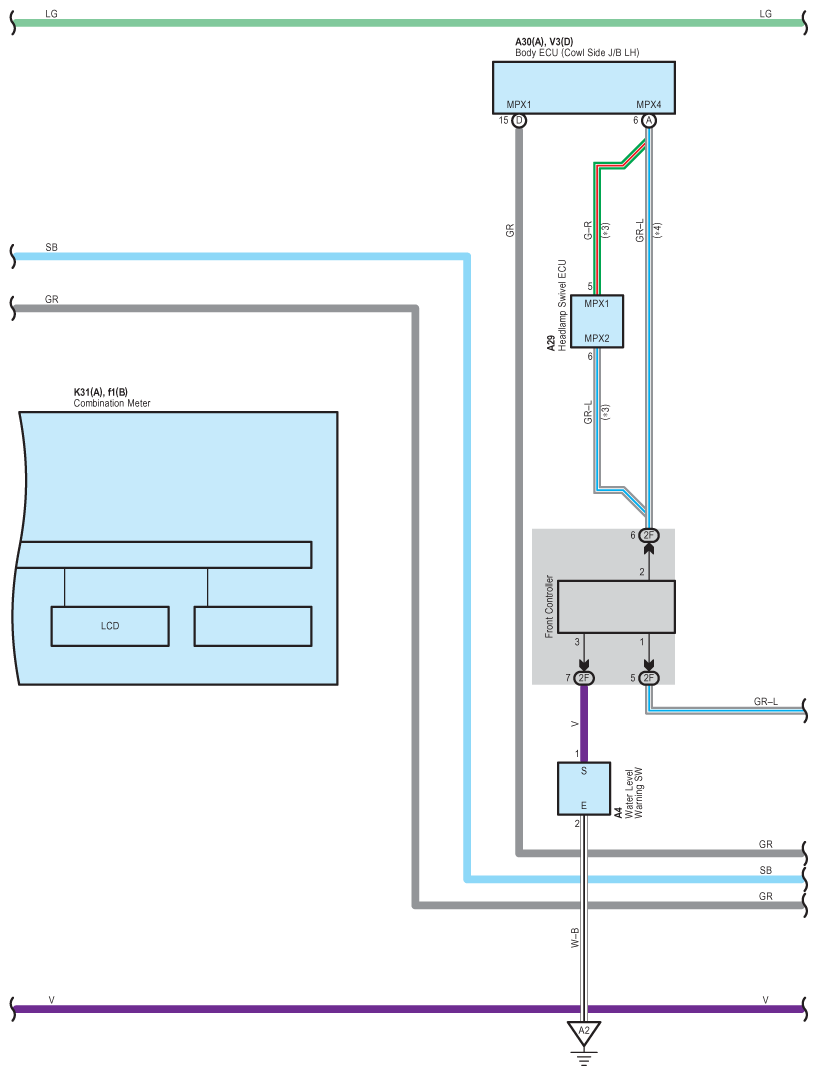

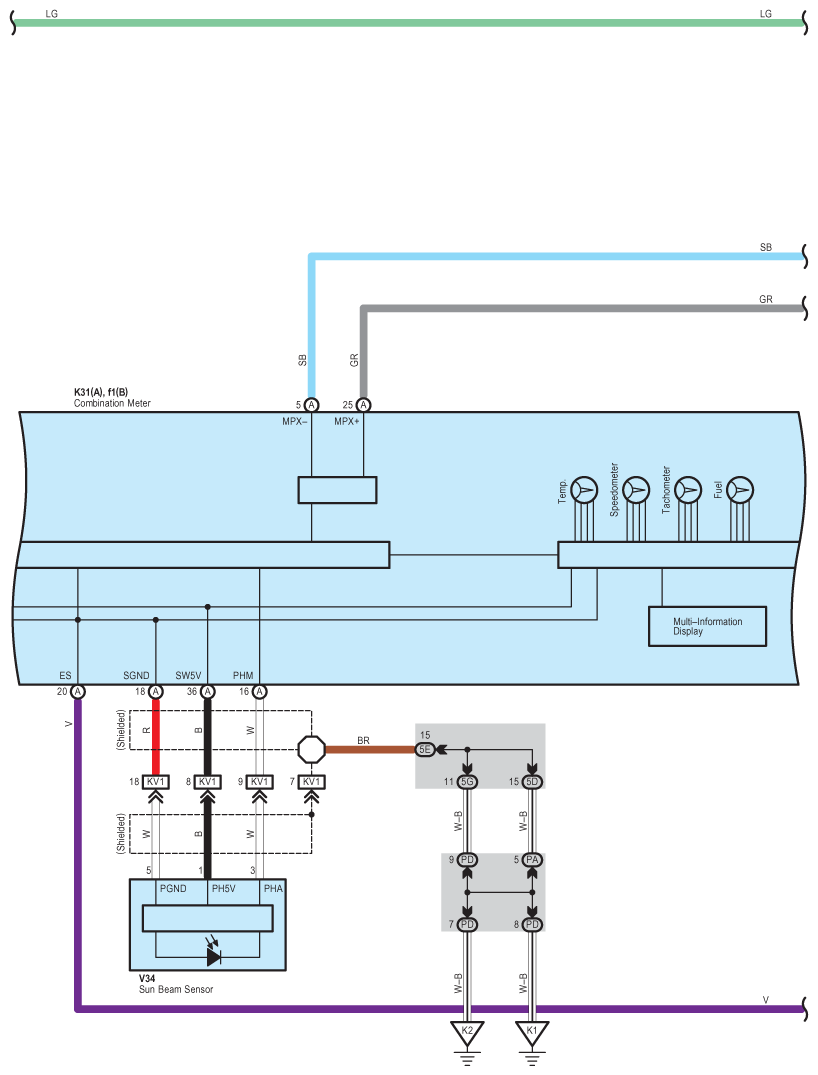

Fig 7: Combination Meter System Wiring Diagram (7 Of 10)
G08910626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

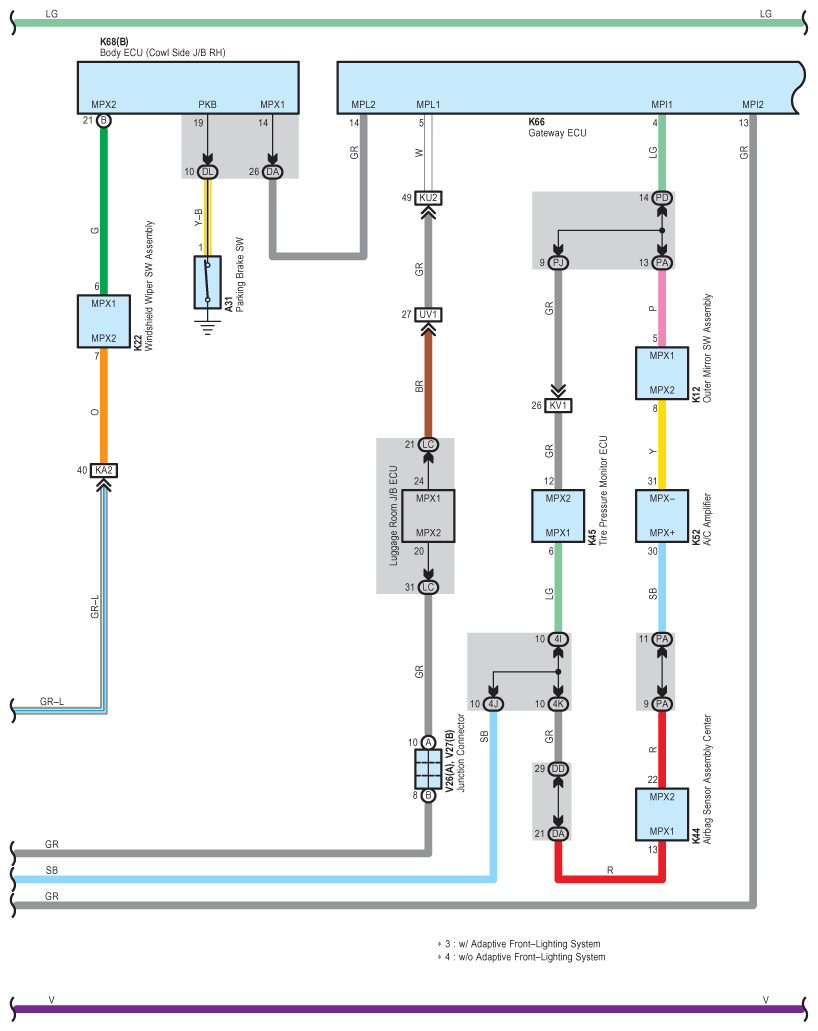

Fig 8: Combination Meter System Wiring Diagram (8 Of 10)
G08910627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

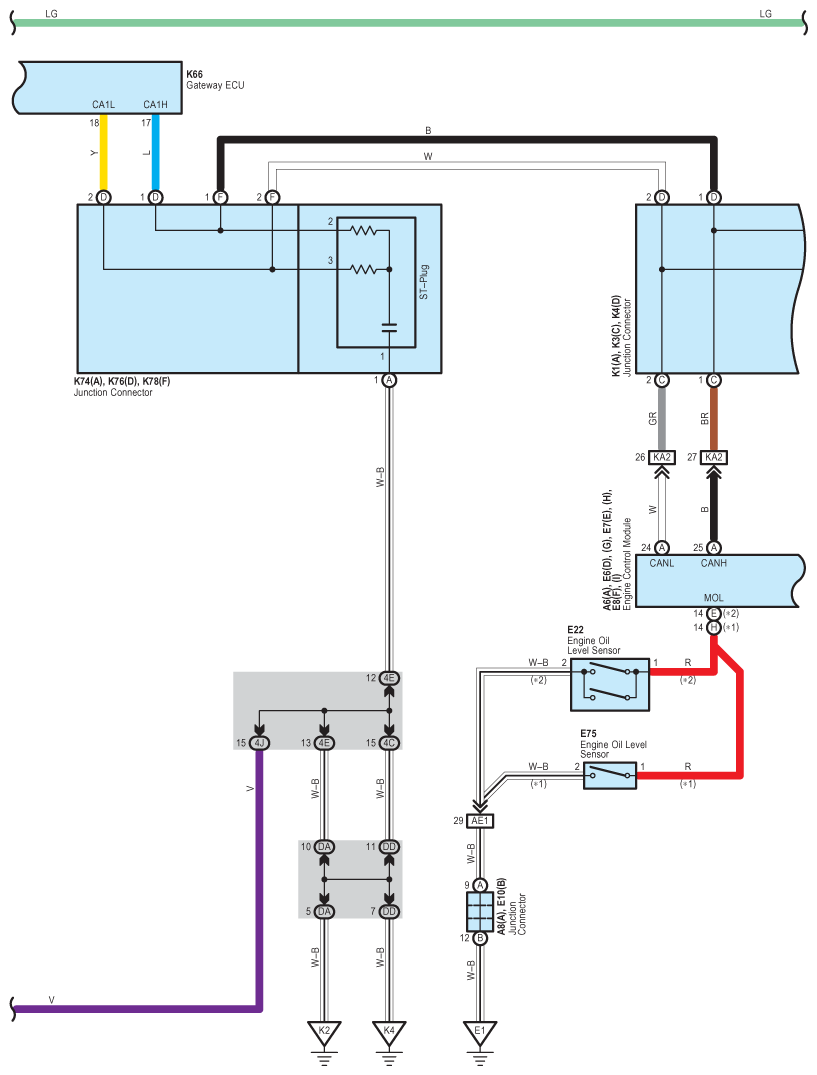

Fig 9: Combination Meter System Wiring Diagram (9 Of 10)
G08910628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

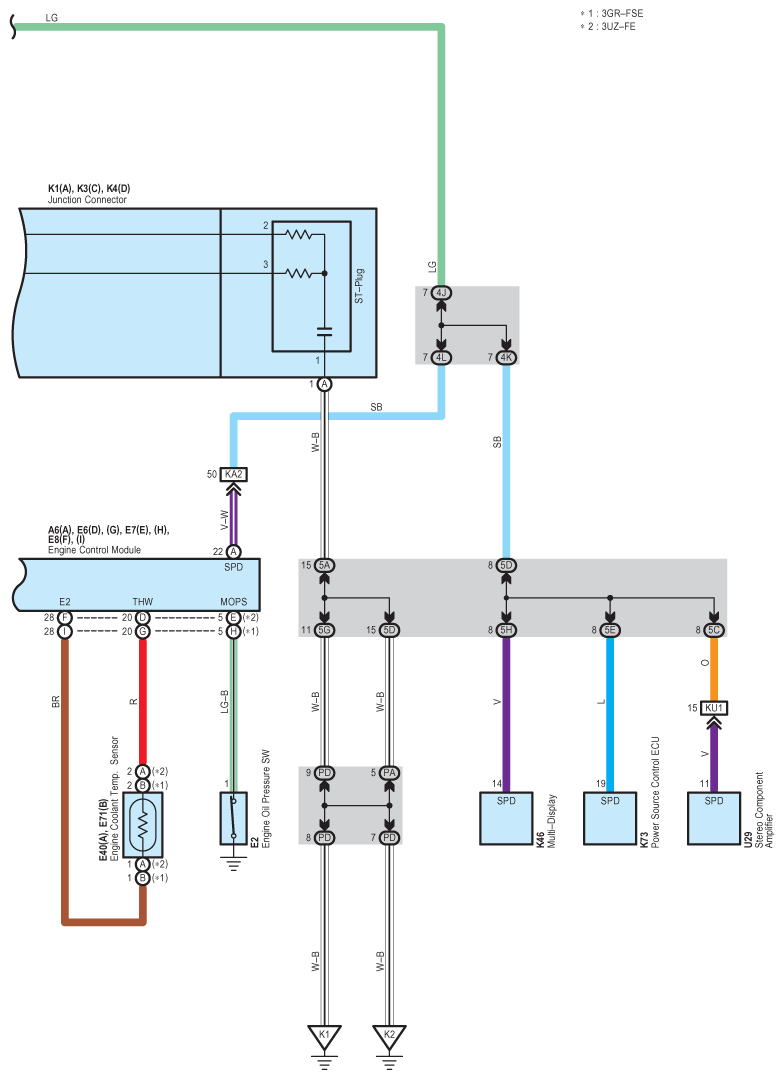

Fig 10: Combination Meter System Wiring Diagram (10 Of 10)
G08910629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
