Cruise Control for 3GR-FSE: Notes

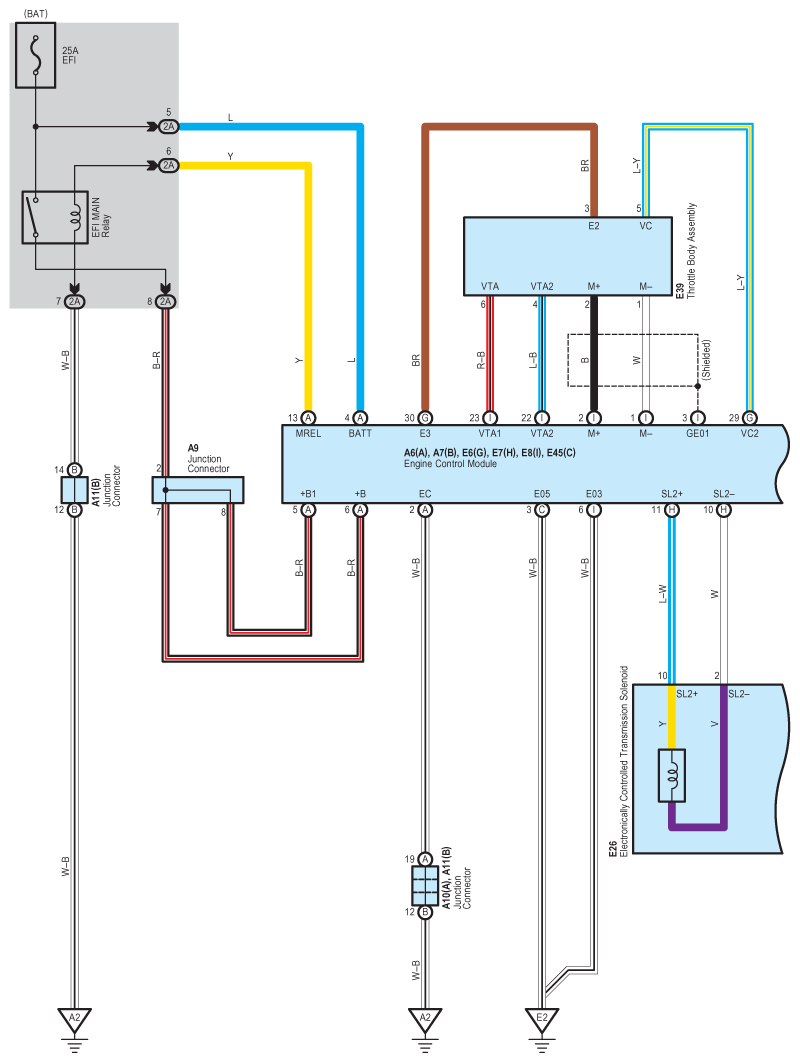

Fig 1: Cruise Control For 3GR-FSE System Wiring Diagram (1 Of 8)
G08910469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

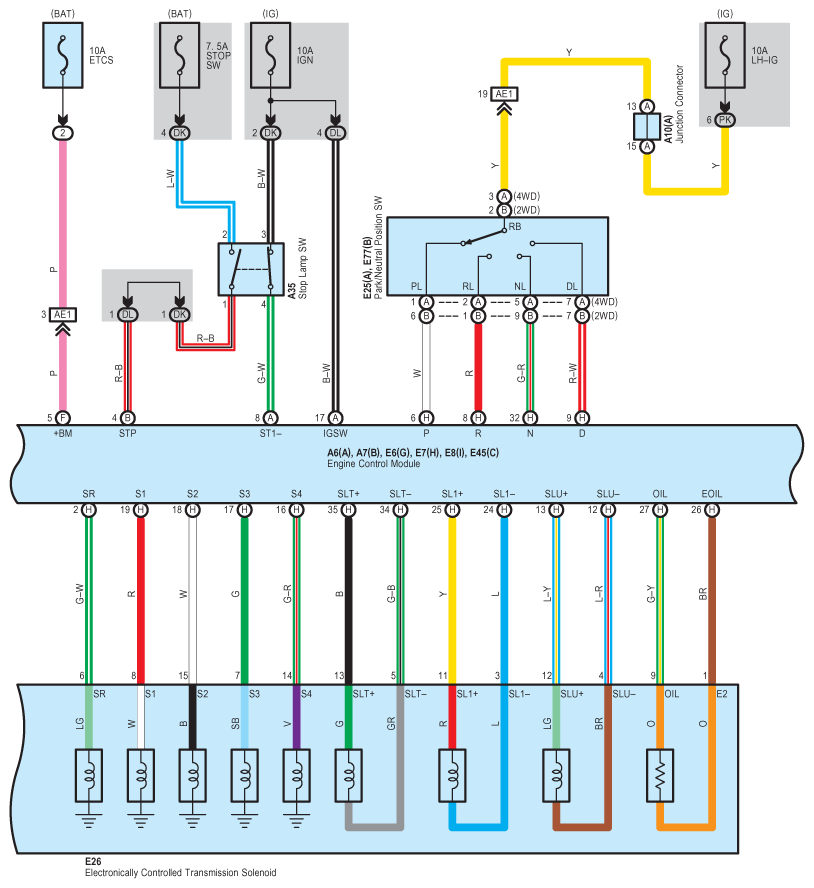

Fig 2: Cruise Control For 3GR-FSE System Wiring Diagram (2 Of 8)
G08910470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

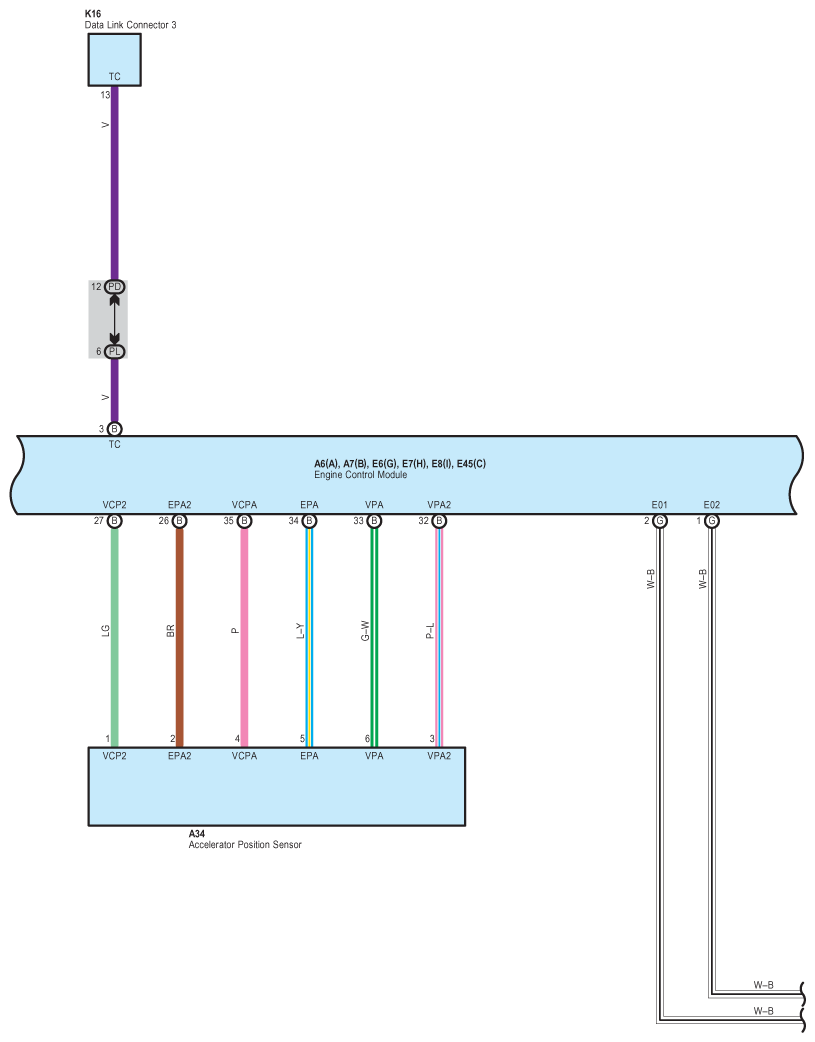

Fig 3: Cruise Control For 3GR-FSE System Wiring Diagram (3 Of 8)
G08910471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Cruise Control For 3GR-FSE System Wiring Diagram (4 Of 8)
G08910472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

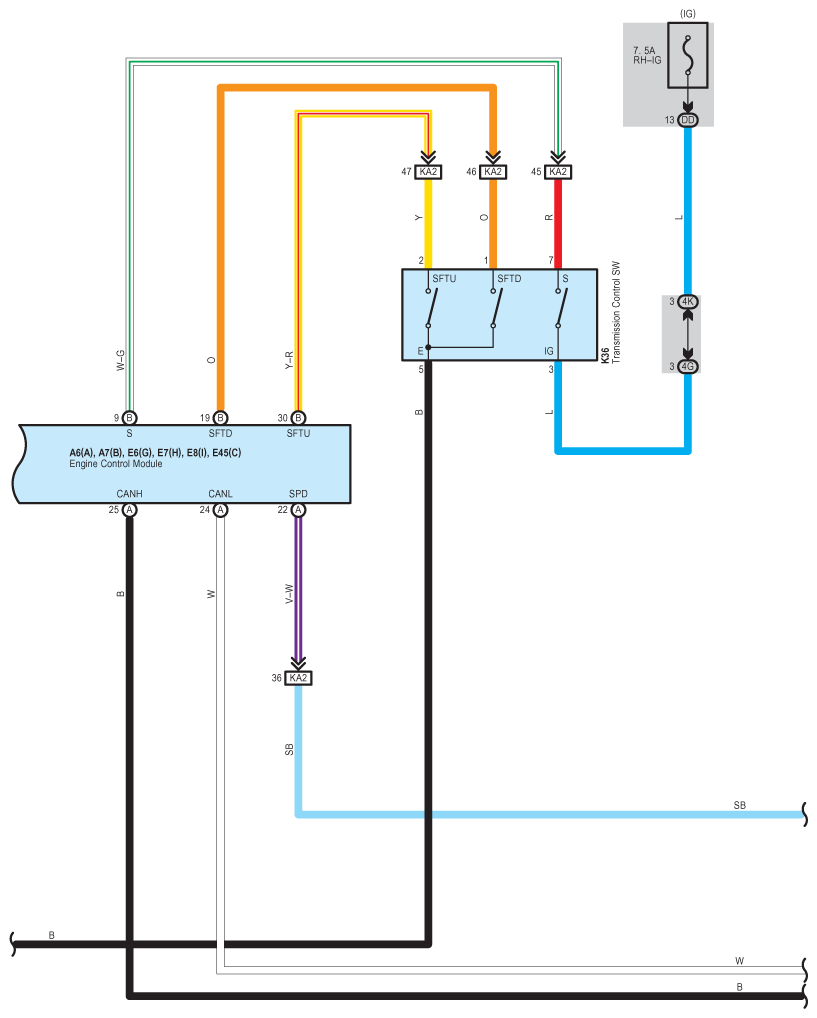

Fig 5: Cruise Control For 3GR-FSE System Wiring Diagram (5 Of 8)
G08910473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

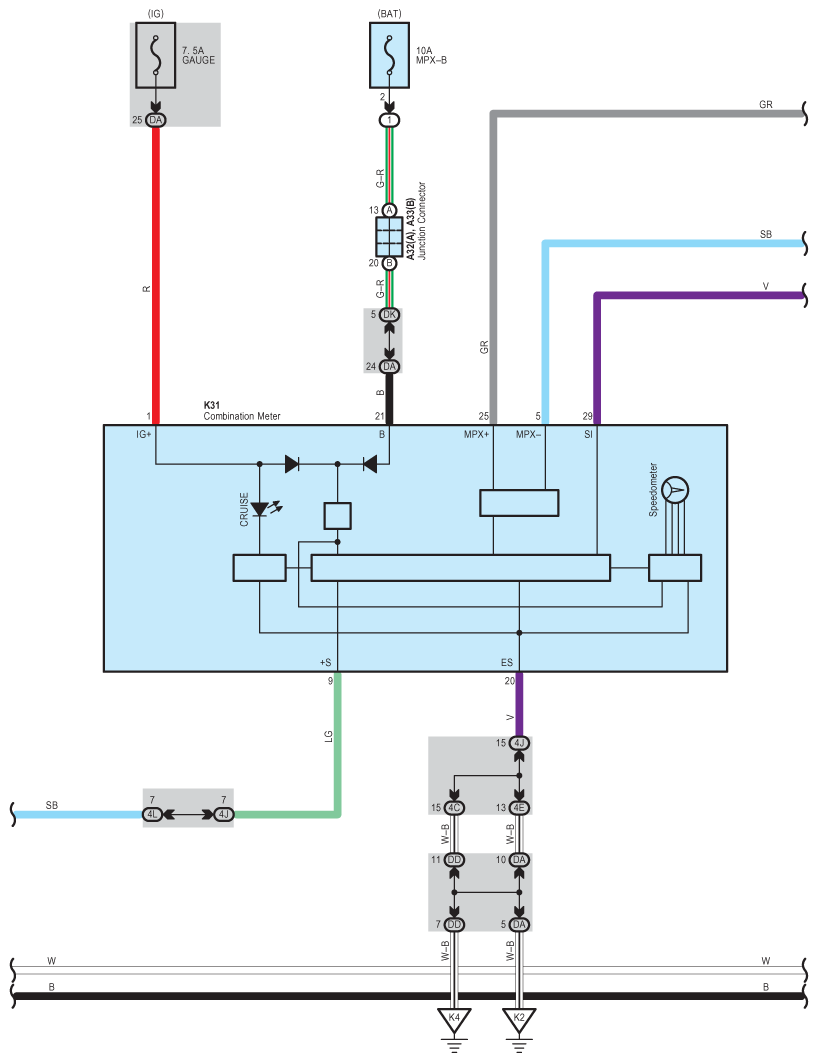

Fig 6: Cruise Control For 3GR-FSE System Wiring Diagram (6 Of 8)
G08910474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

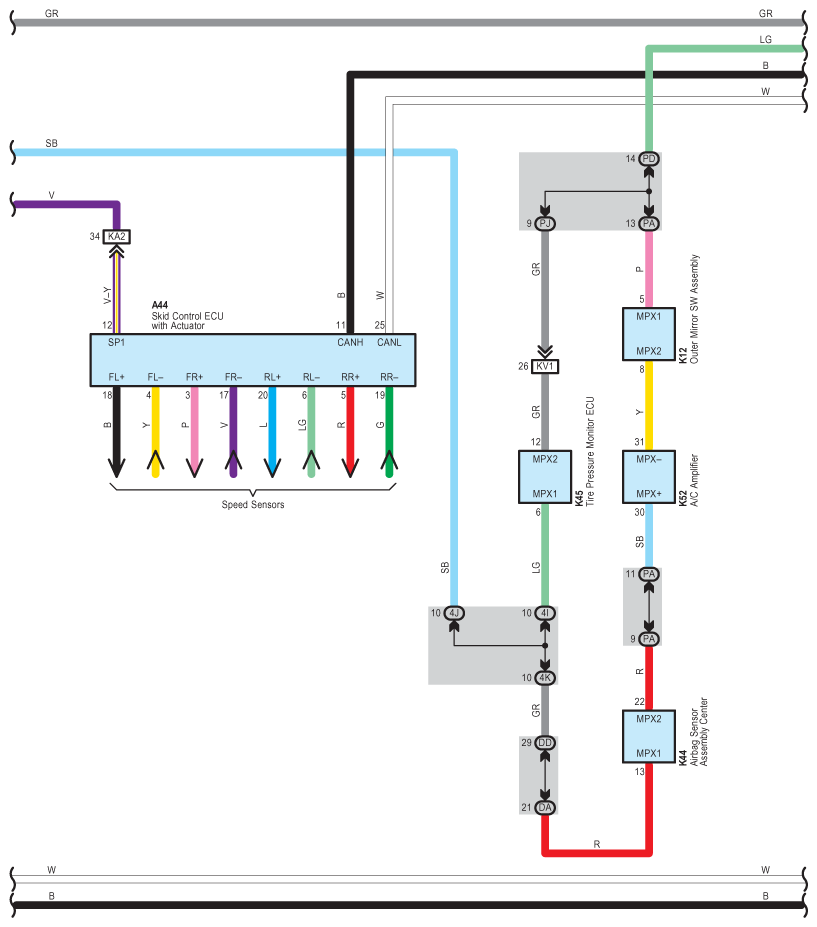

Fig 7: Cruise Control For 3GR-FSE System Wiring Diagram (7 Of 8)
G08910475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

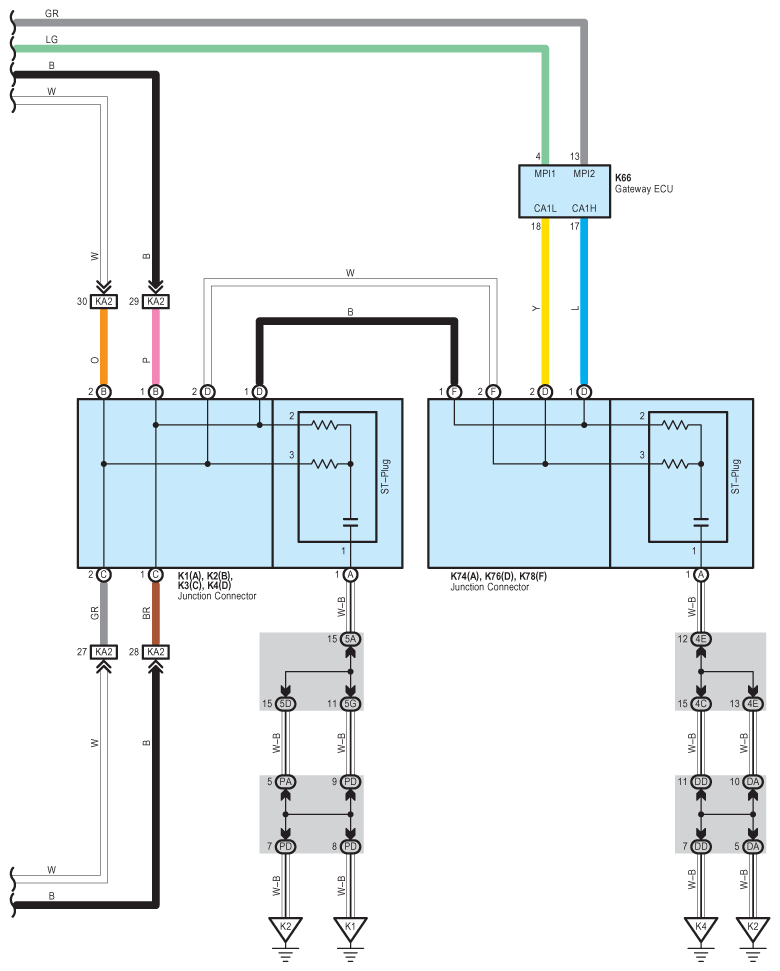

Fig 8: Cruise Control For 3GR-FSE System Wiring Diagram (8 Of 8)
G08910476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
