Dynamic Radar Cruise Control for 3UZ-FE: Notes

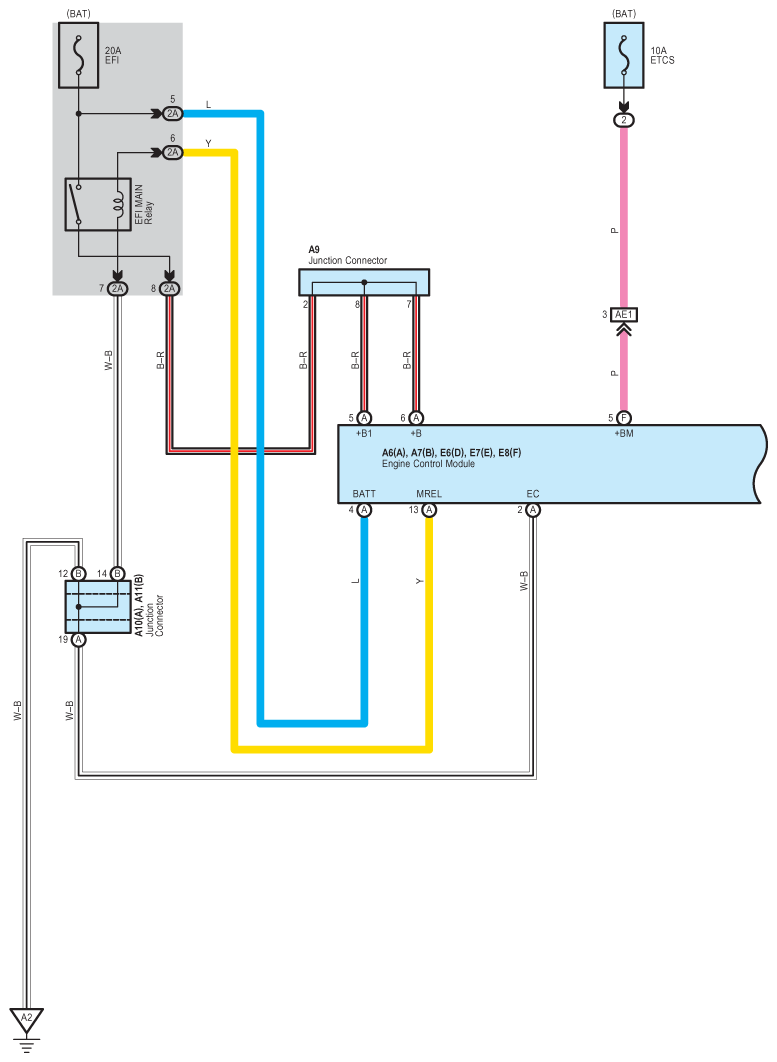

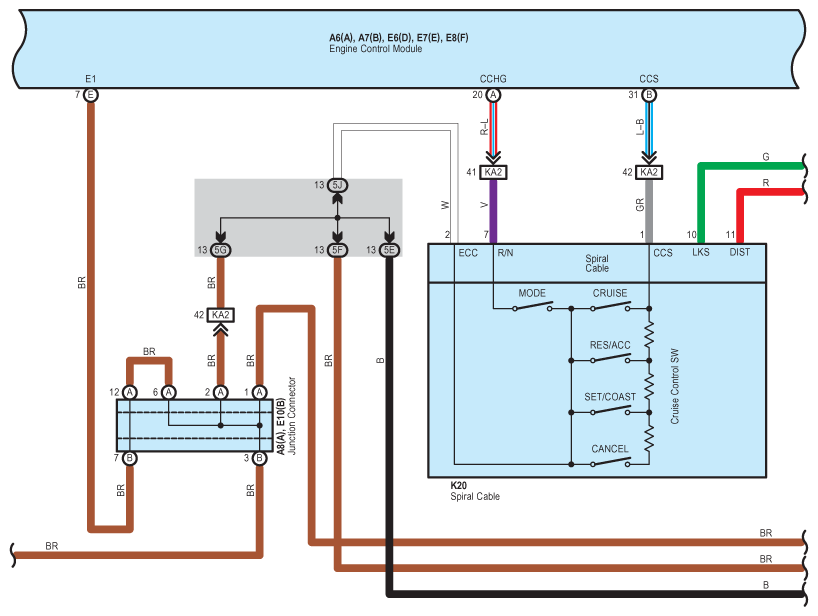

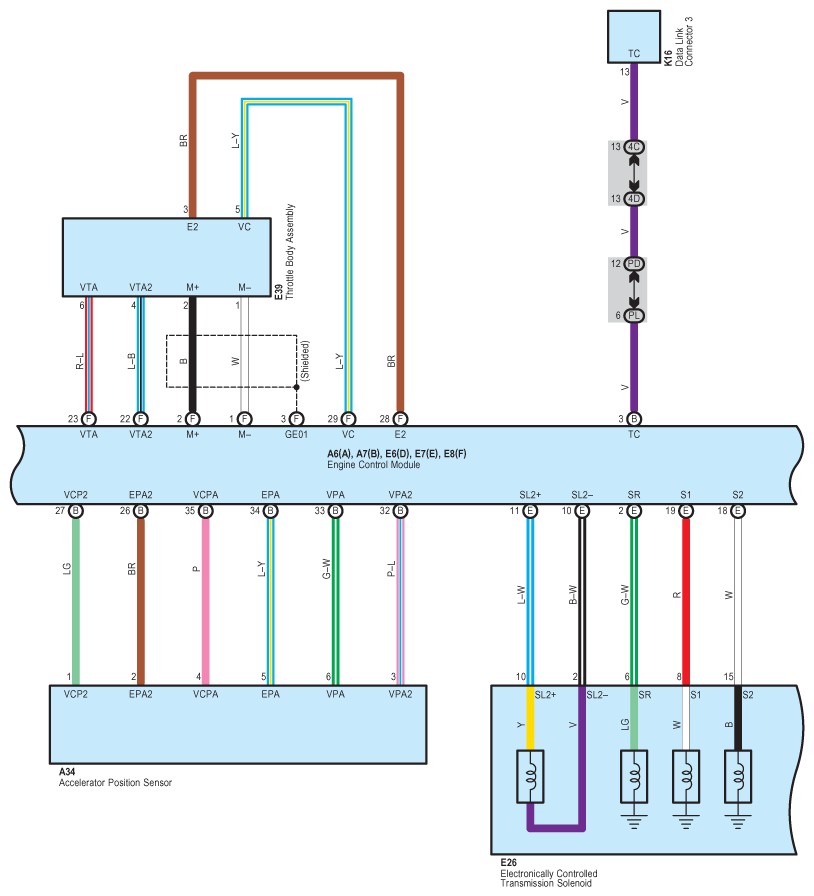

Fig 1: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

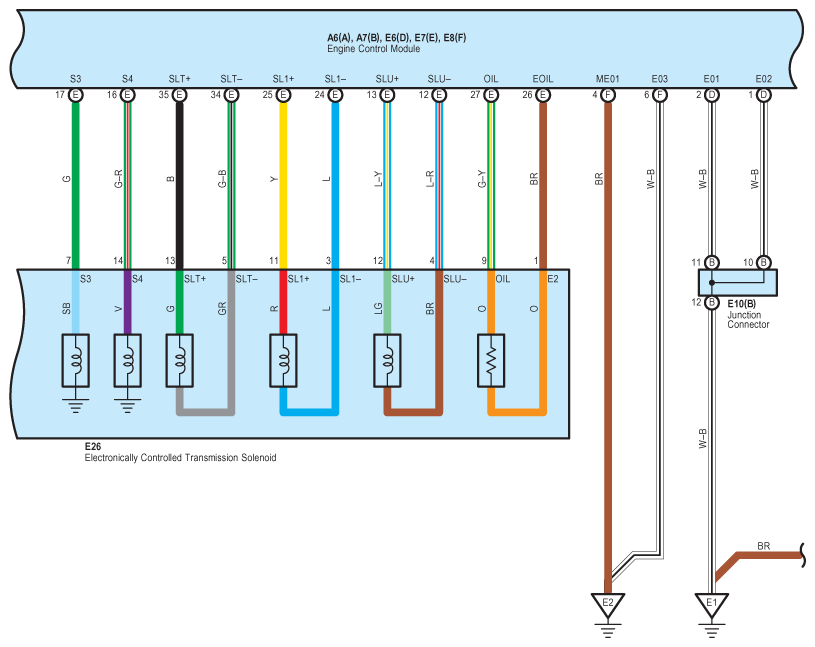

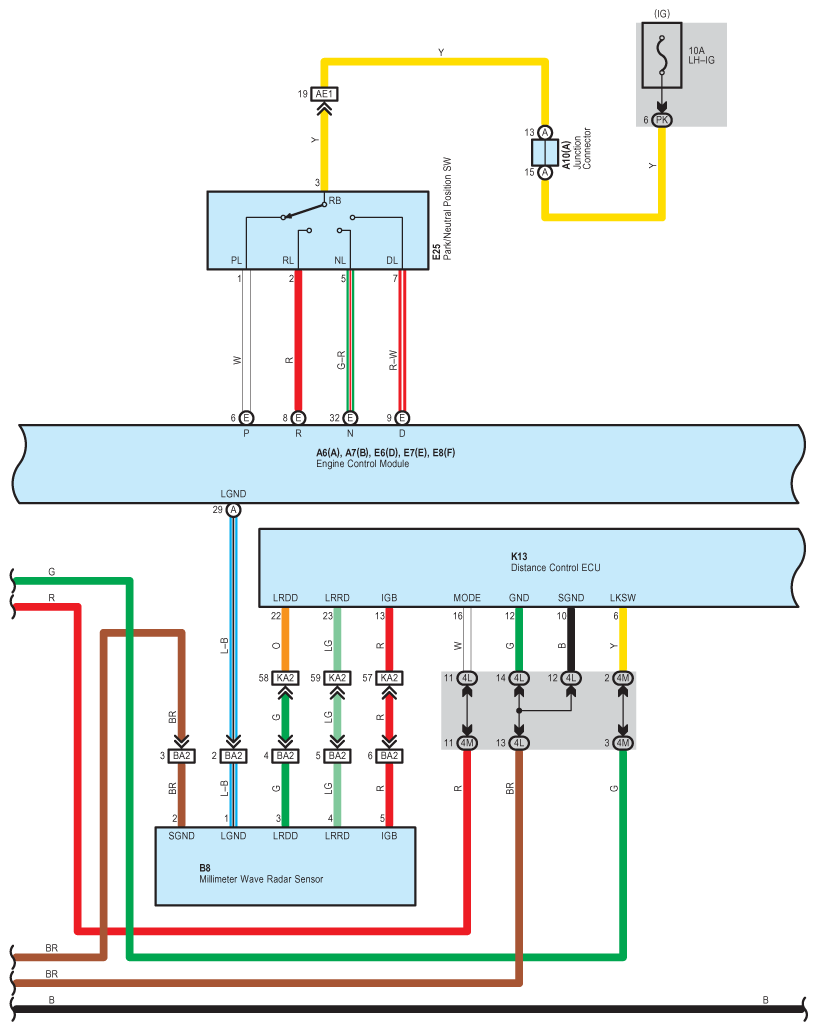

Fig 2: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

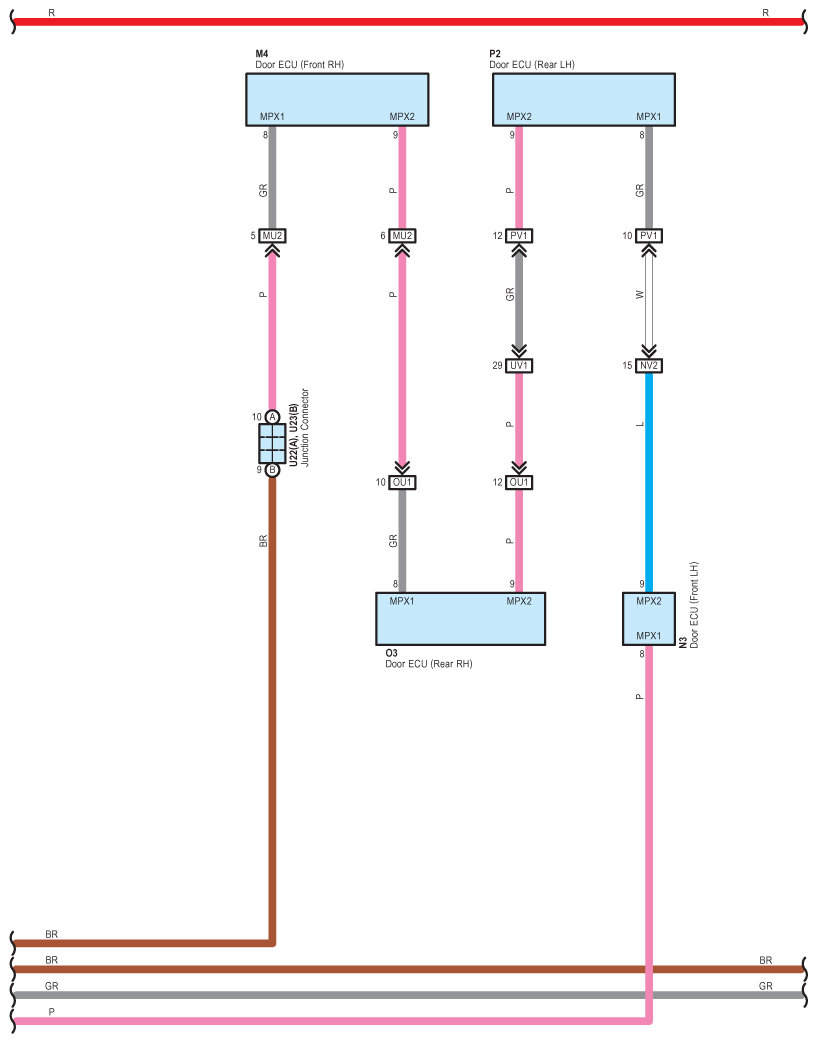

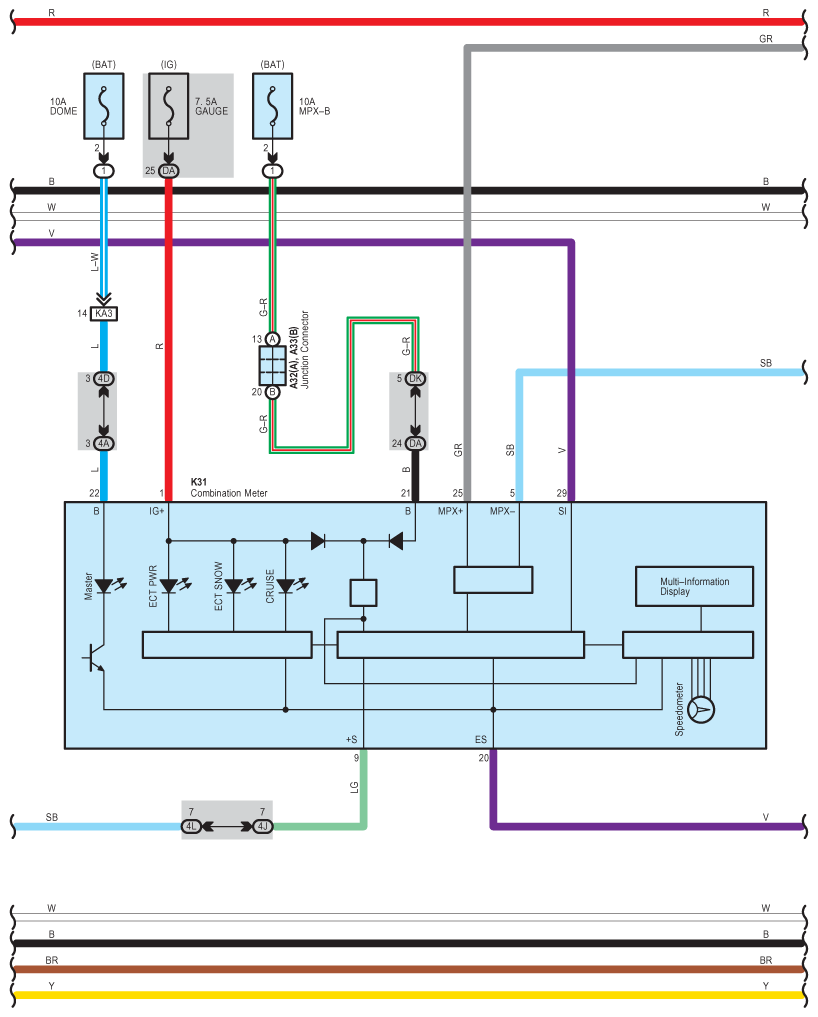

Fig 3: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

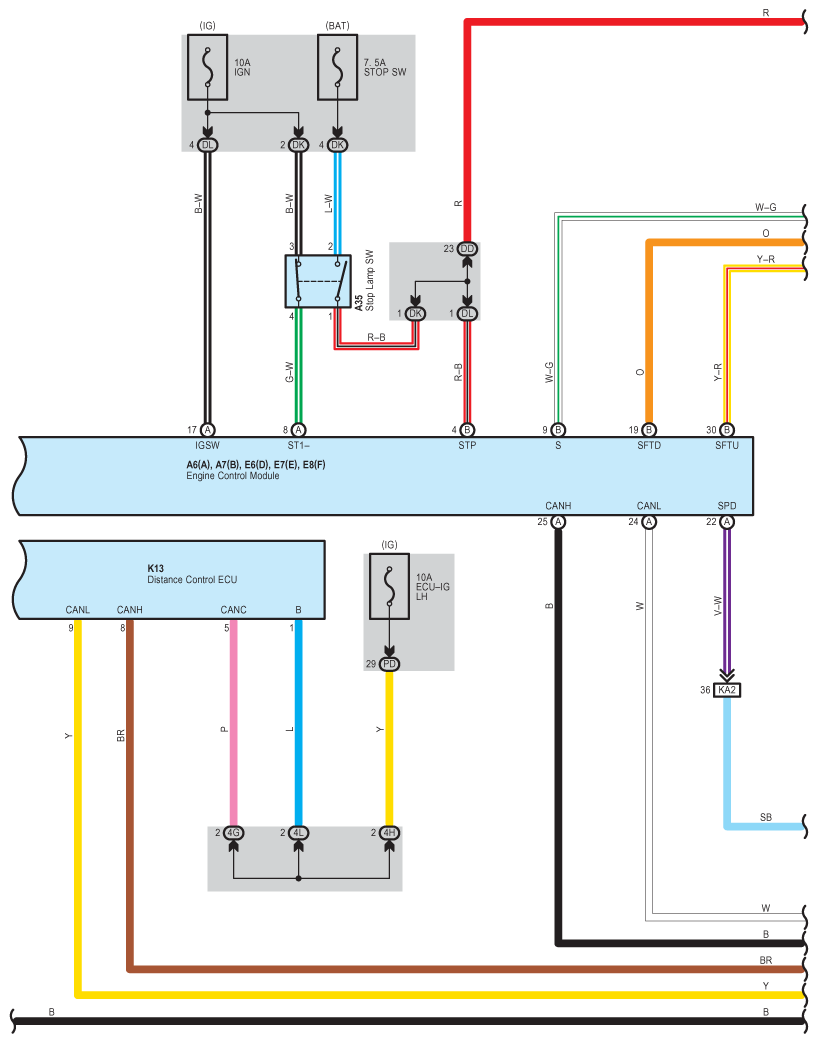

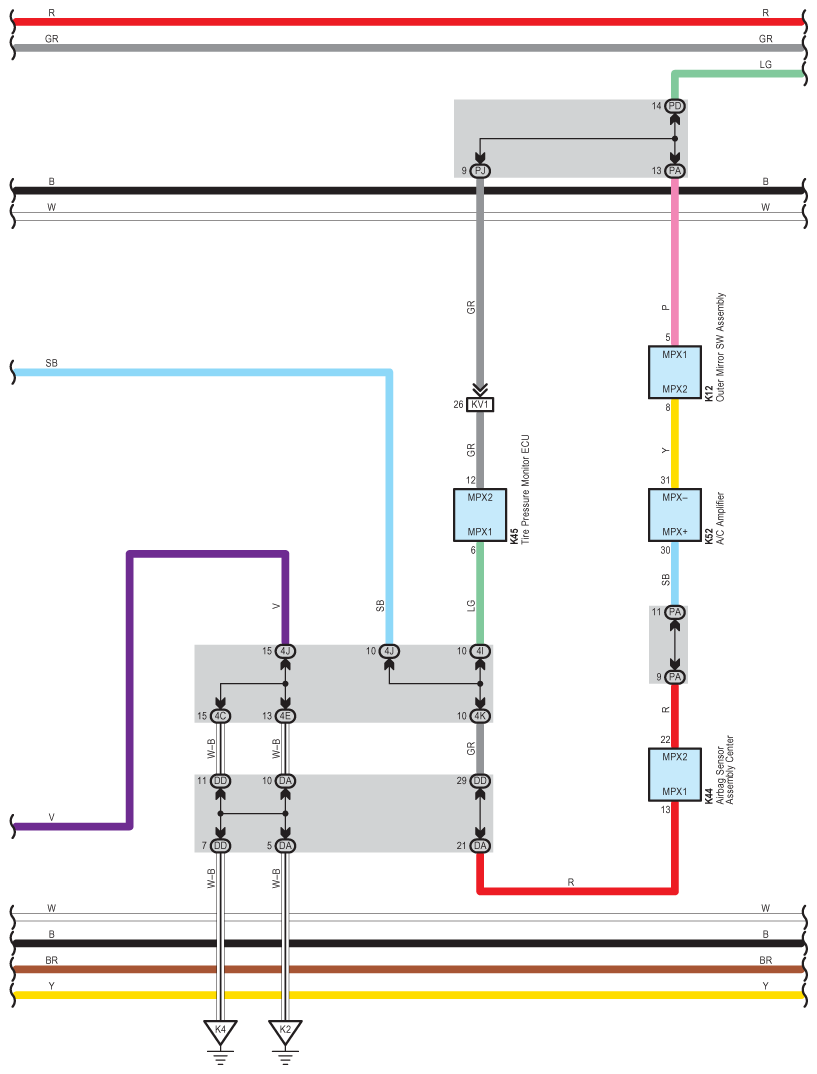

Fig 4: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

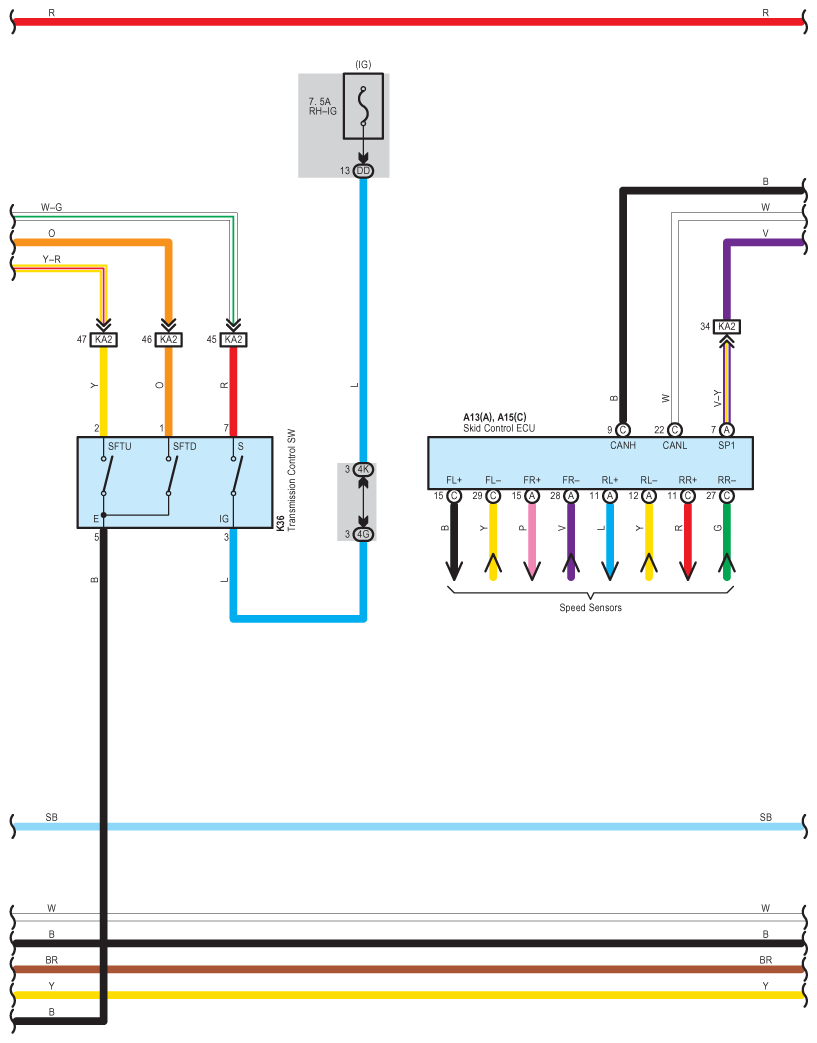

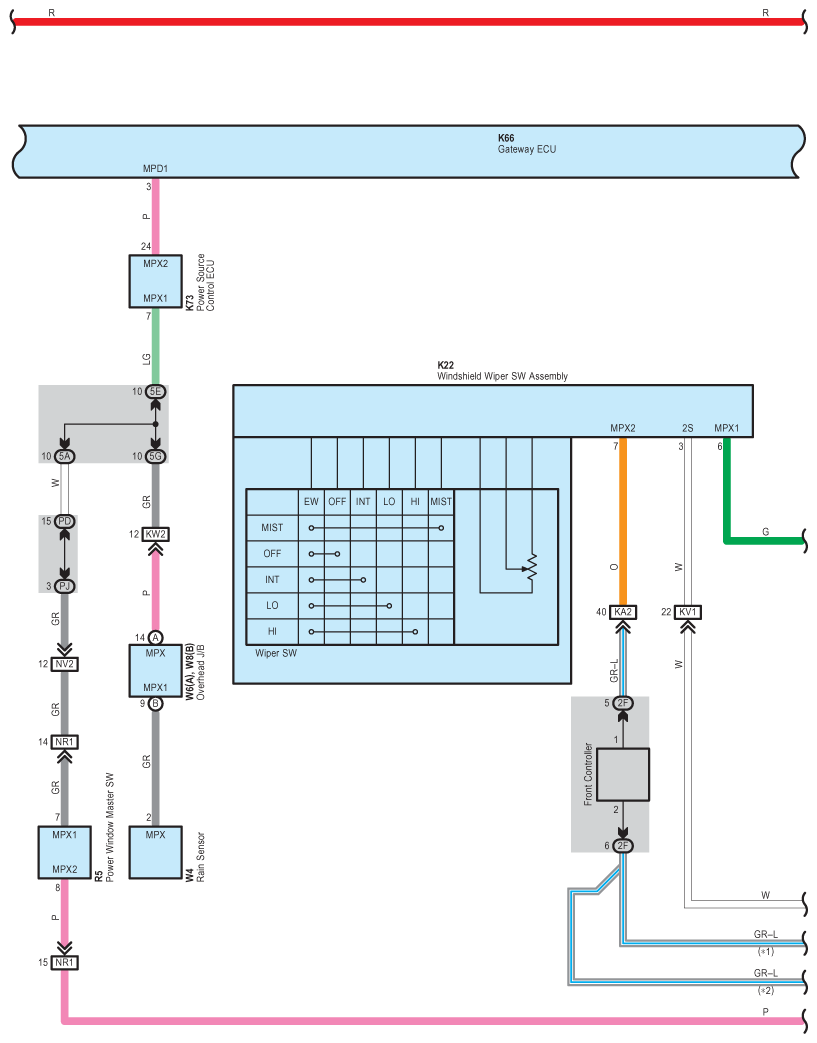

Fig 5: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

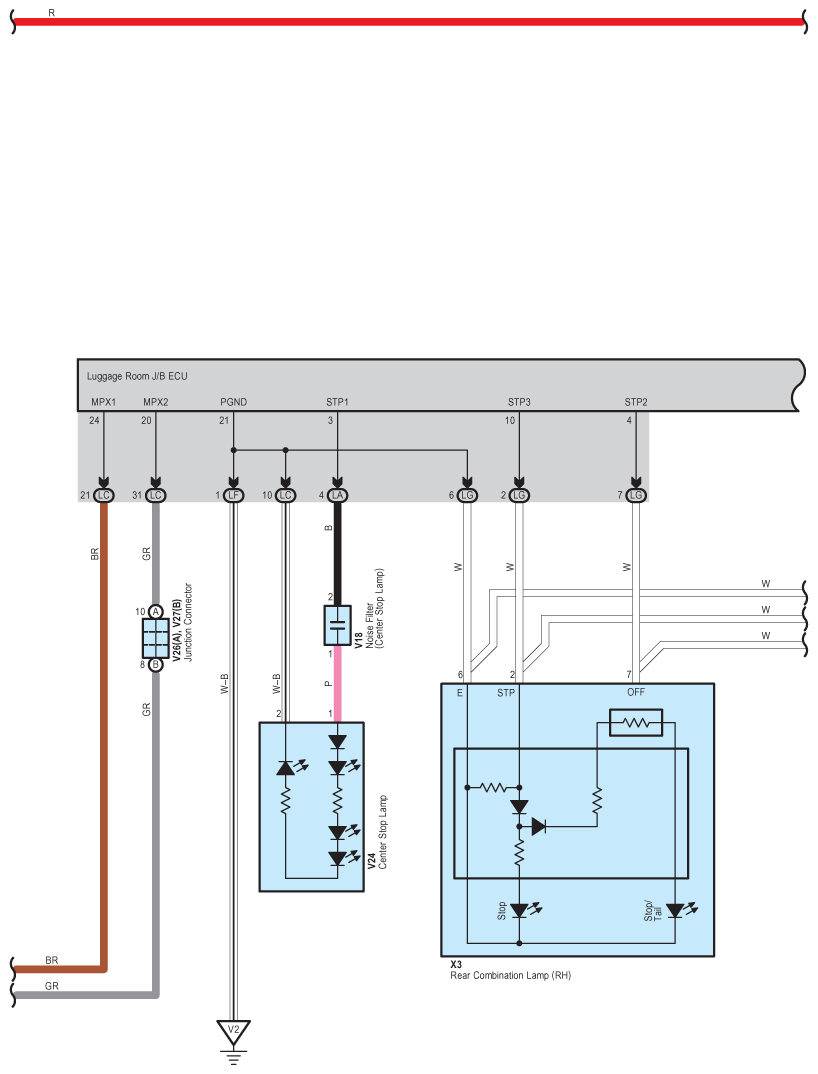

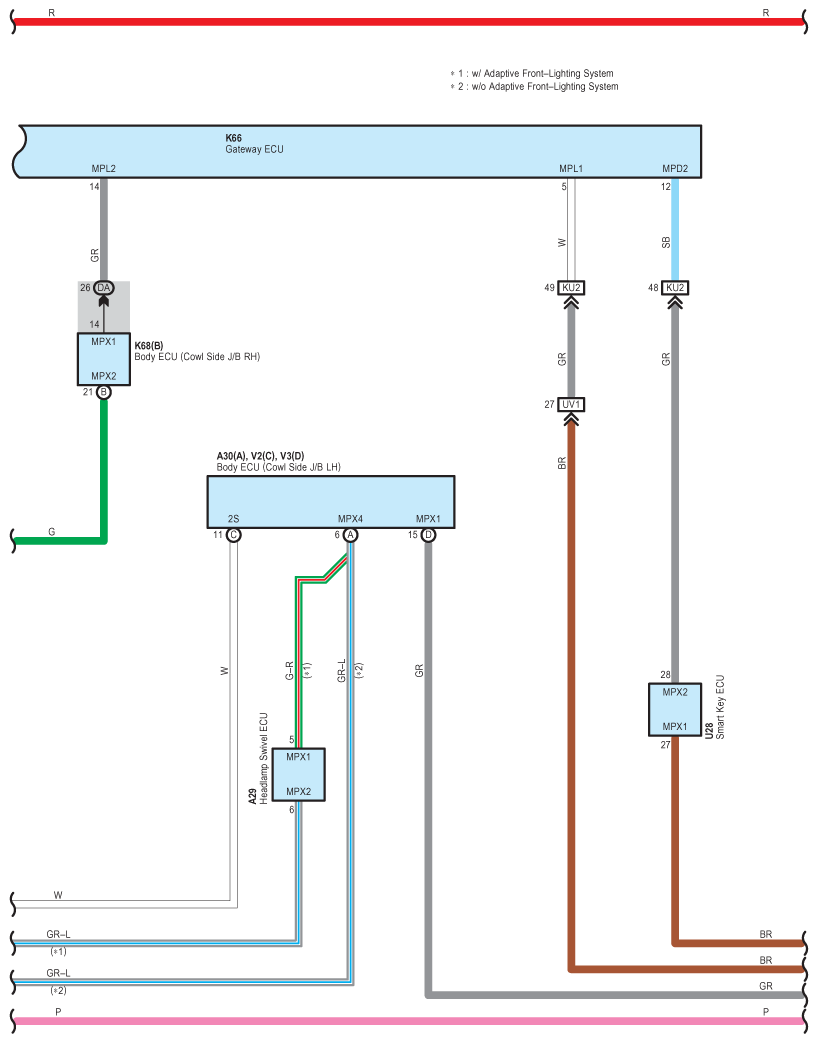

Fig 6: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

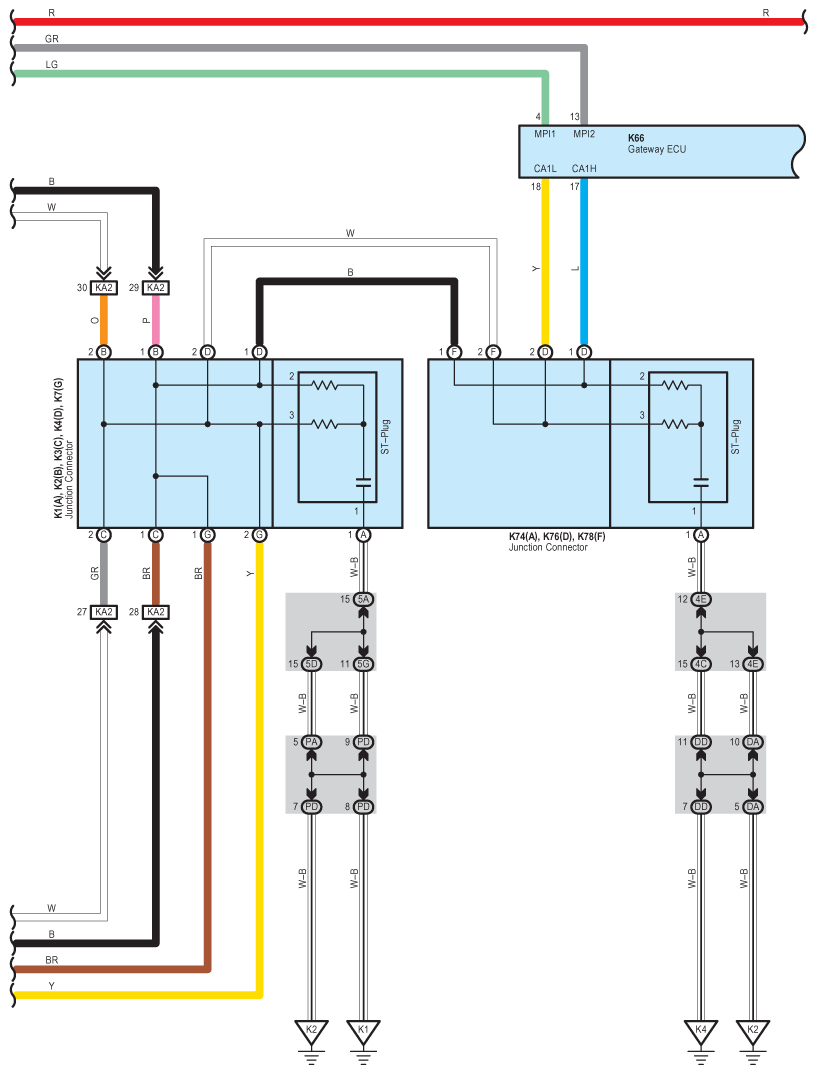

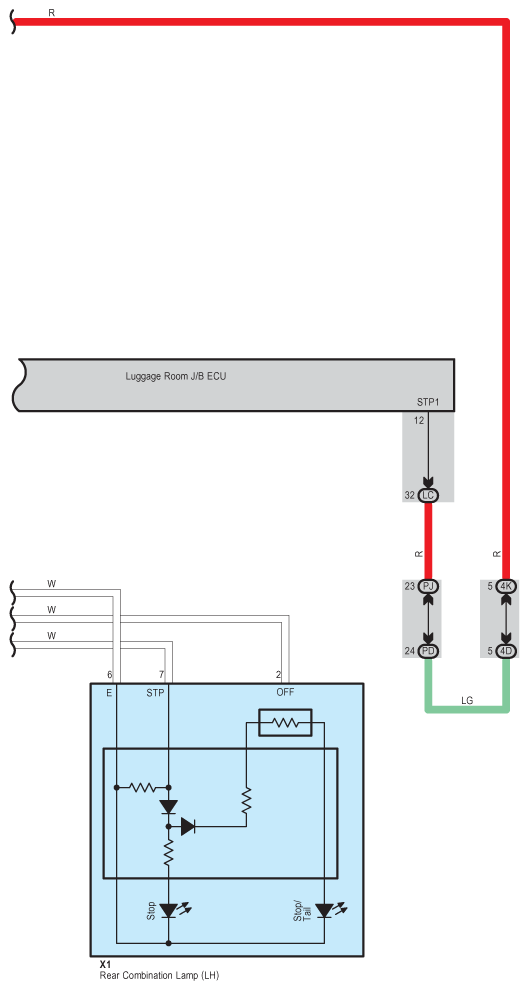

Fig 7: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (11 Of 15)

Fig 12: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (12 Of 15)

Fig 13: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (13 Of 15)

Fig 14: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (14 Of 15)

Fig 15: Dynamic Radar Cruise Control For 3UZ-FE System Wiring Diagram (15 Of 15)
