OEM System Circuits: EPS: Notes

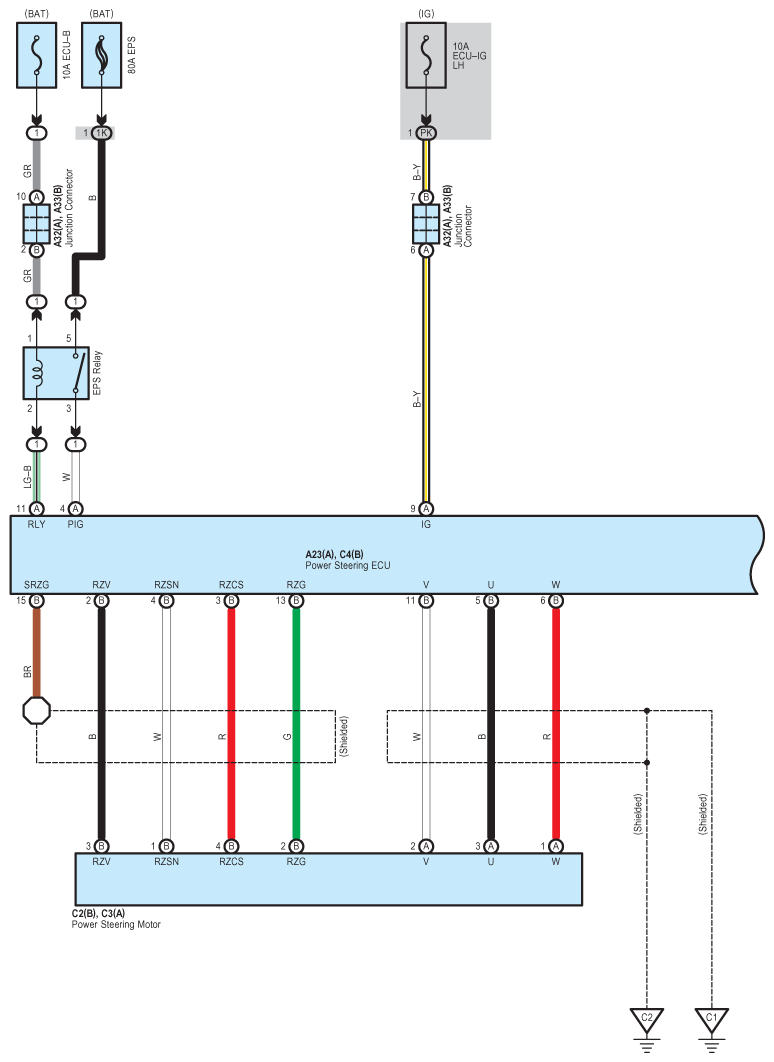

Fig 1: EPS System Wiring Diagram (1 Of 6)

G08910497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

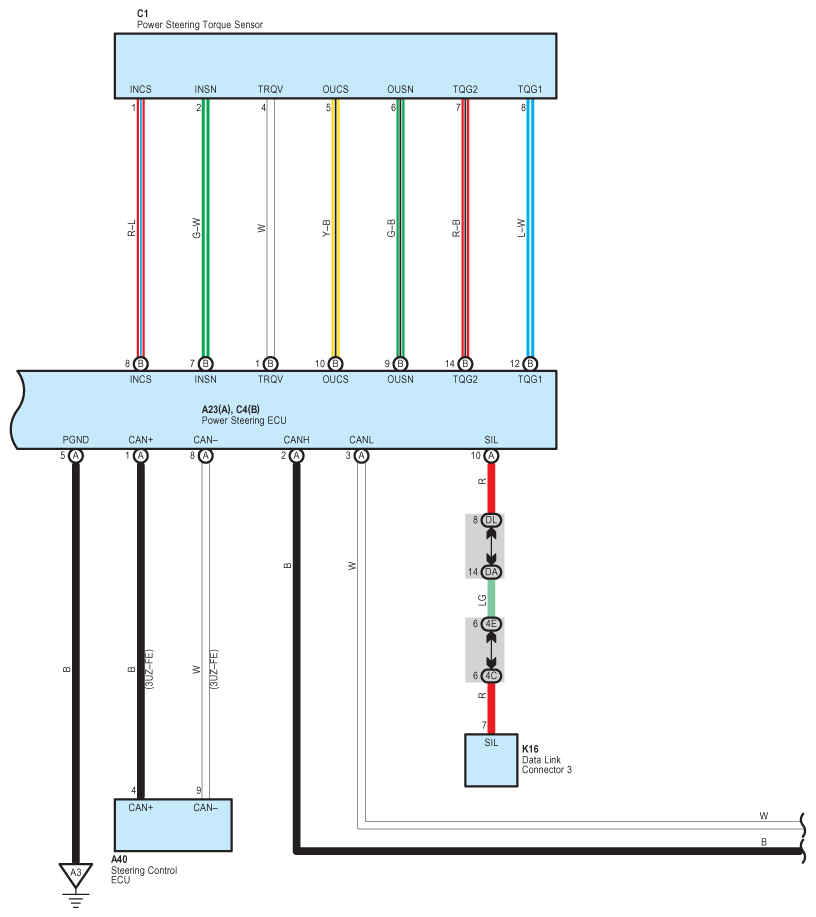

Fig 2: EPS System Wiring Diagram (2 Of 6)

G08910498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

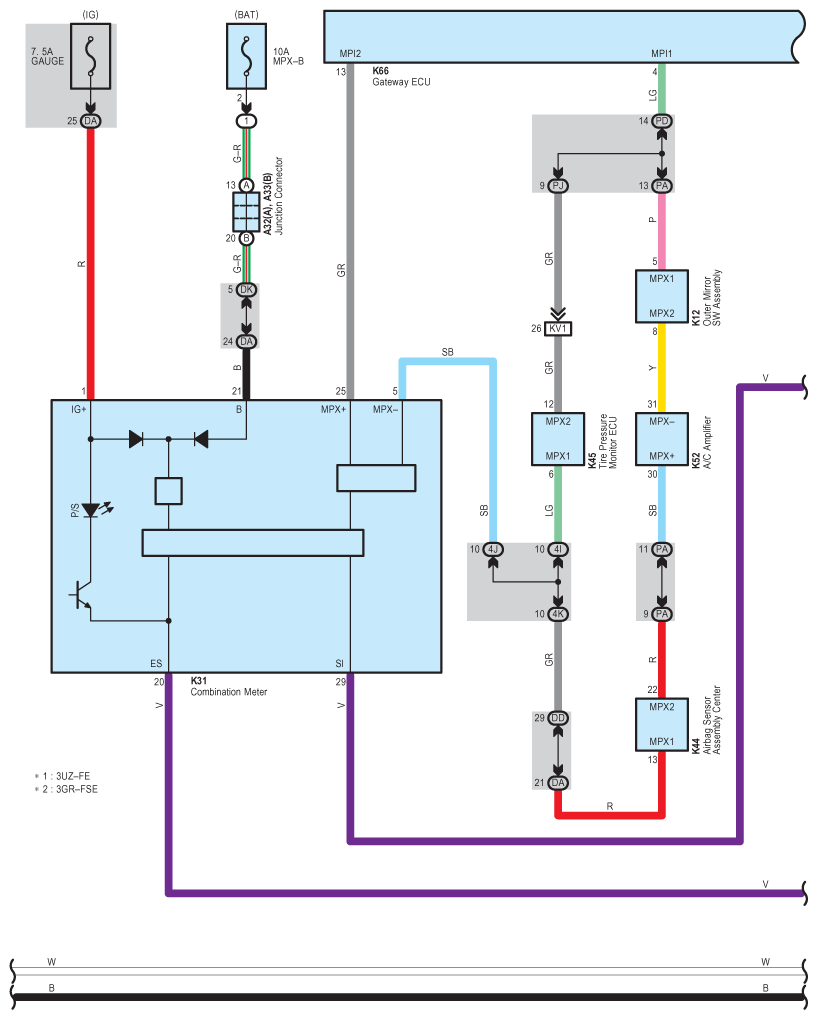

Fig 3: EPS System Wiring Diagram (3 Of 6)

G08910499

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

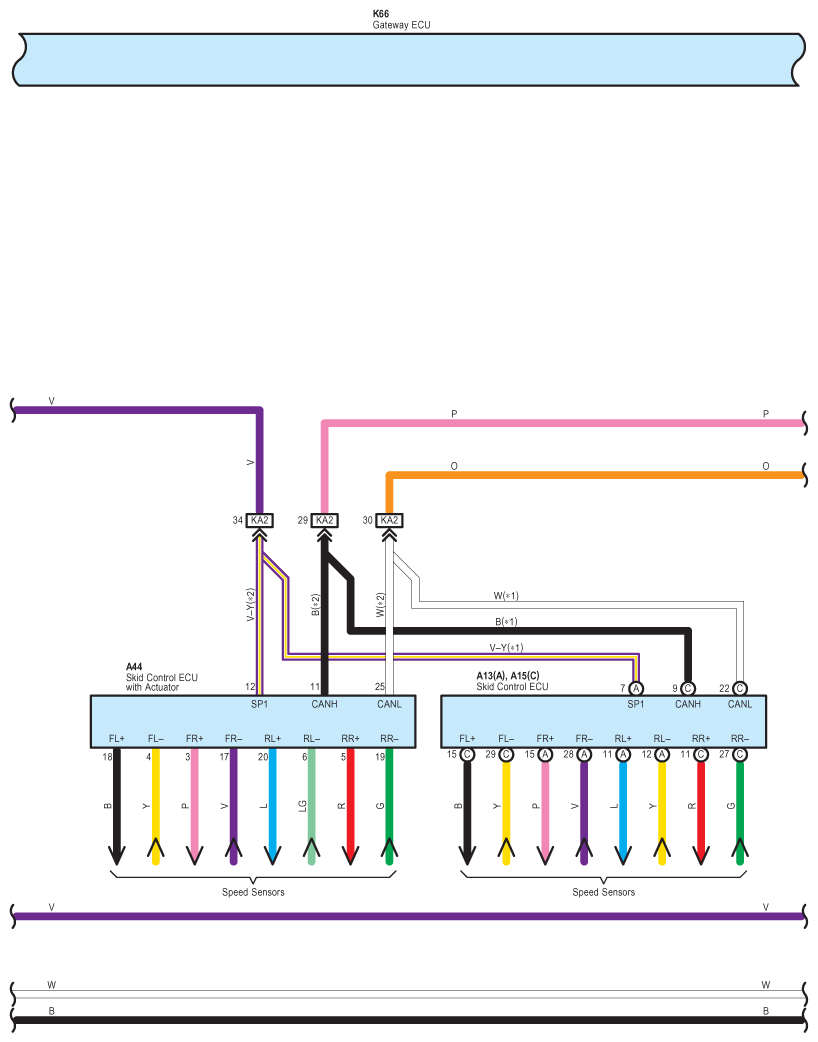

Fig 4: EPS System Wiring Diagram (4 Of 6)

G08910500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

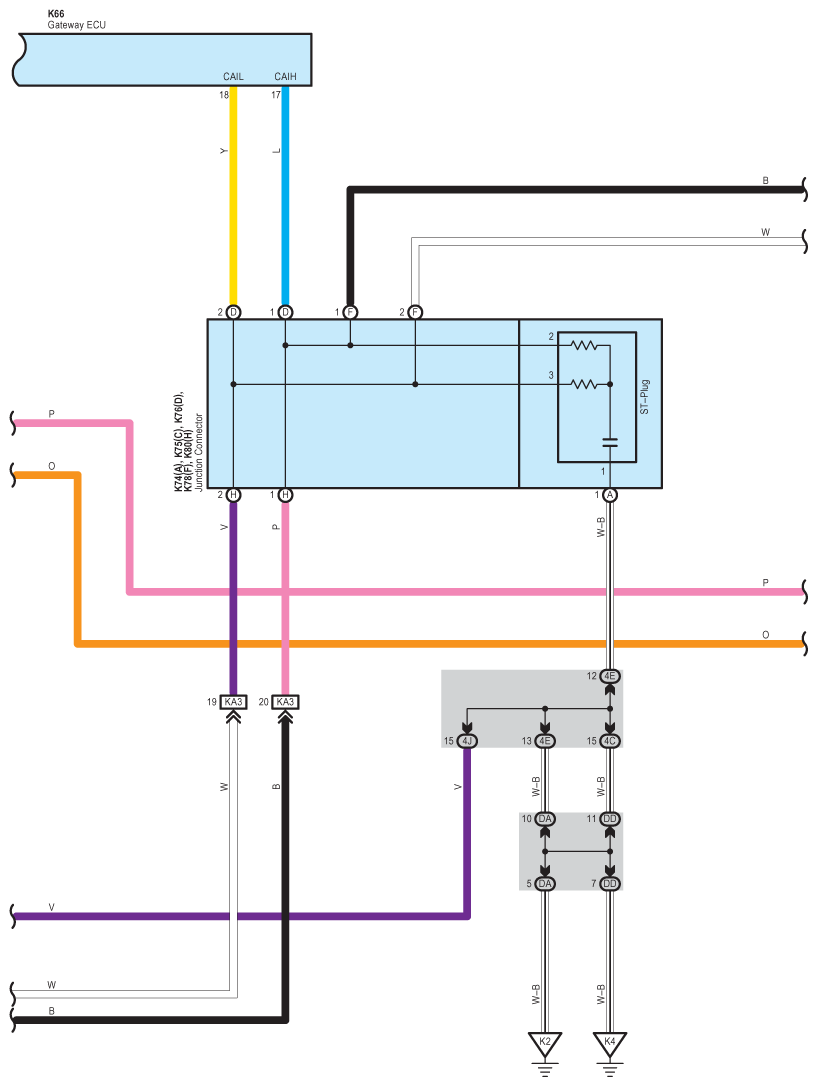

Fig 5: EPS System Wiring Diagram (5 Of 6)

G08910501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

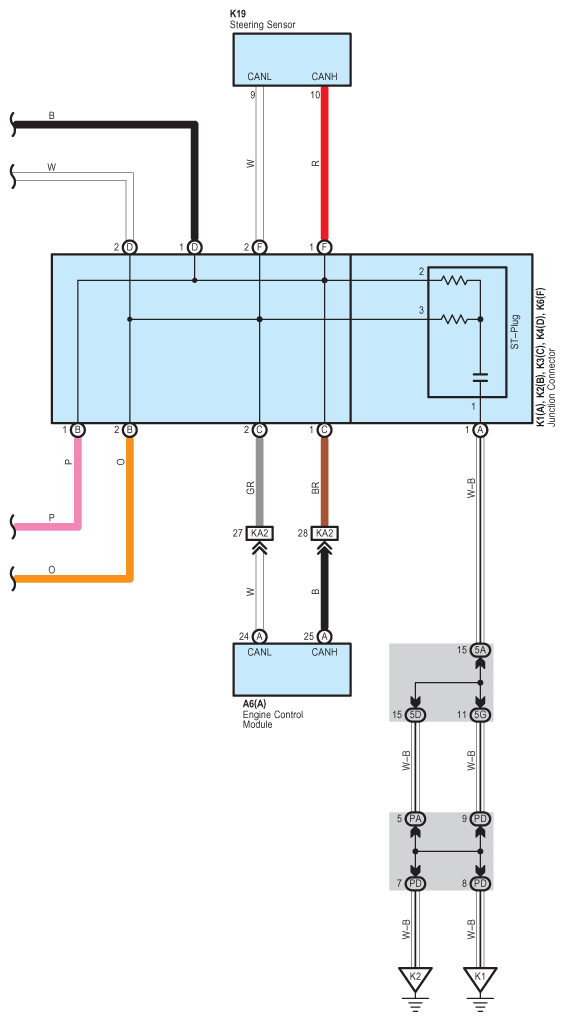

Fig 6: EPS System Wiring Diagram (6 Of 6)

G08910502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
