Vehicle Dynamics Integrated Management: Notes

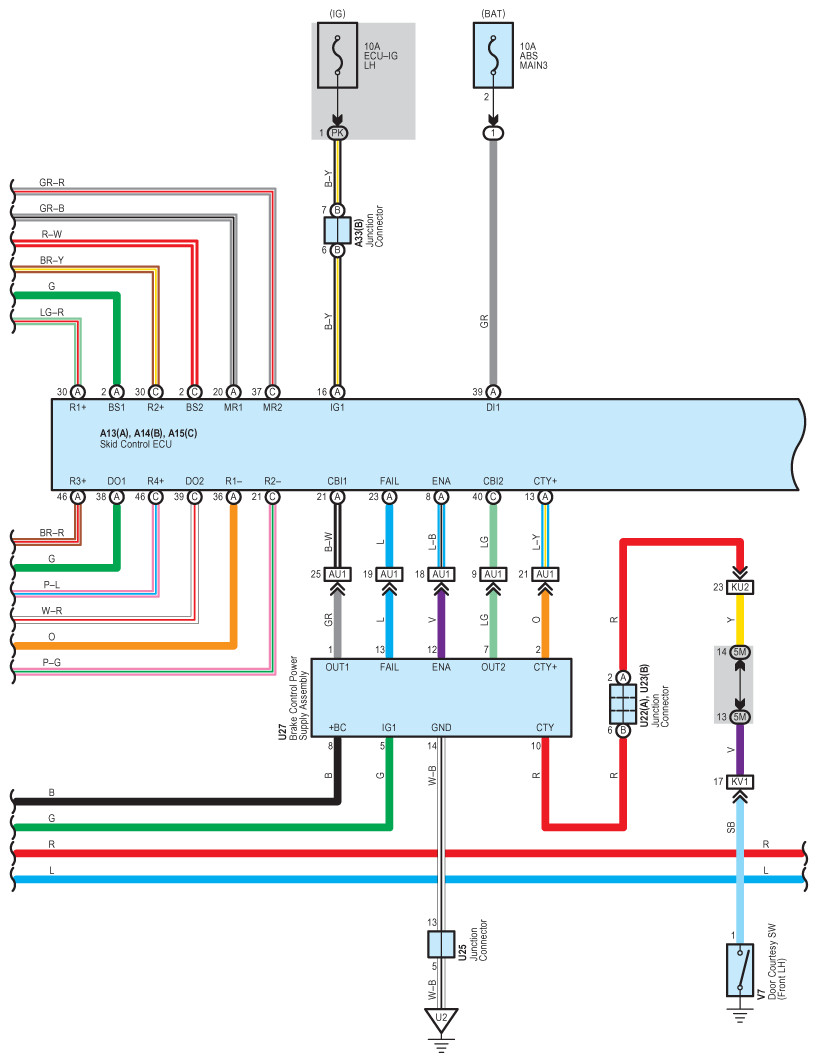

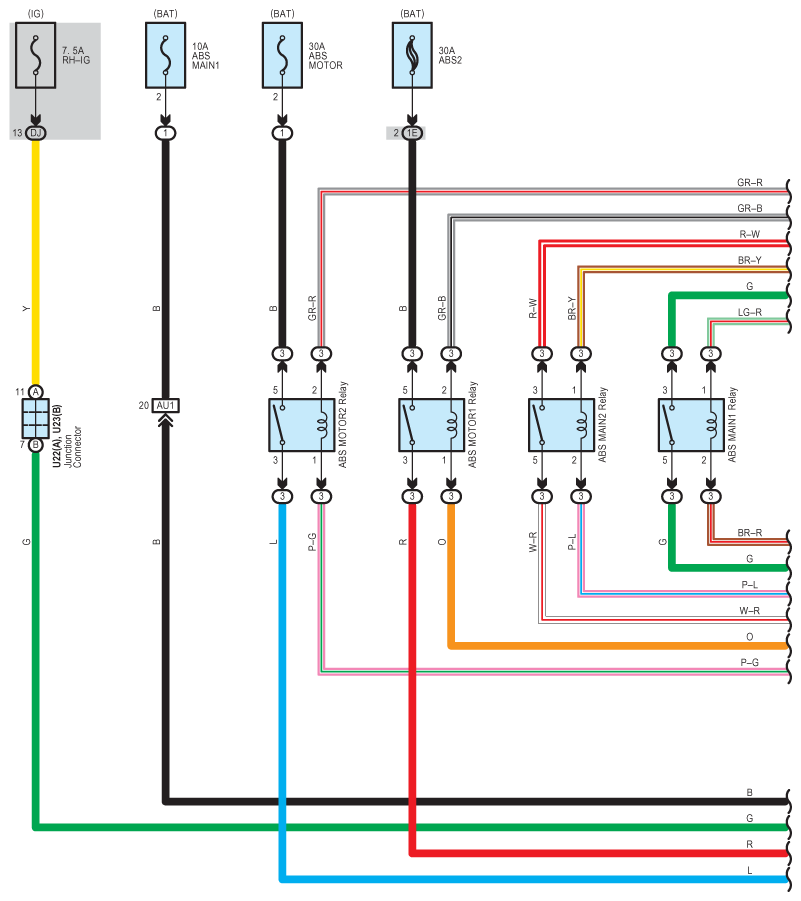

Fig 1: Vehicle Dynamics Integrated Management System Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

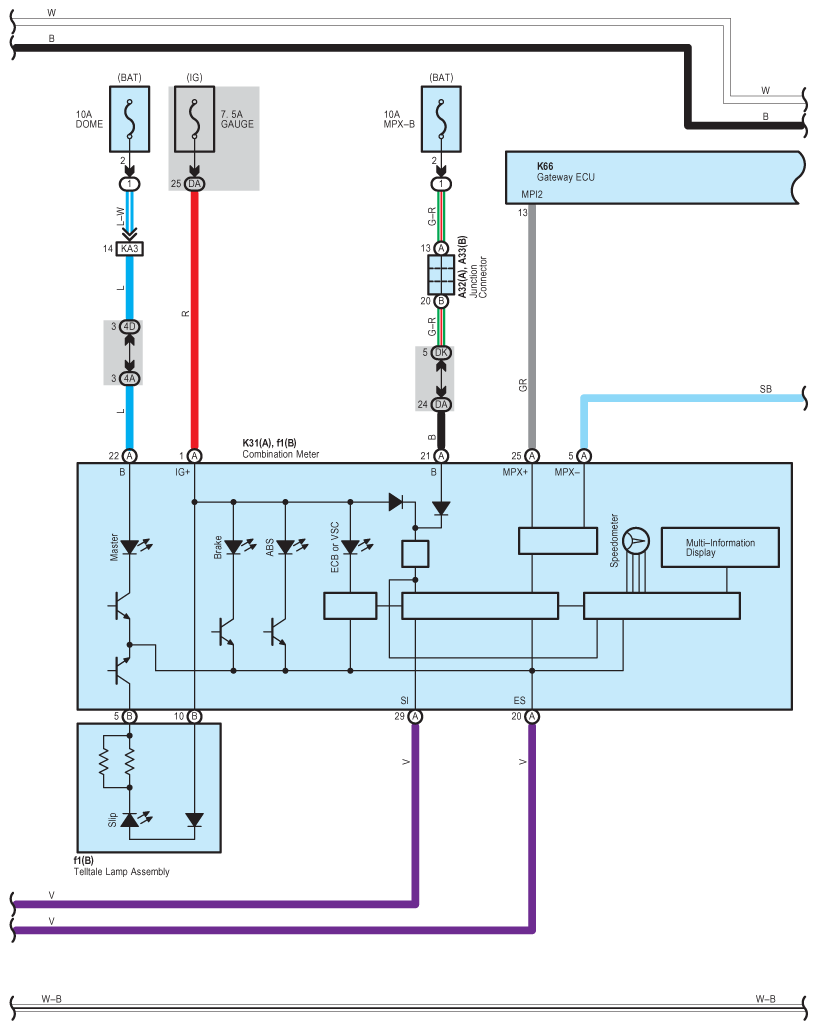

Fig 2: Vehicle Dynamics Integrated Management System Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

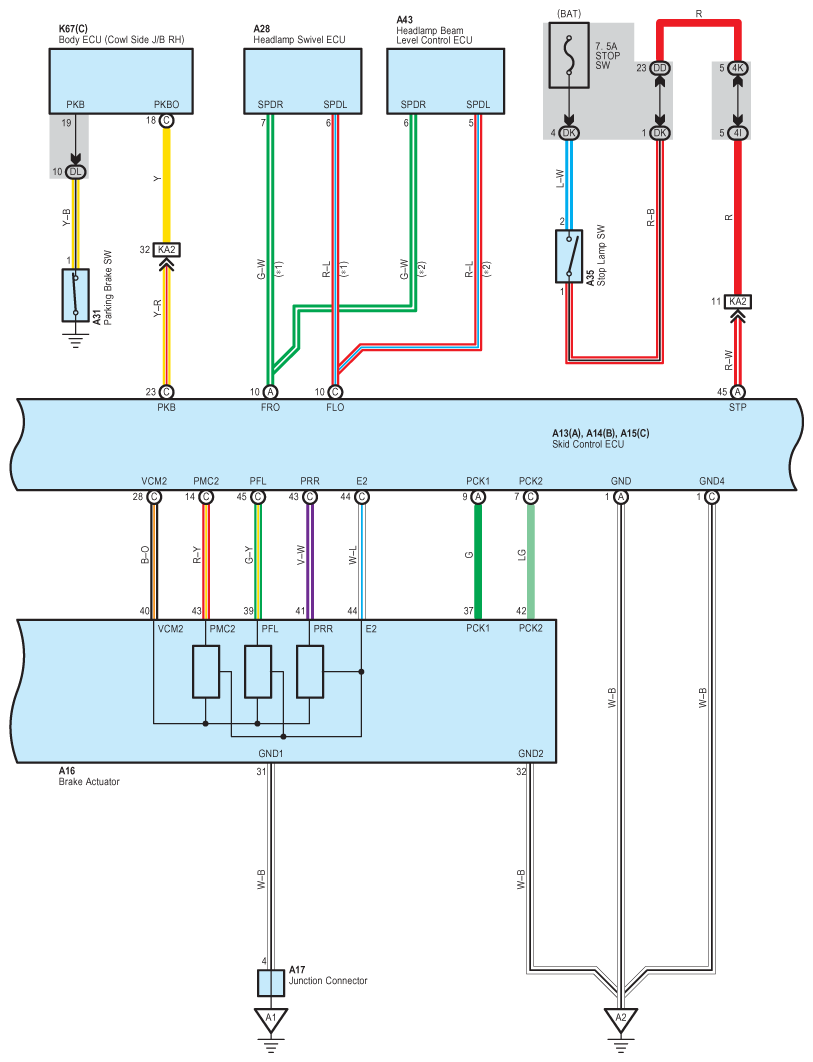

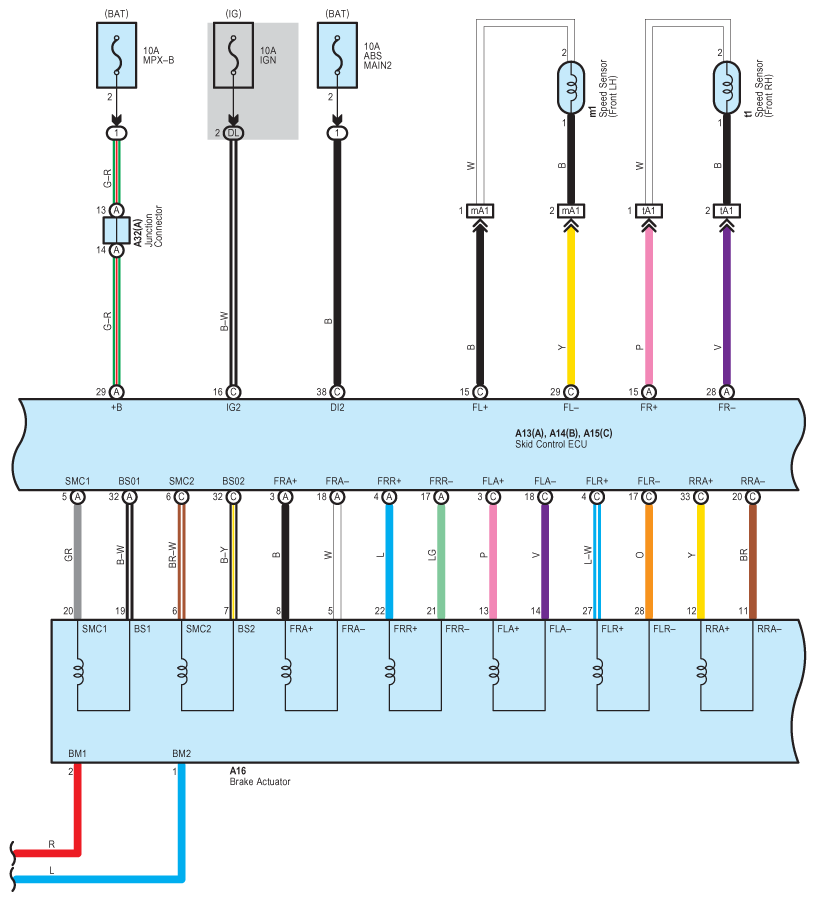

Fig 3: Vehicle Dynamics Integrated Management System Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Vehicle Dynamics Integrated Management System Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

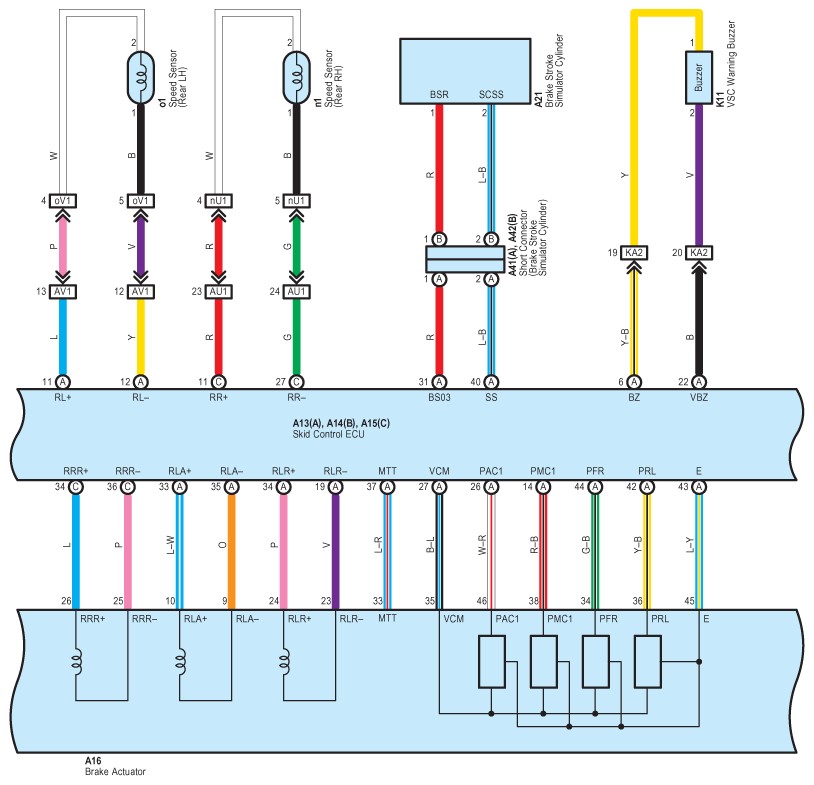

Fig 5: Vehicle Dynamics Integrated Management System Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

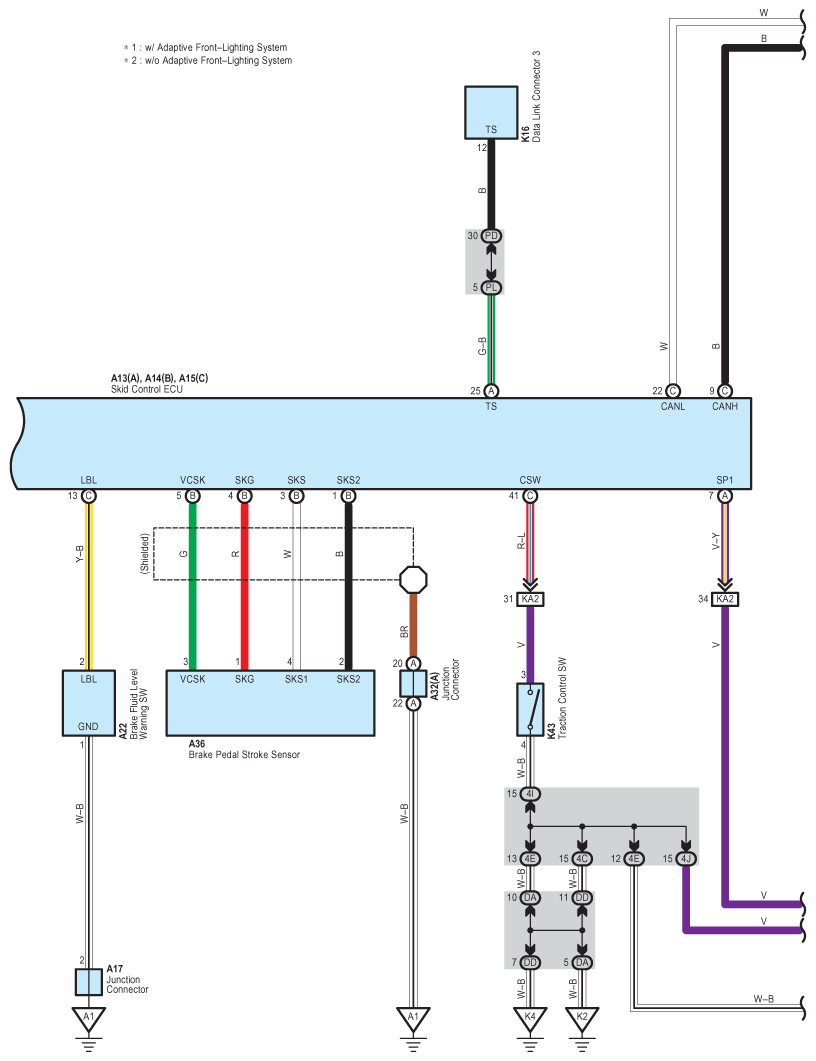

Fig 6: Vehicle Dynamics Integrated Management System Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Vehicle Dynamics Integrated Management System Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

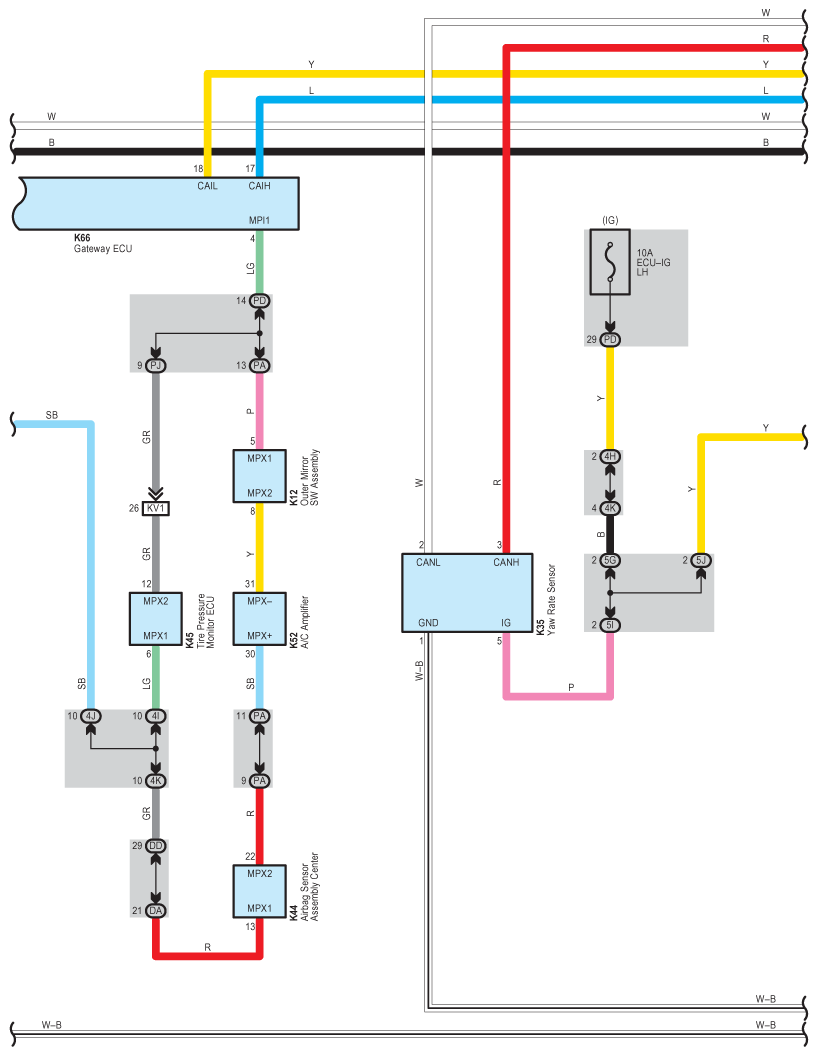

Fig 8: Vehicle Dynamics Integrated Management System Wiring Diagram (8 Of 11)

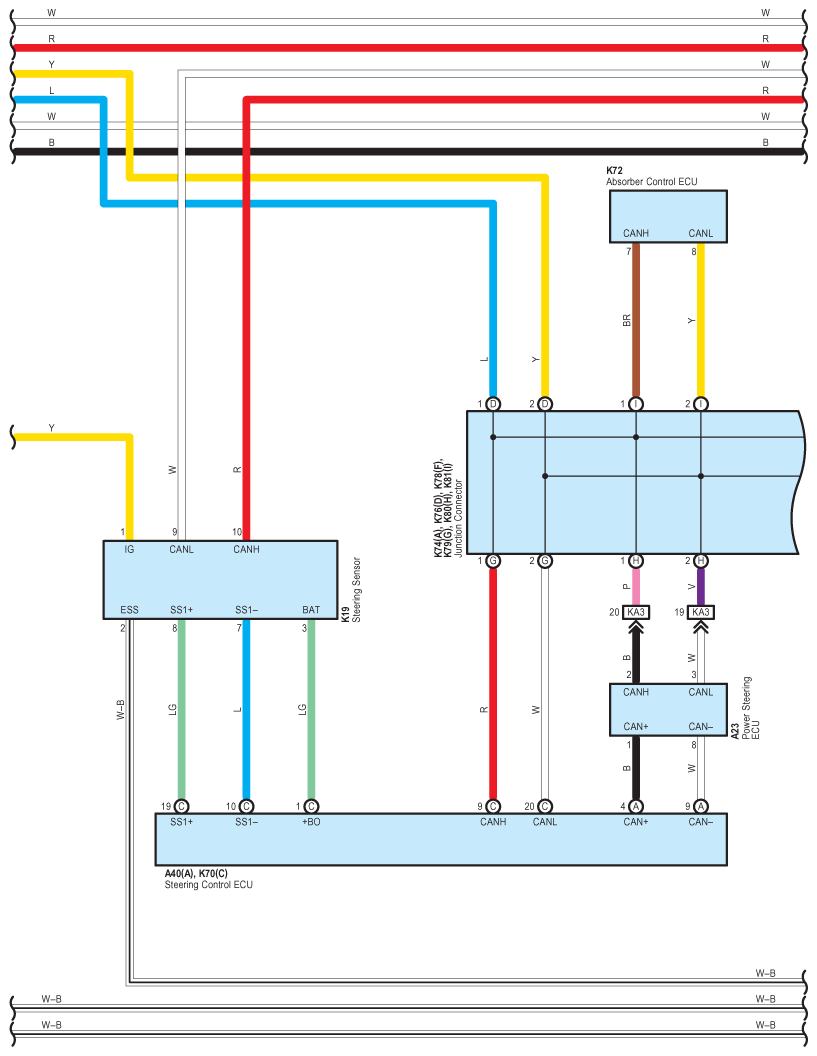

Fig 9: Vehicle Dynamics Integrated Management System Wiring Diagram (9 Of 11)

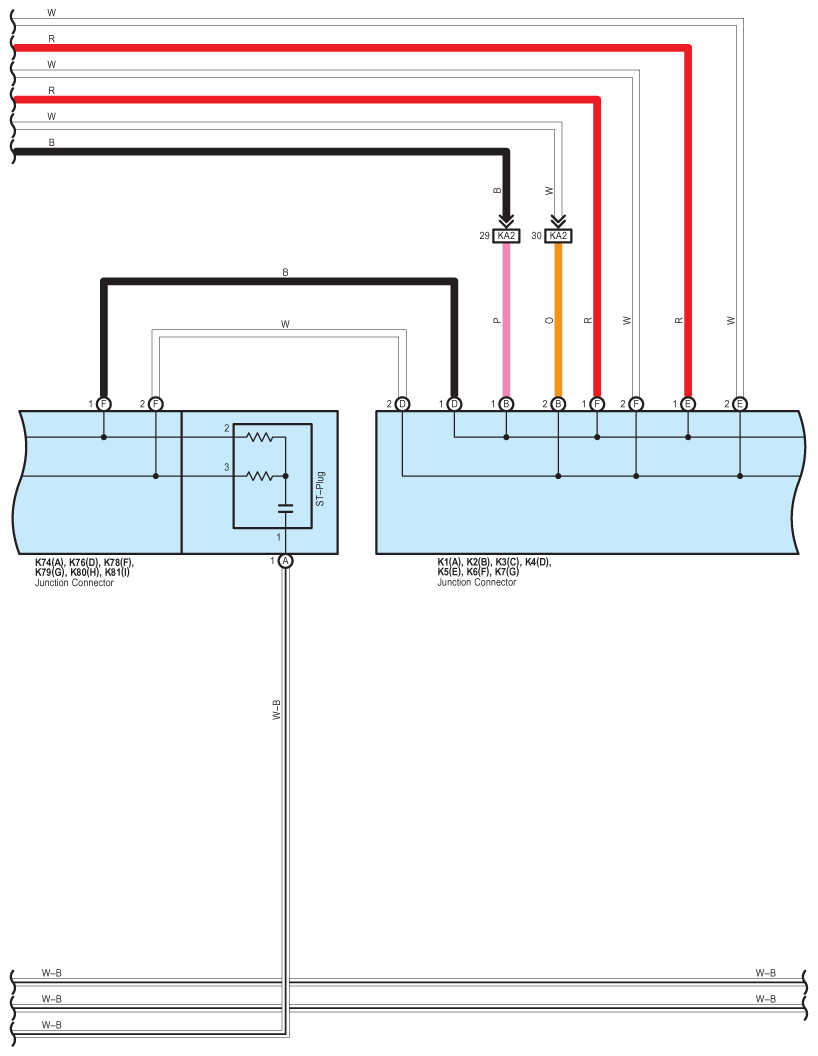

Fig 10: Vehicle Dynamics Integrated Management System Wiring Diagram (10 Of 11)

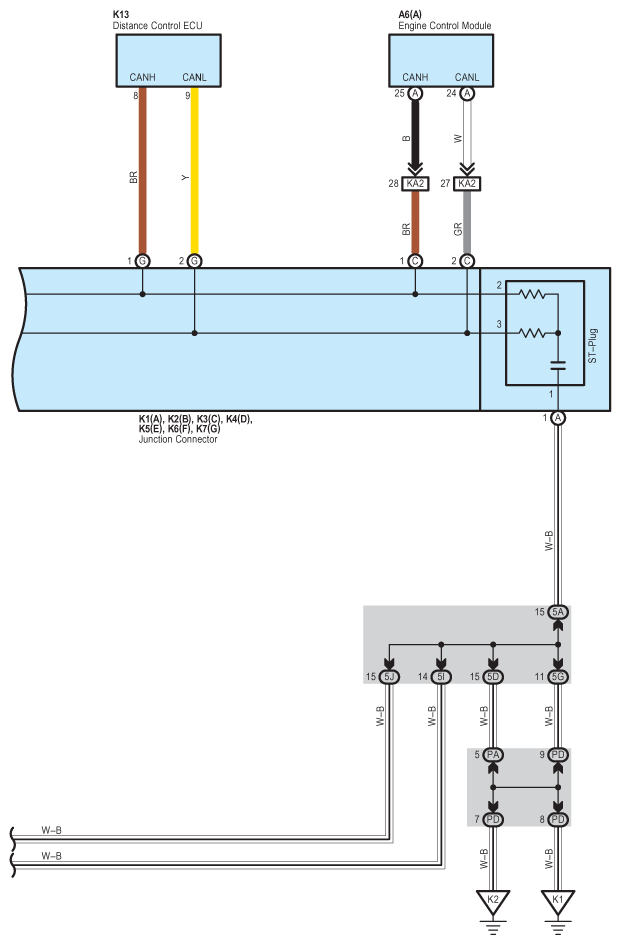

Fig 11: Vehicle Dynamics Integrated Management System Wiring Diagram (11 Of 11)
