Instrument Panel Safety Pad: Components

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 6)
G04032527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Instrument Panel Safety Pad Components (2 Of 6)
G04032528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

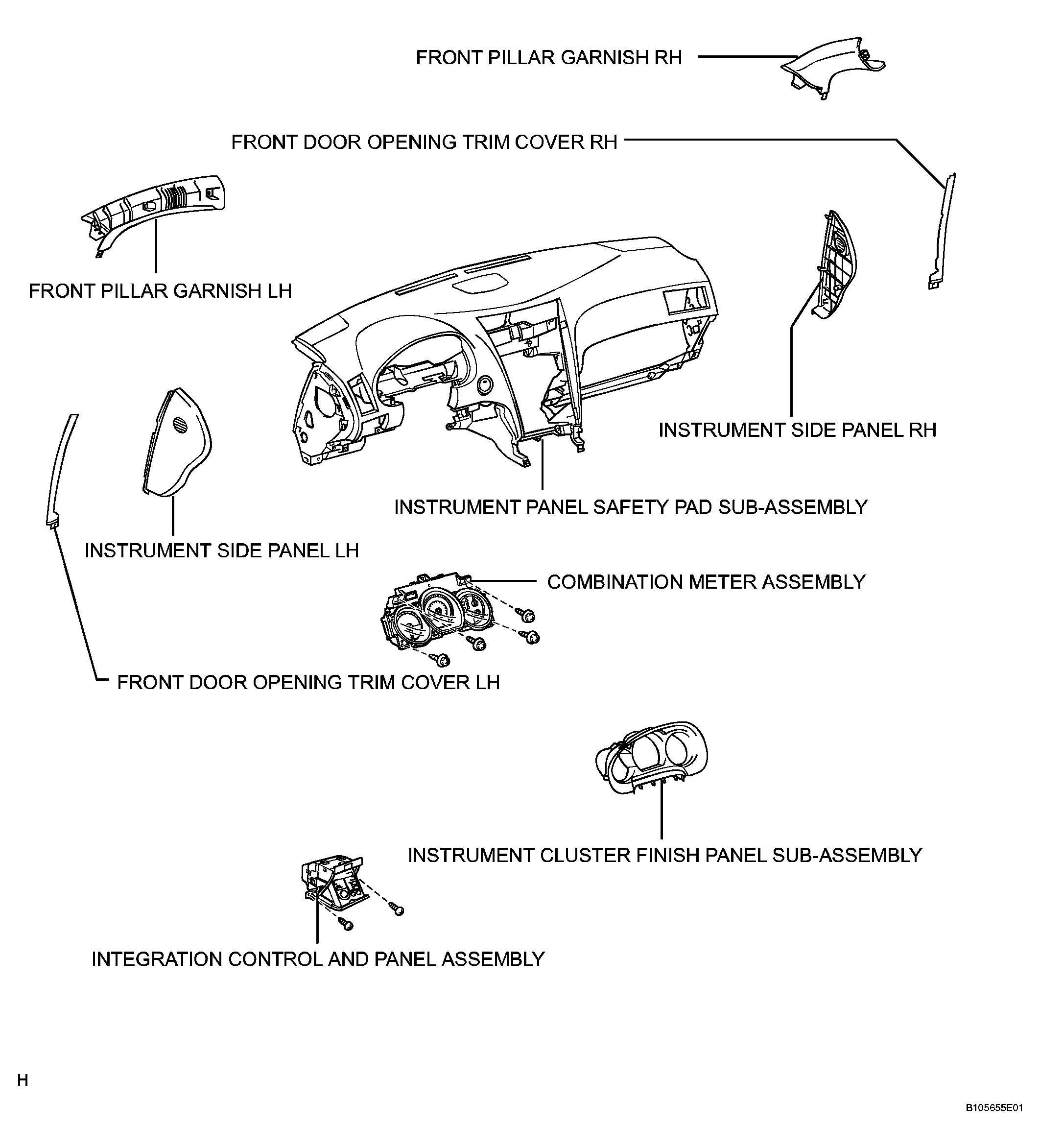

Fig 3: Identifying Instrument Panel Safety Pad Components (3 Of 6)
G04032529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

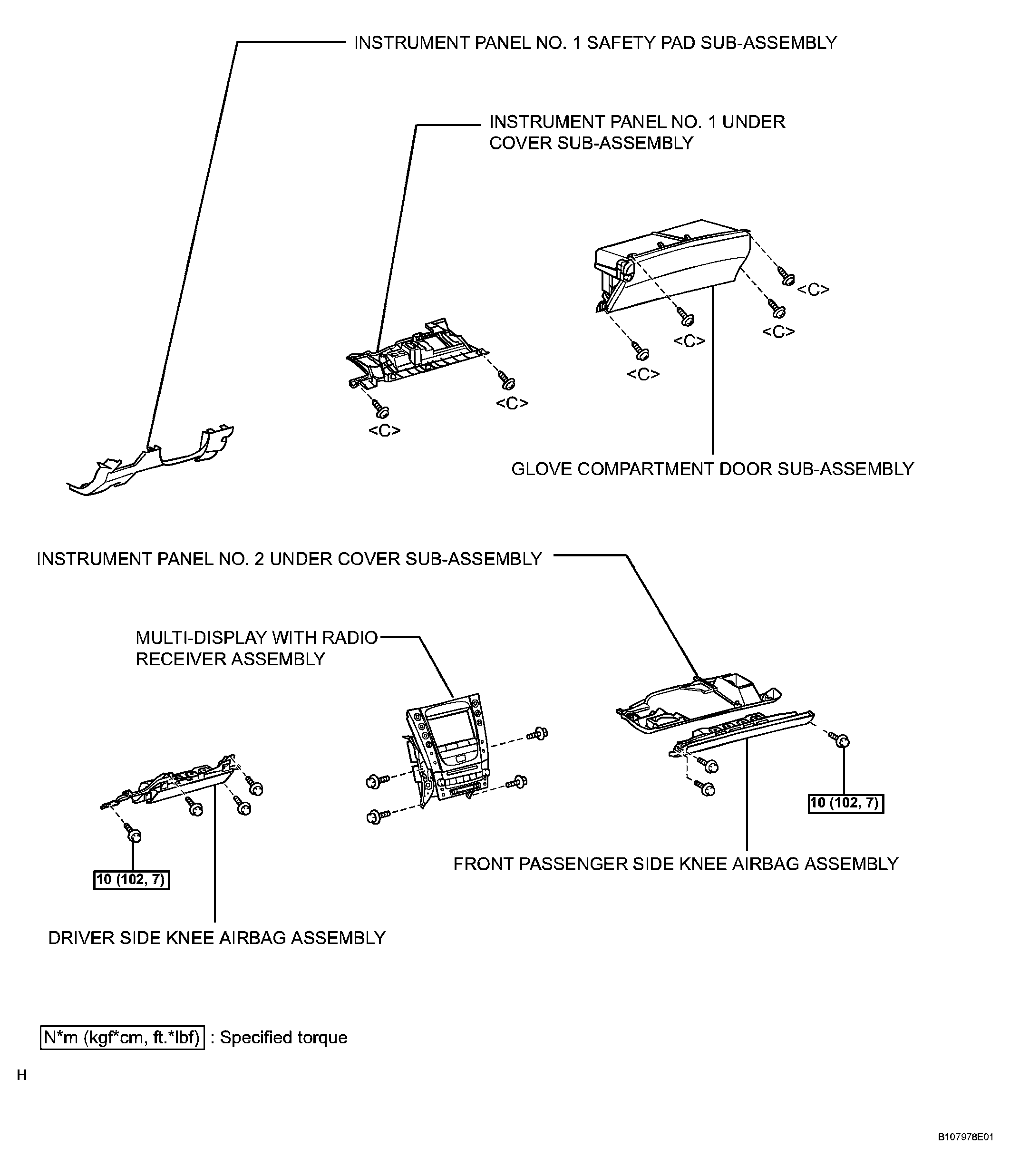

Fig 4: Instrument Panel Safety Pad Replacement Components With Torque Specifications (4 Of 6)
G04032530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

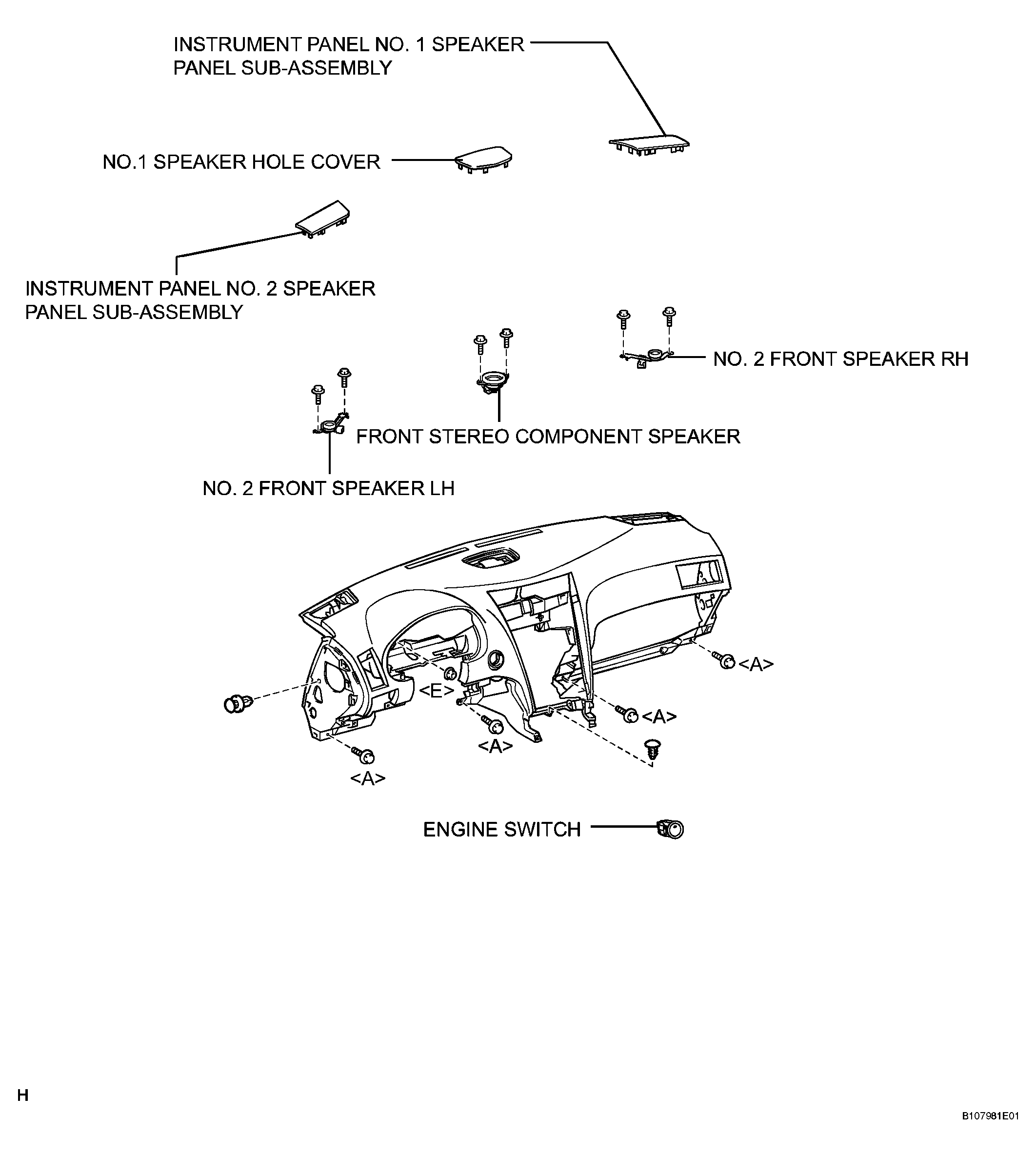

Fig 5: Identifying Instrument Panel Safety Pad Components (5 Of 6)
G04032531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

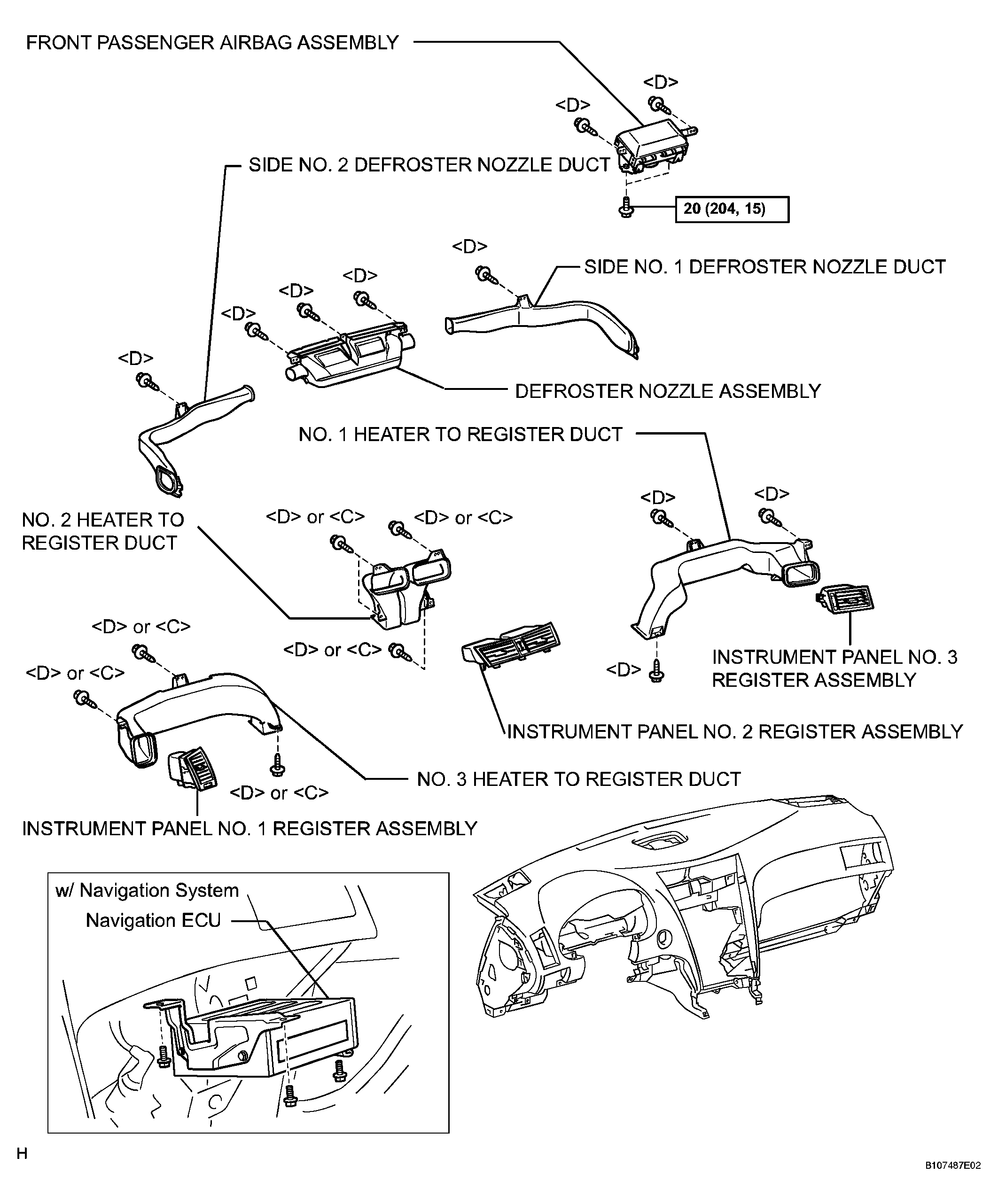

Fig 6: Instrument Panel Safety Pad Replacement Components With Torque Specifications (6 Of 6)
G04032532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
