Rear Console Box: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

INSTALL CONSOLE BOX
1. Connect the connector.
2. Install the console box with the 4 bolts and 2 screws.

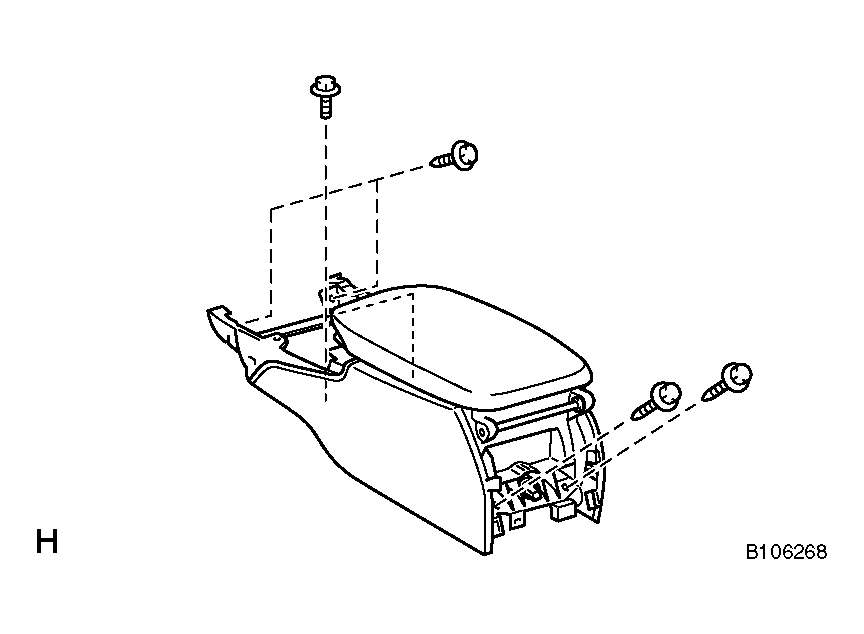

  Fig 1: Locating Console Box Bolts And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX REGISTER ASSEMBLY
1. Attach the 4 clips to install the register.

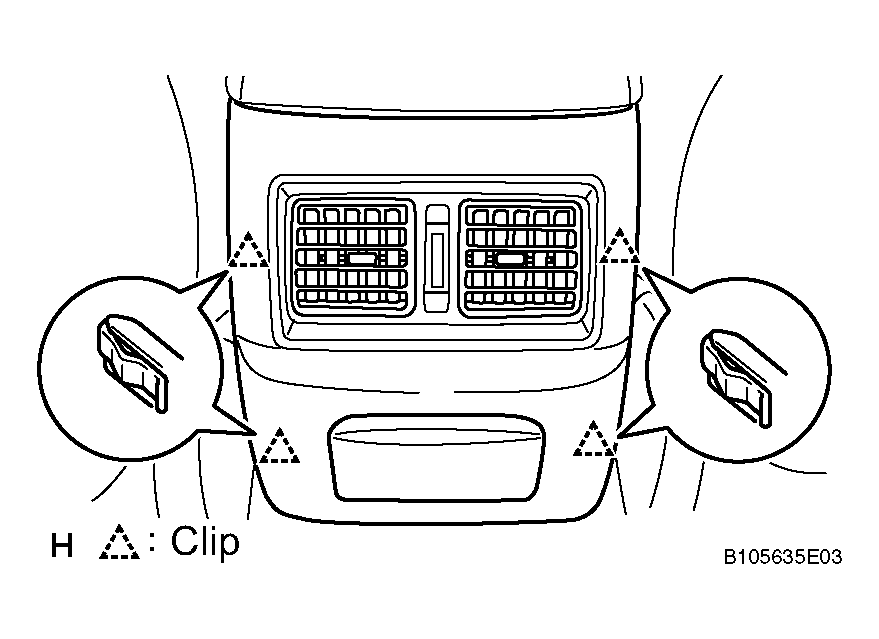

  Fig 2: Identifying Console Box Register
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX PLATE
1. Connect the connector.
2. Attach the 4 clips to install the console box plate.

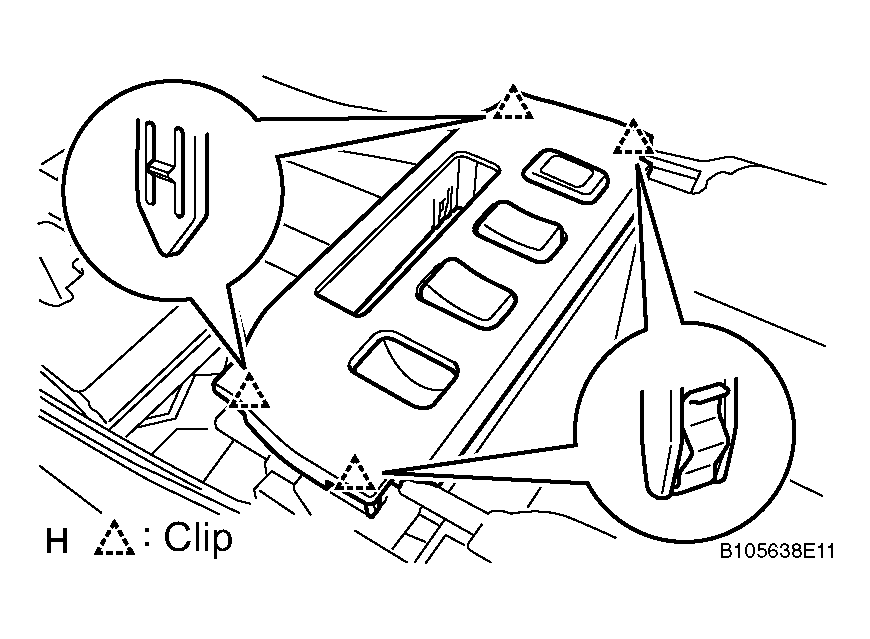

  Fig 3: Identifying Console Box Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
1. Attach the 4 clips and 3 claws to install the finish panel end.
2. Install the screw.

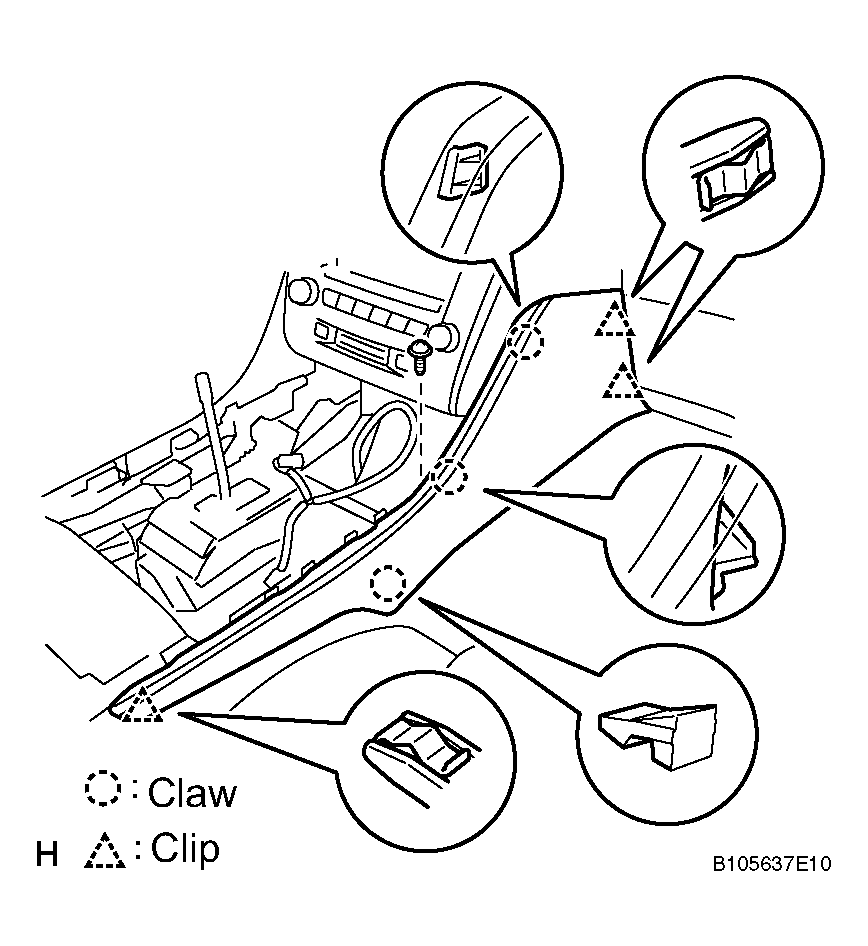

  Fig 4: Identifying Instrument Panel Finish Panel End LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL END RH
1. Attach the 3 clips and 3 claws to install the finish panel end.
2. Install the screw.

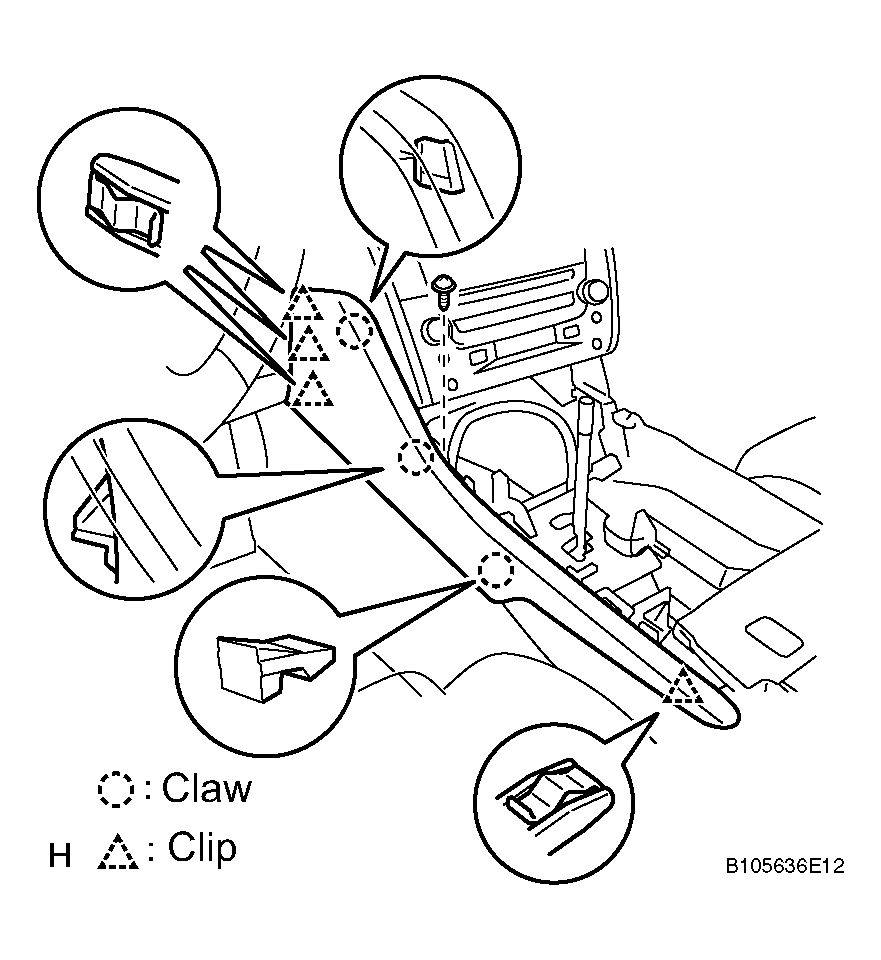

  Fig 5: Identifying Instrument Panel Finish Panel End RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE UPPER PANEL ASSEMBLY
1. Connect the connector.
2. Attach the 9 clips to install the ash receptacle.

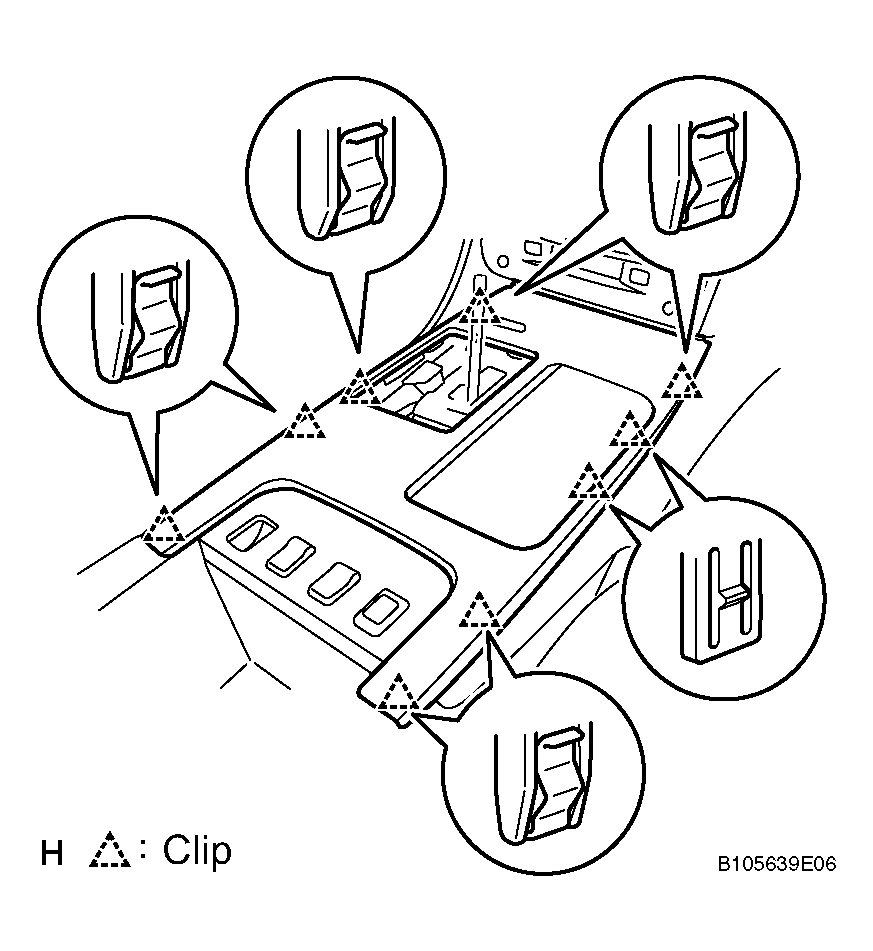

  Fig 6: Identifying Ash Receptacle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the shift lever knob and twist it in the direction indicated by the arrow.

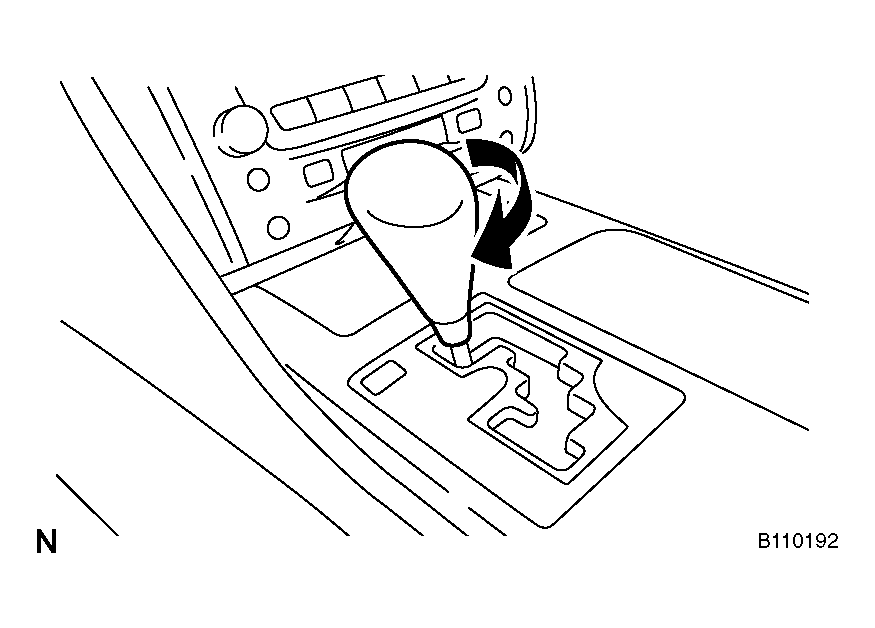

  Fig 7: Identifying Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT CONSOLE UPPER PANEL GARNISH
1. Attach the claws to install the garnish.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

Perform initialization (See INITIALIZATION ).
CHECK SRS WARNING LIGHT
Check the SRS warning light (See DIAGNOSIS SYSTEM ).
