Combination Meter: Installation

INSTALL COMBINATION METER GLASS

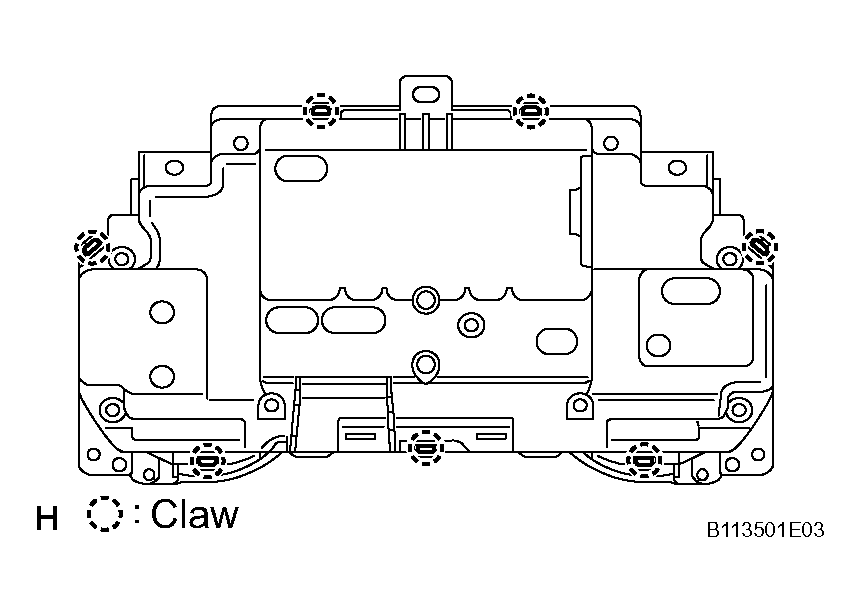

1. Install the glass and attach the 7 claws.

  Fig 1: Identifying Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

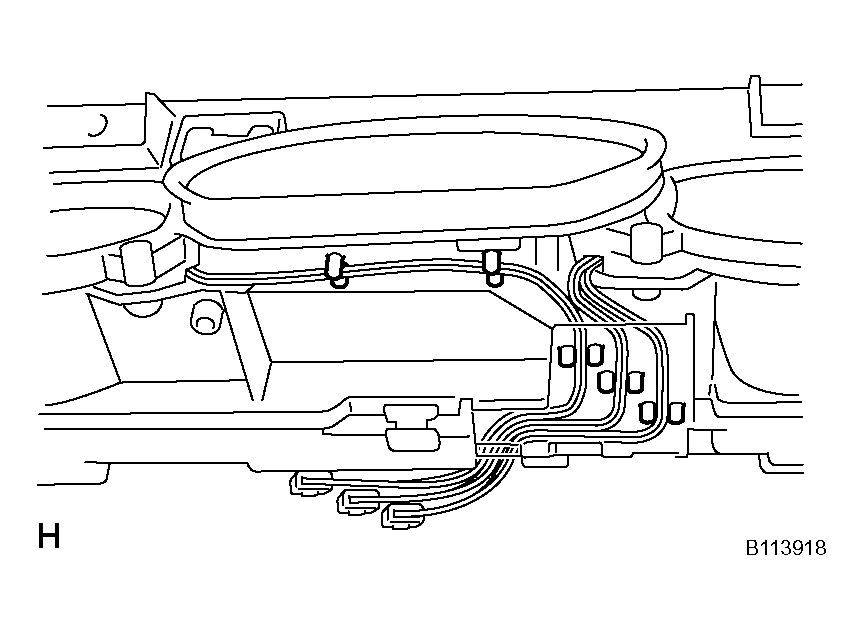

2. Install the combination meter glass's wire harness with the clamps.

  Fig 2: Identifying Combination Meter Glass'S Wire Harness With Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

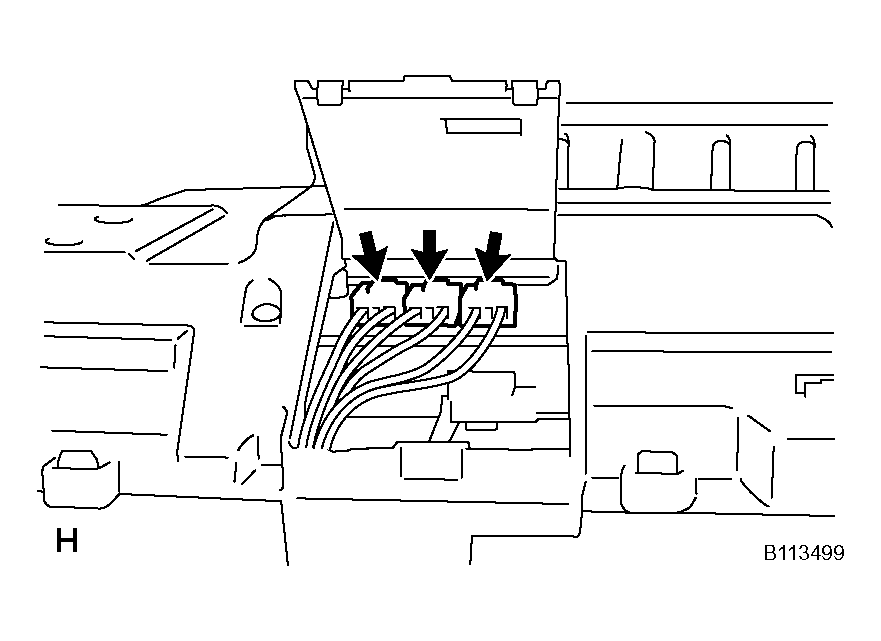

3. Connect the 3 connectors.

  Fig 3: Identifying Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Close the cover.

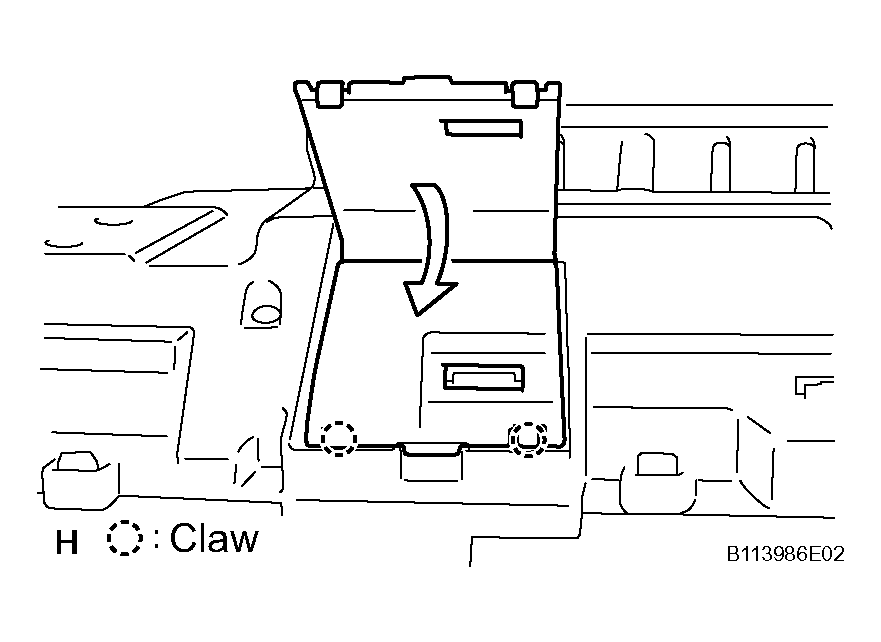

5. Attach the 2 claws.

  Fig 4: Closing Cover And Attaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.

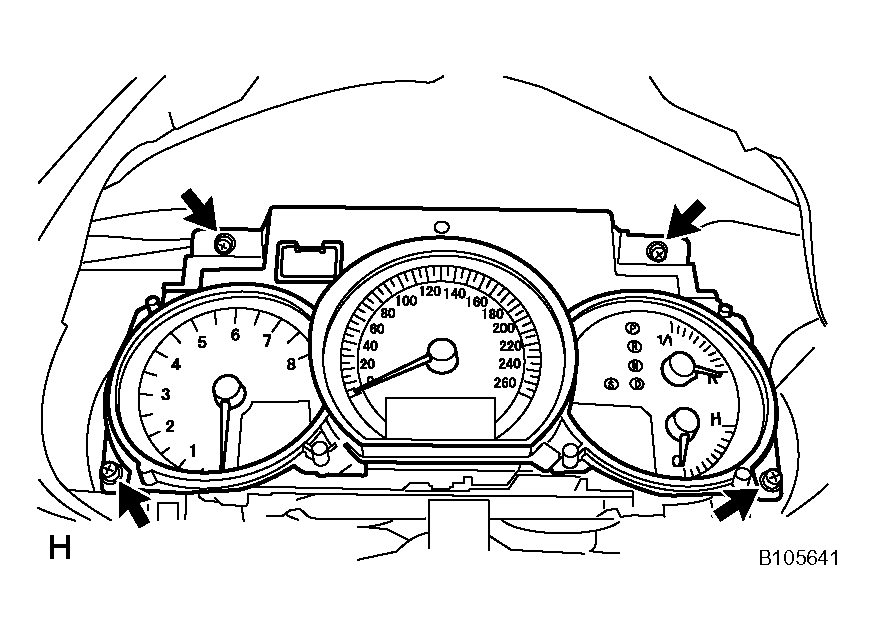

2. Install the combination meter with the 4 screws.

  Fig 5: Locating Combination Meter Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Connect the connector.

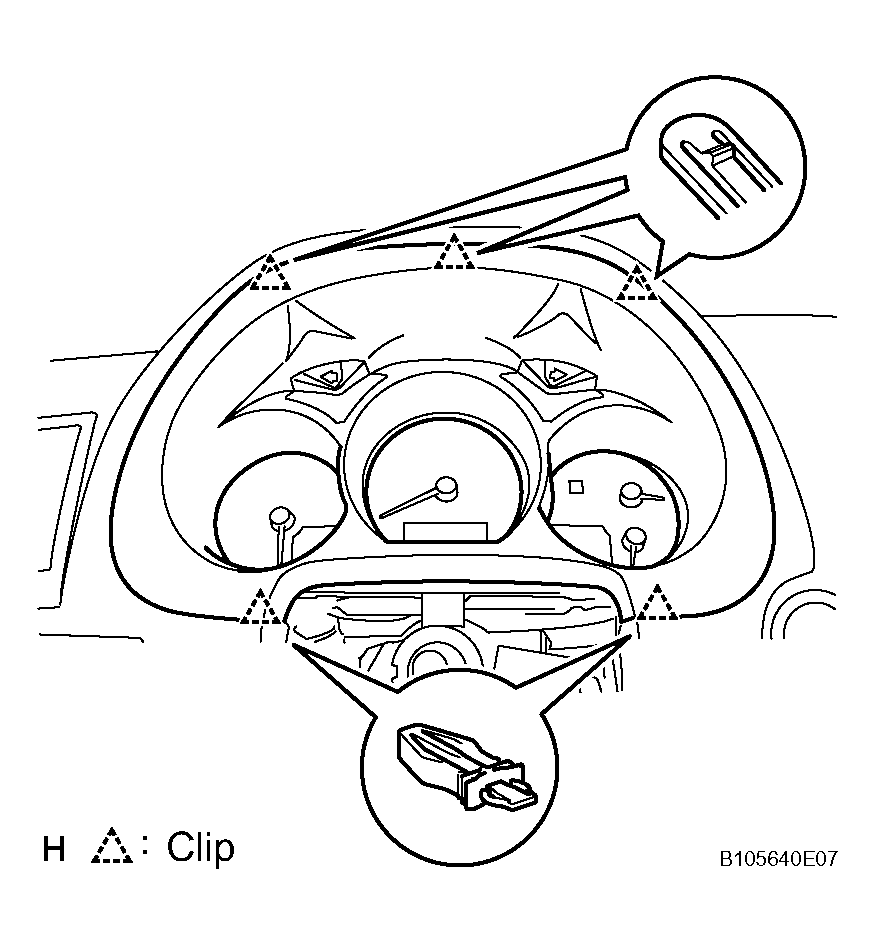

2. Attach the 5 clips to install the cluster finish panel.
INSTALL STEERING COLUMN COVER UPPER
For 3GR-FSE (see INSTALLATION )

For 3UZ-FE (see INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

Perform initialization (see INITIALIZATION ).
CHECK SRS WARNING LIGHT
Check SRS warning light (see PRECAUTION ).
