Combination Meter: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE STEERING COLUMN COVER UPPER
For 3GR-FSE (see REMOVAL )

For 3UZ-FE (see REMOVAL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Using a screwdriver, detach the 5 clips.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the cluster finish panel and then disconnect the connector.

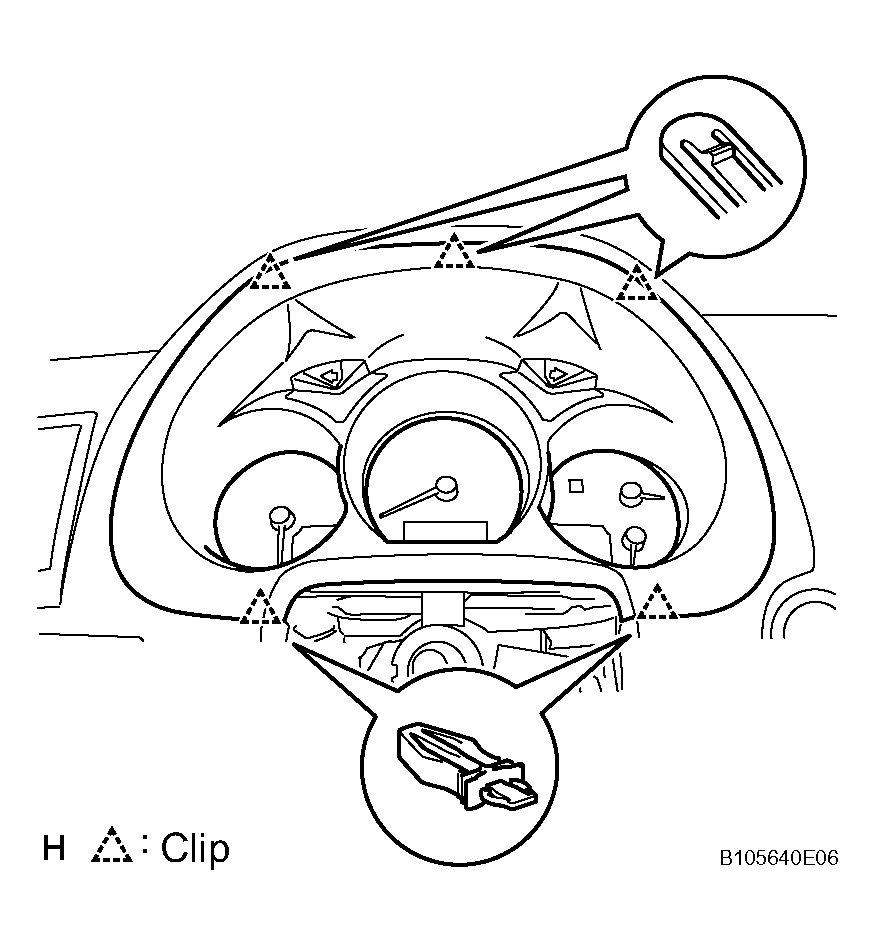

  Fig 1: Identifying Cluster Finish Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 4 screws.
2. Disconnect the connector and remove the combination meter.

  Fig 2: Locating Combination Meter Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS
1. Using a screwdriver, detach the 2 claws and open the cover.
  HINT:

  Tape the screwdriver tip before use.

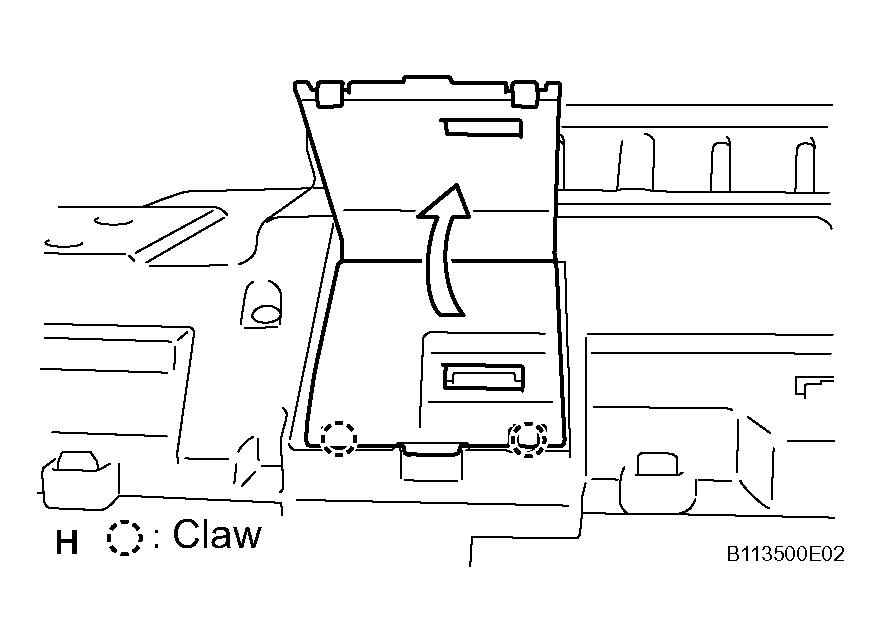

  Fig 3: Opening Cover And Detaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 3 connectors.

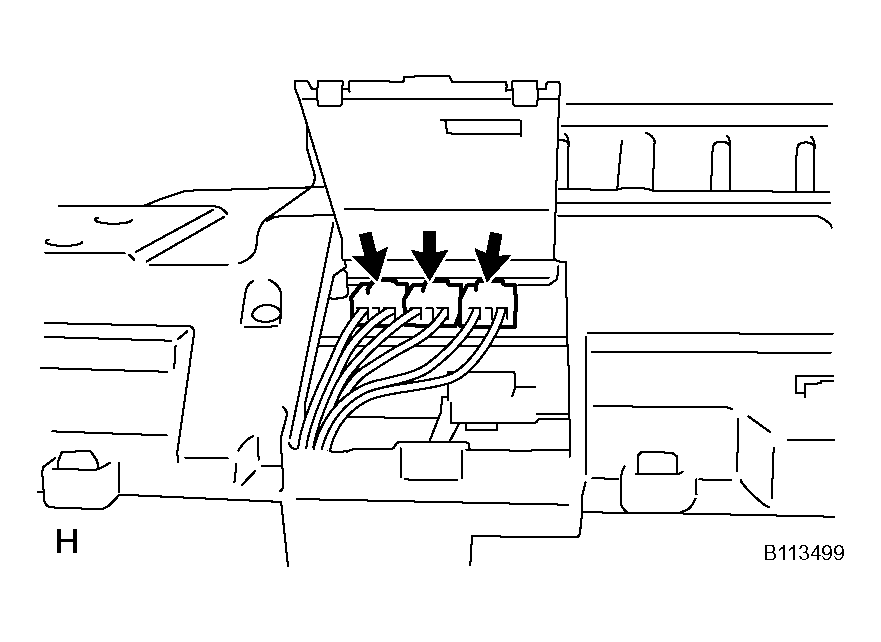

  Fig 4: Identifying Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Detach the 7 claws and remove the glass.

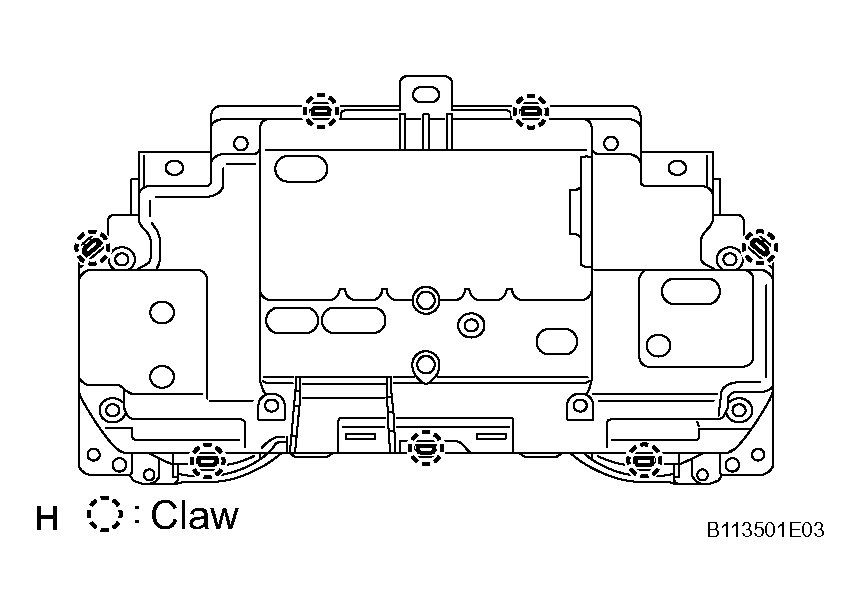

  Fig 5: Identifying Glass And Detaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
