VVT Sensor: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE V-BANK COVER (REMOVAL )
REMOVE VVT SENSOR (for Bank 1)
1. Disconnect the VVT sensor connector.
2. Disconnect the No. 5 ignition coil connector.
3. Disconnect the No. 5 injector connector.
4. Remove the bolt, and pry out the VVT sensor.
REMOVE VVT SENSOR (for Bank 2)
1. Disconnect the VVT sensor connector.

  Fig 1: Identifying No. 5 Ignition Coil Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the No. 4 ignition coil connector.
3. Disconnect the No. 4 injector connector.
4. Remove the bolt, and pry out the VVT sensor.

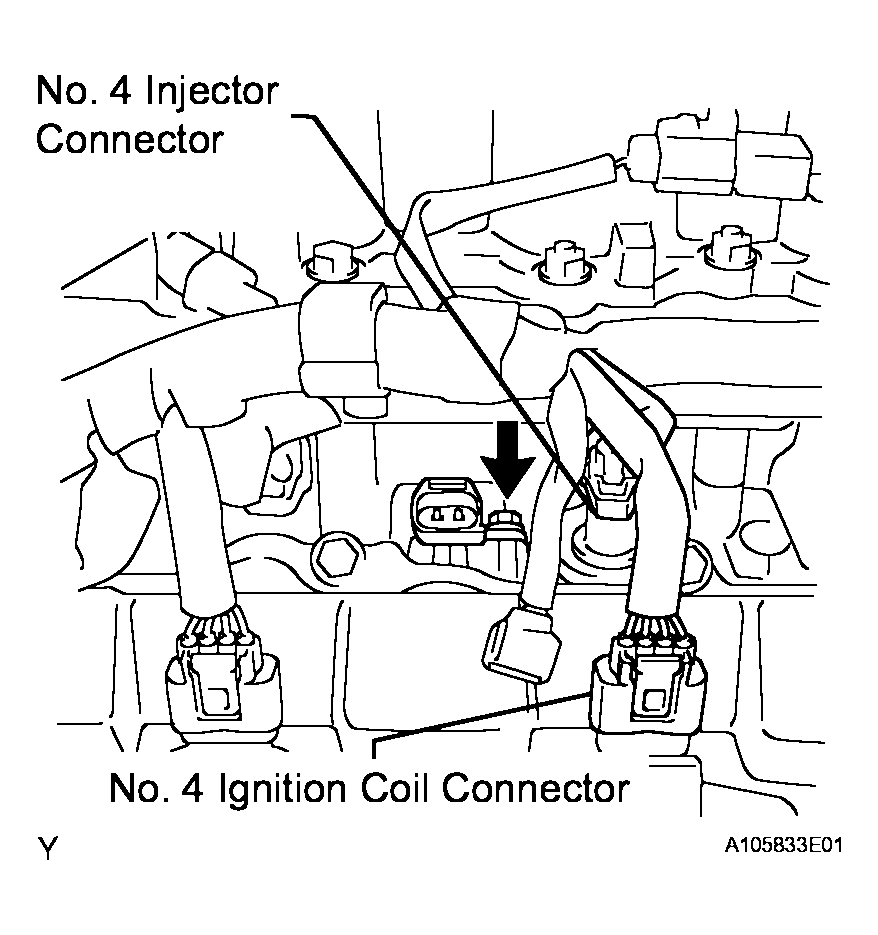

  Fig 2: Identifying No. 4 Ignition Coil Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
