Camshaft Timing Oil Control Valve Assembly: Installation

  1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH
    1. Install a new O-ring to the oil control valve.
    2. Install the oil control valve with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    3. Connect the oil control valve connector.

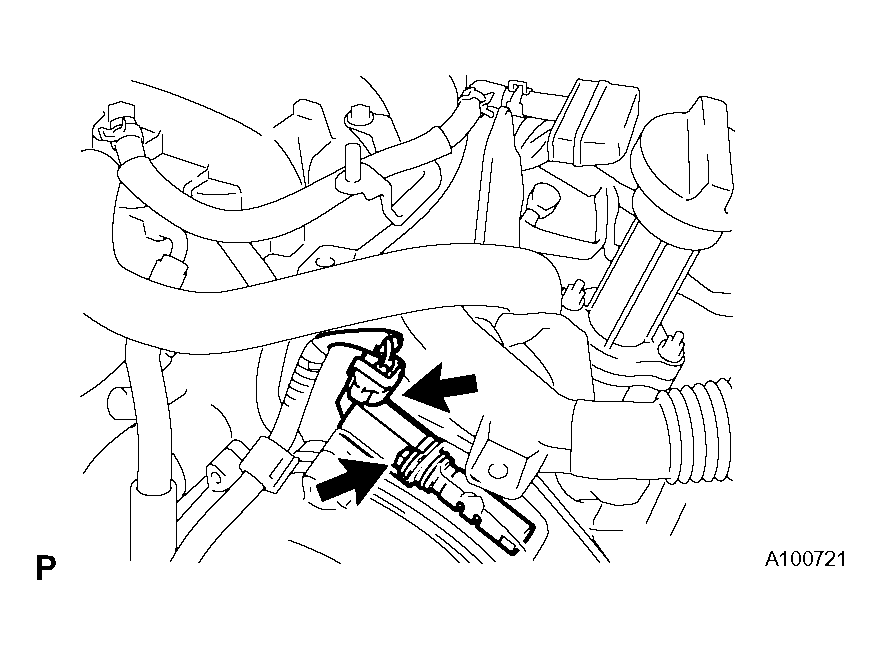

      Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly LH
      G04027192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH
    1. Install a new O-ring to the oil control valve.
    2. Install the oil control valve with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    3. Connect the oil control valve connector.

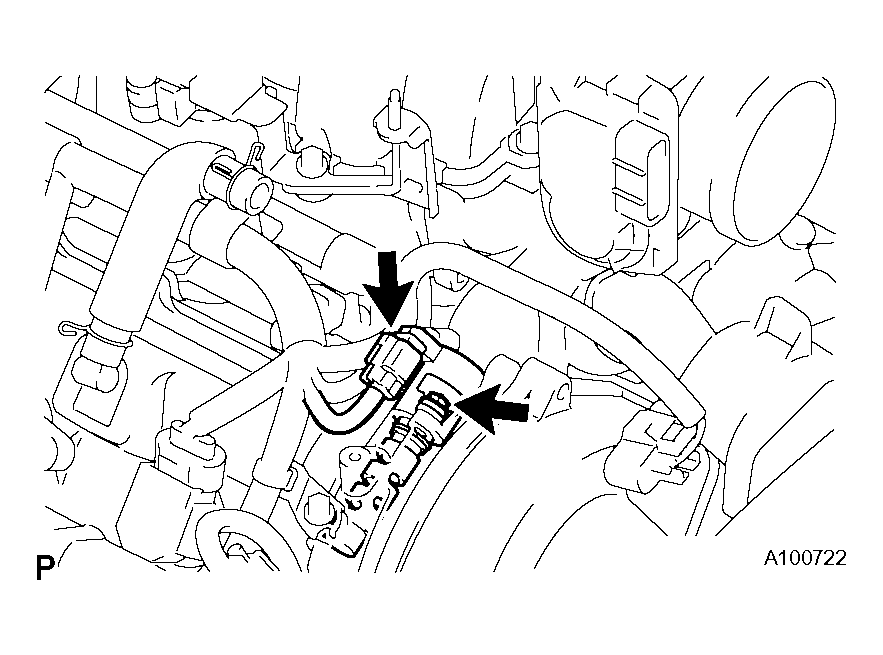

      Fig 2: Identifying Oil Control Valve Connector
      G04027193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INTAKE AIR CONNECTOR PIPE
    1. Install the intake air connector pipe with the bolt and 2 hose clamps.

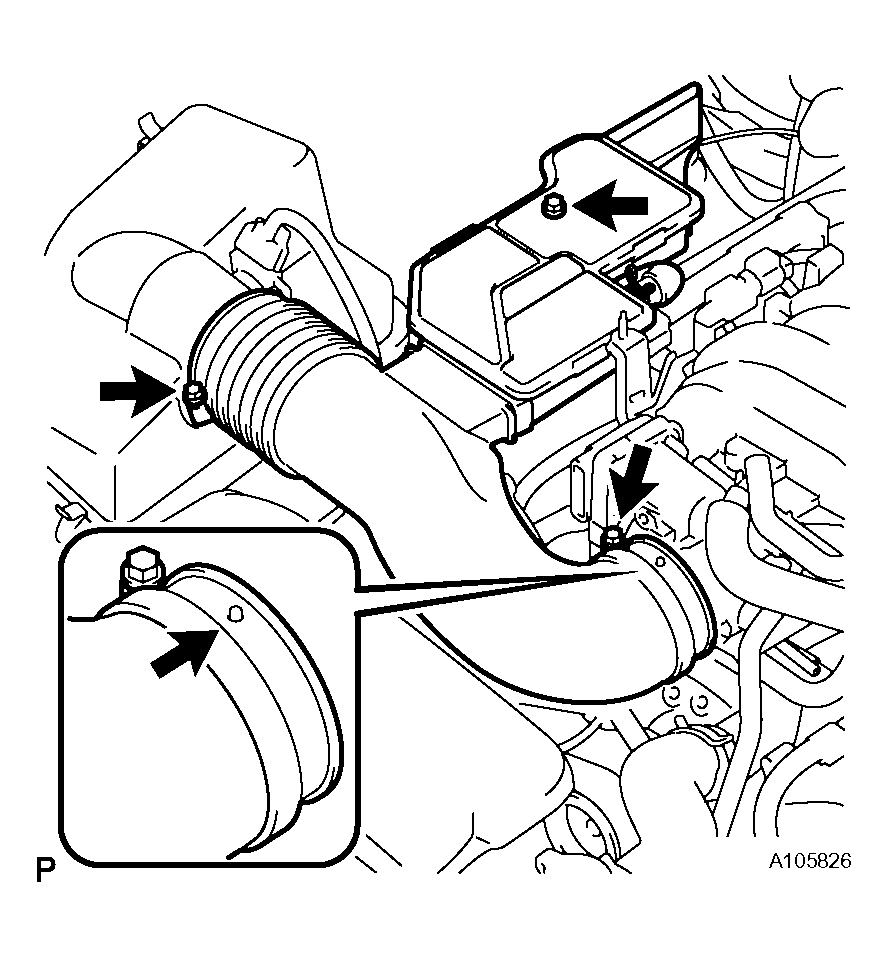

      Fig 3: Identifying Intake Air Connector Pipe With Bolt And Hose Clamps
      G04027194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf) for hose clamp

      5.0 N*m (51 kgf*cm, 44 in.*lbf) for bolt

    2. Connect the air hose and No. 1 ventilation hose.
  4. INSTALL NO. 1 AIR CLEANER INLET
    1. Install the air cleaner inlet and bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  5. INSTALL V-BANK COVER
    1. Install the V-bank cover with the 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  6. INSTALL ENGINE ROOM SIDE COVER LH
    1. Install the side cover with the 3 clips.

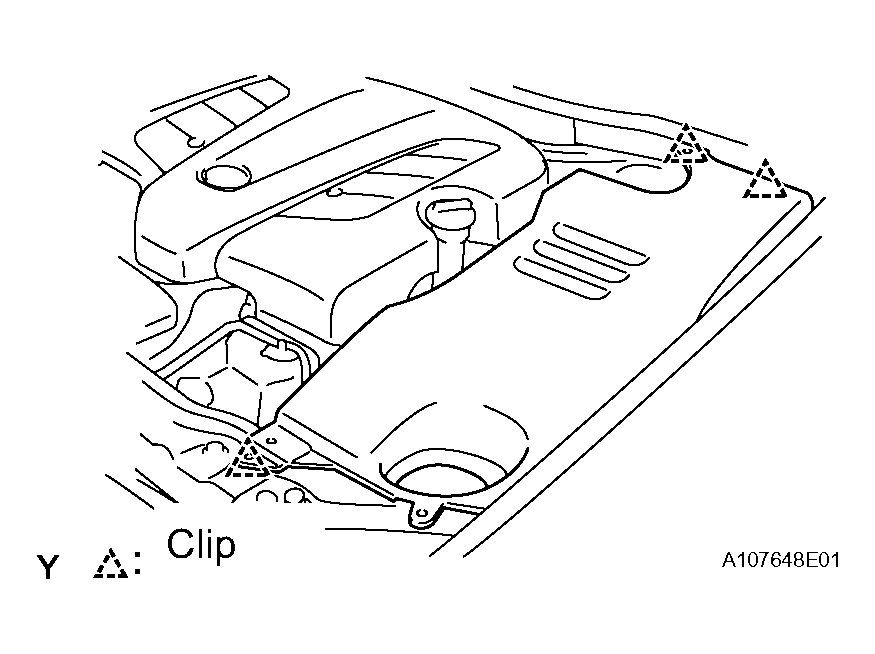

      Fig 4: Identifying Engine Room Side Cover LH
      G04027195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ENGINE ROOM SIDE COVER RH
    1. Install the side cover with the 2 clips and nut.

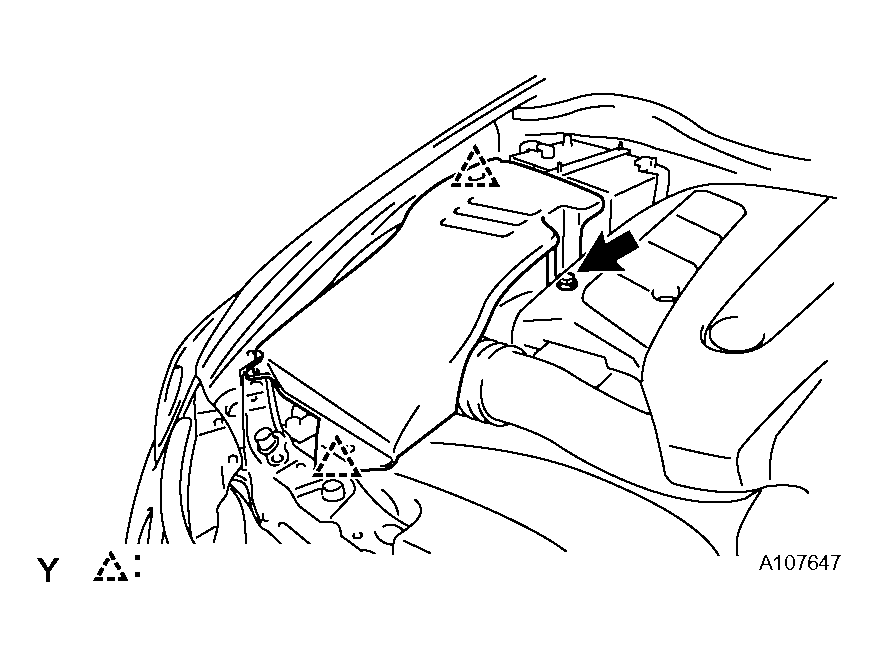

      Fig 5: Identifying Side Cover With Clips And Nut
      G04027196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL COOL AIR INTAKE DUCT SEAL
    1. Install the intake duct seal with the 7 clips.
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  10. PERFORM INITIALIZATION
    1. Perform initialization (INITIALIZATION ).

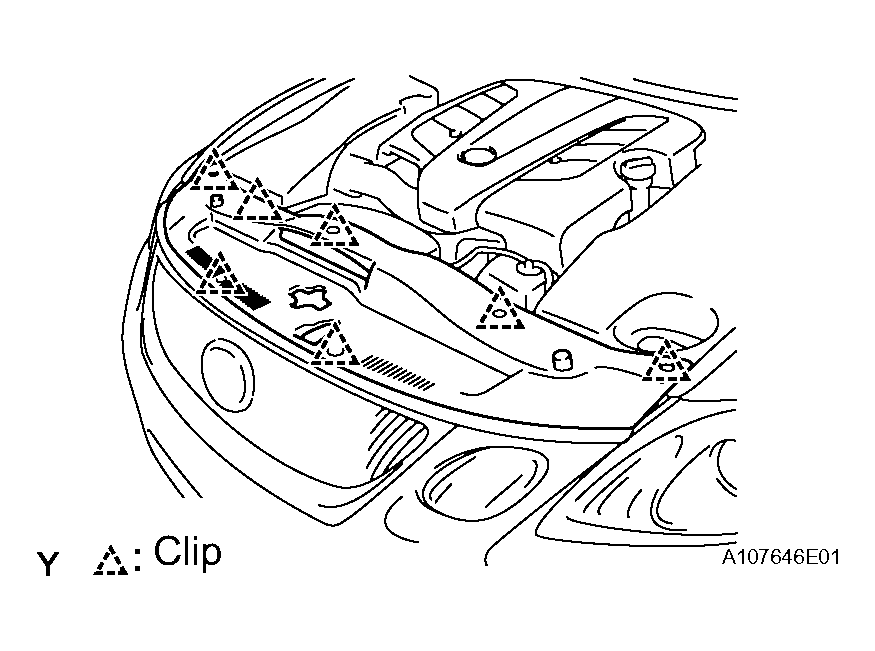

      Fig 6: Identifying Intake Duct Seal
      G04027197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
