Camshaft Timing Oil Control Valve Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE COOL AIR INTAKE DUCT SEAL
1. Remove the 7 clips and intake duct seal.

  Fig 1: Identifying Clips And Intake Duct Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE ROOM SIDE COVER RH
1. Remove the nut, 2 clips and side cover.

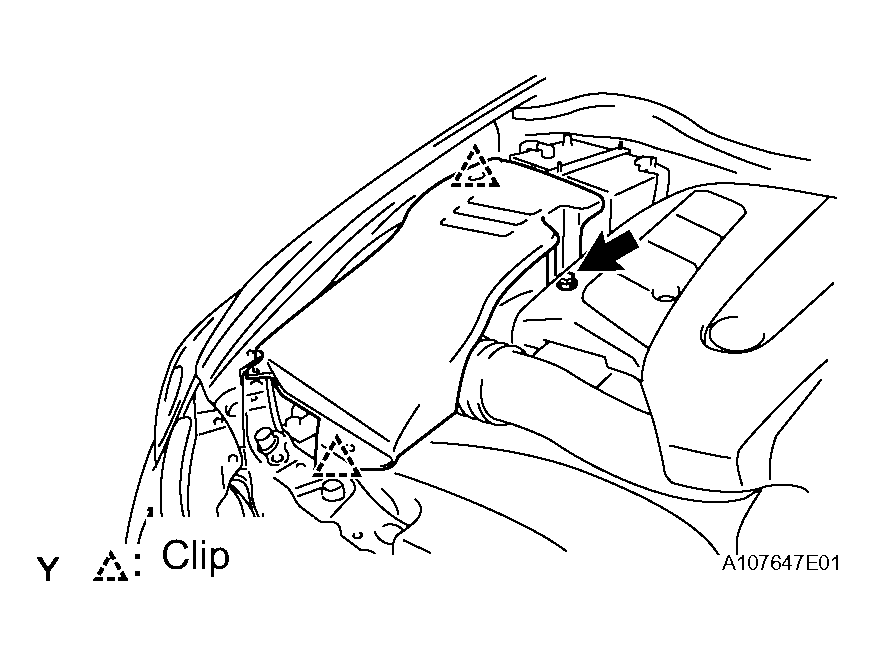

  Fig 2: Identifying Engine Room Side Cover RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ENGINE ROOM SIDE COVER LH
1. Remove the 3 clips and side cover.

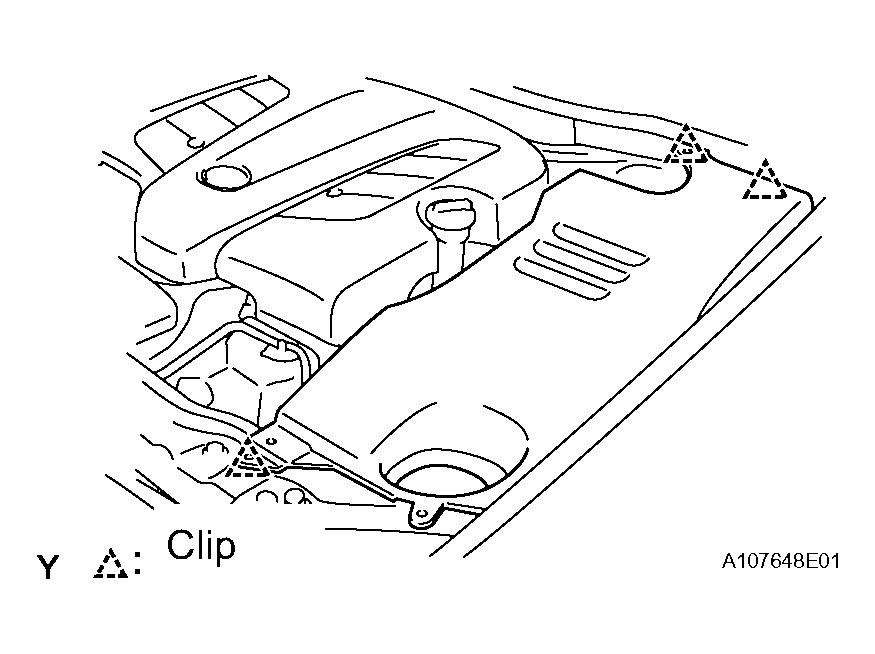

  Fig 3: Identifying Engine Room Side Cover LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE V-BANK COVER
1. Remove the 2 nuts and V-bank cover.
REMOVE NO. 1 AIR CLEANER INLET
1. Remove the bolt and No. 1 air cleaner inlet.
REMOVE INTAKE AIR CONNECTOR PIPE ( 8 )
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.

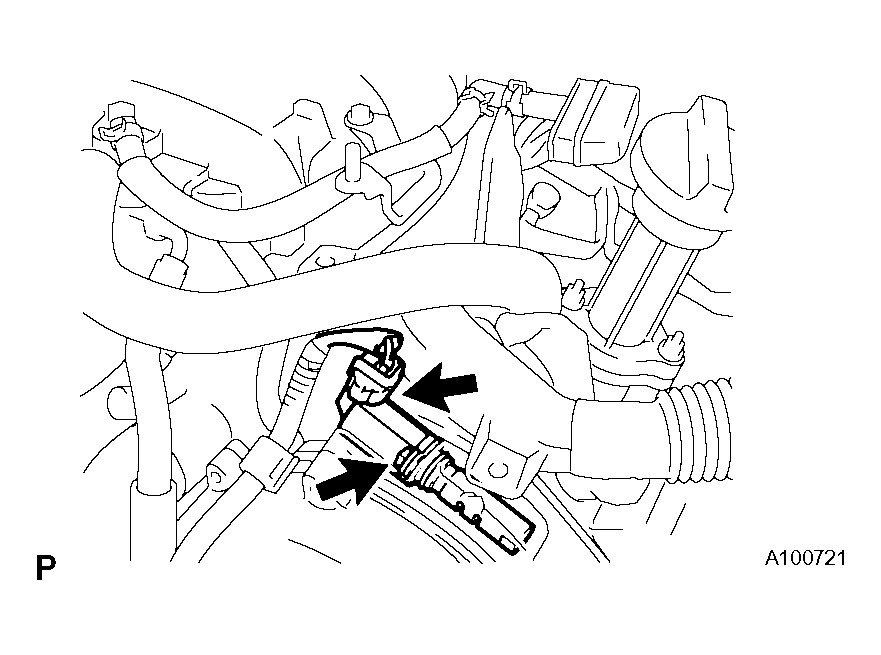

  Fig 4: Identifying Camshaft Timing Oil Control Valve Assembly RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH
1. Disconnect the oil control valve connector.
2. Remove the bolt and oil control valve.
3. Remove the O-ring from the oil control valve.

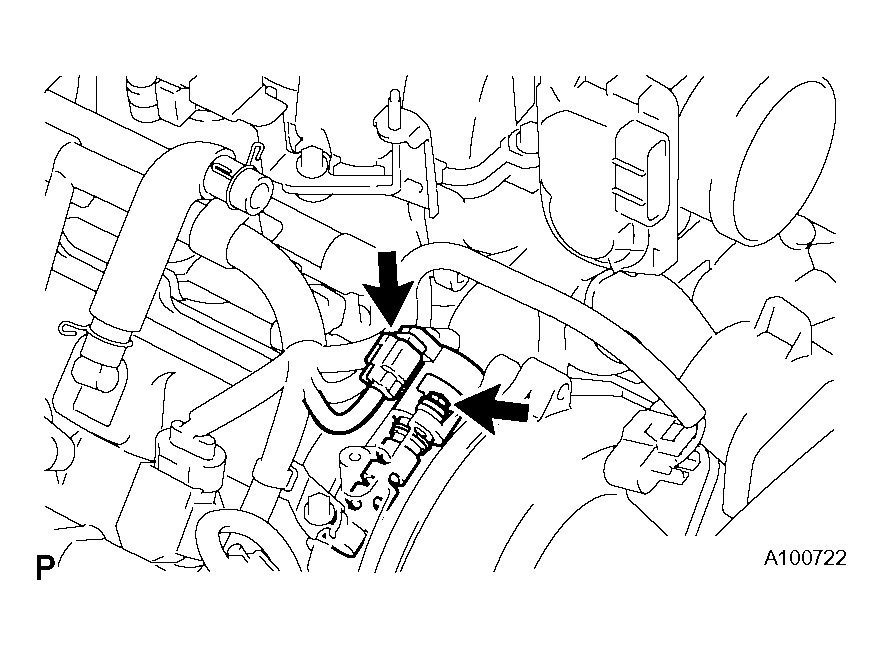

  Fig 5: Identifying Camshaft Timing Oil Control Valve Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
