Mass Air Flow Meter: Installation

INSTALL INTAKE AIR FLOW METER
1. Install a new O-ring to the MAF meter.
2. Install the MAF meter with the 2 screws.
3. Connect the MAF meter connector.

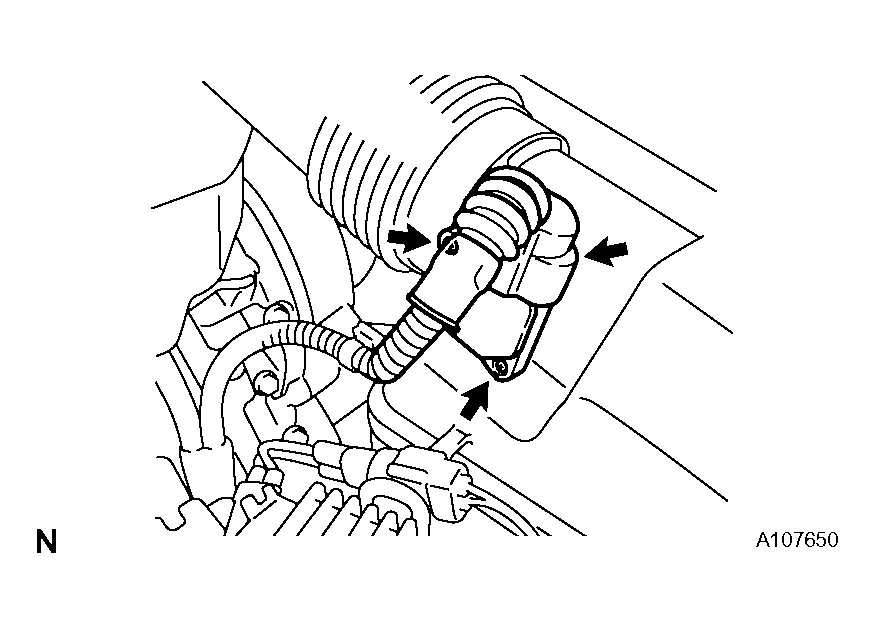

  Fig 1: Identifying MAF Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER
1. Install the V-bank cover with the 2 nuts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
INSTALL ENGINE ROOM SIDE COVER RH ( 7 )
INSTALL COOL AIR INTAKE DUCT SEAL ( 8 )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
