Child Restraint Seat Tether Anchor: Components

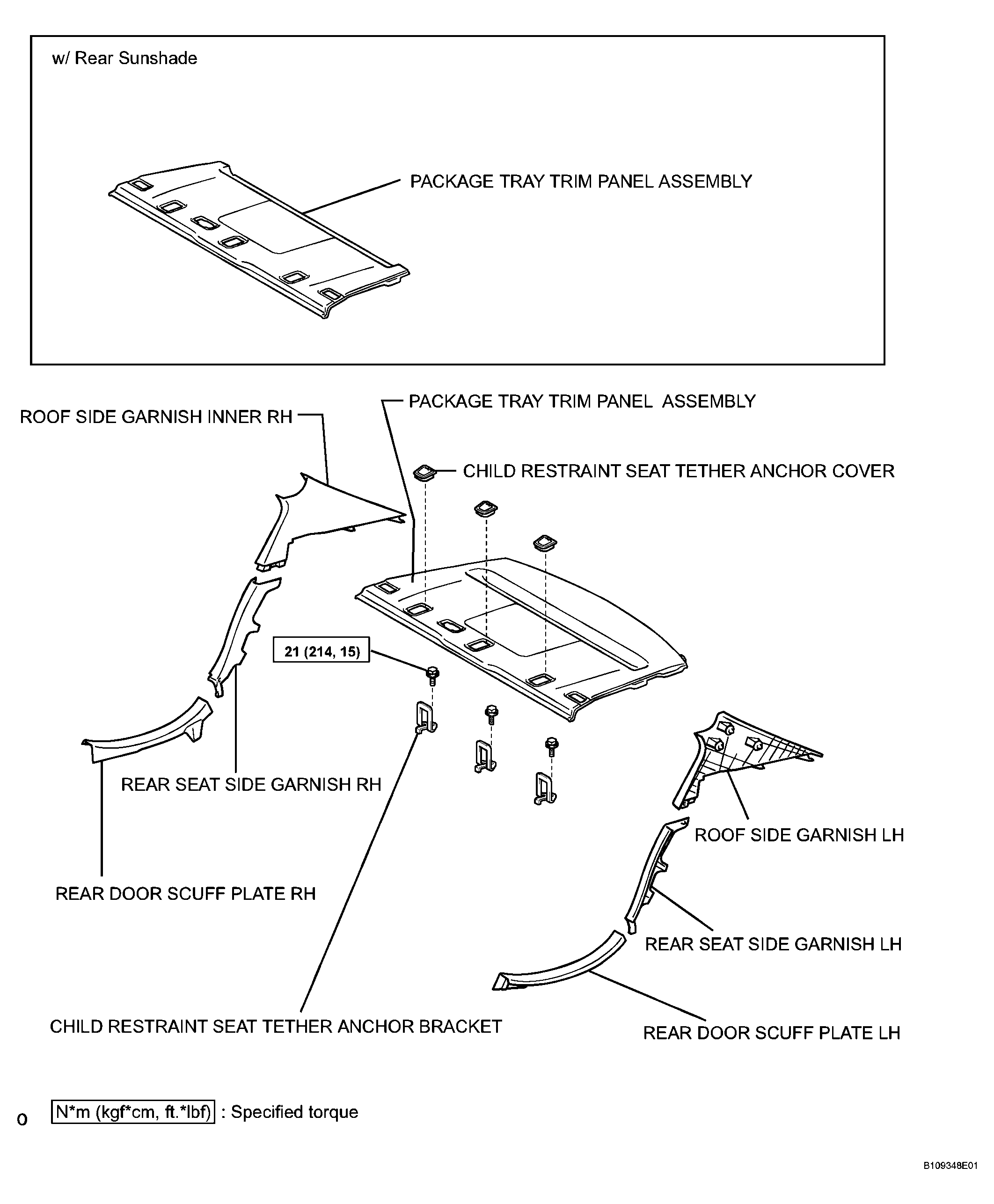

Fig 1: Exploded View Of Child Restraint Seat Tether Anchor With Torque Specifications (1 Of 2)
G04031119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Child Restraint Seat Tether Anchor With Torque Specifications (2 Of 2)
G04031120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
