Rear Seat Inner Belt Assembly: Components

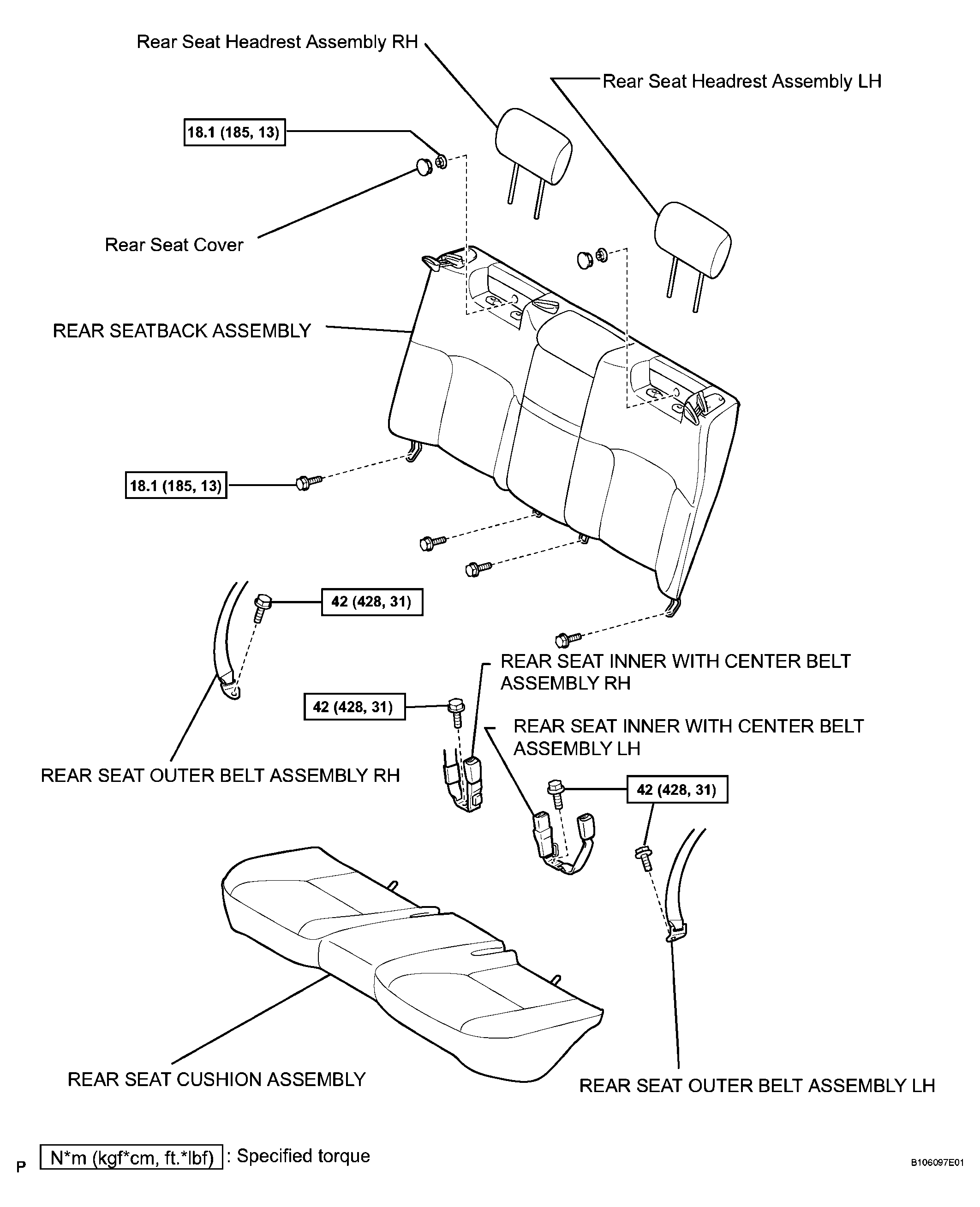

Fig 1: Exploded View Of Rear Seat Inner Belt Assembly With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Rear Seat Inner Belt Assembly (2 Of 3)

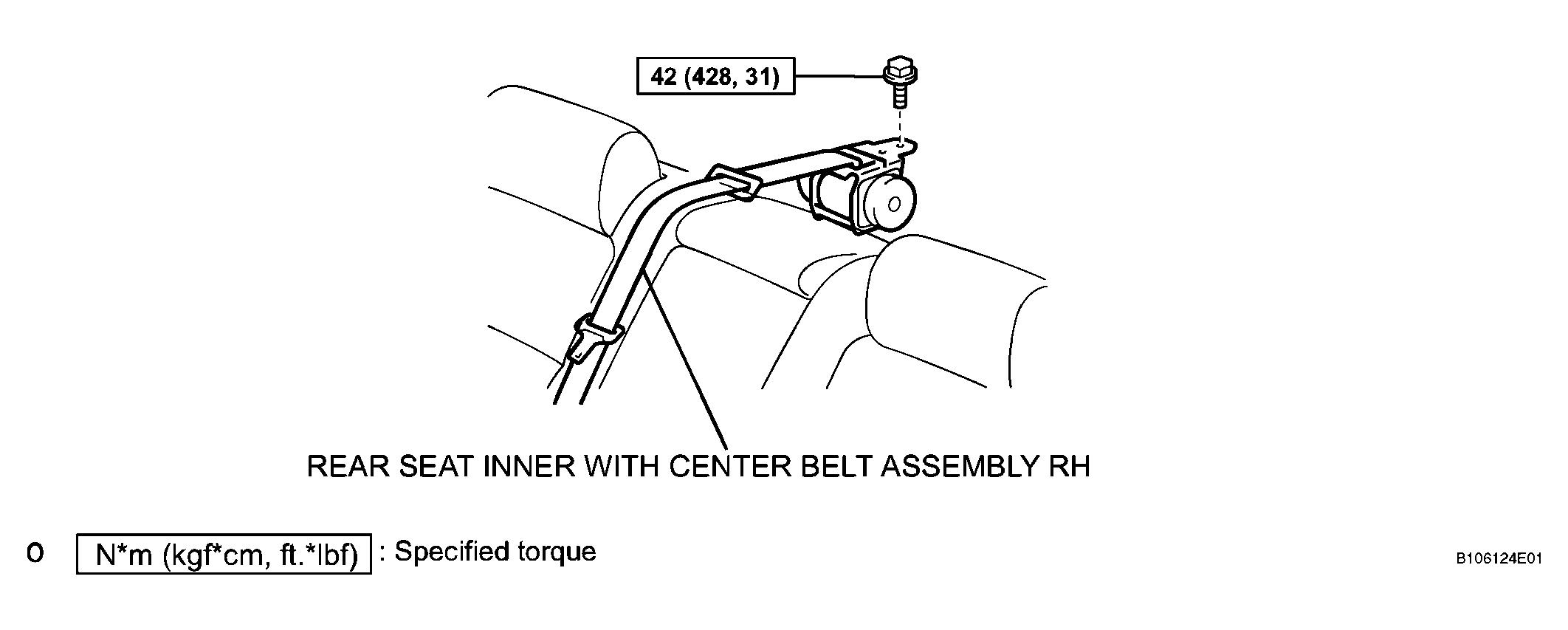

Fig 3: Exploded View Of Rear Seat Inner Belt Assembly With Torque Specifications (3 Of 3)
